Schneider Electric Square D HOM612L100SCP Homeline Load Center

1. Introduksjon

This manual provides essential information for the safe and proper installation, operation, and maintenance of the Square D Homeline Load Center, Model HOM612L100SCP. This unit is designed for indoor use as a 100-Amp, 6-space, 12-circuit electrical panel with fixed main lugs. Adherence to these instructions and all applicable local and national electrical codes is critical for safety and optimal performance.

Figure 1: Square D Homeline Load Center (HOM612L100SCP) with cover.

2. Sikkerhetsinformasjon

FARE: FARE FOR ELEKTRISK STØT, EKSPLOSJON ELLER BUEBLINK.

• Dette utstyret må kun installeres og vedlikeholdes av kvalifisert elektrisk personell.
• Slå av all strøm som forsyner dette utstyret før du arbeider på eller inne i utstyret.
• Bruk alltid et voltage sensorenheten for å bekrefte at strømmen er av.
• Replace all devices, doors, and covers before turning on power.
• Unnlatelse av å følge disse instruksjonene vil resultere i død eller alvorlig skade.

Always consult the wiring diagram provided with the unit for specific connection details and voltage ratings. Ensure all connections are properly torqued according to specifications.

3. Spesifikasjoner

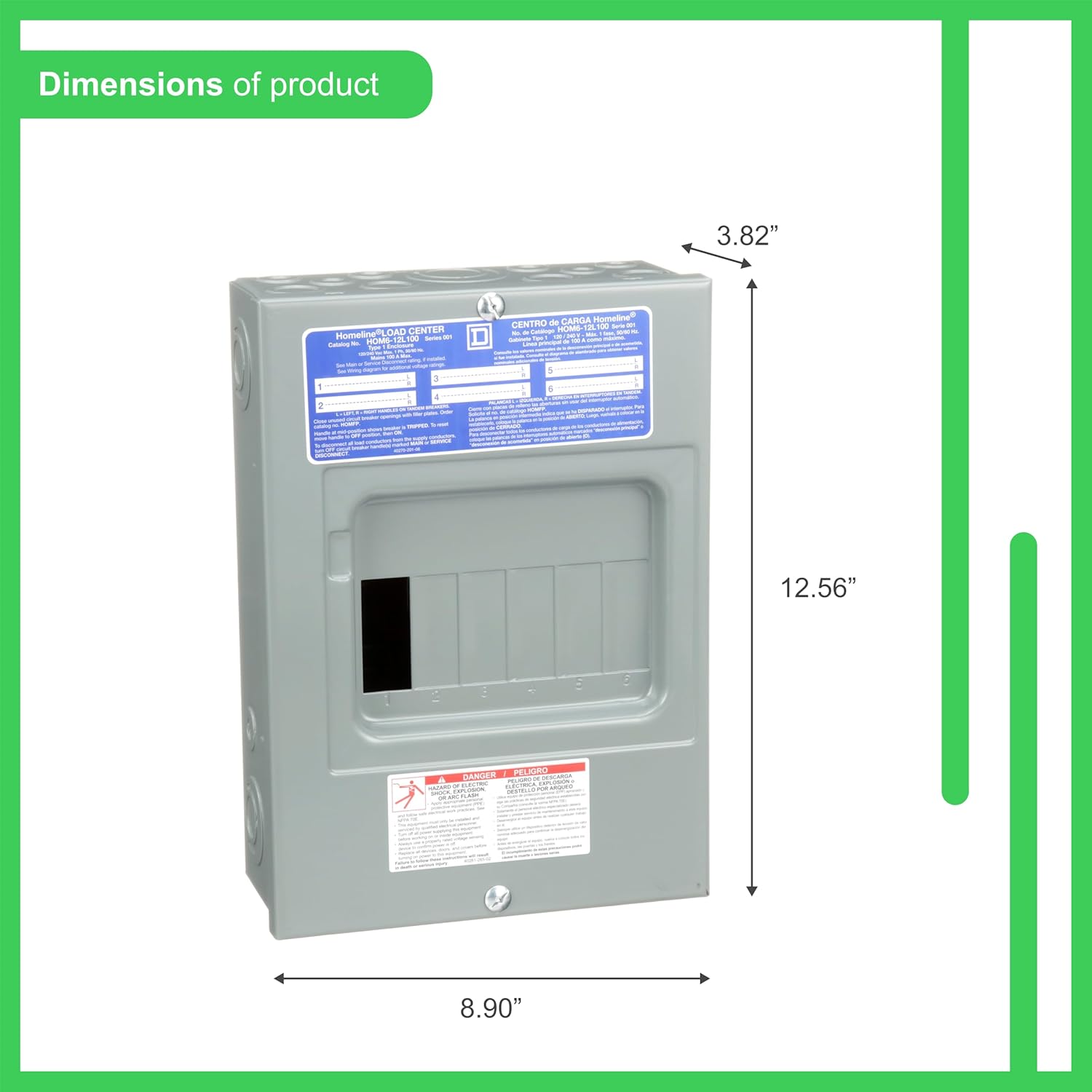

Figure 2: Product dimensions of the Homeline Load Center.

4. Oppsett og installasjon

Installation of this load center should only be performed by a qualified electrician in accordance with all national and local electrical codes. Ensure power is disconnected at the main service panel before beginning any work.

4.1 Montering av kabinettet

The HOM612L100SCP load center can be surface mounted or flush mounted. For flush mounting, an appropriate flush mounting cover kit (not included) is required. Remove the small mounting knockouts on the back of the enclosure. Fasten the enclosure to the wall using appropriate fasteners through the mounting holes.

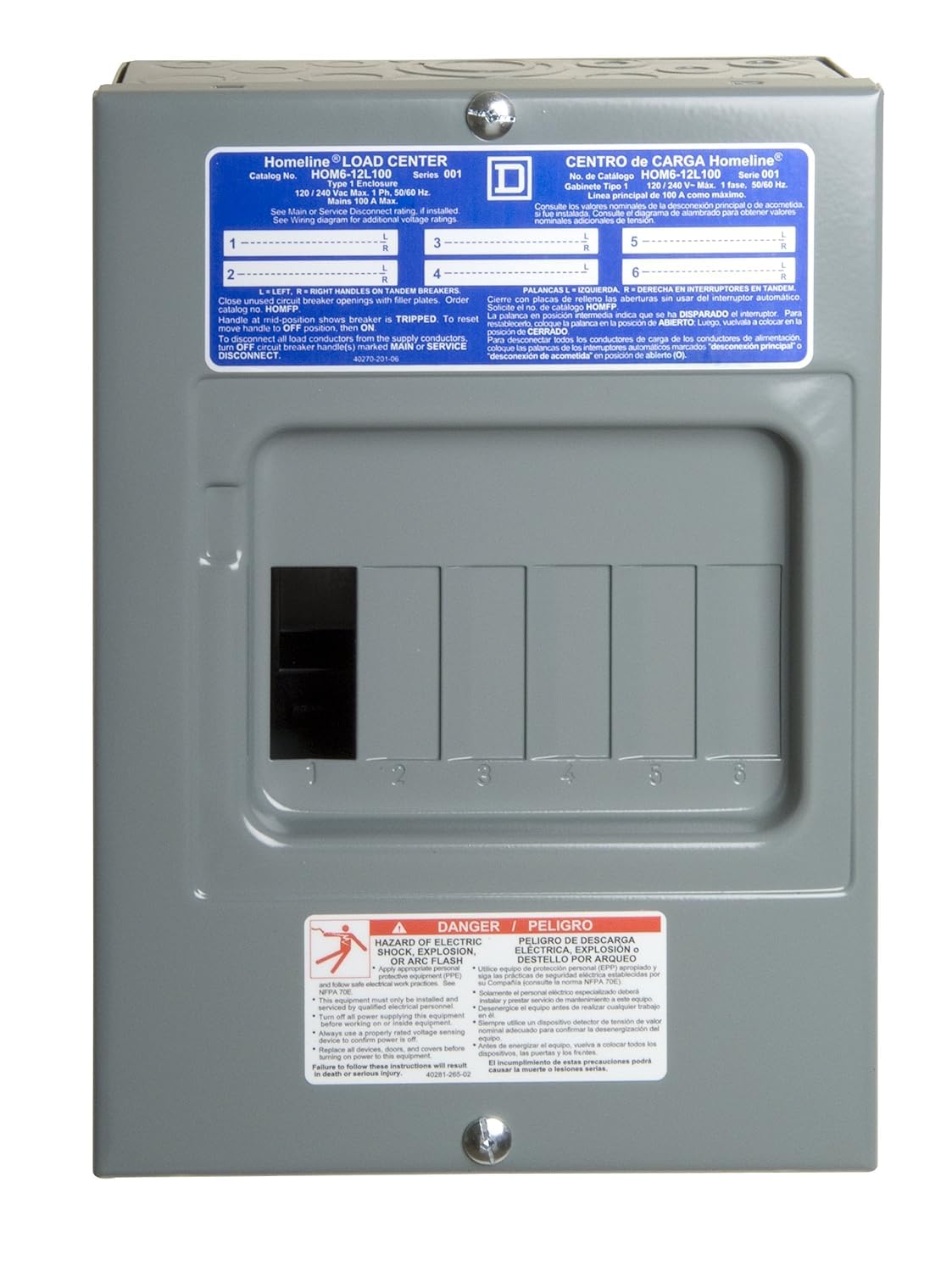

Figur 3: Foran view of the load center, showing the label with model information and circuit layout.

4.2 Kablingstilkoblinger

The load center features main lugs for incoming power and a neutral bus bar. A separate ground bar (e.g., PK7GTA-1) is required for service entrance applications or if used as a sub-panel where the neutral and ground are separated.

1. Hovedstrømtilkobling: Connect the main incoming hot conductors to the main lugs at the top of the panel. Torque connections to the values specified on the label inside the enclosure.
2. Nøytral tilkobling: Connect the main neutral wire to the neutral bus bar. Ensure proper bonding or isolation as required by local codes.
3. Jording: If used as a service entrance, connect the service ground conductor to the neutral bus bar. For sub-panel applications, install a separate ground bar and connect the ground conductor to it, isolating it from the neutral bus.
4. Branch Circuit Breakers: Install Square D Homeline circuit breakers into the available spaces. Connect the branch circuit conductors to the appropriate circuit breakers. Close unused circuit breaker openings with filler plates.

Figur 4: Intern view of the load center, showing main lugs and neutral bus bar.

Figur 5: En annen intern view highlighting the main lugs and bus bar configuration.

5. Bruksanvisning

The Homeline Load Center functions as a distribution point for electrical circuits within a building. Each circuit is protected by a circuit breaker.

• Turning Circuits ON/OFF: To turn a circuit ON, move the circuit breaker handle to the 'ON' position. To turn a circuit OFF, move the handle to the 'OFF' position.
• Tilbakestilling av en utløst sikring: If a circuit breaker trips (indicating an overload or fault), its handle will move to a mid-position. To reset, first move the handle fully to the 'OFF' position, then to the 'ON' position. If the breaker immediately trips again, do not attempt to reset it; investigate the cause of the fault.
• Main Disconnect: To disconnect all load conductors from the supply, turn OFF the circuit breaker handle(s) marked 'MAIN' or 'SERVICE DISCONNECT'.

6. Vedlikehold

Regular maintenance helps ensure the safe and reliable operation of your load center. All maintenance should be performed by qualified personnel with power disconnected.

• Periodisk inspeksjon: Annually inspect the load center for signs of wear, corrosion, loose connections, or overheating (discoloration of wires or components).
• Rengjøring: Keep the interior of the load center clean and free of dust, debris, and moisture. Use a dry, non-conductive brush or vacuum.
• Stram koblinger: Periodically check and re-torque all electrical connections, especially main lugs and neutral/ground bus bar screws, to prevent loose connections that can cause overheating.
• Fyllplater: Ensure all unused circuit breaker openings are covered with appropriate filler plates to maintain enclosure integrity and prevent accidental contact with live parts.

7. Feilsøking

If you experience issues with your load center, consider the following common troubleshooting steps. Always ensure power is OFF before inspecting or working on the unit.

• Frequent Breaker Tripping: This often indicates an overloaded circuit or a short circuit. Reduce the load on the circuit or inspect for damaged wiring or appliances.
• No Power to a Circuit: Check if the circuit breaker is in the 'TRIPPED' or 'OFF' position. Reset if necessary. If power is still absent, check connections or consult a qualified electrician.
• Overheating Smell/Discoloration: Immediately disconnect power and contact a qualified electrician. This indicates a serious electrical issue that requires professional attention.

8. Garanti og støtte

This Schneider Electric product comes with a standard manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty documentation included with your purchase or visit the official Schneider Electric website. For technical support, installation assistance, or to report product issues, please contact Schneider Electric customer service.

Note: Returns will not be honored on this closeout item, as per product listing information. Please verify product suitability before purchase.

9. Kontaktinformasjon

For ytterligere hjelp eller forespørsler, vennligst besøk Schneider Electric-butikken på Amazon eller deres offisielle bedrifts webnettstedet.
