Blackburn Mars 4.0 Bicycle Taillight Instruction Manual

1. Introduksjon

Takk for kjøpetasing the Blackburn Mars 4.0 Bicycle Taillight. This manual provides important information regarding the installation, operation, and maintenance of your new taillight. Please read this manual thoroughly before use and retain it for future reference.

Pakkeinnhold:

• Blackburn Mars 4.0 Taillight Unit
• Mounting Bracket (for seatpost/seatstay or rack)
• 2 x AAA batterier

2. Sikkerhetsinformasjon

ADVARSEL:

• Always ensure the taillight is securely mounted before riding.
• Do not look directly into the LED light as it can cause temporary vision impairment.
• This taillight is designed to increase your visibility to others. It does not replace the need for safe cycling practices.
• Replace batteries promptly when the light dims to maintain optimal visibility.
• Kast brukte batterier på en ansvarlig måte i henhold til lokale forskrifter.

3. Oppsett

3.1 Installasjon av batteri

The Mars 4.0 taillight requires two AAA batteries (included). No tools are required for battery installation.

1. Locate the battery compartment cover on the rear of the taillight unit.
2. Gently pry open the cover.
3. Sett inn to AAA-batterier, og sørg for at polariteten (+/-) er riktig veiledet som angitt inni batterirommet.
4. Lukk batteridekselet godt til det klikker på plass.

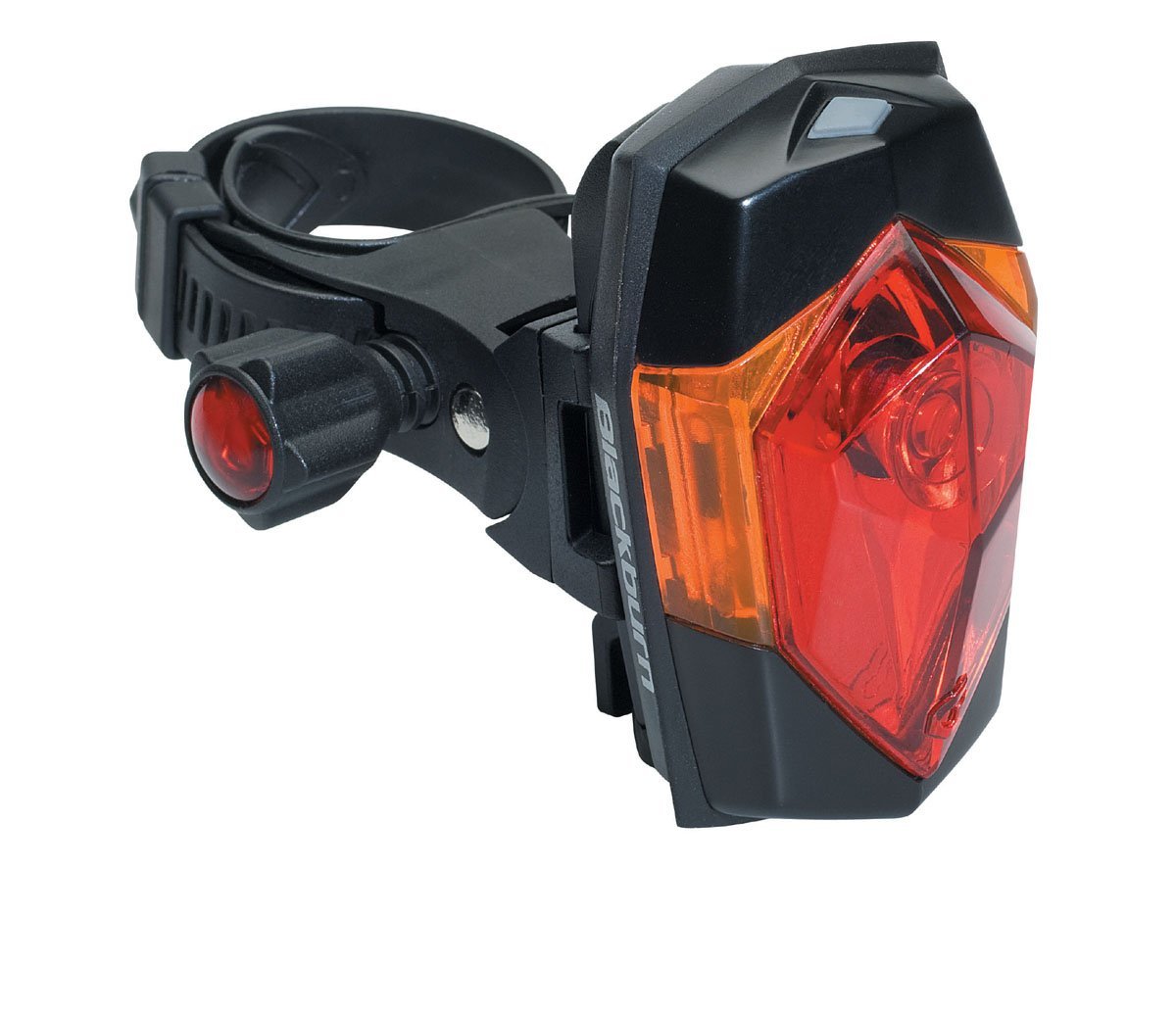

Image: The Blackburn Mars 4.0 Taillight, showing its compact design and the location of the battery compartment on the rear. The red knob for mounting adjustment is also visible.

3.2 Mounting the Taillight

The Mars 4.0 features a versatile mounting system suitable for seatposts, seatstays, or racks.

1. Fest monteringsbraketten:
   • For seatpost/seatstay mounting: Use the adjustable strap to secure the bracket to your bicycle's seatpost or seatstay. Tighten the red knob until the bracket is firm and does not rotate.
   • For rack mounting: Utilize the provided rack adaptor (if applicable) to attach the bracket to your bicycle's rear rack.
2. Insert the Taillight Unit: Slide the Mars 4.0 taillight unit onto the mounting bracket until it securely locks into place. Ensure the light faces directly backward.
3. Juster vinkel: The light can be adjusted to face different angles by loosening the red knob, positioning the light, and then re-tightening the knob.

4. Bruksanvisning

The Mars 4.0 taillight has a single button for power and mode selection.

1. Strøm på: Press the power button once to turn on the light. It will typically start in steady mode.
2. Endre moduser: Press the power button repeatedly to cycle through the available lighting modes:
   • Steady (1 Watt Ultra Bright Red LED)
   • Flash (1 Watt Ultra Bright Red LED with 2 Amber Side LEDs)
3. Slå av: Press and hold the power button for approximately 2 seconds to turn off the light.

The taillight features a 1 Watt Ultra Bright Red LED and two amber side LEDs for enhanced visibility from multiple angles.

5. Vedlikehold

5.1 Rengjøring

Wipe the taillight with a damp cloth to remove dirt and grime. Do not use abrasive cleaners or solvents, as these may damage the casing eller linse.

5.2 Batteribytte

When the light begins to dim or stops functioning, it is time to replace the batteries. Follow the "Battery Installation" steps in Section 3.1 to replace the two AAA batteries. Always replace both batteries at the same time with new ones.

NOTE:

Remove batteries if the light will not be used for an extended period to prevent leakage and potential damage to the unit.

6. Feilsøking

• Lyset slår seg ikke på:
  • Check if batteries are inserted correctly with the correct polarity.
  • Bytt ut batteriene med nye.
  • Sørg for at batteridekselet er helt lukket.
• Lyset er svakt eller flimrer:
  • Batteries are low; replace them with new AAA batteries.
  • Check for corrosion in the battery compartment. Clean contacts if necessary.
• Light detaches from bracket:
  • Ensure the light unit is fully slid onto the bracket until it locks.
  • Verify the mounting bracket is securely tightened to the bicycle.

7. Spesifikasjoner

8. Garanti og støtte

Blackburn products are designed for durability and performance. For specific warranty information and support, please refer to the official Blackburn webnettstedet eller kontakt kundeservicen deres direkte. Ta vare på kjøpsbeviset for garantikrav.

For ytterligere hjelp, besøk: www.blackburndesign.com
