Fender Bassman 810 Neo Cab Guitar Amplifier Cabinet Instruction Manual

1. Introduksjon

Thank you for choosing the Fender Bassman 810 Neo Cab Guitar Amplifier Cabinet. This cabinet is engineered to deliver a powerful and clear bass sound, suitable for large venues and demanding performances. Its design combines classic Fender aesthetics with modern, lightweight construction for ease of transport and setup.

Key features of your Bassman 810 Neo Cab include:

• Eight 10-inch Fender Special Design Eminence Neodymium speakers.
• Integrated compression driver horn with attenuator for precise high-frequency control.
• Robust power handling: 2000 Watts program, 1000 Watts continuous at 4 ohms.
• Lightweight plywood enclosure with vintage late-’60s/early-’70s Fender "blackface" styling.
• Speakon connectors for secure and reliable connections.
• Fixed casters and heavy-duty handles for convenient hand-truck operation and transport.
• Rear glide rails for smoother loading and unloading.

This manual provides essential information for the safe and optimal use of your amplifier cabinet. Please read it thoroughly before operation.

2. Sikkerhetsinformasjon

Følg alltid følgende sikkerhetsregler for å unngå elektrisk støt, brann eller skade.

• Strømkilde: Connect the cabinet only to the specified power supply voltage. Sørg for at strømledningen er uskadet og riktig jordet.
• Ventilasjon: Do not block ventilation openings. Ensure adequate airflow around the cabinet to prevent overheating.
• Fuktighet: Do not expose the cabinet to rain, moisture, or excessive humidity. Keep liquids away from the unit.
• Service: Ikke forsøk å utføre service på enheten selv. Overlat all service til kvalifisert servicepersonell.
• Plassering: Place the cabinet on a stable, level surface. Avoid placing it near heat sources or in direct sunlight.
• Hørselvern: Dette amplifier cabinet can produce high sound pressure levels. Prolonged exposure to high volume can cause permanent hearing damage. Use appropriate hearing protection.
• Advarsel for forslag 65: Dette produktet inneholder kjemikalier som er kjent for staten California for å forårsake kreft og fødselsskader eller andre reproduksjonsskader.

3. Oppsett

Follow these steps to set up your Fender Bassman 810 Neo Cab:

1. Utpakking: Fjern forsiktig amplifier cabinet from its packaging. Inspect for any signs of damage during transit.
2. Plassering: Position the cabinet on a stable, flat surface. Ensure there is sufficient space around the unit for ventilation.
3. Kobler til en Amplifier Head: Use high-quality speaker cables to connect your amplifier head to the Bassman 810 Neo Cab. The cabinet features Speakon connectors for secure connections. Ensure the impedance of your amplifier head matches the cabinet's impedance (4 ohms).
4. Strømtilkobling: Koble strømkabelen til amplifier head (not the cabinet, as this is a passive cabinet) and then to a grounded electrical outlet.
5. Instrumenttilkobling: Connect your bass guitar to the input of your amplifier hode.

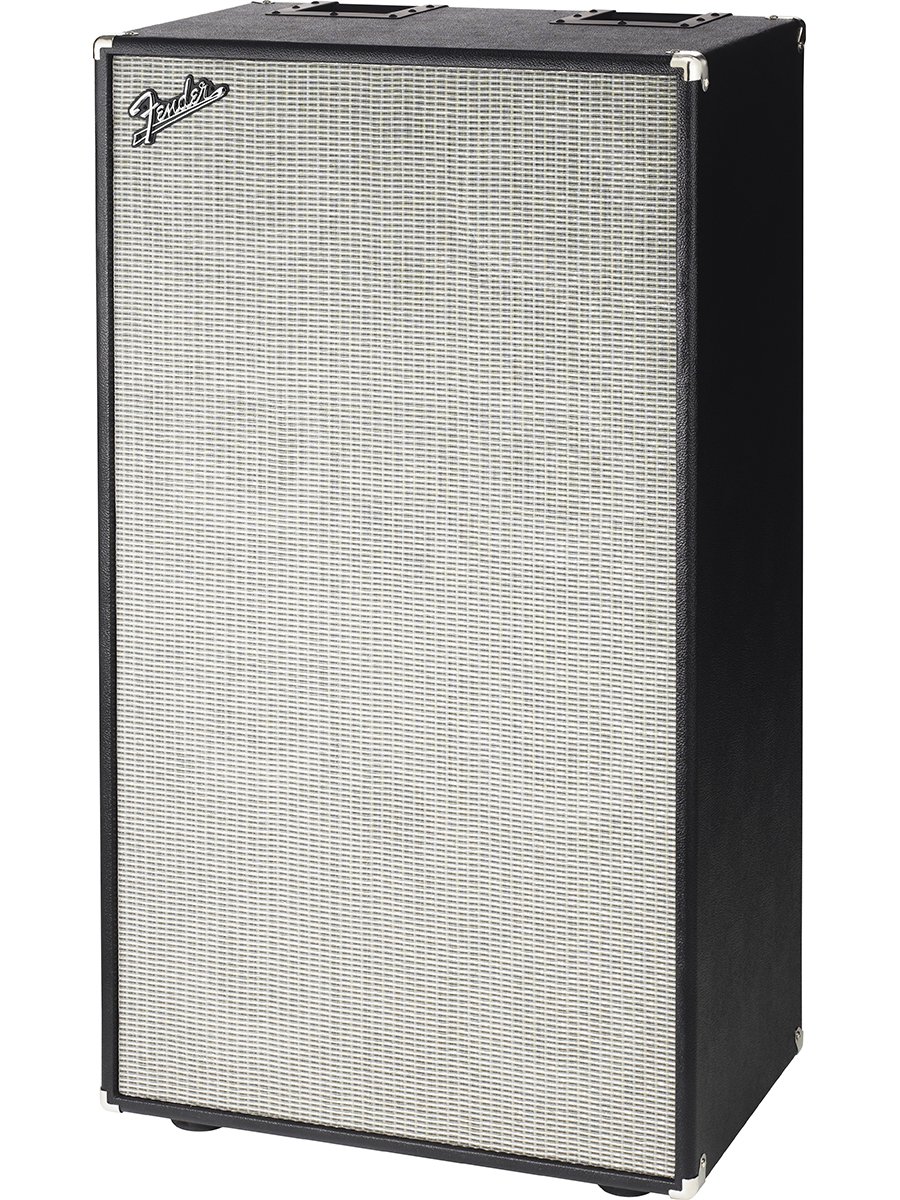

Figur 3.1: Foran view of the Fender Bassman 810 Neo Cab. This image shows the robust grille and overall construction of the cabinet.

4. Drift

The Bassman 810 Neo Cab is a passive speaker cabinet and does not have its own controls. All sound shaping and volume adjustments are made via your connected amplifier head. Refer to your amplifier head's manual for detailed instructions on its controls.

However, it's important to understand the connections on the rear panel of the cabinet:

4.1 Tilkoblinger på bakpanelet

• Parallel Speaker Outputs: These Speakon jacks are used to connect the cabinet to your amplifier head. The cabinet is rated at 4 ohms. Ensure your amplifier head can safely drive a 4-ohm load.
• Compression Driver Horn Attenuator: This control allows you to adjust the level of the high-frequency horn. Turn it clockwise to increase the high-frequency output, or counter-clockwise to decrease it. This helps tailor the cabinet's sound to your preference and playing environment.

Figur 4.1: Bak view of the Fender Bassman 810 Neo Cab. This image, representing the overall product, highlights the location of the Speakon inputs and the compression driver horn attenuator on the rear panel.

Note: The provided video "Rumble 500 Features Overview" is for a different amplifier model (Fender Rumble 500 head) and is not directly applicable to the operation of this passive Bassman 810 Neo Cab. Therefore, it is not included in this manual.

5. Vedlikehold

Proper care will ensure the longevity and optimal performance of your Bassman 810 Neo Cab.

• Rengjøring: Use a soft, dry cloth to clean the exterior of the cabinet. Avoid abrasive cleaners or solvents that could damage the finish.
• Lagring: When not in use, store the cabinet in a dry, temperature-controlled environment, away from direct sunlight and extreme temperatures.
• Transportere: Utilize the built-in casters, handles, and rear glide rails for safe and easy transport. Avoid dropping or subjecting the cabinet to severe impacts.
• Høyttalerpleie: Avoid overdriving the speakers beyond their rated capacity, as this can cause damage.

6. Feilsøking

If you encounter issues with your Bassman 810 Neo Cab, consult the following common troubleshooting tips.

If the problem persists after trying these solutions, please contact Fender customer support or an authorized service center.

7. Spesifikasjoner

8. Garanti og støtte

Fender products are built to high standards and are backed by a limited warranty. For detailed warranty information, please refer to the official Fender webnettstedet eller garantikortet som fulgte med kjøpet.

For technical support, service, or parts, please contact Fender Customer Support:

• Webnettsted: www.fender.com/support
• Telefon: Refer to the Fender webnettsted for regionale kontaktnumre.

Ha modellnummeret (2249200000) og serienummeret klart når du kontakter kundestøtte.
