DECA Class Booster 400E Battery Charger Instruction Manual

Model: CB400E

1. Introduksjon og produktoversiktview

The DECA Class Booster 400E is a versatile battery charger and booster designed for charging 12V and 24V lead-acid batteries and providing assistance for engine starting. This unit incorporates essential safety features such as thermostatic protection, short-circuit protection, and protection against polarity inversion to ensure safe and reliable operation.

This manual provides detailed instructions for the safe and effective use, maintenance, and troubleshooting of your DECA Class Booster 400E.

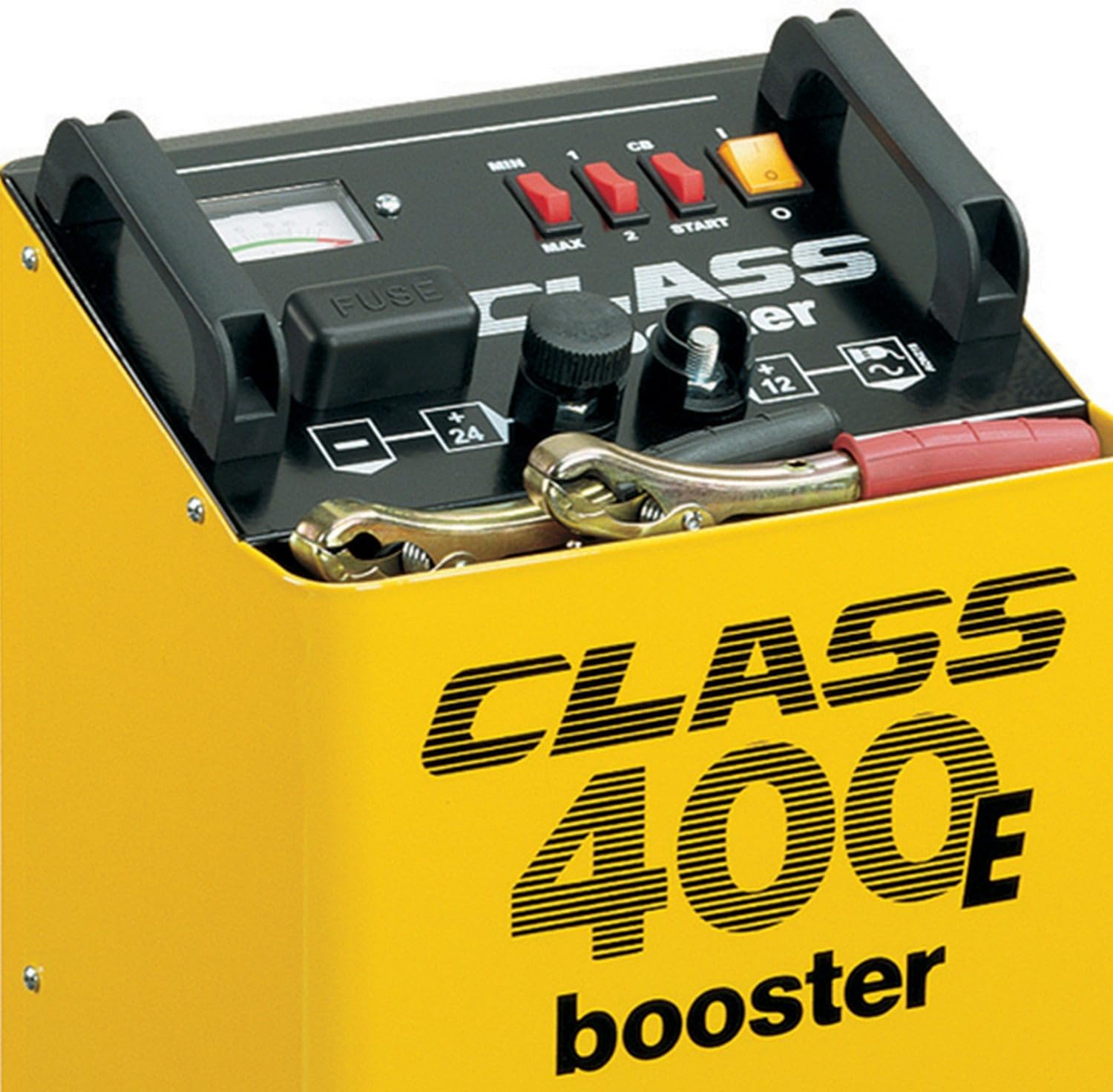

DECA Class Booster 400E front view med kontroller

Figur 1: Front view of the DECA Class Booster 400E, showing the control panel, fuse, and battery clamps.

2. Sikkerhetsinstruksjoner

Les alle sikkerhetsadvarsler og instruksjoner nøye før du bruker dette produktet. Unnlatelse av å følge advarslene og instruksjonene kan føre til elektrisk støt, brann og/eller alvorlig skade.

  • Ventilasjon: Batteries generate explosive gases during charging. Ensure the work area is well-ventilated. Do not charge in a confined space.
  • Øye- og ansiktsbeskyttelse: Always wear appropriate eye and face protection (safety glasses, face shield) when working near batteries. Battery acid is corrosive.
  • Elektrisk sikkerhet: Do not expose the charger to rain or wet conditions. Never operate the charger with damaged cables or clamps. Ensure the power cord is properly grounded.
  • Brannfarlige materialer: Hold gnister, flammer og røykfarlige materialer unna batteriet og laderen.
  • Koble fra strømmen: Always disconnect the charger from the mains power supply before making or breaking connections to the battery.
  • Children and Unauthorized Persons: Dette apparatet er ikke beregnet for bruk av personer (inkludert barn) med reduserte fysiske, sensoriske eller mentale evner, eller mangel på erfaring og kunnskap, med mindre de har fått tilsyn eller instruksjoner om bruk av apparatet av en person som er ansvarlig for deres sikkerhet.
  • Termisk beskyttelse: The unit is equipped with thermostatic protection. If the unit overheats, it will automatically shut down. Allow it to cool before resuming operation.

3. Oppsett

  1. Utpakking: Carefully remove the DECA Class Booster 400E from its packaging. Inspect the unit for any signs of damage.
  2. Plassering: Place the charger on a stable, level surface in a well-ventilated area. Ensure there is sufficient space around the unit for air circulation.
  3. Batteriforberedelse: Ensure the battery terminals are clean and free of corrosion. If the battery has removable caps, check the electrolyte level and top up with distilled water if necessary, ensuring caps are securely replaced before charging.
  4. Connecting to Battery:
    • Koble til RØD (+) clamp til positiv (+) terminalen til batteriet.
    • Koble til SVART (-) clamp til negativ (-) terminal of the battery. If the battery is in a vehicle, connect the black clamp til kjøretøyets chassis, bort fra batteriet og drivstoffledningen.
    • Ensure connections are firm and secure.
  5. Tilkobling til strømnettet: Plug the charger's power cord into a suitable grounded electrical outlet.
DECA Class Booster 400E with dimensions

Figur 2: DECA Class Booster 400E showing approximate dimensions for placement.

4. Bruksanvisning

4.1. Batterilading

  1. Velg Battery Voltage: Bruk voltage selector switch (typically labeled 12V/24V) to match the voltage av batteriet som lades.
  2. Velg lademodus: The unit may have MIN/MAX or 1/2 settings for charging current. Select MIN for slower, gentler charging or MAX for faster charging. Refer to the battery manufacturer's recommendations for optimal charging rates.
  3. Start lading: Turn on the power switch (often labeled 'ON/OFF' or 'START'). The ammeter on the front panel will indicate the charging current. The current will gradually decrease as the battery charges.
  4. Skjermlading: Periodically check the ammeter. When the current drops to a very low level (near zero), the battery is fully charged.
  5. Slutt på lading: Turn off the power switch. Disconnect the charger from the mains power supply. Then, disconnect the BLACK (-) clamp, followed by the RED (+) clamp fra batteriet.

4.2. Engine Boosting (Starting Assistance)

The boosting function provides a high current for a short period to assist in starting an engine with a discharged battery. Do not use the booster function for prolonged periods.

  1. Koble til batteri: Follow the connection steps as described in Section 3.4.
  2. Velg Battery Voltage: Sørg for at voltage selector switch matches the vehicle's battery voltage (12V eller 24V).
  3. Select Booster Mode: Set the switch to the 'START' or 'BOOST' position.
  4. Attempt Start: Turn the ignition key to start the engine. Do not crank the engine for more than 5-10 seconds. If the engine does not start, wait for at least 60 seconds before attempting again to allow the charger to cool.
  5. Frakople: Once the engine starts, immediately turn off the charger's power switch. Disconnect the BLACK (-) clamp, deretter den RØDE (+) clamp.

5. Vedlikehold

  • Rengjøring: Keep the charger clean and dry. Wipe the exterior with a soft, damp klut. Ikke bruk løsemidler eller skurende rengjøringsmidler.
  • Kabel og Clamp Undersøkelse: Kontroller ladekablene og klokkene regelmessig.amps for any signs of damage, fraying, or corrosion. Replace damaged components immediately.
  • Bytte sikring: The unit is equipped with a fuse for protection. If the charger stops working, check the fuse (visible on the front panel, labeled 'FUSE'). Replace it only with a fuse of the same type and rating as specified by the manufacturer. Always disconnect from mains power before replacing the fuse.
  • Lagring: Store the charger in a cool, dry place, away from direct sunlight and moisture, when not in use. Ensure cables are neatly coiled.

6. Feilsøking

  • Laderen slår seg ikke på:
    • Sjekk om strømledningen er ordentlig koblet til en strømførende stikkontakt.
    • Verify the mains power supply is active.
    • Inspect the fuse. Replace if blown (refer to Section 5).
  • Battery Not Charging / Low Ammeter Reading:
    • Sørg for batteri clamps er sikkert koblet til batteripolene.
    • Confirm the correct battery voltage (12V or 24V) is selected on the charger.
    • Check if the battery is severely discharged or faulty. Some deeply discharged batteries may not accept a charge immediately.
    • The battery may be fully charged if the current is very low.
  • Booster Function Not Working:
    • Ensure all connections are secure and the correct voltage er valgt.
    • The vehicle's battery might be completely dead, or there might be a larger issue with the vehicle's starting system.
    • Allow the unit to cool if it has recently activated thermal protection.
  • Charger Shuts Down During Operation:
    • This indicates the thermal protection has activated due to overheating. Allow the unit to cool down in a well-ventilated area before resuming use. Reduce the load or charging rate if possible.
    • Sjekk at det er tilstrekkelig ventilasjon rundt enheten.

7. Spesifikasjoner

  • Modell: CB400E
  • Delenummer: 0400207
  • Inngang Voltage: Standard AC Mains (e.g., 230V AC)
  • Utgang Voltage: 12V / 24V DC
  • Average Charging Current: 26 A
  • Nominell ladestrøm: 30 A
  • Booster Power: Up to 7.5 kW (for starting assistance)
  • Beskyttelse: Thermostatic, Short Circuit, Polarity Inversion
  • Vekt: 19.6 kilo
  • Dimensjoner (H x B x D): Omtrent 64.01 cm x 30 cm x 40.01 cm
  • Sertifiseringer: CE
  • Opprinnelsesland: San Marino

8. Garanti og støtte

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact your retailer or the DECA customer service directly. Please have your model number (CB400E) and part number (0400207) available when contacting support.
