Exmark 109-7694 Compression Spring Instruction Manual

1. Produktet er overview

This manual provides essential information for the Exmark Part Number 109-7694 Compression Spring. This genuine Exmark component is designed to ensure proper function and durability in compatible Exmark lawn equipment. It is crucial to verify compatibility with your specific machine's sub-model, serial number, and production date by consulting your original owner's manual.

The compression spring plays a vital role in maintaining tension and support within various systems of your Exmark equipment, particularly in bagger assemblies and other mechanisms requiring controlled resistance.

2. Kompatibilitet

The Exmark 109-7694 Compression Spring is compatible with the following Exmark series and models:

• Kommersiell
• Kommersiell 21
• Commercial 21 X-Series
• Lazer Ultra Vac Bagger
• Pioneer Bagger
• Pioneer Ultra Vac Bagger
• Radius E-Series
• Radius Rev D Ultra Vac Bagger
• Radius S-Series
• Radius Ultra Vac Bagger
• Radius X-Series
• S-Series Commercial
• S-Series Radius
• X-Series Radius

Note: Fitment can vary by sub-model, serial number, and/or production date of your equipment. Always refer to your equipment's original owner's manual to confirm the correct part for your machine.

3. Sikkerhetsinformasjon

Prioriter alltid sikkerhet når du arbeider med elektrisk utstyr. Manglende overholdelse av sikkerhetsinstruksjonene kan føre til alvorlig personskade eller skade på utstyret.

• Koble fra strømmen: Before attempting any installation or maintenance, ensure the equipment is turned off, the engine is cool, and the spark plug wire is disconnected to prevent accidental starting.
• Bruk verneutstyr: Bruk passende personlig verneutstyr (PPE), inkludert vernebriller og hansker.
• Se manualer: Always refer to your specific equipment's owner's manual for detailed, model-specific instructions and safety warnings.
• Riktig verktøy: Use the correct tools for the job to avoid damage to the part or injury.
• Fjærspenning: Compression springs can store significant energy. Exercise extreme caution when removing or installing to prevent the spring from releasing unexpectedly.

4. Installasjonsinstruksjoner

This section provides general guidance for replacing a compression spring. Specific steps may vary based on your Exmark equipment model. Always consult your equipment's service manual for precise instructions.

1. Preparat: Park the equipment on a flat, stable surface. Engage the parking brake. Disconnect the spark plug wire. Allow the engine to cool.
2. Finn kilden: Identify the compression spring that needs replacement. It is typically found in bagger assemblies, deck lift mechanisms, or other tensioning systems.
3. Sikre komponenter: If the spring is under significant tension, use appropriate clamps or tools to secure surrounding components before removal to prevent sudden movement.
4. Fjern gammel fjær: Carefully remove the old spring. Note its orientation and how it was attached. This may involve unhooking it from mounting points or compressing it to release.
5. Inspiser monteringspunkter: Before installing the new spring, inspect the mounting points for wear, damage, or corrosion. Clean or repair as necessary.
6. Installer ny fjær: Position the new Exmark 109-7694 Compression Spring in the same orientation as the old one. Carefully attach it to its mounting points. Ensure it is seated correctly and securely.
7. Bekreft funksjon: Once installed, gently test the mechanism the spring operates to ensure it moves freely and the spring provides the correct tension.
8. Siste trinn: Reconnect the spark plug wire. Remove any tools or clamps.

Figur 1: Side view of the Exmark 109-7694 Compression Spring, showing its coiled structure.

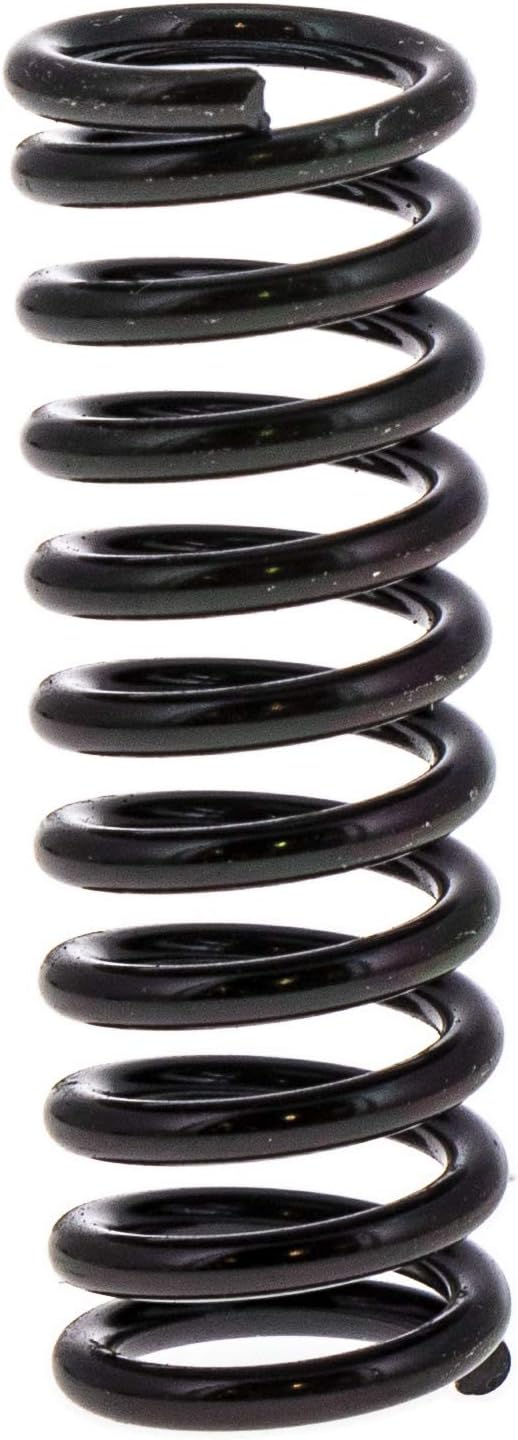

Figure 2: Elongated view of the Exmark 109-7694 Compression Spring, highlighting its full length and coil count.

5. Vedlikehold

Regular inspection of your Exmark 109-7694 Compression Spring can extend its lifespan and ensure optimal equipment performance.

• Visuell inspeksjon: Periodically check the spring for signs of wear, such as cracks, deformation, rust, or loss of tension.
• Renslighet: Keep the spring and its surrounding area free from dirt, debris, and grass clippings, which can impede its function or accelerate wear.
• Smøring: If the spring operates in a moving assembly, ensure any associated pivot points or guides are properly lubricated according to your equipment's maintenance schedule. The spring itself typically does not require lubrication.
• Erstatning: Replace the spring immediately if any signs of damage or significant wear are observed. A failing spring can compromise equipment safety and performance.

Figur 3: Slutt view of the Exmark 109-7694 Compression Spring, showing the coil diameter and material thickness.

6. Feilsøking

If you experience issues related to the compression spring, consider the following:

• Loss of Tension: If the mechanism the spring supports feels loose or does not return to its original position, the spring may have lost its tension due to fatigue. Replacement is necessary.
• Ødelagt vår: A visibly broken spring requires immediate replacement. Do not operate equipment with a broken spring.
• Feil passform: If a newly installed spring does not seem to fit correctly or causes binding, double-check that you have the correct part number (109-7694) and that it is installed in the correct orientation as per your equipment's manual.
• Uvanlige lyder: Squeaking or grinding noises from the spring area might indicate friction, improper seating, or contact with other components. Inspect and adjust as needed.

For persistent issues, consult a qualified Exmark service technician.

7. Spesifikasjoner

8. Official Exmark Parts Information

9. Garantiinformasjon

This Exmark 109-7694 Compression Spring is a genuine Exmark part. For specific warranty details, please refer to the official Exmark warranty policy provided with your original equipment or visit the official Exmark website. Generally, genuine replacement parts are covered under Exmark's standard parts warranty, which protects against defects in material and workmanship.

10. Støtte og kontakt

If you require further assistance, have questions about installation, or need to purchase additional genuine Exmark parts, please utilize the following resources:

• Exmark Official Webnettsted: Besøk www.exmark.com for product information, dealer locator, and support resources.
• Authorized Exmark Dealer: Contact your local authorized Exmark dealer for expert service, parts, and advice.
• Original Equipment Manuals: Always refer to the owner's manual for your specific Exmark equipment for detailed, model-specific instructions and troubleshooting.
