Audiopipe TSPP315D4 15" Woofer Instruction Manual

Introduksjon

The Audiopipe TSPP315D4 is a high-performance 15-inch woofer designed for car audio systems. It features a dual 4 Ohm voice coil, 1800 Watts maximum power handling, and a frequency response range of 25-1200Hz. This manual provides essential information for proper installation, operation, and maintenance of your woofer to ensure optimal performance and longevity.

Sikkerhetsinformasjon

• Høye volumnivåer: Prolonged exposure to high sound pressure levels can cause permanent hearing damage. Always listen at moderate levels.
• Profesjonell installasjon: For optimal performance and safety, professional installation by a qualified car audio technician is recommended.
• Riktig ledning: Ensure all wiring is correctly connected and insulated to prevent short circuits, electrical fires, or damage to the equipment. Refer to the wiring diagrams in the Setup section.
• Unngå fuktighet: Do not expose the woofer to water or excessive moisture. This can cause electrical hazards and damage the unit.
• Sikker montering: Always ensure the woofer is securely mounted in its enclosure and the enclosure is properly secured within the vehicle to prevent movement during driving.
• Ventilasjon: Ensure adequate ventilation around the woofer and ampkjøler for å forhindre overoppheting.

Pakkeinnhold

Upon unpacking your Audiopipe TSPP315D4 woofer, please verify that all items are present and in good condition.

• 2 x Audiopipe TSPP315D4 15" Woofer

Spesifikasjoner

Oppsett og installasjon

Proper installation is crucial for the performance and longevity of your Audiopipe TSPP315D4 woofer. It is highly recommended that installation be performed by a qualified car audio professional.

Innkapslingskrav

The TSPP315D4 woofer requires a suitable enclosure for optimal sound reproduction. Consult with a car audio specialist or refer to enclosure design guidelines for 15-inch subwoofers to determine the appropriate sealed or ported box volume for your specific application. Ensure the enclosure is robust and free from air leaks.

Montering

The woofer has a mounting depth of 7-1/4 inches. Ensure that the chosen enclosure provides sufficient depth and clearance for the woofer magnet and frame. Use appropriate mounting hardware to secure the woofer firmly to the enclosure baffle, creating an airtight seal.

Wiring (Dual 4 Ohm Voice Coils)

The TSPP315D4 features dual 4 Ohm voice coils, offering flexibility in wiring configurations to match your amplifier's impedance requirements. Always ensure your ampLifieren er stabil ved den endelige impedansbelastningen.

• Parallellkobling (2 ohm belastning): Koble de positive terminalene på begge talespolene sammen, og de negative terminalene på begge talespolene sammen. Koble amplifier's positive output to the combined positive terminals and the amplifier's negative output to the combined negative terminals. This configuration results in a 2 Ohm load.
• Seriekobling (8 ohm belastning): Koble den positive terminalen på den ene talespolen til den negative terminalen på den andre talespolen. Koble til ampladningsenhetens positive utgang til den gjenværende positive terminalen og amplifier's negative output to the remaining negative terminal. This configuration results in an 8 Ohm load.

Viktig: Incorrect wiring can damage the woofer and/or amplifier. If you are unsure, consult a professional installer.

Amplifier-matching

Velg en amplifier that can provide sufficient RMS power (700 Watts) at the chosen impedance load (2 Ohm or 8 Ohm) without clipping. Overpowering or underpowering the woofer can lead to damage.

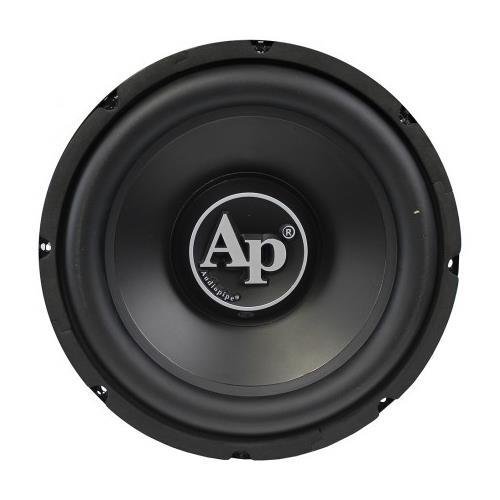

Bilde: Foran view of the Audiopipe TSPP315D4 15-inch woofer, showcasing its robust cone and surround.

Bruksanvisning

Første oppstart og innkjøring

After installation, gradually introduce power to the woofer. It is recommended to perform a break-in period of approximately 10-20 hours of moderate listening before operating the woofer at high volumes. This allows the suspension components (surround and spider) to loosen up and reach their optimal performance characteristics.

Amplifier innstillinger

• Gevinstinnstilling: Still inn amplifier gain carefully. Start with the gain at its minimum and slowly increase it until the desired volume is achieved without any audible distortion. Do not use the gain control as a volume knob; it should be set to match the output voltage på hovedenheten din.
• Lavpassfilter (LPF): Engage the low-pass filter on your amplifier or head unit. A typical crossover frequency for a subwoofer is between 60Hz and 100Hz. This ensures the woofer only reproduces low frequencies it is designed for.
• Subsonisk filter (HPF): Hvis din amplifier has a subsonic filter (also known as a high-pass filter for subwoofers), set it slightly below the tuning frequency of your ported enclosure (if applicable) or around 25-30Hz for sealed enclosures. This protects the woofer from playing frequencies too low for its design, which can cause damage.
• Bass Boost: Use bass boost sparingly, if at all. Excessive bass boost can lead to clipping and woofer damage.

Vedlikehold

The Audiopipe TSPP315D4 woofer is designed for durability, but proper care will extend its lifespan and maintain performance.

• Rengjøring: Bruk en myk, tørr klut til å tørke forsiktig av kjeglen og omgivelsene. Unngå bruk av sterke kjemikalier eller overdreven fuktighet.
• Undersøkelse: Periodically inspect the woofer for any signs of damage, such as tears in the cone or surround, loose connections, or unusual odors.
• Miljøfaktorer: Keep the woofer away from direct sunlight, extreme temperatures, and high humidity, which can degrade materials over time.
• Sikre tilkoblinger: Sørg for at alle ledningsforbindelser er stramme og fri for korrosjon.

Feilsøking

If you experience issues with your Audiopipe TSPP315D4 woofer, refer to the following common problems and solutions:

• Ingen lyd:
  • Sjekk alle ledningsforbindelser fra amplifier til basshøyttaleren.
  • Bekreft ampStrømforsyningen er slått på og mottar et signal fra hovedenheten.
  • Sørg for at amplifier's gain is not set to minimum.
  • Check for blown fuses in the amplifier or power wiring.
• Forvrengt lyd:
  • Reduser amplifier gain. Distortion often indicates the amplifier klipper.
  • Check the head unit's volume level; if it's too high, it can send a distorted signal to the amplivligere.
  • Ensure the woofer is not over-excursion (moving too far in and out). Adjust amplifier settings or enclosure.
  • Verify the low-pass filter is correctly set.
• Woofer Overheating:
  • Sørg for at amplifier is properly matched to the woofer's RMS power and impedance.
  • Check for adequate ventilation around the woofer and amplivligere.
  • Reduce prolonged high-volume listening.
• Svak bassutgang:
  • Sjekk faseinnstillingen på din amplifier eller hovedenhet.
  • Verify the enclosure is sealed properly (if applicable) and is of the correct volume.
  • Justere amplifier gain and bass boost settings carefully.

Hvis feilsøkingstrinnene ikke løser problemet, kontakt kundestøtte eller en kvalifisert tekniker.

Garantiinformasjon

The Audiopipe TSPP315D4 woofer comes with a Begrenset garanti. Details regarding the duration and terms of this warranty are typically provided with your purchase documentation or can be obtained from the retailer or manufacturer's official webnettstedet.

This warranty generally covers manufacturing defects and material flaws under normal use. It typically does not cover damage resulting from improper installation, abuse, accidental damage, water damage, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

Støtte

For technical assistance, warranty inquiries, or further information regarding your Audiopipe TSPP315D4 woofer, please contact your authorized Audiopipe dealer or visit the official Audiopipe webnettsted for kontaktinformasjon for kundesupport.

Audiopipe Official Webnettsted: www.audiopipe.com (Merk: Dette er en plassholder URL ettersom det ikke ble oppgitt noen spesifikk støttelenke i produktdataene.)
