LattePanda 2G/32GB V1.0 Windows 10 Development Board User Manual

1. Introduksjon

The LattePanda 2G/32GB V1.0 is a compact single board computer featuring a pre-installed full edition of Windows 10 Home Edition and an integrated Arduino compatible co-processor (ATmega32u4). This device is designed for developers, educators, and makers, enabling a wide range of projects from desktop computing to IoT applications and physical world interaction.

This manual provides essential information for setting up, operating, maintaining, and troubleshooting your LattePanda board.

2. Installasjonsinstruksjoner

2.1 Utpakking og førstegangsinspeksjon

Carefully remove all components from the packaging. Verify that all items listed in the shipping list are present:

• LattePanda 2G/32GB board x 1
• WiFi Antenna x 1
• Printed Safety Precautions x 1

2.2 Krav til strømforsyning

The LattePanda requires a stable 5V power supply. Use a USB adapter with a minimum output of 2.1A and a high-quality MicroUSB cable. Insufficient power can lead to unstable operation or failure to boot.

2.3 Koble til eksterne enheter

Connect necessary peripherals such as a display (via HDMI or MIPI-DSI), keyboard, and mouse to the available USB ports. The board supports standard USB keyboards and mice.

2.4 First Boot Procedure

To power on the LattePanda, locate the small, unmarked microswitch on the board. Press and hold this switch for approximately 1 sekund. The device will not power on with random or short presses. Wait for the red light to stop flashing before pressing the power button.

Figur 1: Øverst view of the LattePanda board, showing various ports and components. The board measures approximately 7cm x 8cm.

Figure 2: Detailed pinout diagram of the LattePanda board, illustrating the various connectors and their functions, including Arduino-compatible pins.

3. Bruksanvisning

3.1 Windows 10 Home Edition

Your LattePanda comes pre-installed with a full edition of Windows 10 Home Edition. Upon first boot, the included Windows 10 OEM activation key will activate automatically. This allows you to run a wide range of Windows applications and development tools.

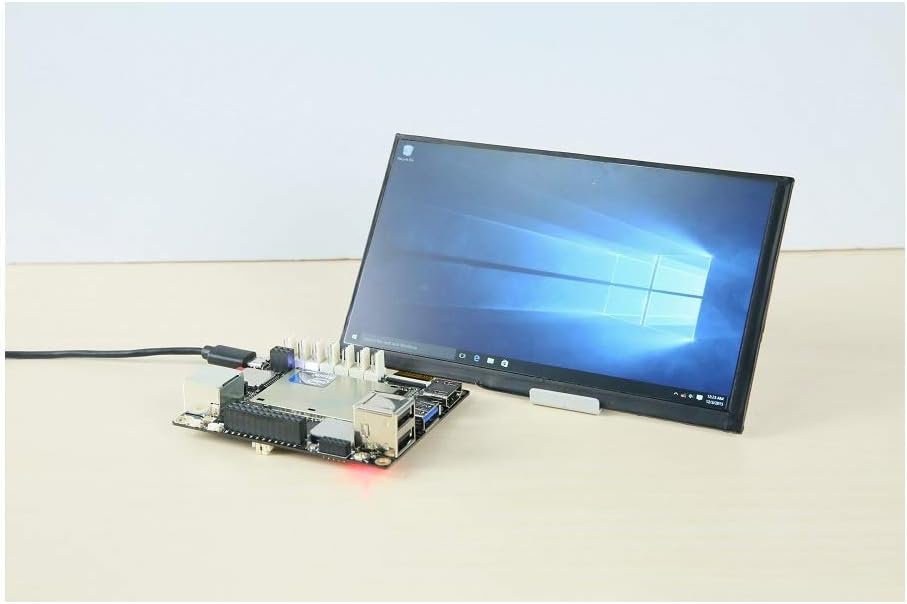

Figure 3: The LattePanda board connected to a display, showcasing the Windows 10 desktop environment.

3.2 Integrated Arduino Co-processor

The LattePanda features an integrated ATmega32u4 (Arduino Leonardo) co-processor. This allows for seamless integration of physical computing projects with the Windows environment. You can use the Arduino IDE directly on the LattePanda to program the co-processor.

Figure 4: A close-up of the ATmega32u4 chip, the integrated Arduino co-processor on the LattePanda board.

3.3 Tilkobling

The board offers various connectivity options:

• USB-porter: 1x USB 3.0, 2x USB 2.0 for connecting peripherals and external devices.
• Trådløs: Onboard Wi-Fi 802.11n 2.4G and Bluetooth 4.0 for network and device connections.
• Ethernet: 100Mbps Ethernet port for wired network access.
• Videoutgang: HDMI and MIPI-DSI for display connections.
• GPIO: 6 Intel Processor GPIOs and 20 ATmega Processor GPIOs for custom hardware interfaces.
• Gravity Interface: 6 Gravity Interface Connectors for easy connection to DFRobot's Gravity series modules.

4. Vedlikehold

4.1 Termisk styring

The LattePanda board can generate heat during operation, especially under heavy loads. To ensure optimal performance and longevity, consider implementing a cooling solution. This may include:

• Attaching passive heatsinks to the main processor.
• Using a small cooling fan, particularly if the board is enclosed or used for extended periods.

Figure 5: LattePanda board with an aftermarket heatsink installed, demonstrating a common thermal management solution.

4.2 Lagringshåndtering

The 32GB eMMC storage can become tight, especially with Windows 10 and additional development tools like Visual Studio. To manage storage effectively:

• Regularly clean up temporary files and unnecessary applications.
• Utilize external storage (USB drives, microSD cards) for large files og prosjekter.
• Consider setting up a shared network drive if working with other computers.

4.3 Programvareoppdateringer

Ensure your Windows 10 operating system is kept up-to-date with the latest security patches and feature updates. This helps maintain system stability and security.

5. Feilsøking

5.1 Board Not Powering On

• Strømforsyning: Verify that you are using a 5V power adapter with at least 2.1A output and a good quality MicroUSB cable.
• Strømknapp: Ensure you are pressing the correct microswitch for approximately 1 second. Short or multiple presses may not initiate boot.

5.2 Overopphetingsproblemer

• Avkjøling: If the board feels excessively hot or performance degrades, consider adding passive heatsinks or an active cooling fan.
• Ventilasjon: Ensure the board has adequate airflow, especially if enclosed in a case.

5.3 Treg ytelse

• Lagring: Check available storage space on the 32GB eMMC. Low space can significantly impact performance. Refer to Section 4.2 for storage management tips.
• Bakgrunnsprosesser: Close unnecessary applications and background processes in Windows 10.
• Termisk regulering: Overheating can cause the CPU to throttle, reducing performance. Address cooling as described in Section 5.2.

5.4 Generelle problemer

For any other concerns or issues not covered here, please refer to the official LattePanda website documentation or contact customer support via email.

6. Spesifikasjoner

7. Garanti

All faulty products can be replaced or repaired within 90 dager from the delivery date (including working days and holidays). This warranty covers manufacturing defects and malfunctions under normal use conditions.

8. Støtte

For further assistance, documentation, or to report issues, please utilize the following resources:

• Offisiell Website Documentation: Visit the LattePanda official website for comprehensive guides, tutorials, and community forums.
• E-poststøtte: If you have any questions or concerns, feel free to contact us directly via email.
