MAXIMUM Waterproof Inspection Camera Scope 2.7" Color LCD Screen User Manual

Introduksjon

This manual provides instructions for the safe and effective use of your MAXIMUM Waterproof Inspection Camera Scope. This device is designed for visual inspection of hard-to-reach areas in various applications, including automotive, plumbing, and construction. Please read this manual thoroughly before operating the device and retain it for future reference.

Sikkerhetsinformasjon

  • Do not attempt to disassemble or modify the device. Unauthorized modifications can lead to electric shock, fire, or damage to the product.
  • Sørg for at batteriene er satt inn med riktig polaritet. Ta ut batteriene hvis enheten ikke skal brukes over lengre tid.
  • The camera head is waterproof, but the main unit (LCD monitor) is not. Avoid exposing the main unit to water or excessive moisture.
  • Hold enheten unna sterke magnetfelt, da disse kan forstyrre driften.
  • Do not use the device in environments with flammable or explosive gases.
  • Clean the camera lens and screen with a soft, dry cloth. Avoid abrasive cleaners.
  • This device is not intended for medical use or personal inspection.

Pakkeinnhold

Bekreft at alle varene som er oppført nedenfor er til stede i pakken din:

  • MAXIMUM Inspection Camera Unit with 2.7" LCD Monitor
  • 9 mm Waterproof Camera Head with 3.3' (1.1 m) Flexible Cable
  • Speiltilbehør
  • Krok tilbehør
  • Magnettilbehør
  • Heavy Duty Storage Case
  • 4 x AA batterier
Included accessories: mirror, hook, and magnet attachments for the inspection camera.
Image: The mirror, hook, and magnet accessories are included to assist with various inspection tasks.

Produktfunksjoner

  • Allsidig applikasjon: Ideal for automotive, plumbing, construction, and other hard-to-reach inspection areas.
  • Waterproof Camera Head: Features a 9 mm diameter waterproof camera head on a 3.3' (1.1 m) flexible cable for navigating tight spaces.
  • Integrated LCD Monitor: Images are transmitted directly onto a clear 2.7" (6.85 cm) color LCD monitor.
  • Justerbar lysstyrke: Offers 4x brightness with 5 adjustable settings for optimal visibility in dark environments.
  • Digital zoom: Includes a 2x digital zoom function to magnify details.
  • Bilderotasjon: Allows for image rotation on the screen for correct orientation.
  • Batteristatusindikator: Provides a visual indication of remaining battery life.
  • Autoeksponering: Automatically adjusts exposure for clear image capture.
The flexible cable and camera head of the inspection scope.
Image: The flexible cable and compact camera head allow for access into confined spaces.

Oppsett

1. Installasjon av batteri

  1. Finn batterirommet på baksiden av hovedenheten.
  2. Åpne batteridekselet.
  3. Sett inn fire (4) AA-batterier, og sørg for at polariteten (+/-) er riktig veiledet som angitt i batterirommet.
  4. Lukk batteridekselet godt.

2. Feste tilbehør

The mirror, hook, and magnet accessories can be attached to the camera head for specialized tasks:

  1. Select the desired accessory (mirror, hook, or magnet).
  2. Carefully slide the accessory onto the tip of the camera head until it is securely in place.
  3. Ensure the accessory does not obstruct the camera lens or LED lights.

Bruksanvisning

1. Slå på/av

  • To power on the device, press and hold the power button (usually marked with a power symbol) until the LCD screen illuminates.
  • For å slå av, trykk og hold inne av/på-knappen igjen til skjermen slår seg av.

2. Camera Head Placement

Carefully guide the flexible cable and camera head into the area you wish to inspect. The flexible cable allows for navigation around obstacles.

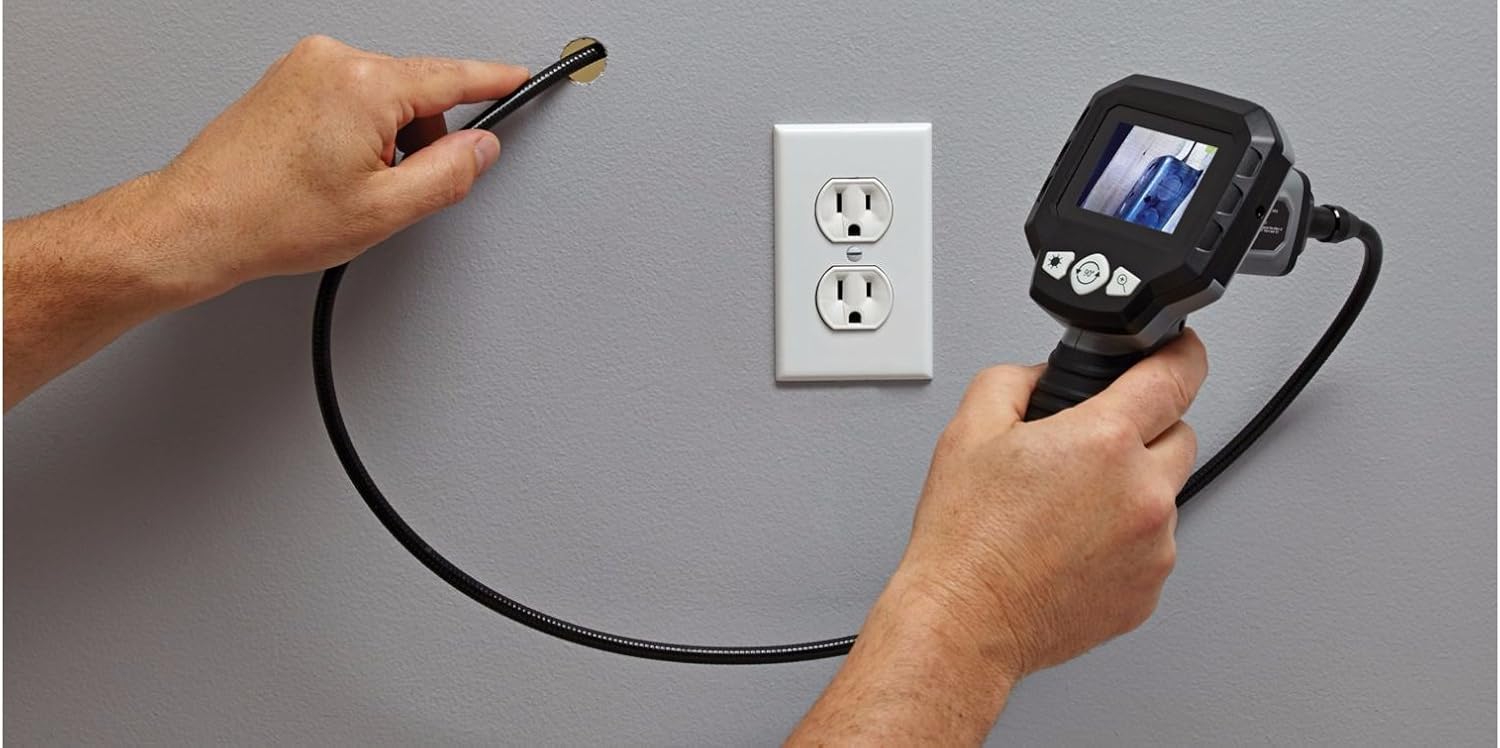

Using the inspection camera to view inside a wall cavity near an electrical outlet.
Image: The inspection camera can be used to examine wall cavities without extensive demolition.
Using the inspection camera to view inside plumbing pipes under a sink.
Image: The waterproof camera head is suitable for inspecting plumbing systems and drains.
Using the inspection camera to view inside an automotive engine bay.
Image: The flexible cable allows for detailed inspection of engine components and other automotive areas.

3. Justering av lysstyrke

The camera head features built-in LED lights. Use the brightness control buttons (often marked with a sun icon or '+' / '-' symbols) on the main unit to cycle through the 5 brightness settings. Adjust as needed for optimal viewing in varying light conditions.

4. Digital zoom

To magnify the image, press the digital zoom button (often marked with a magnifying glass icon or '+'). The device supports up to 2x digital zoom. Press the button repeatedly to cycle through zoom levels or to return to the original view.

5. Bilderotasjon

If the image on the screen appears upside down or sideways, use the image rotation button (often marked with a circular arrow icon) to adjust the orientation. Press the button to rotate the image in 90-degree increments until the desired view er oppnådd.

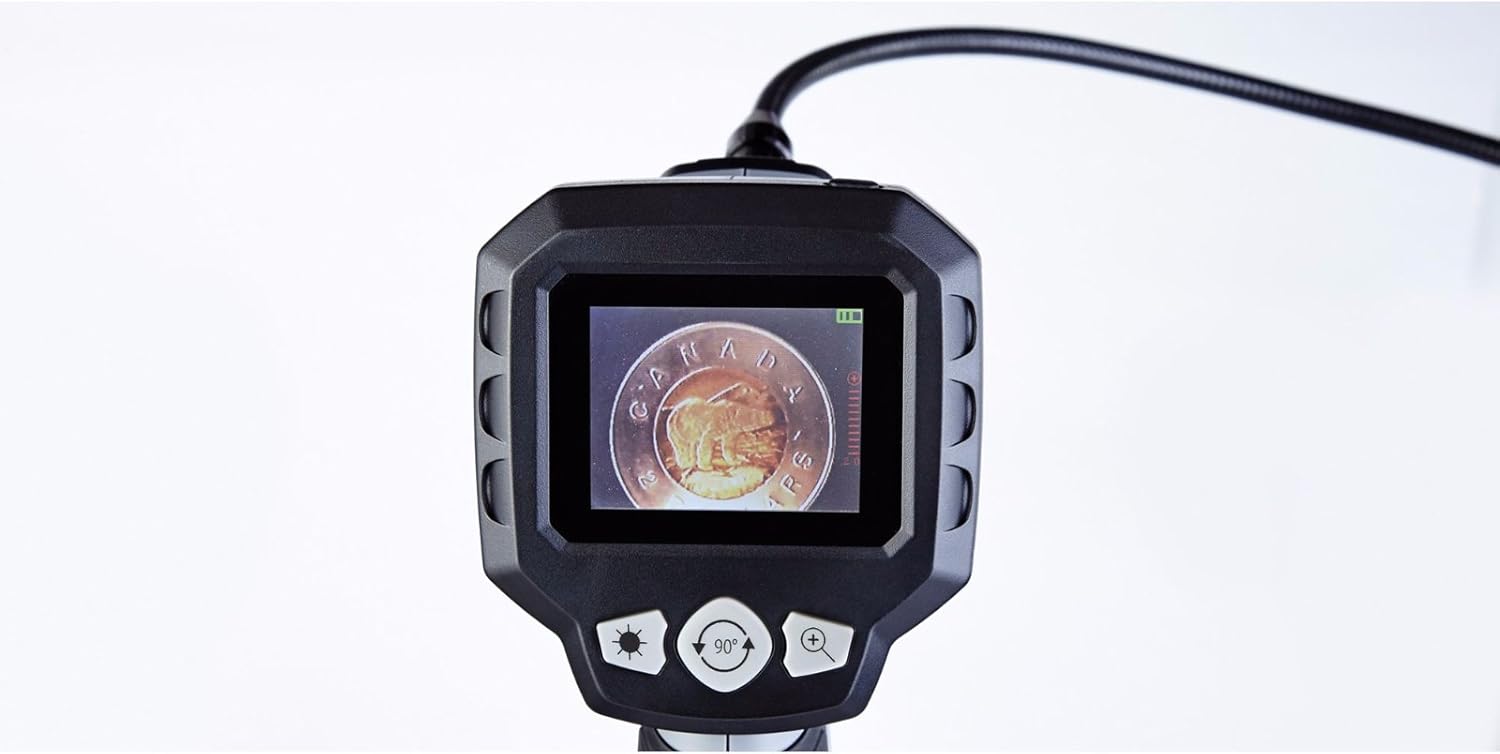

The main unit of the inspection camera showing a coin on its 2.7-inch LCD screen, with control buttons visible.
Image: The main unit's screen displays the camera feed, with controls for brightness, zoom, and image rotation.

6. Batteristatusindikator

The LCD screen displays a battery icon, indicating the current battery charge level. Recharge or replace batteries when the indicator shows low power to ensure uninterrupted operation.

Vedlikehold

  • Rengjøring: Wipe the main unit and flexible cable with a soft, dry cloth. For the camera lens, use a lens cleaning cloth. Do not use harsh chemicals or abrasive materials.
  • Lagring: Store the device and its accessories in the provided heavy-duty case in a cool, dry place, away from direct sunlight and extreme temperatures.
  • Batteripleie: Fjern batteriene hvis enheten ikke skal brukes over lengre tid for å forhindre lekkasje og skade.

Feilsøking

ProblemMulig årsakLøsning
Enheten slås ikke på.Batteriene er døde eller satt inn feil.Bytt batteriene med nye AA-batterier, og sørg for at polariteten er riktig.
Ikke noe bilde på skjermen.Cable not fully connected; camera lens obstructed.Ensure the flexible cable is securely connected to the main unit. Check and clean the camera lens.
Image is too dark or too bright.Brightness settings are incorrect for the environment.Adjust the LED brightness using the dedicated buttons on the main unit.
Bildet er uskarpt.Camera lens is dirty; object is too close or too far.Clean the camera lens. Adjust the distance between the camera head and the object for optimal focus.
Screen is blue or frozen.System error; low battery.Power off the device, remove and reinsert batteries, then power on again. Replace batteries if low.

Spesifikasjoner

  • Modellnummer: 057-458-0
  • Skjermstørrelse: 2.7 inches (6.85 cm) Color LCD
  • Diameter på kamerahode: 9 mm
  • Flexible Cable Length: 3.3 fot (1.1 meter)
  • Vannmotstand: Waterproof camera head
  • Digital zoom: 2x
  • Lysstyrkeinnstillinger: 5 nivåer
  • Strømkilde: 4 x AA -batterier (inkludert)
  • Videoopptaksoppløsning: 1080p (for compatible recording, if applicable)
  • File Format: MP4, JPEG (for compatible recording, if applicable)
  • Maskinvaregrensesnitt: HDMI (for compatible output, if applicable)
  • Produsent: Maksimum
  • ASIN: B01N2M40UB
  • GTIN/UPC: 648824745488
  • Pakkedimensjoner: 31.2 x 25 x 12.2 cm; 1.68 kg

Garanti og støtte

This MAXIMUM product is covered by a manufacturer's warranty. For specific warranty terms, duration, and to obtain support or service, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your proof of purchase for warranty claims.
