1. Introduksjon
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Somfy LT50 506S2 Sonesse 6Nm 32rpm 120V motor. Please read these instructions carefully before proceeding with any installation or operation. Retain this manual for future reference.
2. Sikkerhetsinformasjon
- Ensure all electrical connections are performed by a qualified electrician and comply with local electrical codes.
- Koble fra strømmen før du utfører vedlikeholds- eller installasjonsprosedyrer.
- Do not allow children to operate the motor or controls.
- Hold hender og løse klær unna bevegelige deler under bruk.
- This motor is designed for specific applications. Do not use it for purposes other than those specified by Somfy.
3. Produktet er overview
The Somfy LT50 506S2 Sonesse motor is a tubular motor designed for various applications requiring precise and quiet operation, such as motorized blinds, shades, or projection screens. It operates at 120V and provides 6Nm of torque at 32 RPM.
Figur 3.1: Generelt view of the Somfy LT50 506S2 Sonesse Motor.
Figure 3.2: Detail of the motor's end cap, showing the output shaft connection point.

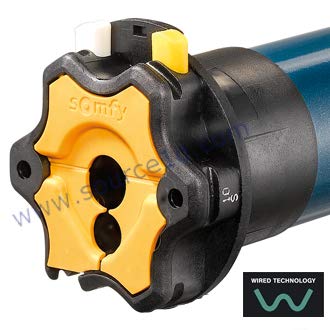

Figure 3.3: The motor shown with typical drive and mounting components (accessories not included).
4. Oppsett og installasjon
Installation of the Somfy LT50 506S2 Sonesse motor requires careful attention to detail and adherence to electrical safety standards. It is recommended that installation be performed by a professional installer.
4.1 Nødvendige komponenter (ikke inkludert)
Please note that essential accessories such as the crown, drive, and mounting plate are not included with the motor and must be acquired separately to complete the installation.
4.2 Elektrisk tilkobling
The motor includes a power cord for connection to a 120V power supply. Ensure the power supply is disconnected before making any connections. Follow the wiring diagram provided with your specific application or consult a qualified electrician.
4.3 Montering
Mount the motor securely within its intended housing or bracket. Ensure the motor is level and properly aligned with the driven component (e.g., shade tube). Refer to the specific mounting instructions for your application.
4.4 Grenseinnstilling
After physical installation and electrical connection, the motor's upper and lower travel limits must be set. Consult the specific instructions for your control system (e.g., remote control, wall switch) to program these limits accurately.
5. Bruksanvisning
Once installed and limits are set, the motor can be operated using a compatible Somfy control device (e.g., remote, wall switch, smart home system). Refer to your control device's manual for specific operating procedures.
- Up/Open: Press the 'Up' or 'Open' button to raise the blind/shade or open the screen.
- Down/Close: Press the 'Down' or 'Close' button to lower the blind/shade or close the screen.
- Stop/My: Press the 'Stop' or 'My' button to halt the motor at any desired position. The 'My' button can also be programmed for a favorite intermediate position.
6. Vedlikehold
The Somfy LT50 506S2 Sonesse motor is designed for long-term, maintenance-free operation. However, periodic checks can help ensure optimal performance.
- Rengjøring: Keep the motor area clean and free from dust and debris. Do not use abrasive cleaners or solvents.
- Undersøkelse: Periodically inspect the power cord for any signs of damage. Ensure all mounting hardware remains secure.
- Smøring: Motoren er fabrikksmurt og krever ikke ytterligere smøring.
7. Feilsøking
If you encounter issues with your motor, refer to the following common troubleshooting steps:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Motoren reagerer ikke | Ingen strømforsyning Faulty control device Motor overbelastningsbeskyttelse aktivert | Sjekk strømtilkoblingen og sikringsbryteren Test with another control device if available Allow motor to cool down (if it has been running continuously) |
| Motor runs but blind/shade does not move | Drive or crown not properly engaged Hindring | Verify proper installation of drive and crown Check for any physical obstructions |
| Motor stops prematurely or limits are incorrect | Limits incorrectly set | Refer to your control device manual to reset the motor limits |
If the problem persists after attempting these solutions, please contact Somfy customer support or a qualified technician.
8. Spesifikasjoner
| Spesifikasjon | Verdi |
|---|---|
| Merke | SOMFY |
| Modellnummer | 1001814 |
| Fart | 32 RPM |
| Voltage | 120 volt |
| Produsent | SOMFY |
| UPC | 685248788080 |
| ASIN | B01N7NITLC |
| GTIN | 685248788080 |
9. Garantiinformasjon
The Somfy LT50 506S2 Sonesse motor comes with a 5 års garanti. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Somfy webnettstedet eller kontakt kundestøtte.
10. Støtte
For further assistance, technical support, or to inquire about accessories, please visit the official Somfy webnettstedet eller kontakt kundeserviceavdelingen deres. Du finner kontaktinformasjon på Somfy-butikk på Amazon or directly on the manufacturer's webnettstedet.
