Innovations 238-OB-G62 Swing Arm Wall Light Instruction Manual

1. Produktet er overview

The Innovations 238-OB-G62 is a one-light swing arm wall mount fixture from the Franklin Restoration collection, featuring an Oil Rubbed Bronze finish. This adjustable wall light is designed for indoor use, providing versatile illumination for various room types.

• Design: One Light Swing Arm Wall Mount.
• Fullfør: Oil Rubbed Bronze with Clear Glass shade.
• Dimensjoner: Approximately 30 inches in height and 8 inches in width.
• Lystype: Wall Lighting, suitable for incandescent bulbs up to 60 watts.
• Sikkerhetsvurdering: UL/ETL listed for damp steder.

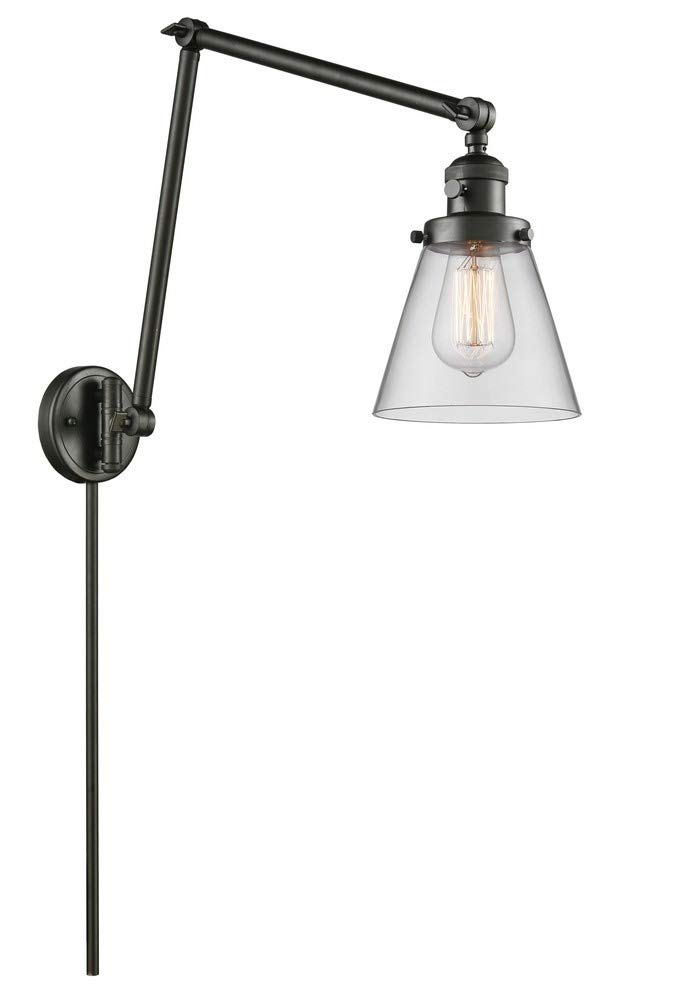

Image of the Innovations 238-OB-G62 1 Light Swing Arm Wall Light in Oil Rubbed Bronze finish, showcasing its design and adjustable arm.

2. Sikkerhetsinformasjon

Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries. Always consult a qualified electrician if you are unsure about any part of the installation process.

• ADVARSEL: Koble fra strømmen ved sikringsskapet eller strømbryteren før installasjon eller service.
• FORSIKTIGHET: All wiring connections must be in accordance with local and national electrical codes.
• Do not install this fixture in locations exposed to direct water spray or submersion. It is rated for damp bare steder.
• Sørg for at alle elektriske tilkoblinger er sikre og riktig isolert.
• Bruk kun spesifisert pæretype og hvatage (incandescent, up to 60 watts).

3. Pakkens innhold

Kontroller at alle komponenter er til stede før du kaster emballasjematerialene. Hvis noen deler mangler eller er skadet, kontakt kundestøtte.

• 1 x Light Swing Arm Fixture (Model: 238-OB-G62)
• 1 x Glassskjerm
• Monteringsutstyr (skruer, trådmuttere, monteringsplate)
• Bruksanvisning

4. Oppsett og installasjon

This fixture requires assembly and wall-mount installation. Professional installation is recommended.

1. Slå av strømmen: Locate the circuit breaker or fuse box and turn off the power to the wall switch outlet where you will be installing the fixture.
2. Klargjør monteringsplaten: Attach the mounting plate to the junction box in the wall using the provided screws. Ensure it is securely fastened.
3. Elektriske tilkoblinger: Connect the fixture's wires to the household electrical wires. Connect the black wire (live) from the fixture to the black wire from the junction box. Connect the white wire (neutral) from the fixture to the white wire from the junction box. Connect the ground wire from the fixture to the ground wire from the junction box (or to the green ground screw on the mounting plate). Secure all connections with wire nuts.
4. Festefeste: Carefully tuck the wires into the junction box. Align the fixture base with the mounting plate and secure it with the provided screws.
5. Installer glassskjerm: Follow the specific instructions provided with your fixture to attach the glass shade securely.
6. Installer pære: Screw in one incandescent bulb (max 60 watts) into the socket. Do not overtighten.
7. Gjenopprett kraften: Slå på strømmen igjen ved sikringsskapet eller strømbryteren.

5. Bruksanvisning

The Innovations 238-OB-G62 wall light is designed for simple operation.

• Slå på/av: Operate the light using the wall switch connected to the fixture.
• Justering av armen: The swing arm allows for directional lighting. Gently move the arm to position the light as desired. Avoid excessive force to prevent damage.

6. Vedlikehold

Regular maintenance ensures the longevity and optimal performance of your fixture.

• Rengjøring: Koble fra strømmen før rengjøring. Tørk av armaturen med en myk, tørr klut. Ikke bruk slipende rengjøringsmidler, løsemidler eller poleringsmidler, da disse kan skade overflaten.
• Bytte av pære: Ensure power is off and the bulb has cooled before attempting to replace it. Unscrew the old bulb and screw in a new incandescent bulb (max 60 watts).
• Inspeksjoner: Periodically check for loose connections or signs of wear. If any issues are found, consult a qualified electrician.

7. Feilsøking

If your fixture is not operating correctly, refer to the following common issues and solutions:

Hvis feilsøkingstrinnene ikke løser problemet, kontakt kundestøtte eller en kvalifisert elektriker.

8. Spesifikasjoner

9. Garanti og støtte

Innovations provides the following warranty for this product:

• Fullfør: 2 års garanti
• Elektriske komponenter: Livstidsgaranti

For technical support, warranty claims, or replacement parts, please contact Innovations customer service. Refer to the contact information provided with your purchase or on the manufacturer's official webnettstedet.
