Xanlite TO250S 300 Lumen LED Flashlight User Manual

1. Introduksjon

Thank you for choosing the Xanlite TO250S LED Flashlight. This manual provides essential information for the safe and efficient use of your new flashlight. Please read it thoroughly before operation and retain it for future reference.

The Xanlite TO250S is a robust and powerful LED flashlight designed for various applications, offering 3 lighting modes and a long-range beam. Its durable aluminum construction ensures reliability in demanding conditions.

2. Produktet er overview

The Xanlite TO250S is a compact and powerful LED flashlight. It features a durable aluminum body, a bright LED light source, and multiple lighting modes for versatility.

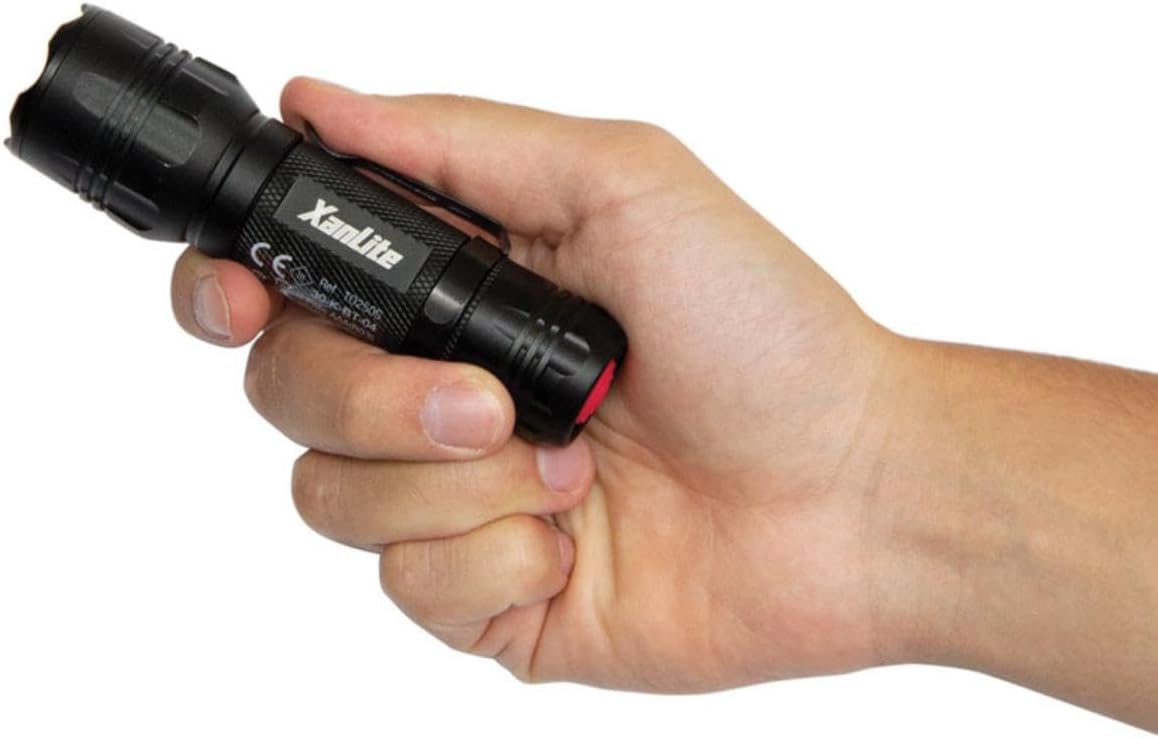

Image: A hand holding the Xanlite TO250S LED flashlight, showcasing its compact design and textured grip.

Image: A graphic highlighting key features of the Xanlite TO250S: 3 lighting modes (300 lumens, 150 lumens, flash), 10 hours of autonomy, shock-resistant aluminum body, and a long range of up to 200 meters.

3. Oppsett og batteriinstallasjon

Your Xanlite TO250S flashlight requires batteries for operation. Please follow these steps to install them correctly:

1. Skru av endehetten på lommelykten ved å vri den mot klokken.
2. Insert the required alkaline batteries (typically AAA, as indicated by the product specifications) into the battery compartment, ensuring correct polarity (+/-) as marked inside the flashlight.
3. Skru halehetten på igjen med klokken til den er godt strammet.

Image: The Xanlite TO250S flashlight with its tail cap removed, revealing the battery compartment and an inserted AAA battery.

4. Drift

To operate your Xanlite TO250S flashlight, use the power button located on the tail cap.

• Slå på/av: Press the red power button on the tail cap once to turn the flashlight on. Press it again to turn it off.
• Endring av modus: While the flashlight is on, lightly press the power button (without fully clicking it) to cycle through the available lighting modes: High, Low, and Flash.

Bilde: En nærbilde av toppen view of the Xanlite TO250S flashlight, highlighting the red power button on the tail cap.

5. Belysningsmoduser

The Xanlite TO250S offers three distinct lighting modes to suit various needs:

• Høy lysstyrke (300 lumen): Provides maximum illumination for long-distance viewing or when a powerful light is required. Ideal for outdoor activities, searching, or working in dark environments.
• Low Brightness (Approx. 150 Lumens): Offers a softer light for close-range tasks, reading, or to conserve battery life.
• Blitsmodus: A flashing light signal, useful for emergencies, signaling, or attracting attention.

Image: A man using the Xanlite TO250S flashlight to inspect the underside of a car, demonstrating its utility in detailed tasks.

6. Vedlikehold

To ensure the longevity and optimal performance of your Xanlite TO250S flashlight, follow these maintenance guidelines:

• Rengjøring: Tørk av lommelyktens kropp med en myk klutamp klut. Ikke bruk skurende rengjøringsmidler eller løsemidler.
• Batteribytte: Replace batteries when the light output diminishes. Always use fresh alkaline batteries of the specified type (AAA). Do not mix old and new batteries or different battery types.
• Lagring: If storing the flashlight for an extended period, remove the batteries to prevent leakage and damage. Store in a cool, dry place.

7. Spesifikasjoner

Image: A diagram illustrating the dimensions of the Xanlite TO250S flashlight, showing a length of 137mm and a width of 39mm.

8. Feilsøking

If you encounter any issues with your Xanlite TO250S flashlight, please refer to the following common solutions:

• Lommelykten slår seg ikke på:
  • Sjekk om batteriene er satt inn riktig med riktig polaritet.
  • Ensure the batteries are fresh and not depleted. Replace if necessary.
  • Make sure the tail cap is fully tightened. A loose connection can prevent the flashlight from working.
• Dim eller flimrende lys:
  • Batteries may be low. Replace them with fresh ones.
  • Clean the battery contacts and the flashlight's internal contacts with a clean cloth to remove any dirt or corrosion.
• Cannot change lighting modes:
  • Ensure you are lightly pressing the power button to cycle modes, not fully clicking it off and on.

If the problem persists after trying these steps, please contact Xanlite customer support.

9. Garanti og støtte

The Xanlite TO250S LED Flashlight comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty information provided at the time of purchase or contact Xanlite customer service directly.

For technical support, replacement parts, or any other inquiries, please visit the official Xanlite website or contact their customer support team. Keep your purchase receipt as proof of purchase for warranty claims.
