WISE TIGER AC1200 Wireless Router User Manual

1. Produktet er overview

The WISE TIGER AC1200 Wireless Router is a high-speed dual-band router designed for robust wireless internet connectivity in homes, offices, and restaurants. It features 802.11AC/N/G/B/A Wi-Fi technology, beamforming for enhanced signal reliability, and four external 5dBi antennas to ensure long-range coverage, even in basements or attics.

This router supports up to 300Mbps at 2.4GHz and 866Mbps at 5GHz, providing smooth online gaming and video streaming experiences. It also includes a WAN port and four LAN Fast ports (10/100Mbps) for wired connections. Security features include WPA/WPA2-PSK encryption, firewall, parental controls, and guest network capabilities.

Figur 1: Foran view of the WISE TIGER AC1200 Wireless Router.

2. Pakkens innhold

Vennligst sjekk at alle varene er til stede i pakken din:

• AC1200 Trådløs Dual Band Router
• Strømforsyningsenhet
• Hurtiginstallasjonsveiledning
• Nettverkskabel

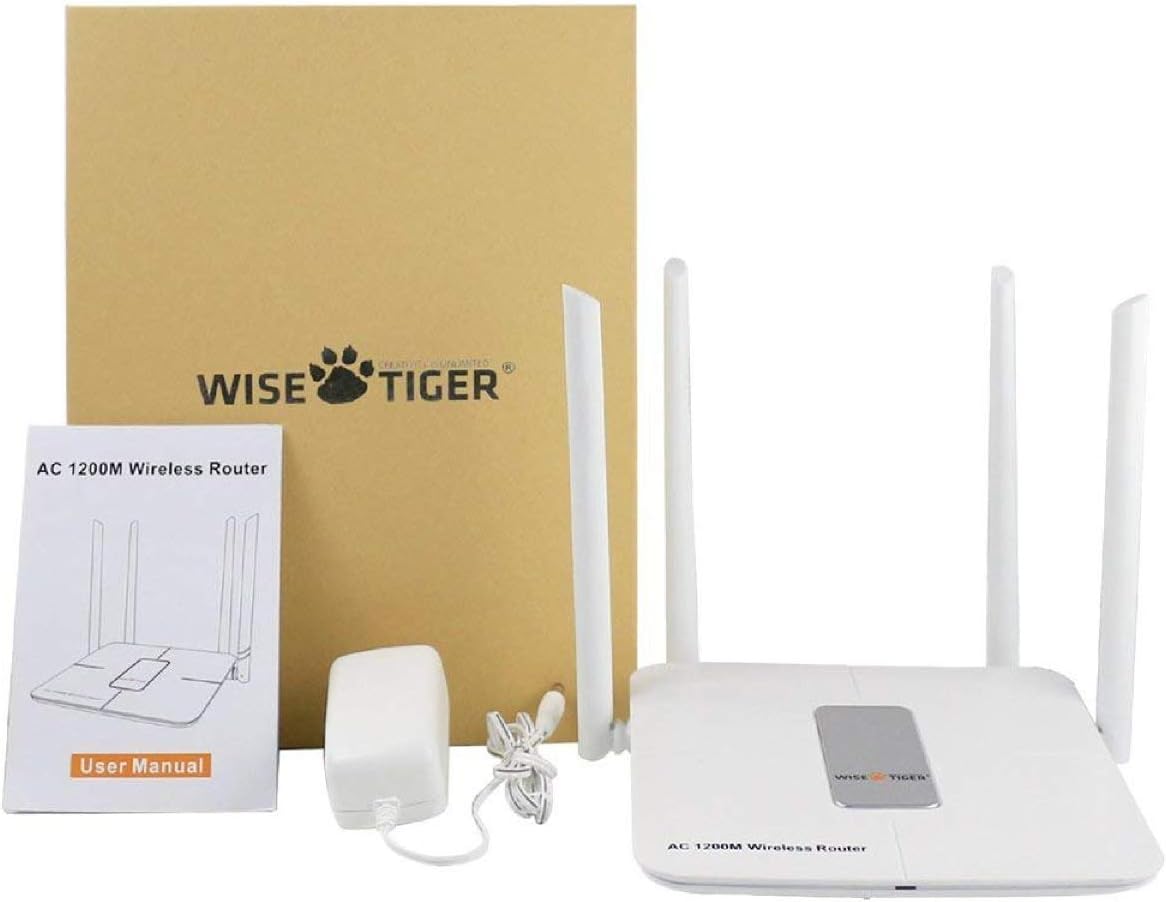

Figure 2: All components included in the WISE TIGER AC1200 Wireless Router package.

3. Produktdiagram og porter

Familiarize yourself with the router's physical layout and ports:

Figur 3: Bak view of the router with labeled ports.

• LAN-porter (x4): Connect your wired devices such as computers, gaming consoles, or smart TVs.
• Internettport (WAN): Connect your modem's Ethernet cable to this port to receive internet access.
• Strøminngang: Koble til den medfølgende strømadapteren her.
• Tilbakestill-knapp: Used to restore the router to factory default settings. Press and hold for several seconds while the router is powered on.
• WPS-knapp: For quick and secure wireless connection setup with WPS-compatible devices.

4. Spesifikasjoner

Figure 4: Router dimensions for placement planning.

5. Oppsettveiledning

Follow these steps to set up your WISE TIGER AC1200 Wireless Router:

5.1 Første maskinvaretilkobling

1. Koble til WAN-kabel: Plug the broadband wire from your modem into the blue WAN port on the router.
2. Connect LAN Cable (Optional): For wired devices, connect one end of the network patch cable to a yellow LAN port on the router and the other end to your PC's LAN network port.
3. Strøm på: Connect the power adapter to the router's power input and plug it into an electrical outlet.

5.2 Få tilgang til Web Grensesnitt

1. Join Wi-Fi: On your computer or mobile device, connect to the router's default Wi-Fi network. The default Wi-Fi name (SSID) and password can usually be found on a sticker on the bottom of the router.
2. Åpne nettleser: Åpne a web nettleser (f.eks. Chrome, Firefox, Edge).
3. Skriv inn IP-adresse: Skriv inn i adressefeltet 192.168.0.1 og trykk Enter.
4. Logg inn: Enter the default username and password. Typically, both are admin.

5.3 WAN Setup (Internet Connection Type)

Select the connection type provided by your Internet Service Provider (ISP):

• PPPoE: If your ISP provides a username and password for internet access, select PPPoE and enter the credentials.
• Statisk IP: If your ISP provided a fixed IP address, subnet mask, default gateway, and DNS settings, select Static IP and input these details.
• Dynamisk IP: If your ISP uses a DHCP server, select Dynamic IP. The router will automatically obtain network settings. No account or static IP info is needed.
• PPTP/L2TP: If your ISP provided PPTP/L2TP connection details including a server IP or domain, select this option and enter the required information.
• WISP (Wireless ISP): This mode allows the router to connect to another Wi-Fi network as its internet source, acting as a Wi-Fi repeater. Select a Wi-Fi network from the list and log in with its password.

5.4 Trådløse innstillinger

Configure your Wi-Fi networks for both 2.4GHz and 5GHz bands:

• Wi-Fi-navn (SSID): Change the default Wi-Fi name to a custom one for easy identification.
• Kryptering: Select a strong encryption type, such as WPA2-PSK, for network security.
• Wi-Fi-passord: Set a strong, unique password for your Wi-Fi network.
• Båndbredde: Adjust the channel width for optimal performance (e.g., 20/40MHz for 2.4GHz, 40/80MHz for 5GHz).

6. Bruk av ruteren

6.1 Optimal plassering

For the best wireless performance, place your router in a central location, away from obstructions like thick walls, metal objects, and other electronic devices that may cause interference. The four high-gain external antennas are designed to provide extensive coverage.

Figure 5: Illustration of the router's high-power signal penetration.

Figure 6: Visual representation of 2.4GHz (longer distance) and 5GHz (faster transmission) band characteristics.

6.2 Avanserte funksjoner

• Foreldrekontroll: Administrer og begrens internettilgang for bestemte enheter eller brukere.
• Gjestenettverk: Create separate Wi-Fi networks for guests, providing internet access without sharing your main network password or resources. The router supports up to 3 guest access points.
• Brannmur: The built-in firewall helps protect your network from unauthorized access and malicious attacks.
• MAC Filtering (Restricted List): You can block or allow specific devices on your network based on their MAC addresses. This feature is found under the 'Restricted list' in the web grensesnitt.
• Bandwidth Control: Allocate specific download and upload limits to connected devices to manage network traffic effectively. This can be configured in the 'Bandwidth Control' section of the web grensesnitt.

7. Vedlikehold

Regelmessig vedlikehold sikrer optimal ytelse og levetid for ruteren din:

• Fastvareoppdateringer: Periodically check the WISE TIGER official webnettsted for fastvareoppdateringer. Oppdatering av fastvare kan forbedre ytelsen, legge til nye funksjoner og fikse feil.
• Vanlig omstart: Rebooting your router every few weeks can help clear its memory and resolve minor connectivity issues. Simply unplug the power adapter, wait 10 seconds, and plug it back in.
• Rengjøring: Hold ruteren ren og støvfri. Bruk en myk, tørr klut til å tørke av utsiden. Sørg for at ventilasjonsåpningene ikke er blokkert.

8. Feilsøking

Hvis du støter på problemer med ruteren din, kan du prøve følgende løsninger:

• Ingen Internett-tilgang:
  • Sjekk alle kabeltilkoblinger (WAN, LAN, strøm) for å sikre at de er sikre.
  • Verify your modem is working correctly. Try rebooting both the modem and the router.
  • Confirm your WAN settings in the router's web interface match your ISP's requirements.
• Svak Wi-Fi-signal eller døde soner:
  • Relocate the router to a more central position in your home/office.
  • Adjust the router's antennas for better signal direction.
  • Minimize interference from other electronic devices (cordless phones, microwaves).
  • Consider using the WISP mode to extend coverage if you have another Wi-Fi network.
• Får ikke tilgang til ruteren Web Grensesnitt:
  • Sørg for at enheten din er koblet til ruterens Wi-Fi eller til en LAN-port via en Ethernet-kabel.
  • Bekreft at du skriver inn riktig IP-adresse (192.168.0.1).
  • Tøm nettleserens hurtigbuffer og informasjonskapsler, eller prøv en annen nettleser.
  • If you forgot your login credentials, you may need to perform a factory reset.
• Fabrikkinnstilling: If all else fails, use a paperclip or pin to press and hold the Reset button on the back of the router for about 10 seconds while it is powered on. This will restore all settings to their factory defaults, including Wi-Fi name and password. You will then need to reconfigure the router.

9. Garanti og støtte

WISE TIGER provides a 1 års garanti for this product. In case the product does not meet your satisfaction or experiences issues within this period, a new replacement will be provided.

For technical support or warranty claims, please refer to the contact information provided in your product packaging or visit the official WISE TIGER webnettsted for de mest oppdaterte støtteressursene.

Vennligst ta vare på kjøpsbeviset av garantihensyn.
