1. Produktet er overview
The HOSMART Wireless Intercom System HY810-CA-002 provides reliable and secure communication for homes and offices. This system features a 1/2-mile long range in ideal conditions and supports 10 channels for versatile use. Designed for ease of use, it integrates essential functions for effective communication.
Image 1: HOSMART Wireless Intercom System unit.
Nøkkelfunksjoner:
- Langdistansekommunikasjon: Up to 1/2 mile in ideal conditions, suitable for various environments.
- Flerkanalsstøtte: 10 channels for flexible communication between multiple units.
- Individual Functions: Includes Monitor, Talk, VOX (Voice Operated Exchange), and Group call capabilities.
- Clear Digital Communication: Anti-interference signal technology ensures clear and secure conversations.
- Power Bank Compatibility: Can be powered by a 5V 1A power bank for portable use.
Image 2: Features of the HOSMART Intercom System, including range, sound clarity, and monitoring capabilities.
2. Installasjonsinstruksjoner
2.1 Utpakking og plassering
Carefully remove all components from the packaging. The system typically includes two intercom units and their respective power adapters. Place the units in desired locations, ensuring they are within range for optimal performance. Avoid placing units near large metal objects or other electronic devices that may cause interference.

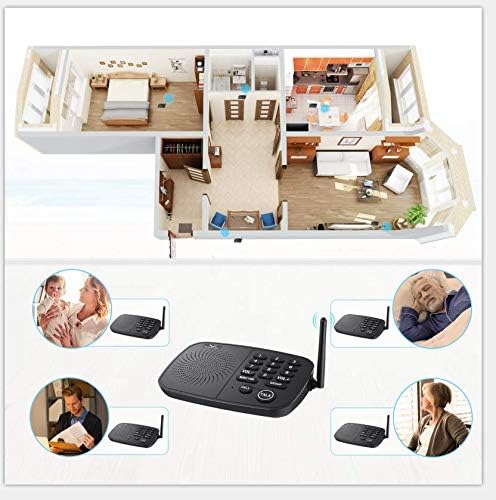

Bilde 3: Eks.ample placement of intercom units within a home environment.
2.2 Strømtilkobling
- Connect the provided power adapter to the DC 5V port on the back of each intercom unit.
- Plug the power adapter into a standard electrical outlet. The unit will power on automatically.
- Alternatively, for portable use, connect a 5V 1A power bank to the DC 5V port.
2.3 Kanalinnstilling
To enable communication between units, ensure they are set to the same channel. The HY810-CA-002 supports 10 channels (0-9).
- On each unit, press the desired channel number button (0-9) to select a channel.
- Confirm that all units intended to communicate are set to the identical channel number.
Bilde 4: Detaljert view of the intercom unit's controls, including channel buttons.
3. Bruksanvisning
3.1 Ringe
- Ensure both units are powered on and set to the same channel.
- Trykk på RINGE button on your unit. The receiving unit will ring.
- To answer, the recipient presses the SNAKKE knapp.
3.2 Two-Way Communication (Talk Function)
The system operates in a half-duplex mode, meaning only one person can speak at a time.
- For å snakke, trykk og hold inne SNAKKE knappen. Snakk tydelig inn i mikrofonen.
- Slipp ut SNAKKE knappen for å lytte etter svar.
- The other party follows the same procedure to respond.
3.3 Monitorfunksjon
The Monitor function allows continuous listening to another unit for a set period (e.g., 24 hours). This is useful for monitoring children, elderly individuals, or specific areas.
- On the unit you wish to listen fra, trykk på FØLGE knapp.
- On the unit you wish to listen til, select the channel of the monitoring unit.
- The monitoring unit will transmit audio continuously.
Image 5: The monitor function allows continuous audio transmission, useful for observing sleeping individuals.
3.4 Group Call Function
The Group call function enables communication with all other units simultaneously within the intercom system that are set to the same group channel.
- Trykk på GRUPPE knapp.
- Speak into the microphone. All units on the same group channel will hear your message.
3.5 Volumjustering
Bruk VOL+ og VOL- buttons to adjust the speaker volume to a comfortable level.
4. Vedlikehold
To ensure the longevity and optimal performance of your HOSMART Wireless Intercom System, follow these maintenance guidelines:
- Rengjøring: Tørk av enhetene med en myk, tørr klut. Ikke bruk slipende rengjøringsmidler, løsemidler eller sterke kjemikalier.
- Strømforsyning: Always use the original power adapters provided with the system.
- Miljø: Keep the units away from excessive moisture, direct sunlight, and extreme temperatures.
- Lagring: If storing the units for an extended period, disconnect them from power and store them in a cool, dry place.
5. Feilsøking
If you encounter issues with your intercom system, refer to the following troubleshooting steps:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Ingen strøm/Enheten slår seg ikke på | Strømadapteren er ikke tilkoblet eller defekt; problem med strømuttaket. | Sørg for at strømadapteren er ordentlig koblet til og koblet til en stikkontakt som fungerer. Prøv en annen stikkontakt. |
| Ingen kommunikasjon mellom enhetene | Units are on different channels; out of range; interference. | Verify all units are set to the same channel. Reduce distance between units. Relocate units away from potential interference sources. |
| Poor sound quality/Static | Interference; units too far apart; low battery (if using power bank). | Move units to a different location. Ensure power bank is charged if used. |
| Unit loses channel setting after unplugging | This model may not retain channel settings without continuous power. | Re-set the desired channel after each power cycle. |
| Incompatibility with older/other brand units | Different communication protocols or frequencies. | This system is designed to work with compatible HOSMART units. Ensure all units are of the same model or confirmed compatible. |
6. Spesifikasjoner
| Trekk | Detalj |
|---|---|
| Modellnummer | HY810-CA-002 |
| ASIN | B07MFTMN99 |
| Pakkedimensjoner | 8.39 x 7.09 x 3.66 tommer |
| Varevekt | 1.96 pund |
| Kanaler | 10 |
| Spekter | Up to 1/2 mile (in ideal situations) |
| Strøminngang | DC 5V 1A |
| Sertifiseringer | FCC, CE, ROSH Certified |
7. Garanti og støtte
HOSMART provides a lifetime quality warranty for this wireless intercom system, ensuring your benefit and satisfaction. The product has passed FCC, CE, and ROSH certifications.
For any questions, technical assistance, or warranty claims, please contact HOSMART customer support. Responsive customer service is available to assist you with product inquiries and support needs.
Contact Information: Refer to the product packaging or the official HOSMART webnettstedet for den nyeste kundesupportinformasjonen.
