1. Introduksjon og overview
This manual provides essential information for the safe and effective use of your Walfront 10-60V to 12-97V 1500W 30A DC-DC Step-Up Converter Module. This non-isolated DC power converter is designed for high-power applications, offering stable and efficient voltage conversion with advanced protection features.
Nøkkelfunksjoner:
- Høy effekt: Converts 10-60VDC input to a stable 12-97VDC output, supporting up to 1500W.
- Høy konverteringseffektivitet: Achieves 92%-97% efficiency, minimizing energy loss.
- Flere beskyttelsesfunksjoner: Includes overcurrent protection, short circuit protection, and reverse input protection for enhanced safety.
- Intelligent temperaturkontroll: Features a fan that automatically activates at approximately 60°C and stops below 60°C to maintain optimal operating temperature and extend lifespan.
- Bredt bruksområde: Suitable for solar street light drivers, LED lighting, vehicle power supplies, DIY adjustable power supplies, and battery charging.
2. Sikkerhetsinformasjon
Please read and understand all safety warnings before operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Elektrisk fare: This module operates with high voltage and current. Always disconnect power before making any connections or adjustments.
- Riktig ventilasjon: Ensure adequate airflow around the module, especially the heatsink and fan, to prevent overheating.
- Riktig polaritet: Always connect input and output with correct polarity. Reverse polarity can damage the module and connected devices.
- Isolasjon: Ensure all connections are properly insulated to prevent short circuits.
- Profesjonell installasjon: If you are not familiar with electrical wiring, seek assistance from a qualified professional.
- Miljøforhold: Ikke utsett modulen for fuktighet, ekstreme temperaturer eller korrosive miljøer.
3. Pakkens innhold
Kontroller at alle varene er til stede og i god stand når du åpner pakken.
- 1 x Walfront 10-60V to 12-97V 1500W 30A DC-DC Step-Up Converter Module
- Brukerhåndbok (dette dokumentet)
4. Installasjonsinstruksjoner
Follow these steps to set up your DC-DC converter module.
- Identifiser komponenter: Familiarize yourself with the input/output terminals, voltage/current adjustment potentiometers, and protection features.
- Inngangstilkobling: Connect your DC power source (10-60V) to the input terminals labeled 'Input +' and 'Input -' (or 'Input GND'). Ensure correct polarity. Use appropriate gauge wires for the expected current.
- Utgangstilkobling: Connect your load or device to the output terminals labeled 'Output +' and 'Output -' (or 'Output GND'). Ensure correct polarity.
- Initial Adjustment (Voltage): Before applying power to the load, turn the CV (Constant Voltage) potentiometer (labeled 'CV電圧調整' or 'w204') counter-clockwise to its minimum setting.
- Initial Adjustment (Current): Turn the CC (Constant Current) potentiometer (labeled 'cc定電流制御') counter-clockwise to its minimum setting.
- Strøm på: Apply power to the input of the module.
- Sett utgangsvoltage: Using a multimeter, measure the output voltage. Slowly turn the CV potentiometer clockwise until the desired output voltage (12-97V) is reached.
- Set Output Current (Optional, for constant current applications): If using constant current mode (e.g., for battery charging), connect your load. Then, slowly turn the CC potentiometer clockwise until the desired output current is reached. If not using constant current, this step may be skipped, or the CC can be set to maximum to allow the voltage to regulate freely.
- Viftetilkobling: The module includes a temperature-controlled fan. Connect the fan to the designated fan connector (labeled 'ファン接続'). The fan will operate automatically when the module temperature reaches approximately 60°C.
5. Bruksanvisning
Once set up, the module operates automatically. Observe the following guidelines for optimal performance:

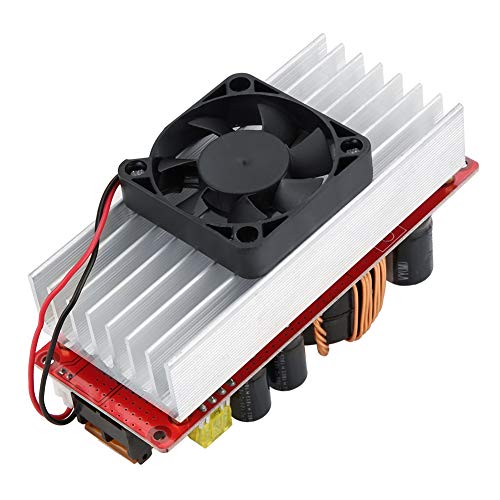

- Monitortemperatur: The intelligent fan will manage the module's temperature. Ensure the fan is not obstructed.
- Lasthåndtering: Do not exceed the maximum output power (1500W) or current (30A) to prevent damage.
- Voltage and Current Stability: The module is designed to provide stable output. If fluctuations occur, check input power stability and load conditions.
6. Vedlikehold
Regular maintenance helps ensure the longevity and reliable operation of your module.
- Rengjøring: Periodically clean the module, especially the heatsink and fan blades, to remove dust and debris. Use a soft brush or compressed air. Ensure power is disconnected before cleaning.
- Tilkoblingssjekk: Kontroller regelmessig alle ledningsforbindelser for å sikre at de er sikre og fri for korrosjon.
- Miljøsjekk: Sørg for at driftsmiljøet holder seg innenfor de angitte temperatur- og fuktighetsområdene.
7. Feilsøking
If you encounter issues with your module, refer to the following common problems and solutions:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Ingen utgang voltage | No input power; Incorrect input polarity; Blown fuse; Output short circuit; Undervoltage beskyttelse aktivert. | Check input power supply; Verify input wiring polarity; Replace fuse if necessary; Check output for short circuits; Ensure input voltage er over undervolumettage beskyttelsesterskel. |
| Utgang voltage for lav/høy | CV potentiometer incorrectly set; Input voltage for lav/høy. | Adjust CV potentiometer; Ensure input voltage er innenfor området 10–60 V. |
| No output current (in CC mode) | CC potentiometer incorrectly set; Load resistance too high; Overcurrent protection activated. | Adjust CC potentiometer; Check load for open circuit; Reduce load or ensure it's within current limits. |
| Modul overoppheting | Insufficient ventilation; Excessive load; Fan malfunction. | Ensure proper airflow; Reduce load; Check fan operation and clear obstructions. |
8. Tekniske spesifikasjoner
Detailed specifications for the Walfront DC-DC Step-Up Converter Module:
| Parameter | Verdi |
|---|---|
| Merke | Walfront |
| Modellnummer | Wal front9sbfz08351 |
| Inngang Voltage | DC 10-60V |
| Utgang Voltage | DC 12-97V (Adjustable) |
| Utgangseffekt | 1500 W (maks.) |
| Utgangsstrøm | 30A (maks) |
| Konverteringseffektivitet | 92 %–97 % |
| Driftstemperatur | -40°C til 85°C |
| Byttefrekvens | 150KHz |
| Module Size (with copper pillars and fan) | 130 mm x 52 mm x 84 mm |
| Module Size (without copper pillars and fan) | 130 mm x 52 mm x 67 mm |
| Produktvekt | 0.37 kg |
| UPC | 750086417451 |
| ASIN | B07RMT9W7D |
| Opprinnelsesland | Kina |
9. Garantiinformasjon
Walfront products are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims.
Garantien dekker ikke skader forårsaket av:
- Feil installasjon eller bruk.
- Uautoriserte modifikasjoner eller reparasjoner.
- Accidents, abuse, or neglect.
- Operating outside the specified environmental or electrical parameters.
For specific warranty terms and conditions, please refer to the product packaging or contact Walfront customer support.
10. Kundestøtte
If you have any questions, require technical assistance, or need to make a warranty claim, please contact Walfront customer support through the following channels:
- Online støtte: Visit the official Walfront webnettsted for vanlige spørsmål, støtteressurser og kontaktskjemaer.
- E-post: Refer to your product packaging or the Walfront webnettstedet for riktig e-postadresse for støtte.
- Forhandlerstøtte: If purchased from a retailer, you may also contact their customer service for assistance.
When contacting support, please have your product model number (Wal front9sbfz08351) and proof of purchase readily available.
