1. Introduksjon

The Vertiv Liebert GXT5 UPS is an advanced Uninterruptible Power Supply designed to provide reliable power protection for critical IT infrastructure. Featuring online double conversion technology, it safeguards equipment against power outages and disturbances, ensuring continuous operation and extending battery life. This 2000VA/1800W 120V unit is Energy Star 2.0 certified, offering high efficiency in both standard and eco-modes. Its versatile design allows for both rack and tower installations, and it includes hot-swappable batteries for easy maintenance. The user-friendly colored LCD provides comprehensive status and control options.

2. Oppsett og installasjon

2.1 Utpakking og inspeksjon

Carefully unpack the UPS and all accessories. Inspect for any shipping damage. Retain all packaging materials for future use.

Front view of Vertiv Liebert GXT5 UPS — Figur 2.1: Foran view of the GXT5 UPS, showing the display and ventilation.

Vinklet view of Vertiv Liebert GXT5 UPS — Figur 2.2: Vinklet view of the GXT5 UPS, highlighting its compact 2U design.

2.2 Rack or Tower Installation

The GXT5 UPS can be installed in a standard 19-inch equipment rack or configured as a tower unit using the included base. Ensure proper ventilation around the unit.

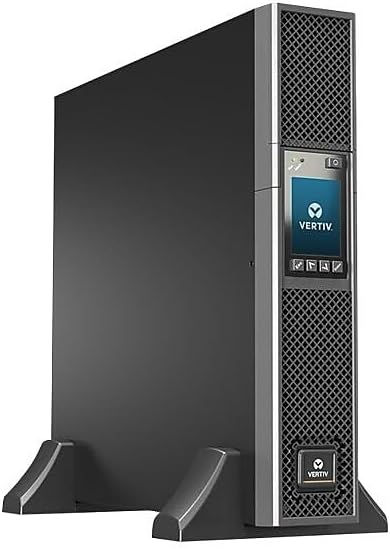

Vertiv Liebert GXT5 UPS in tower configuration — Figure 2.3: The GXT5 UPS configured for tower installation with its base.

2.3 Koble til UPS-en

Connect the UPS to a suitable power source. The unit supports 110/115/120/125V AC power environments. Utilize the provided power cables and adapters as needed. Connect your critical equipment to the output receptacles on the rear panel.

Bak view of Vertiv Liebert GXT5 UPS with power cables — Figure 2.4: Rear panel of the GXT5 UPS, showing input power and output receptacles.

Close-up of rear panel connections on Vertiv Liebert GXT5 UPS — Figur 2.5: Detaljert view of the rear panel, including communication ports and battery connector.

2.4 Første gangs oppstart

After all connections are secure, press the power button on the front panel to turn on the UPS. The colored LCD will guide you through the initial setup process, including language, temperature unit, and output voltage innstillinger.

Close-up of Vertiv Liebert GXT5 UPS front LCD panel — Figure 2.6: Close-up of the GXT5's colored LCD for easy monitoring and configuration.

2.5 Oppsett overview Video

For a visual guide on unpacking, physical setup, and initial configuration, please watch the official product video below.

Video 2.1: Vertiv Liebert GXT5 Product Overview and Setup. This video demonstrates the physical aspects of the UPS, including unboxing and initial interface navigation.

3. Drift

3.1 Front Panel Display and Navigation

The GXT5 features a colored LCD that provides real-time status updates and allows for configuration changes. Use the navigation buttons (Esc, Up, Down, Enter) to browse menus and adjust settings. The display shows input/output voltage, batteriladenivå, belastningsprosenttage, and alarm status.

3.2 Programmable Output Sockets

The UPS includes four individual programmable output receptacles. These can be configured to control and manage connected devices, optimizing battery usage during power outages. Non-critical loads can be automatically shut down to extend runtime for essential equipment.

4. Vedlikehold

4.1 Batteribytte

The GXT5 UPS features hot-swappable batteries, allowing for replacement without powering down connected equipment. To replace batteries, locate the battery compartment on the front of the unit. Follow the instructions in the full user guide for safe removal and installation. Always ensure the replacement batteries are compatible with the GXT5 model.

Vertiv Liebert GXT5 UPS battery compartment open — Figure 4.1: The battery compartment of the GXT5 UPS, showing the hot-swappable battery pack.

4.2 Rengjøring og stell

Regularly clean the exterior of the UPS with a soft, dry cloth. Ensure ventilation openings are free from dust and debris to maintain optimal airflow and prevent overheating. Do not use liquid cleaners or solvents.

5. Feilsøking

If the UPS is not functioning as expected, refer to the following common issues:

Ingen strøm/Ingen skjerm: Check the input power connection and ensure the circuit breaker is not tripped. Verify the power cable is securely connected.
Alarmlyd: The alarm indicates a detected issue (e.g., battery low, overload, fault). Check the LCD for specific error messages and consult the full user guide for corresponding solutions.
Kort kjøretid: This may indicate aging batteries. Consider replacing the battery pack if the UPS does not provide adequate backup time after a full charge.
Advarsel om overbelastning: Disconnect non-critical loads to reduce the total power draw. Ensure the total load does not exceed the UPS's capacity.

For detailed troubleshooting steps and error code explanations, please consult the comprehensive user guide.

6. Spesifikasjoner

Trekk	Detalj
Produktdimensjoner	18.6 x 16.9 x 3.3 tommer
Varevekt	58.7 pund
Vare modellnummer	GXT5-2000LVRT2UCL
Merke	Liebert
Battericellesammensetning	Forseglet blysyre
Voltage	120 volt
Farge	Svart
Materiale	Metall
Produsent	Vertiv
Opprinnelsesland	Kina
Dato først tilgjengelig	5. juni 2019

7. Garanti og støtte

7.1 Garantiinformasjon

The Vertiv Liebert GXT5 UPS comes with a three-year factory warranty. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official warranty document included with your product or available on the manufacturer's webnettstedet.

7.2 Ytterligere støtte

For comprehensive information, detailed installation instructions, and advanced configuration options, please download the official User Guide (PDF): Vertiv Liebert GXT5 User Guide

For technical assistance or customer service, please contact Liebert support directly.
