Michelin MPX17EH 1700W 130 Bar Professional Pressure Washer User Manual

1. Introduksjon

This manual provides essential information for the safe and effective use of your Michelin MPX17EH 1700W 130 Bar Professional Pressure Washer. Please read these instructions carefully before assembly, operation, or maintenance. Retain this manual for future reference.

2. Sikkerhetsinformasjon

Følg alltid grunnleggende sikkerhetsregler for å redusere risikoen for brann, elektrisk støt og personskade. Unnlatelse av å følge disse instruksjonene kan føre til alvorlig personskade eller skade på produktet.

• Elektrisk sikkerhet: Sørg for at strømforsyningen samsvarer med voltage specified on the pressure washer. Always use a grounded outlet and avoid using extension cords unless absolutely necessary and rated for outdoor use.
• Vanntilkobling: Connect the pressure washer to a cold water supply only. Do not use with hot water. Ensure all connections are secure to prevent leaks.
• Personlig verneutstyr: Always wear appropriate eye protection (safety glasses) and protective clothing when operating the pressure washer.
• Driftsmiljø: Ikke bruk høytrykksspyleren i eksplosive atmosfærer, for eksempel i nærvær av brennbare væsker, gasser eller støv.
• Barn og kjæledyr: Hold barn og kjæledyr unna operasjonsområdet.
• Dysesikkerhet: Never direct the high-pressure spray at people, animals, electrical devices, or the unit itself.
• Vedlikehold: Koble fra strømforsyningen før du utfører vedlikehold eller rengjøring.

3. Produktet er overview

The Michelin MPX17EH is a professional-grade pressure washer designed for effective cleaning tasks. Familiarize yourself with its components before use.

Image: The Michelin MPX17EH pressure washer unit, featuring a hose reel, spray gun, and detergent bottle.

Nøkkelkomponenter:

• Hovedenhet: Houses the motor, pump, and electrical components.
• Høytrykksslange: Kobler hovedenheten til sprøytepistolen.
• Spraypistol: Controls the water flow and pressure.
• Justerbar dyse: Allows for varying spray patterns.
• Roterende dyse: Provides a powerful, concentrated spray for stubborn dirt.
• Detergent Bottle/Foam Cannon: For påføring av rengjøringsløsninger.
• Water Inlet Connector: For tilkobling av hageslangen.
• Strømledning: For elektrisk tilkobling.
• Slangetrommel: For convenient storage of the high-pressure hose.

4. Oppsett

Follow these steps to prepare your pressure washer for first use:

1. Pakk ut komponenter: Carefully remove all parts from the packaging and ensure all components listed in the manual are present.
2. Assemble Handle (if required): Attach the handle to the main unit according to the diagrams in your specific product manual.
3. Koble til høytrykksslange: Securely connect one end of the high-pressure hose to the outlet on the pressure washer unit and the other end to the spray gun.
4. Koble til vannforsyning: Attach a standard garden hose to the water inlet connector on the pressure washer. Ensure the garden hose is free of kinks and has an adequate water supply. Turn on the water tap fully.
5. Skylleluft: Before connecting to power, squeeze the trigger on the spray gun to allow water to flow through the system and purge any air. Continue until a steady stream of water emerges.
6. Koble til strøm: Koble strømledningen til en jordet stikkontakt.

Image: The pressure washer unit displayed with its included accessories, ready for connection.

5. Bruksanvisning

Når enheten er satt opp, følg disse trinnene for bruk:

1. Start enheten: Turn the ON/OFF switch to the 'ON' position. The motor will start briefly and then stop, indicating it is primed and ready.
2. Engage Spray Gun: Point the spray gun at the cleaning surface, ensuring it is a safe distance away. Squeeze the trigger to begin spraying. The motor will restart and maintain pressure.
3. Juster dyse: Rotate the adjustable nozzle to change the spray pattern from a narrow, powerful stream to a wider, gentler fan spray, depending on the cleaning task. For tough spots, use the rotary nozzle.
4. Påfør vaskemiddel (valgfritt): If using detergent, fill the detergent bottle with appropriate pressure washer detergent. Attach the bottle to the spray gun or designated detergent inlet. Operate the pressure washer at low pressure (usually achieved by a specific nozzle or setting) to draw and apply detergent.
5. Skylle: After applying detergent, switch to a high-pressure setting or nozzle to rinse the surface thoroughly.
6. Slå av: When finished, turn the ON/OFF switch to 'OFF'. Turn off the water supply. Squeeze the spray gun trigger to release any remaining pressure in the system.

Image: A person operating the Michelin MPX17EH pressure washer to clean a patio surface.

Image: The pressure washer being used to clean a car, demonstrating its application for vehicle washing.

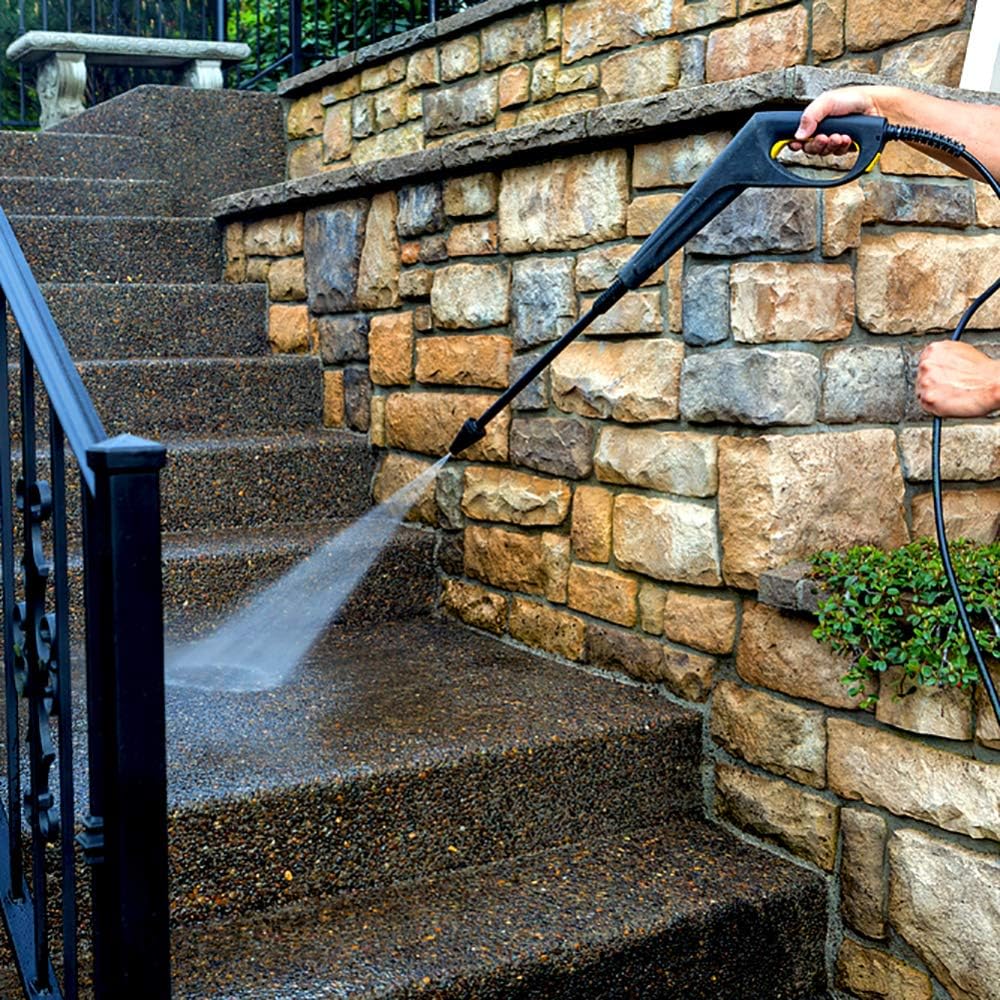

Image: An individual cleaning outdoor stairs with the Michelin MPX17EH pressure washer, highlighting its versatility.

6. Vedlikehold

Regelmessig vedlikehold sikrer optimal ytelse og forlenger levetiden til høytrykksspyleren din.

• Rengjør dyser: Periodically check nozzles for blockages. Use the provided nozzle cleaning tool to clear any debris.
• Inspiser slanger og koblinger: Before each use, inspect the high-pressure hose, garden hose, and all connections for wear, damage, or leaks. Replace damaged parts immediately.
• Clean Water Inlet Filter: The water inlet connector typically contains a filter to prevent debris from entering the pump. Clean this filter regularly.
• Vinterlagring: If storing the pressure washer in an area where temperatures may drop below freezing, drain all water from the pump and hoses to prevent damage. Consider using a pump protector solution.
• Generell rengjøring: Tørk av utsiden av enheten med adamp klut. Ikke bruk sterke kjemikalier.

7. Feilsøking

Se tabellen nedenfor for vanlige problemer og løsningene på dem.

8. Spesifikasjoner

Technical details for the Michelin MPX17EH pressure washer:

9. Garanti og støtte

Your Michelin MPX17EH pressure washer comes with a 2 års garanti fra kjøpsdatoen, som dekker produksjonsfeil. Vennligst ta vare på kjøpsbeviset for garantikrav.

For technical assistance, spare parts, or warranty inquiries, please contact your authorized Michelin service center or the retailer where the product was purchased. Refer to the product packaging or the official Michelin webnettsted for kontaktinformasjon.
