Ecolite WALP15-80W/LED Dimmable LED Ceiling Light

Introduksjon

Takk for kjøpetasing the Ecolite WALP15-80W/LED Dimmable LED Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

Sikkerhetsinstruksjoner

• Koble alltid fra strømmen ved hovedsikringen før installasjon, vedlikehold eller rengjøring.
• Installasjonen skal utføres av en kvalifisert elektriker i samsvar med lokale elektriske forskrifter.
• Do not modify the fixture or its components. Unauthorized modifications may void the warranty and create safety hazards.
• Sørg for at monteringsflaten kan bære vekten av armaturen.
• Do not look directly into the LED light source when illuminated, as it may cause eye strain.
• Hold fjernkontrollen unna vann og ekstreme temperaturer.

Pakkeinnhold

Kontroller at alle komponenter er til stede og uskadet før du fortsetter med installasjonen.

• Ecolite WALP15-80W/LED Ceiling Light Fixture
• Fjernkontroll
• Monteringsutstyr (skruer, veggplugger)
• Bruksanvisning (dette dokumentet)

Oppsett og installasjon

Follow these steps for proper installation of your LED ceiling light.

1. Forbered for installasjon: Turn off the power supply at the main circuit breaker. Ensure the power is completely off before beginning.
2. Montering av monteringsbrakett: Attach the mounting bracket to the ceiling using the provided screws and wall anchors. Ensure the bracket is securely fastened to a joist or suitable support structure.
3. Elektrisk tilkobling: Connect the household electrical wires to the fixture's wires. Typically, connect the live wire (usually brown or black) to the fixture's live wire, the neutral wire (usually blue) to the fixture's neutral wire, and the ground wire (usually green/yellow) to the fixture's ground wire. Use appropriate wire connectors and ensure all connections are secure.
4. Fest armaturen: Carefully lift the LED ceiling light fixture and align it with the mounting bracket. Secure the fixture to the bracket using the provided screws. Ensure the fixture is firmly attached to prevent it from falling.
5. Installasjon av fjernkontrollbatteri: Open the battery compartment on the back of the remote control and insert the required batteries (not included, typically AAA). Observe correct polarity.

Bilde: Bak view of the light fixture, illustrating the mounting plate and wiring terminals for installation.

Image: The Ecolite LED ceiling light installed and illuminated, demonstrating its appearance in a room, with the remote control in hand.

Bruksanvisning

Your Ecolite LED ceiling light is operated using the included remote control.

Bilde: Detaljert view of the remote control, showing buttons for ON/OFF, brightness adjustment, color temperature control (CT-/CT+), and an 'Auxiliary' button.

1. Strøm PÅ/AV: Press the 'ON' button to turn the light on. Press the 'OFF' button to turn the light off.
2. Lysstyrkejustering (dimming): Use the 'Up Arrow' button to increase brightness and the 'Down Arrow' button to decrease brightness.
3. Justering av fargetemperatur:
   • Press 'CT+' to increase the color temperature (cooler white light).
   • Press 'CT-' to decrease the color temperature (warmer white light).
4. Hjelpefunksjon: The 'Auxiliary' button may activate a pre-set lighting mode or a night light function, depending on the specific model's programming. Refer to the light's behavior for its specific function.
5. Section Button: The 'Section' button may cycle through different lighting zones or pre-programmed scenes if your fixture supports such features.

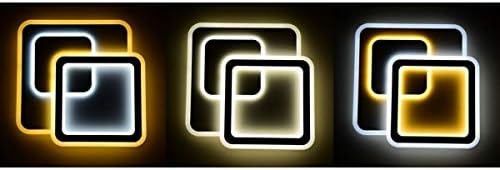

Image: The ceiling light displaying its ability to produce different color temperatures, from warm yellow light to bright white light.

Vedlikehold

Regelmessig vedlikehold sikrer LED-taklampens levetid og optimale ytelse.

• Rengjøring: Sørg for at strømmen er slått av før rengjøring. Tørk av armaturen med en myk, tørr eller lett fuktet klut.amp klut. Ikke bruk slipende rengjøringsmidler, løsemidler eller sterke kjemikalier, da disse kan skade overflaten eller de elektriske komponentene.
• LED: LED-lyskilden er integrert og kan ikke byttes ut av brukeren. Ikke forsøk å åpne LED-modulen.
• Fjernkontroll: If the remote control stops responding, check and replace the batteries.

Image: The light diffusers, which can be gently cleaned to maintain light output.

Feilsøking

If you encounter issues with your Ecolite LED ceiling light, refer to the following common problems and solutions:

• Lyset slår seg ikke på:
  • Sjekk om strømforsyningen ved sikringsbryteren er på.
  • Sørg for at alle elektriske tilkoblinger er sikre.
  • Verify the remote control batteries are correctly inserted and not depleted.
• Fjernkontrollen fungerer ikke:
  • Bytt batteriene i fjernkontrollen.
  • Ensure there are no obstructions between the remote control and the light fixture.
  • Confirm the remote control is within operating range.
• Lyset flimrer eller demper seg uventet:
  • Se etter løse elektriske koblinger.
  • Ensure the fixture is not connected to an incompatible dimmer switch (this fixture uses its own remote for dimming).

Hvis disse trinnene ikke løser problemet, kan du kontakte kundestøtte.

Spesifikasjoner

Garanti og støtte

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. Ecolite products are designed for reliability and performance.

If you require technical assistance or have questions not covered in this manual, please contact Ecolite customer support through your purchase channel or the official Ecolite webnettstedet.
