JEGS 81496 Replacement Parts Washer Pump Instruction Manual

1. Introduksjon

This manual provides essential information for the safe and effective use of your JEGS 81496 Replacement Parts Washer Pump. This pump is designed as a direct replacement for JEGS 555-81525 (20-gallon parts washer) and JEGS 555-81526 (5-gallon portable parts washer) models. Please read all instructions carefully before installation and operation.

2. Sikkerhetsinformasjon

ADVARSEL: Unnlatelse av å følge disse sikkerhetsinstruksjonene kan føre til personskade eller skade på produktet.

• Do not operate without water: The pump is designed for submersible use in liquid. Operating it dry will cause damage and void the warranty.
• Maintain proper grounding: Ensure the pump is correctly grounded according to local electrical codes to prevent electrical shock.
• Elektrisk tilkobling: Connect the pump to a properly rated and grounded electrical outlet. Do not use extension cords unless absolutely necessary and ensure they are rated for outdoor/wet use and appropriate ampslette.
• Væskekompatibilitet: This pump is intended for use with standard parts washer solvents. Do not use with highly corrosive or flammable liquids such as acetone, as this may damage the pump and create a fire hazard.
• Undersøkelse: Before each use, inspect the power cord and pump housing for any signs of damage. Do not use if damaged.
• Vedlikehold: Koble fra strømmen før du utfører vedlikehold eller rengjøring.

3. Pakkens innhold

Kontroller at alle komponentene er til stede når du åpner pakken:

• JEGS 81496 Replacement Parts Washer Pump (1 unit)

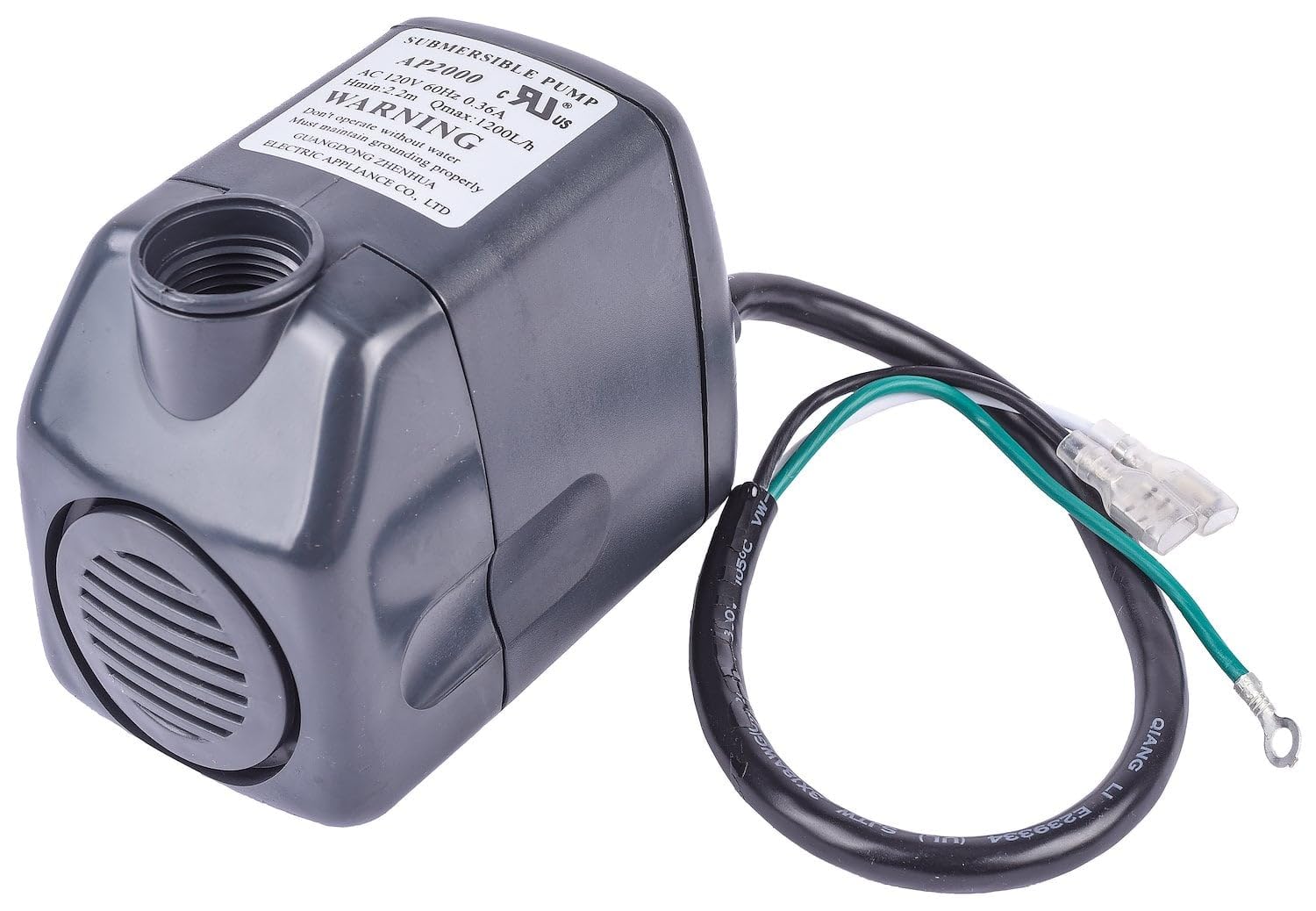

Image 3.1: The JEGS 81496 Replacement Parts Washer Pump, showing its compact design and electrical wiring.

4. Oppsett og installasjon

Follow these steps to install the replacement pump:

1. Koble fra strømmen: Ensure the parts washer is unplugged from the electrical outlet before beginning installation.
2. Drain Washer: If the parts washer contains liquid, drain it completely according to the washer's instructions.
3. Fjern gammel pumpe: Carefully disconnect the old pump's electrical wiring and any hoses. Remove the old pump from its mounting location within the parts washer.
4. Plassering av ny pumpe: Place the new JEGS 81496 pump in the designated pump compartment of your JEGS 555-81525 or 555-81526 parts washer. Ensure it is seated securely.
5. Koble til slanger: Attach the parts washer's fluid intake and output hoses to the appropriate ports on the new pump. Ensure connections are tight to prevent leaks.
6. Koble til elektriske ledninger: Connect the pump's electrical wires to the parts washer's internal wiring. Match the colors (typically black to black, white to white, and green/ground to green/ground). Ensure all connections are secure and insulated.
7. Refill Washer: Refill the parts washer with an appropriate cleaning solvent, ensuring the pump is fully submerged.

Image 4.1: The JEGS 81496 pump showing its electrical wiring connections (black, white, green/ground).

Bilde 4.2: Topp view of the pump, displaying the warning label and specifications for electrical connection.

5. Bruksanvisning

Once the pump is installed and the parts washer is filled with solvent:

1. Plugg inn: Plug the parts washer's power cord into a grounded electrical outlet.
2. Aktiver pumpen: Turn on the parts washer's power switch. The pump should begin circulating the cleaning solvent.
3. Verify Flow: Check for a steady flow of solvent from the parts washer's nozzle. If no flow, refer to the Troubleshooting section.
4. Operasjon: Use the parts washer as intended, ensuring the pump remains fully submerged during operation.
5. Slå av: When finished, turn off the parts washer's power switch and unplug it from the outlet.

6. Vedlikehold

Regelmessig vedlikehold sikrer optimal ytelse og forlenger pumpens levetid.

• Rengjøring: Periodically clean the pump's intake screen to prevent blockages from debris. Disconnect power before cleaning.
• Solvent Replacement: Follow the parts washer's instructions for replacing old or contaminated cleaning solvent.
• Undersøkelse: Regularly inspect the pump and its wiring for any signs of wear, cracks, or damage. Replace the pump if significant damage is observed.
• Lagring: If storing the parts washer for an extended period, ensure the pump is clean and dry, or stored submerged in clean solvent.

Bilde 6.1: Side view of the pump, highlighting the intake grill that should be kept clear of debris.

7. Feilsøking

Hvis du støter på problemer med pumpen, kan du se følgende vanlige problemer og løsninger:

If problems persist after troubleshooting, contact JEGS customer support.

8. Spesifikasjoner

• Modellnummer: 555-81496
• Kompatibilitet: JEGS 555-81525 (20-gallon) and 555-81526 (5-gallon portable) Parts Washers
• Strømkilde: AC/DC (specifically AC 120V, 60Hz, 0.36A as per pump label)
• Maksimal strømningshastighet: 1200 liter i timen
• Maximum Head (Hmin): 2.2 meter (ca. 7.2 fot)
• Varevekt: 1.7 pund
• Materiale: Plast, polypropylen (PP)
• Stil: Diafragma
• Farge: Grå

9. Garantiinformasjon

This JEGS 81496 Replacement Parts Washer Pump is covered by a 30-day manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, neglect, improper installation, or use with incompatible liquids (e.g., acetone). For warranty claims, please retain your proof of purchase and contact JEGS customer support.

10. Støtte

For further assistance, technical support, or to inquire about replacement parts, please visit the official JEGS webnettstedet eller kontakt deres kundeserviceavdeling.

JEGS Webnettsted: www.jegs.com

JEGS Store on Amazon: Visit the JEGS Store
