Totalcool Totalfreeze 55 liters bærbar kjøleskap/fryser brukerhåndbok

Introduksjon

Welcome to the user manual for your Totalcool Totalfreeze 55 Litre Portable Fridge Freezer. This versatile appliance is designed to keep your food and drinks perfectly chilled or frozen, whether you're at home, on the road, or enjoying the great outdoors. Its robust design, efficient operation, and smart features make it an ideal companion for any adventure. Please read this manual thoroughly to ensure safe and optimal use of your Totalfreeze unit.

Figure 1: Totalcool Totalfreeze 55 Litre Portable Fridge Freezer.

Nøkkelfunksjoner

• User-Friendly Control Panel & Mobile App: Easily adjust temperature settings and monitor performance via the intuitive digital display or a convenient mobile application.
• Durable Off-Grid Design: Constructed from tough, high-quality materials to withstand challenging outdoor conditions, perfect for camping, caravanning, or truck use.
• Spacious Dual Zone Interior: Tilbud ample storage with two separate compartments, allowing simultaneous refrigeration and freezing down to -20°C. Includes a removable basket for organization.
• Stille drift: Operates with low noise (approx. 42 dB), ensuring minimal disturbance, ideal for use in tents or vehicles overnight.
• Rapid Cooling & Low Power Consumption: Efficient compressor technology quickly cools the unit, with an average power draw of 35-45 watts when operating intermittently.
• Fleksibilitet med flere kraftkilder: Compatible with 12V, 24V DC, and 230V AC mains power sources, providing versatile usage options anywhere.
• Smart batteribeskyttelse: Features three adjustable modes to prevent over-discharge of your vehicle or power station battery, ensuring you can always start your vehicle.
• Lett og bærbar: Despite its robust build, the unit is designed for easy transport. The 55L model weighs approximately 17 kg.

Figure 2: Key features including low noise and wide temperature range.

Figure 3: Multiple power options for versatile use.

Oppsett

Innledende forberedelse

Upon receiving your Totalfreeze unit, it is recommended to let it stand upright for at least 12 hours before plugging it in. This allows the refrigerant gases to settle, ensuring optimal performance and longevity of the compressor.

Strømtilkobling

The Totalfreeze unit supports multiple power inputs:

• 12V/24V likestrøm: Use the provided 12V lead to connect to your vehicle's cigarette lighter socket or a compatible 12V/24V power source.
• 230V AC Mains: For hjemmet eller campsite use, connect the unit to a standard 230V AC power outlet using the appropriate AC power cable (not always included, check 'What's in the Box').

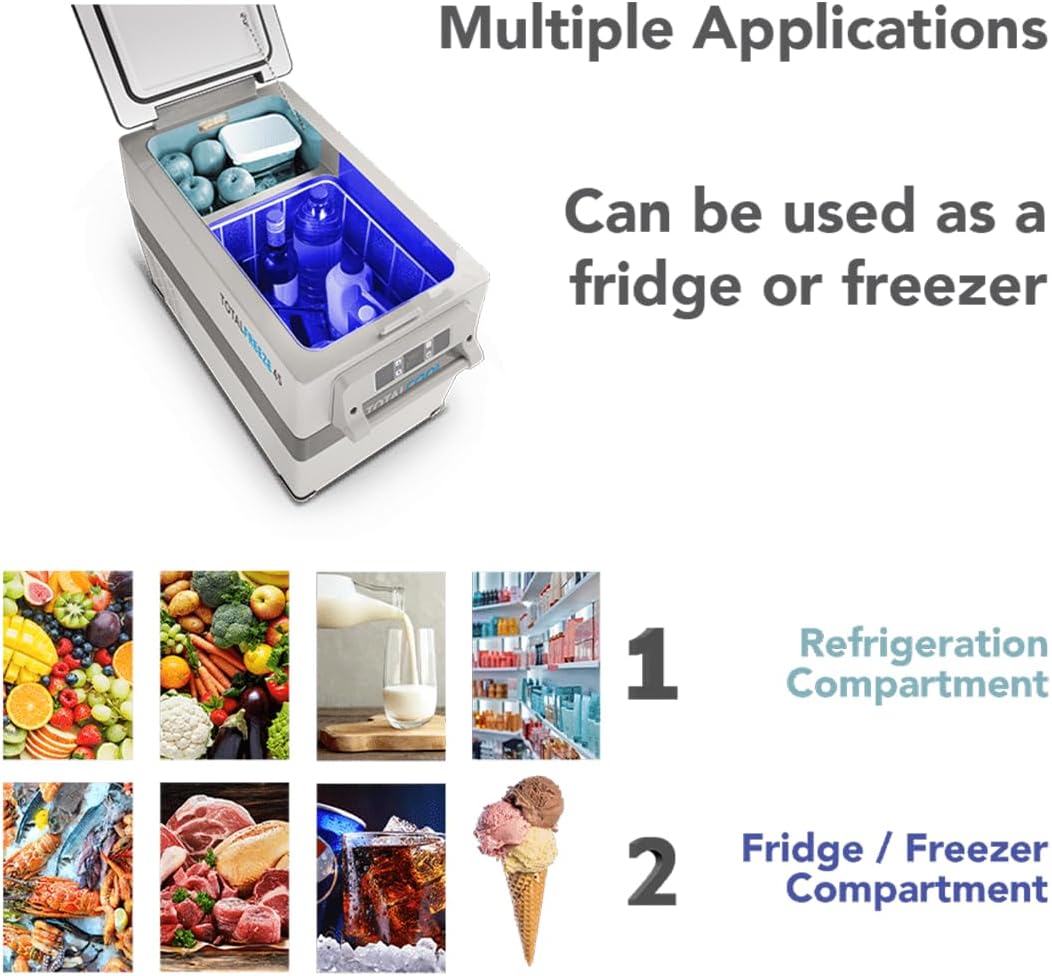

Figur 4: Interiør view showing dual compartments and contents.

Bluetooth-app-tilkobling

Your Totalfreeze unit features Bluetooth connectivity, allowing you to control and monitor it via a smartphone app.

1. Download the official Totalcool app from your device's app store.
2. Sørg for at Bluetooth er aktivert på smarttelefonen.
3. Open the app and follow the on-screen instructions to pair with your Totalfreeze unit.
4. Once paired, you can adjust temperature, switch modes, and monitor battery status directly from your phone.

Figure 5: Mobile app interface for controlling the Totalfreeze.

Bruksanvisning

Temperaturkontroll

The Totalfreeze unit features a smart LED control system on the front panel, allowing precise temperature adjustments. You can set the temperature as low as -20°C for freezing or higher for refrigeration. The unit will automatically shut off once the set temperature is reached and will reactivate if the internal temperature rises by a few degrees, ensuring efficient power usage.

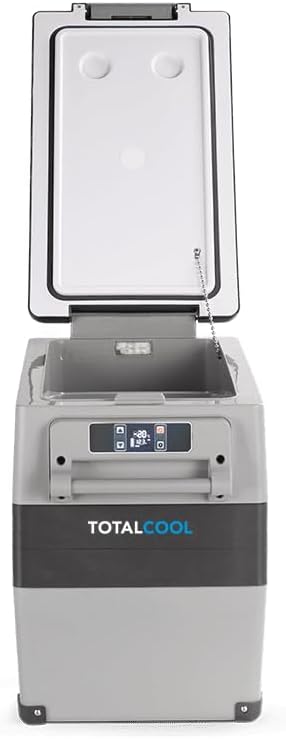

Figur 6: Ovenfra og ned view of the Totalfreeze with lid open.

Dobbel sonefunksjonalitet

The Totalfreeze 55L is equipped with two separate compartments. The larger front compartment is designed for cooling and freezing items effectively, while the smaller rear compartment maintains a consistent temperature of approximately 4°C, ideal for items that require less cooling, such as fruits or dairy products. This dual-zone versatility allows you to store a variety of items at their optimal temperatures simultaneously.

Batteriovervåkingssystem

To protect your power source, the Totalfreeze includes a battery monitoring system with three adjustable modes (Low, Medium, High). These modes determine the voltage cut-off point at which the unit will stop drawing power, preventing your vehicle or external battery from being fully drained. This ensures you always have enough power to start your vehicle.

Figure 7: 12V Battery Voltage Protection settings.

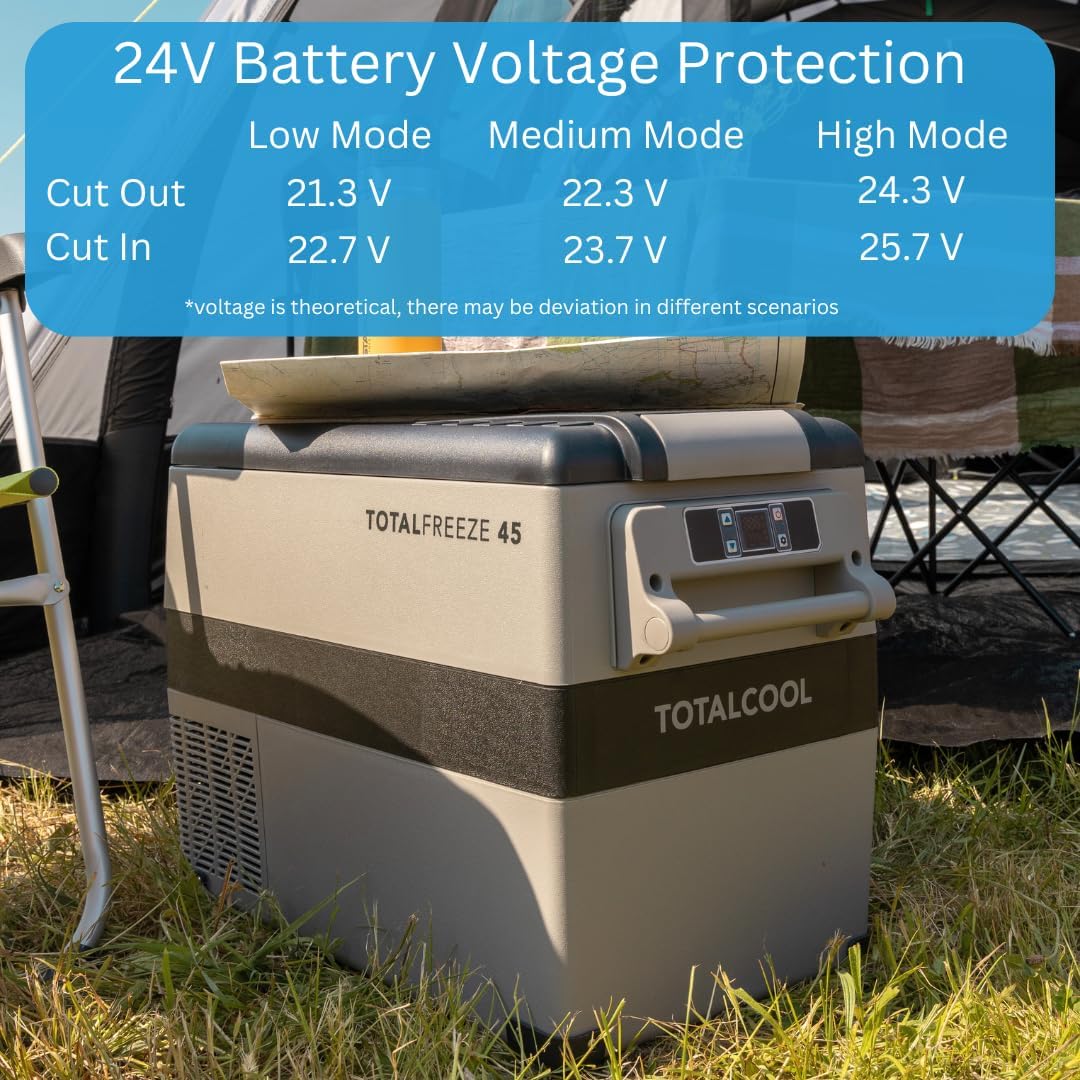

Figure 8: 24V Battery Voltage Protection settings.

Vedlikehold

Rengjøring

Regular cleaning will help maintain the efficiency and hygiene of your Totalfreeze unit.

• Always disconnect the unit from all power sources before cleaning.
• Tørk av innvendige og utvendige overflater med en damp klut og mildt vaskemiddel. Unngå slipende rengjøringsmidler eller løsemidler.
• Sørg for at enheten er helt tørr før du kobler den til strømmen igjen.
• Periodically clean the ventilation grilles to ensure proper airflow and prevent overheating.

Tining

The Totalfreeze features a manual defrost system. If ice buildup occurs, especially in the freezer compartment, disconnect the unit from power, empty its contents, and allow the ice to melt naturally. Wipe away any melted water before resuming operation.

Feilsøking

If you encounter issues with your Totalfreeze unit, please refer to the following common troubleshooting steps:

• Enheten slår seg ikke på: Check all power connections. Ensure the power source (vehicle battery, power station, AC outlet) is providing adequate voltage. Verify the battery protection mode is not set too high for your current power source.
• Kjøler ikke effektivt: Ensure the lid is securely closed and the seal is intact. Check for any obstructions in the ventilation grilles. Verify the temperature setting is appropriate for your needs. Avoid placing hot items directly into the unit.
• Uvanlig støy: A slight hum from the compressor is normal. If you hear excessive or unusual noises, ensure the unit is on a stable, flat surface and that nothing is obstructing the fan or internal components.
• Problemer med apptilkobling: Ensure Bluetooth is on and the app is updated. Try restarting both the app and the Totalfreeze unit.

For persistent issues, please contact Totalcool customer support.

Spesifikasjoner

Figure 9: Product fiche detailing dimensions and energy efficiency.

Offisielle produktvideoer

Garanti og støtte

Your Totalcool Totalfreeze 55L Portable Fridge Freezer comes with a 2-year warranty from the manufacturer, Totalcool. For any support inquiries, troubleshooting assistance, or warranty claims, please contact Totalcool directly. The product is sold by TOTALCOOL, ensuring direct support from the brand.

Returregler: Dette produktet er kvalifisert for en 30-dagers refusjons-/erstatningsreturpolicy.
