1. Introduksjon og overview
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your JONATHAN Y Berlin 7-inch Outdoor Wall Lantern Sconce, Model JYL7602A. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Berlin Outdoor Wall Lantern Sconce features a modern industrial design with a black finish, clear glass shade, and an included Edison-style LED bulb. It is designed for outdoor use, offering a stylish and energy-efficient lighting solution for porches, entryways, patios, and other exterior areas.
Nøkkelfunksjoner inkluderer:
- Kvalitetskonstruksjon: Durable metal frame with a black finish and clear glass panels.
- Energy-Saving LED Bulb: Includes an E26 base LED bulb, providing warm white light at 420 lumens.
- Utendørs vurdert: Waterproof and suitable for exterior environments.
- Enkel montering: Designet for enkel installasjon.
- Kompakt størrelse: At 7 inches wide, it fits easily in various spaces.
2. Sikkerhetsinformasjon
WARNING: RISK OF ELECTRIC SHOCK. Disconnect power at the circuit breaker or fuse box before installation or servicing. Improper wiring can result in electric shock or fire.
- Alle elektriske tilkoblinger må være i samsvar med lokale forskrifter, forordninger eller National Electric Code (NEC). Kontakt en kvalifisert elektriker hvis du ikke er kjent med riktig elektrisk kabling.
- Sørg for at armaturet er ordentlig jordet.
- Do not install this fixture in areas where it may be submerged in water.
- Håndter glasskomponenter forsiktig for å unngå brudd og skader.
- Bruk kun spesifisert pæretype og hvatage.
3. Pakkens innhold
Kontroller at alle delene som er oppført nedenfor er inkludert i pakken. Hvis noen deler mangler eller er skadet, kontakt kundeservice før du fortsetter med installasjonen.
- Outdoor Wall Lantern Sconce Fixture (1)
- LED Edison Bulb (1)
- Mounting Hardware Kit (includes mounting plate, screws, wire nuts) (1 set)
- Bruksanvisning (1)
4. Oppsett og installasjon
Professional installation is recommended for all wall light fixtures.
4.1 Forhåndsinstallasjon
- Slå av strømmen ved strømbryteren eller sikringsskapet.
- Carefully unpack the fixture and its components. Lay out all parts on a clean, soft surface to prevent scratches.
- Review the dimensions of the fixture to ensure it fits your intended installation location.
This image provides the precise dimensions of the Berlin Outdoor Wall Lantern Sconce, indicating a width of 7 inches (17.8 cm) and a height of 16 inches (40.6 cm). This is crucial for planning installation.
4.2 Montering av armaturet
- Attach the mounting plate to the junction box using the provided screws. Ensure the plate is securely fastened.
- Pull the electrical wires from the junction box through the center hole of the mounting plate.
4.3 Kablingstilkoblinger
- Connect the fixture's ground wire (usually bare copper or green) to the house ground wire using a wire nut. If your junction box has no ground wire, attach the fixture's ground wire to the green grounding screw on the mounting plate.
- Connect the fixture's hot wire (usually black) to the house hot wire (usually black) using a wire nut.
- Connect the fixture's neutral wire (usually white) to the house neutral wire (usually white) using a wire nut.
- Stikk alle ledninger forsiktig inn i koblingsboksen.
4.4 Securing the Fixture and Bulb Installation
- Align the fixture with the mounting plate and secure it using the provided screws or nuts.
- Carefully screw the included LED Edison bulb into the fixture's socket. Do not overtighten.
- Gjenopprett strømmen til sikringsbryteren og test lysarmaturen.

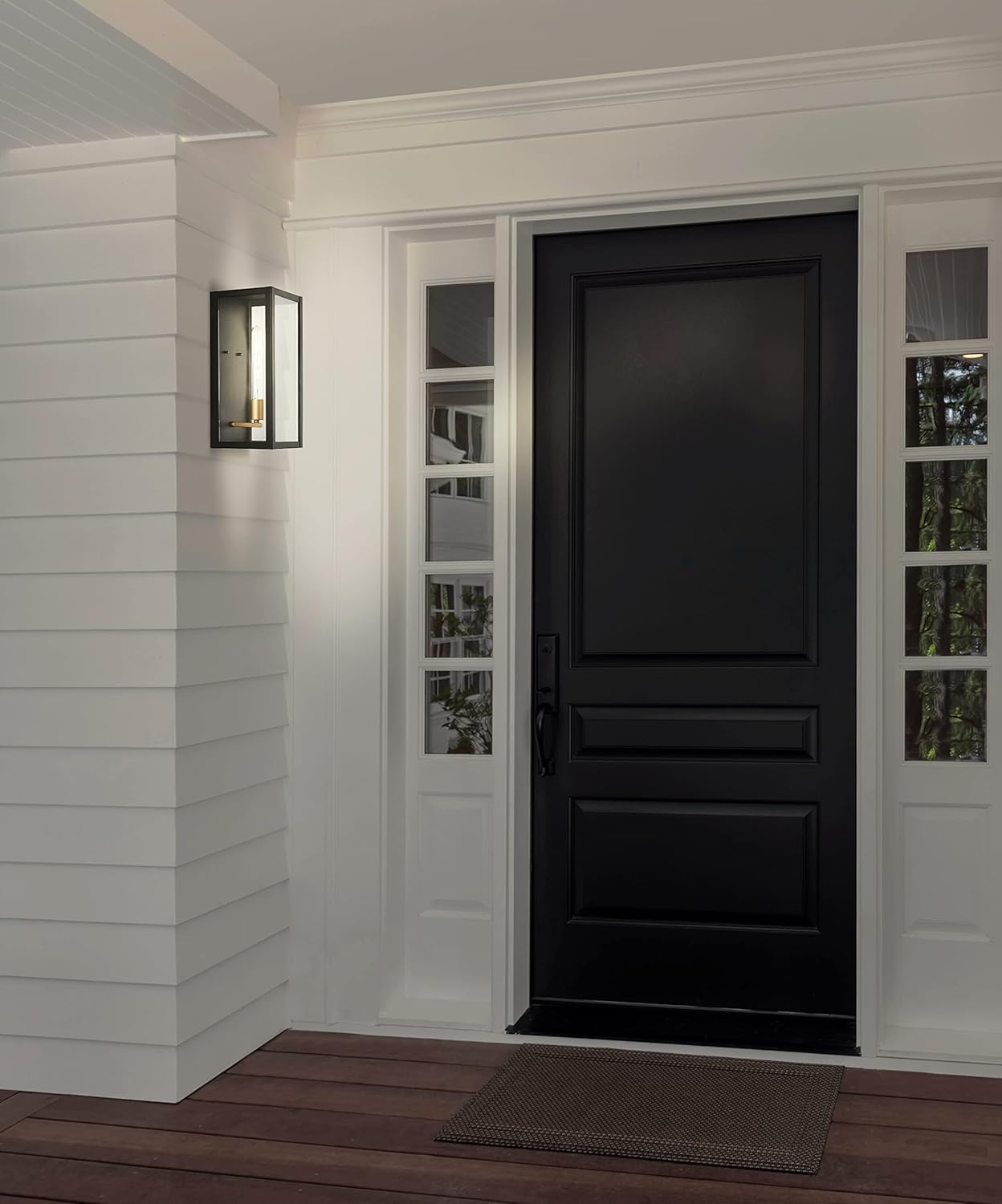

This image shows the JONATHAN Y Berlin Outdoor Wall Lantern Sconce mounted on a white exterior wall, illuminating the area beside a black front door. The fixture features a black frame and clear glass panels, with an Edison-style LED bulb visible inside.
This diagram highlights the main features of the Berlin Outdoor Wall Lantern Sconce: a sturdy metal frame, easy assembly process, an included LED bulb, and its suitability for both indoor and outdoor environments. It also points to an on/off wall switch, indicating standard operation.
This video demonstrates the JYL7602A Outdoor Sconce Light, showcasing its design and how it appears when illuminated. It provides a visual overview of the product in an installed setting.
This product demo video for the JYL7602A model provides a closer look at the outdoor wall sconce, highlighting its features and construction from various angles.
5. Bruksanvisning
The JONATHAN Y Berlin Outdoor Wall Lantern Sconce operates via a standard wall switch. Once installed and power is restored, use your existing wall switch to turn the light fixture on or off.
- På/av: Toggle the wall switch to control the light.
- Dimbar funksjon: This fixture is dimmable. If you wish to use a dimmer, ensure you have a compatible LED dimmer switch installed (sold separately).
6. Vedlikehold
Regelmessig vedlikehold vil bidra til å bevare utseendet og funksjonaliteten til lampen din.
- Rengjøring: To clean the fixture, turn off the power and allow it to cool. Wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or glass.
- Bytte av pære: Ensure power is off before replacing the bulb. Allow the bulb to cool completely. Unscrew the old bulb and replace it with a new E26 base LED bulb of appropriate wattage (max 40 watts).
- Undersøkelse: Periodically inspect the wiring and connections for any signs of wear or damage.
7. Feilsøking
Hvis du støter på problemer med lysarmaturen din, kan du se følgende vanlige problemer og løsninger:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Lyset tennes ikke. | Ingen strøm til armaturet. Pæren er løs eller defekt. Feil ledninger. | Sjekk strømbryter eller sikring. Ensure bulb is screwed in tightly and is not burnt out. Verify wiring connections are correct and secure (consult an electrician if unsure). |
| Lette flimmer. | Løs pære. Inkompatibel dimmerbryter. Feil ledninger. | Stram pæren. Sørg for at dimmerbryteren din er kompatibel med LED-pærer. Sjekk ledningsforbindelsene. |
| Armaturen summer. | Inkompatibel dimmerbryter. | Replace with an LED-compatible dimmer switch. |
Hvis disse trinnene ikke løser problemet, kan du kontakte kundestøtte.
8. Spesifikasjoner
| Trekk | Detalj |
|---|---|
| Modellnummer | JYL7602A |
| Merke | JONATHAN Y |
| Dimensjoner (L x B x H) | 7 cm L x 7 cm B x 16 cm H |
| Varevekt | 7.26 pund |
| Farge | Svart |
| Materiale | Glass, jern |
| Stil | Modern Industrial / French Country |
| Lysarmatur Form | Sconce |
| Innendørs/utendørs bruk | Utendørs |
| Strømkilde | AC |
| Lyskilde | LED |
| Antall lyskilder | 1 |
| Voltage | 120 volt |
| Lys farge | Varm hvit |
| Wattage | 40 watt (maks) |
| Pære base | E26 |
| Lysstyrke | 420 Lumen |
| Vannmotstandsnivå | Vannbestandig |
| Spesielle funksjoner | Dimmable, Energy Efficient, Glass Shade, Hardwired, Waterproof |
| Sertifisering | ETL oppført |
| Nødvendig montering | Ja |
9. Garanti og støtte
9.1 Produsentgaranti
This product comes with a 30-day manufacturer warranty for defects only. Normal wear and tear is not covered. Visible damages not noted upon delivery will be determined to be customer damage and will not be warranted. All products are inspected upon arrival, and worn, dirty, or stained merchandise will not be accepted for warranty claims.
For warranty information or claims, please contact the internet customer service center where the product was purchased.
9.2 Kundestøtte
For further assistance, technical support, or to report missing/damaged parts, please refer to the contact information provided by your retailer or visit the official JONATHAN Y webnettstedet.
