Audizio SB85 Soundbar with Bluetooth and HDMI Subwoofer - 150W User Manual

Introduksjon

Thank you for choosing the Audizio SB85 Soundbar with Subwoofer. This manual provides essential information for the safe and correct operation of your new audio system. Please read it thoroughly before use and retain it for future reference. The SB85 is designed to enhance your television's audio, providing a rich, immersive sound experience for movies, games, and music, complete with a dedicated subwoofer for powerful bass.

Sikkerhetsinstruksjoner

  • Les alle instruksjonene nøye før du bruker enheten.
  • Keep the unit away from water, moisture, and heat sources.
  • Ikke blokker noen ventilasjonsåpninger.
  • Bruk kun tilbehør/tilbehør spesifisert av produsenten.
  • Koble fra apparatet under tordenvær eller når det ikke skal brukes i lengre perioder.
  • Overlat all service til kvalifisert servicepersonell.
  • Do not expose the battery (if applicable) to excessive heat such as sunshine, fire, or the like.

Pakkeinnhold

Sørg for at alle varene er til stede i esken:

  • Audizio SB85 Soundbar
  • Kablet subwoofer
  • Fjernkontroll
  • Optical Cable (Toslink)
  • AUX-kabel
  • Strømadapter
  • Brukerhåndbok

Produkt overview

The Audizio SB85 system consists of a soundbar and a separate wired subwoofer, designed to deliver a powerful and clear audio experience.

Soundbar-funksjoner

  • Integrated 150W speaker system with 4 speakers (2x 2cm range, 2x 2cm tweeter).
  • Front LED display for status indication.
  • Control buttons on the side panel.
  • Multiple input options: HDMI (ARC), USB, Line In (AUX), Coaxial, Optical.
  • Bluetooth 5.0 for trådløs lydstrømming.
Close-up of the Audizio SB85 Soundbar's control panel and its remote control, highlighting Bluetooth 5.0 and ease of use.

Image: Close-up of the Audizio SB85 Soundbar's control panel and its remote control, highlighting Bluetooth 5.0 and ease of use.

Innvendig view of the Audizio SB85 Soundbar's full-range speaker, emphasizing its 150W speaker system for an immersive audio experience.

Bilde: Internt view of the Audizio SB85 Soundbar's full-range speaker, emphasizing its 150W speaker system for an immersive audio experience.

Subwoofer funksjoner

  • 5.25-inch wired subwoofer for enhanced bass response.
Close-up of the Audizio SB85 wired subwoofer, designed to amplify bass frequencies.

Image: Close-up of the Audizio SB85 wired subwoofer, designed to amplify bass frequencies.

Oppsett

1. Plassering

Place the soundbar centrally below your television. The subwoofer can be placed on the floor near the soundbar, ideally in a corner for optimal bass reflection, but ensure it is not obstructed.

Audizio SB85 Soundbar and Subwoofer setup in a living room, demonstrating room-filling sound and clean design.

Image: Audizio SB85 Soundbar and Subwoofer setup in a living room, demonstrating room-filling sound and clean design.

Audizio SB85 Soundbar placed below a television, illustrating its universal compatibility with any TV.

Image: Audizio SB85 Soundbar placed below a television, illustrating its universal compatibility with any TV.

2. Koble til strøm

Connect the power adapter to the DC IN port on the soundbar and then plug it into a wall outlet (230 Vac/50 Hz).

3. Koble til subwooferen

Connect the wired subwoofer to the dedicated subwoofer output port on the soundbar.

4. Koble til lydkilder

The SB85 offers several connection options:

  • HDMI (ARC): For the best audio quality and control, connect an HDMI cable from the HDMI (ARC) port on the soundbar to the HDMI ARC port on your TV. This allows the TV to send audio to the soundbar and often enables TV remote control of the soundbar's volume.
  • Optisk (Toslink): Connect the included optical cable from the OPTICAL port on the soundbar to the Optical Digital Audio Out port on your TV or other audio source.
  • Line In (AUX): Use the included AUX cable to connect the LINE IN port on the soundbar to the headphone jack or audio output of your device (e.g., smartphone, MP3 player).
  • Koaksial: Connect a coaxial cable (not included) from the COAXIAL port on the soundbar to the Coaxial Digital Audio Out port on your TV or other audio source.
  • USB: Insert a USB flash drive into the USB port for MP3 playback.

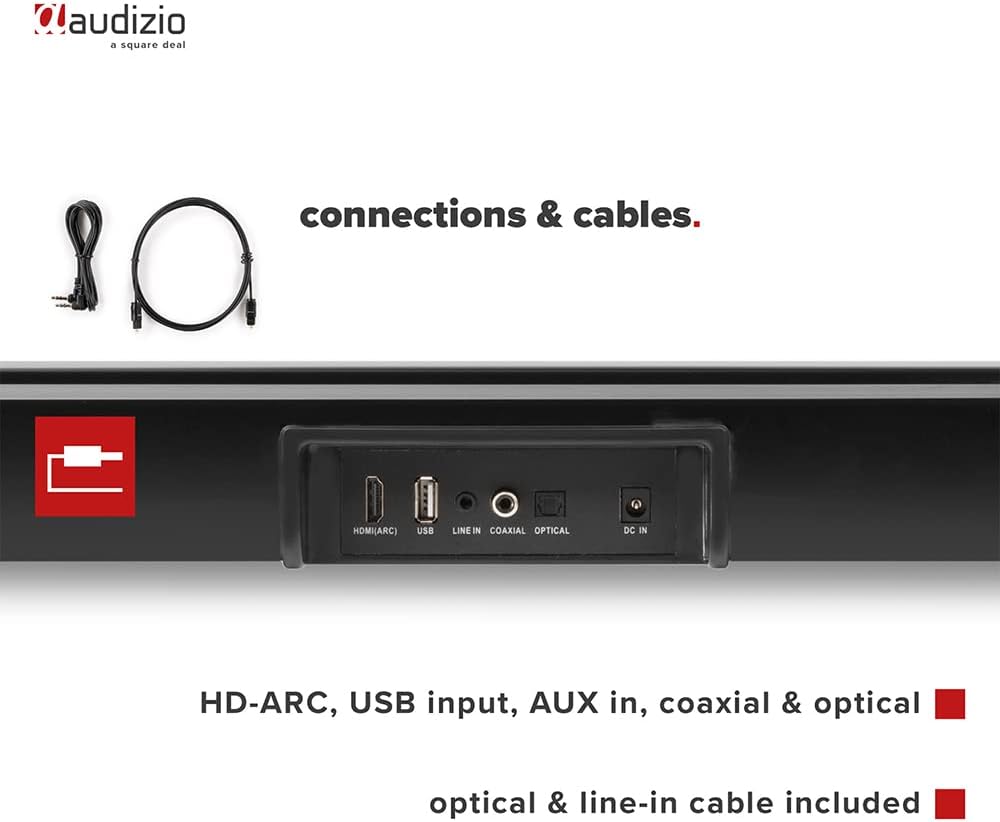

Bak view of the Audizio SB85 Soundbar showing various connection ports: HDMI (ARC), USB, Line In, Coaxial, and Optical. Includes optical and line-in cables.

Bilde: Bak view of the Audizio SB85 Soundbar showing various connection ports: HDMI (ARC), USB, Line In, Coaxial, and Optical. Includes optical and line-in cables.

Bruksanvisning

1. Slå på/av

Trykk på av/på-knappen på lydplanken eller fjernkontrollen for å slå enheten av eller på.

2. Valg av inngangskilde

Press the 'MODE' button on the soundbar or the remote control repeatedly to cycle through the available input sources: HDMI (ARC), Optical, Coaxial, AUX, USB, and Bluetooth. The selected input will be shown on the front LED display.

3. Volumkontroll

Use the 'VOL+' and 'VOL-' buttons on the soundbar or the remote control to adjust the volume. The 'MUTE' button on the remote control will temporarily silence the audio.

4. Bluetooth-paring

  1. Switch the soundbar to Bluetooth mode using the 'MODE' button. The LED display will show 'BT'.
  2. Aktiver Bluetooth på smarttelefonen eller nettbrettet og søk etter tilgjengelige enheter.
  3. Select 'Audizio SB85' from the list of devices.
  4. Once paired, the soundbar will indicate a successful connection, and you can stream audio wirelessly.

5. USB-avspilling

Sett inn en USB-minnepinne som inneholder MP3-lyd files into the USB port. The soundbar will automatically switch to USB mode and begin playing the music. Use the remote control to navigate tracks (play/pause, next/previous).

6. Fjernkontrollfunksjoner

The remote control provides full functionality for the soundbar, including power, mode selection, volume, mute, and playback controls for USB and Bluetooth modes.

Vedlikehold

Rengjøring

Wipe the soundbar and subwoofer surfaces with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish. Ensure the device is unplugged before cleaning.

Lagring

Hvis du oppbevarer enheten over lengre tid, må du trekke ut støpselet fra stikkontakten og oppbevare den på et kjølig og tørt sted, unna direkte sollys og ekstreme temperaturer.

Feilsøking

ProblemMulig årsakLøsning
Ingen strømStrømkabelen er ikke tilkoblet; Strømuttaket er defektSjekk strømkabeltilkoblingen; prøv en annen stikkontakt.
Ingen lydIncorrect input selected; Volume too low; Mute activated; Cable connection looseSelect correct input source; Increase volume; Deactivate mute; Check all audio cable connections.
Bluetooth kobler ikke tilSoundbar not in Bluetooth mode; Device too far; Device already connected to another unitSwitch soundbar to BT mode; Move device closer; Disconnect from other devices and try again.
Fjernkontrollen virker ikkeBatteriene er tomme; Hindring mellom fjernkontroll og lydplankeSkift batterier; Fjern eventuelle hindringer.

Spesifikasjoner

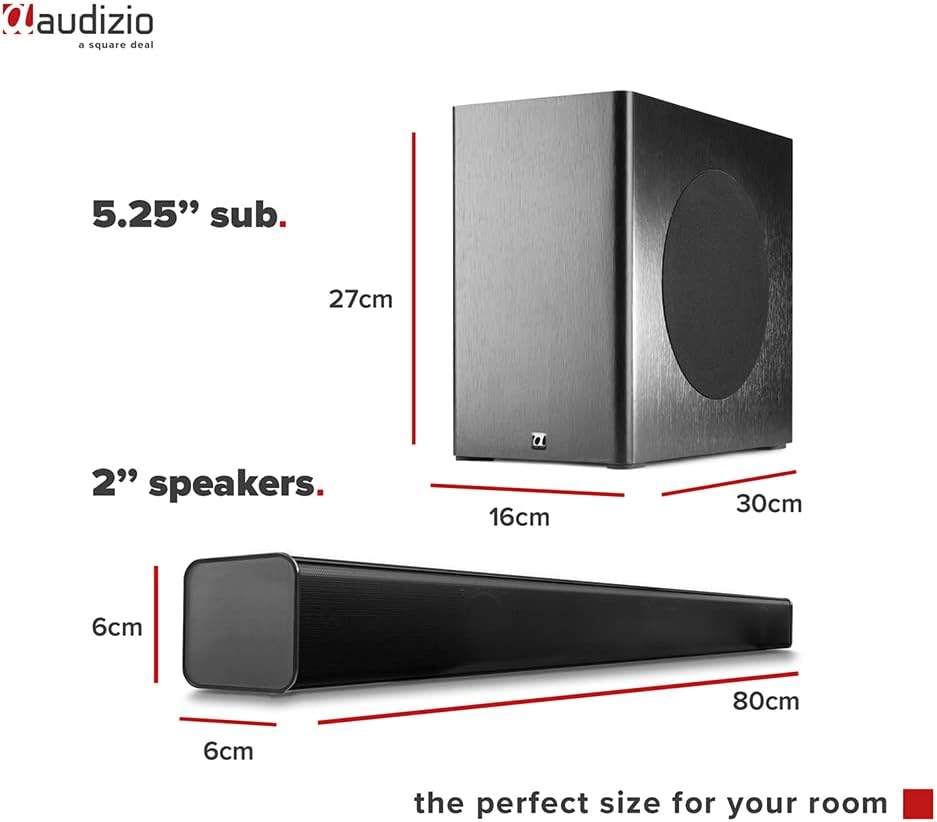

Diagram showing the dimensions of the Audizio SB85 Soundbar (80x6x6 cm) and its 5.25-inch subwoofer (16x30x27 cm), indicating their compact size.

Image: Diagram showing the dimensions of the Audizio SB85 Soundbar and its subwoofer.

  • Strømutgang: 150 W (maks.)
  • Høyttalerkonfigurasjon: 4 speakers (2x 2cm range, 2x 2cm tweeter)
  • Subwoofer størrelse: 5.25 tommer
  • Frekvensområde: 50 Hz–20 000 Hz
  • Maks SPL: 125 dB
  • Tilkobling: Bluetooth 5.0, HDMI (ARC), USB, Line In (AUX), Coaxial, Optical
  • Lydutgangsmodus: Stereo
  • Kompatible enheter: MP3 Player, Smartphone, TV
  • Strømkilde: 230 Vac/50 Hz (via electric cable)
  • Lydplankemål (L x B x H): 80 x 6 x 6 cm
  • Subwooferens mål (L x B x H): 16 x 30 x 27 cm
  • Totalvekt: 3.9 kg
  • Modellnummer: 100.292

Garanti og støtte

For garantiinformasjon eller teknisk støtte, se dokumentasjonen som fulgte med ved kjøpstidspunktet, eller kontakt forhandleren din. Ta vare på kjøpsbeviset for eventuelle garantikrav.
