1. Introduksjon
Thank you for choosing the DIGISHUO 14.6V 10A LiFePO4 Battery Charger. This charger is specifically designed for charging and maintaining 12V (12.8V) LiFePO4 lithium-ion batteries. It features a 2-stage konstant strøm/konstant voltage (CC/CV) charge algorithm to optimize charging efficiency and battery lifespan. Please read this manual thoroughly before use to ensure safe and effective operation.
2. Sikkerhetsinformasjon
WARNING: Risk of Electric Shock. Do not open the charger casing.
- This charger is designed exclusively for 12V (12.8V) LiFePO4 batteries. Do not use it with other battery types (e.g., lead-acid, Ni-Cd, Ni-MH) as this may cause damage to the battery or charger, or result in injury.
- Ensure the charger is connected to a power outlet with the correct voltage (100-220V AC).
- Always connect the charger to the battery terminals correctly: red clip to positive (+), black clip to negative (-). Reverse connection can cause damage.
- Operate the charger in a well-ventilated area. Do not cover the charger during operation.
- Keep the charger away from water, moisture, and flammable materials.
- Do not use the charger if the cables, clips, or casing er skadet.
- Unplug the charger from the power outlet before making or breaking connections to the battery.
- Oppbevares utilgjengelig for barn.
Image: The DIGISHUO LiFePO4 Battery Charger features built-in protections against over-temperature, reverse polarity, over-voltage, og kortslutning.
3. Produktet er overview
The DIGISHUO 14.6V 10A LiFePO4 Battery Charger includes the main charging unit, power supply cable, and alligator clips for battery connection.
Pakkeinnhold:
- 1 x 14.6V Lithium Battery Charger with Crocodile Clip
- 1 x US Plug Power Supply Cable
- 1 x engelsk manual (dette dokumentet)
- 1 x Backup Fuse
Image: The package includes the charger unit, power cable, and alligator clips.
Charger Components:
- Ladeenhet: Durable aluminum alloy casing with built-in cooling fan.
- LED-indikator: Displays charging status (Red for charging, Green for fully charged).
- Alligatorklemmer: Red for positive (+), Black for negative (-).
- Strøminngangsport: For tilkobling av strømkabelen.
- Sikringsholderen: Contains a replaceable fuse for protection.
Bilde: Foran view of the charger showing the main unit, alligator clips, and power cord.

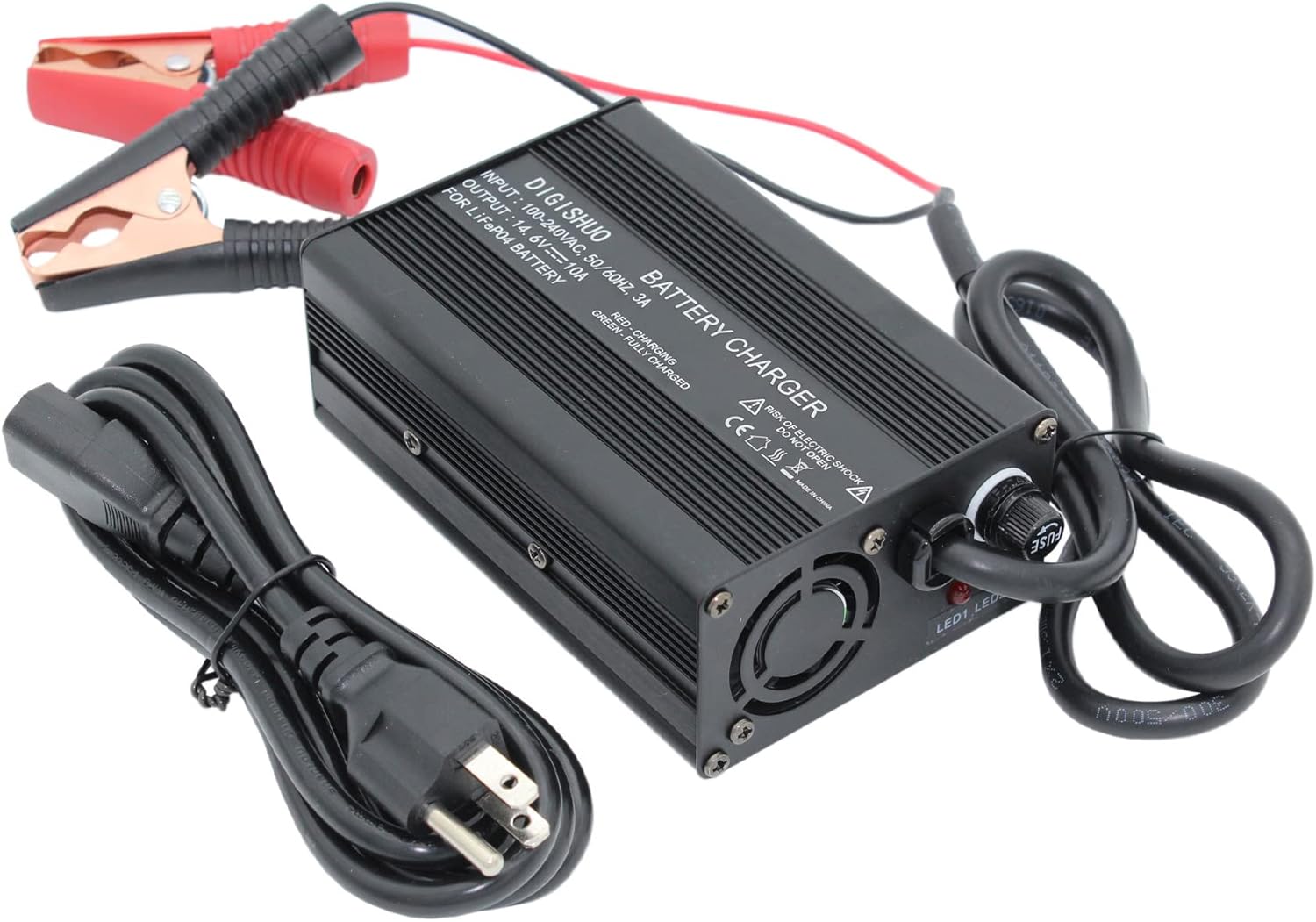

Bilde: Vinklet view highlighting the cooling fan and fuse holder on the charger unit.
4. Spesifikasjoner
| Merke | DIGISHUO |
| Modell | B0C3GYRHS4 |
| Inngang Voltage | 100-220V AC |
| Utgang Voltage | 14.6V |
| Ladestrøm | 10 Amps |
| Anbefalt batterikapasitet | 30~50 Amp Hours and above (12V LiFePO4) |
| Produktdimensjoner | 8" D x 4" B x 2" H |
| Husmateriale | Slitesterk aluminiumslegering |
| Avkjøling | Innebygd kjølevifte |
5. Oppsett
- Klargjør batteriet: Ensure the 12V LiFePO4 battery is clean and its terminals are free from corrosion.
- Koble til batteri:
- Koble til RØD alligator klips til positiv (+) terminalen til batteriet.
- Koble til SVART alligator klips til negativ (-) terminalen til batteriet.
- Koble til strøm: Insert the AC power cable into the charger's power input port, then plug the other end into a standard 100-220V AC wall outlet.
Viktig: Always connect the charger to the battery first, then to the AC power outlet. When disconnecting, unplug from the AC outlet first, then disconnect from the battery.
6. Bruksanvisning
Ladeprosess:
- Once properly connected (as per Section 5), the charger will automatically begin the charging process.
- De LED-indikator on the charger will illuminate RØD, som indikerer at batteriet lades for øyeblikket.
- The charger employs a 2-stage Konstant strøm/konstant voltage (CC/CV) algorithm for efficient and safe charging.
- Når batteriet er fulladet, LED-indikator vil snu GRØNN. The charger will automatically stop charging to prevent overcharging.
0V Charging Function (Battery Reactivation):
This charger supports a 0V charging function, which can help reactivate or repair long-unused LiFePO4 batteries that have entered a deep discharge state. When connected to such a battery, the charger will attempt to bring its voltage up to a level where normal charging can commence. This process may take longer than regular charging.
7. Vedlikehold
- Keep the charger clean and dry. Wipe the exterior with a soft, dry cloth. Do not use solvents or abrasive cleaners.
- Regularly inspect the cables and alligator clips for any signs of damage, fraying, or corrosion. Replace if necessary.
- Ensure the cooling fan is not obstructed to allow for proper heat dissipation.
- Oppbevar laderen på et kjølig, tørt sted når den ikke er i bruk.
- If the fuse blows, replace it with a fuse of the same type and rating (a backup fuse is included in the package).
8. Feilsøking
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Laderens LED-lampe lyser ikke. | No power from outlet; Loose connection; Blown fuse. | Check power outlet; Ensure all connections are secure; Check and replace fuse if necessary. |
| LED remains RED for an extended period. | Battery is deeply discharged or high capacity; Battery fault. | Allow more time for charging, especially for large or deeply discharged batteries. If it never turns green, the battery may be faulty. |
| LED immediately turns GREEN after connecting. | Battery is already fully charged; Poor connection. | This is normal if the battery is full. If not, check connections for proper contact. |
| Laderen blir varm under bruk. | Normal operation; Obstructed cooling fan. | Some heat is normal. Ensure the cooling fan is not blocked and the charger is in a well-ventilated area. If excessively hot, disconnect and contact support. |
9. Garanti og støtte
This DIGISHUO product comes with a 1 års garanti fra kjøpsdatoen, og dekker material- og produksjonsfeil ved normal bruk. Denne garantien dekker ikke skader forårsaket av feilbruk, ulykke, uautorisert modifikasjon eller feil installasjon.
For technical support, warranty claims, or any questions regarding your DIGISHUO charger, please contact our customer service team through the retailer where the product was purchased or visit the official DIGISHUO webnettsted for kontaktinformasjon.
