1. Introduksjon og sikkerhetsinformasjon
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Teka IZC 63632 MPT induction hob. Please read all instructions carefully before using the appliance and keep this manual for future reference.
1.1 Generelle sikkerhetsadvarsler
- Sørg for at apparatet installeres av en kvalifisert tekniker i samsvar med lokale forskrifter.
- Do not operate the hob if the glass surface is cracked or broken. Disconnect from power immediately.
- Hold barn unna apparatet under bruk og når det kjøles ned.
- Ikke oppbevar brennbare materialer på eller i nærheten av koketoppen.
- Bruk kun induksjonskompatible kokekar.
- Avoid placing metallic objects like knives, forks, spoons, and lids on the hob surface as they can become hot.
- The appliance is equipped with advanced safety features, including a child safety lock and overheating protection.
2. Produktet er overview
The Teka IZC 63632 MPT is a 60 cm induction hob featuring three cooking zones, temperature sensors, an XL zone with a Paella function, and MultiSlider Pro touch controls. Its black glass design offers a modern aesthetic and easy cleaning.
Bilde 1: Foran view of the Teka IZC 63632 MPT induction hob.
Image 2: The induction hob highlighting Powerplus technology and its three cooking zones, including an XL zone.
Image 3: The induction hob emphasizing its 8 direct cooking functions and ease of installation.
3. Oppsett og installasjon
The Teka IZC 63632 MPT induction hob is designed for built-in installation. Proper installation is crucial for safety and optimal performance.
3.1 Installasjonskrav
- Elektrisk tilkobling: The hob requires a 240 Volt electrical supply with a power rating of 7200 Watts. Ensure the electrical installation meets local standards and is performed by a certified electrician.
- Ventilasjon: Adequate ventilation must be provided beneath the hob to prevent overheating. Refer to the detailed installation diagram for specific clearance requirements.
- Utskjæring i benkeplate: The countertop must have a precise cut-out to accommodate the hob.
3.2 Dimensjoner
The product dimensions are 51 cm (depth) x 60 cm (width) x 5.3 cm (height). The required cut-out dimensions for installation are approximately 49 cm (depth) x 56 cm (width).

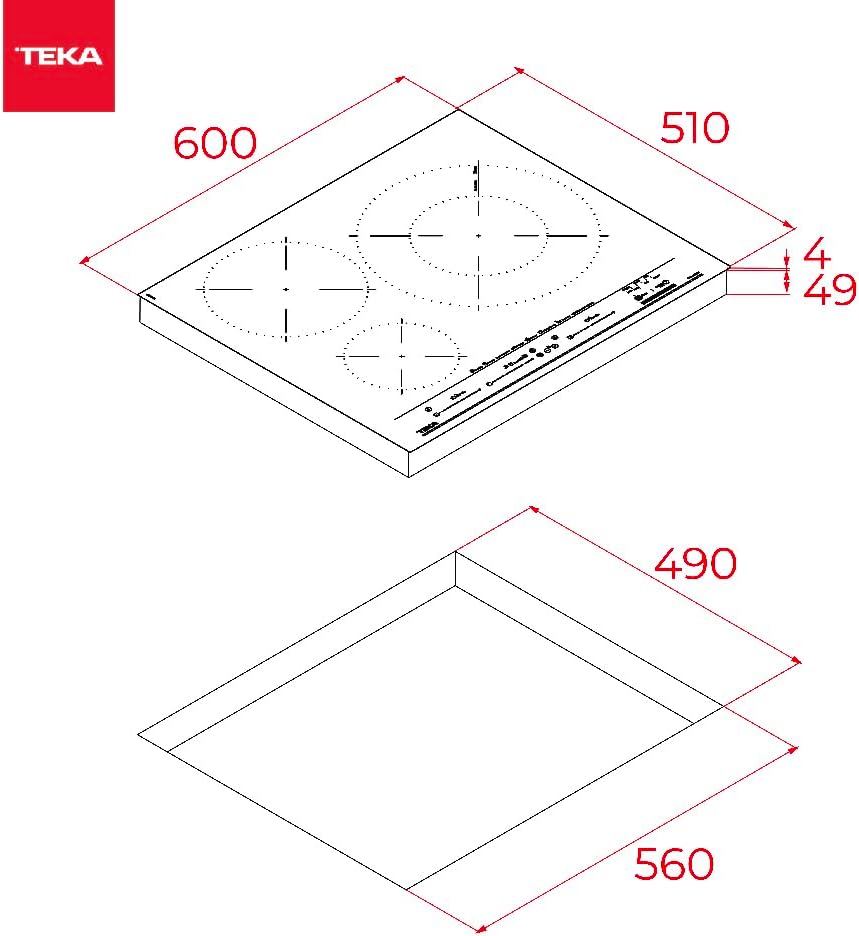

Image 4: Technical diagram showing the dimensions of the hob (600mm x 510mm x 53mm) and the required cut-out for installation (560mm x 490mm).
4. Bruksanvisning
Your Teka IZC 63632 MPT induction hob features intuitive touch controls and advanced cooking functions.
4.1 Grunnleggende betjening
- Slå på/av: Touch the main power button to turn the hob on or off.
- Sonevalg: Velg ønsket kokesone ved å berøre den tilhørende kontrollen.
- Power Adjustment (MultiSlider Pro): Use the MultiSlider Pro controls to adjust the power level for each zone. Slide your finger along the scale or tap directly on the desired power level.
- Timer funksjon: Still inn en koketimer for individuelle soner eller en generell timer for koketoppen.
4.2 Flex Induction Technology
The Flex Induction technology allows you to combine two cooking zones to create a larger cooking surface. This is ideal for using oversized cookware or rectangular griddle pans. To activate, select the two adjacent zones and press the Flex function button (if available, refer to your hob's specific control layout).
4.3 MestrePaeller Function
The MestrePaeller function is specifically designed to simplify the preparation of paella and other rice dishes. This exclusive Teka technology guides you through the cooking process, from initial boiling to achieving the desired 'socarrat' (crispy bottom layer).
Image 5: The induction hob with a paella pan on the XL cooking zone, demonstrating the MestrePaeller function.

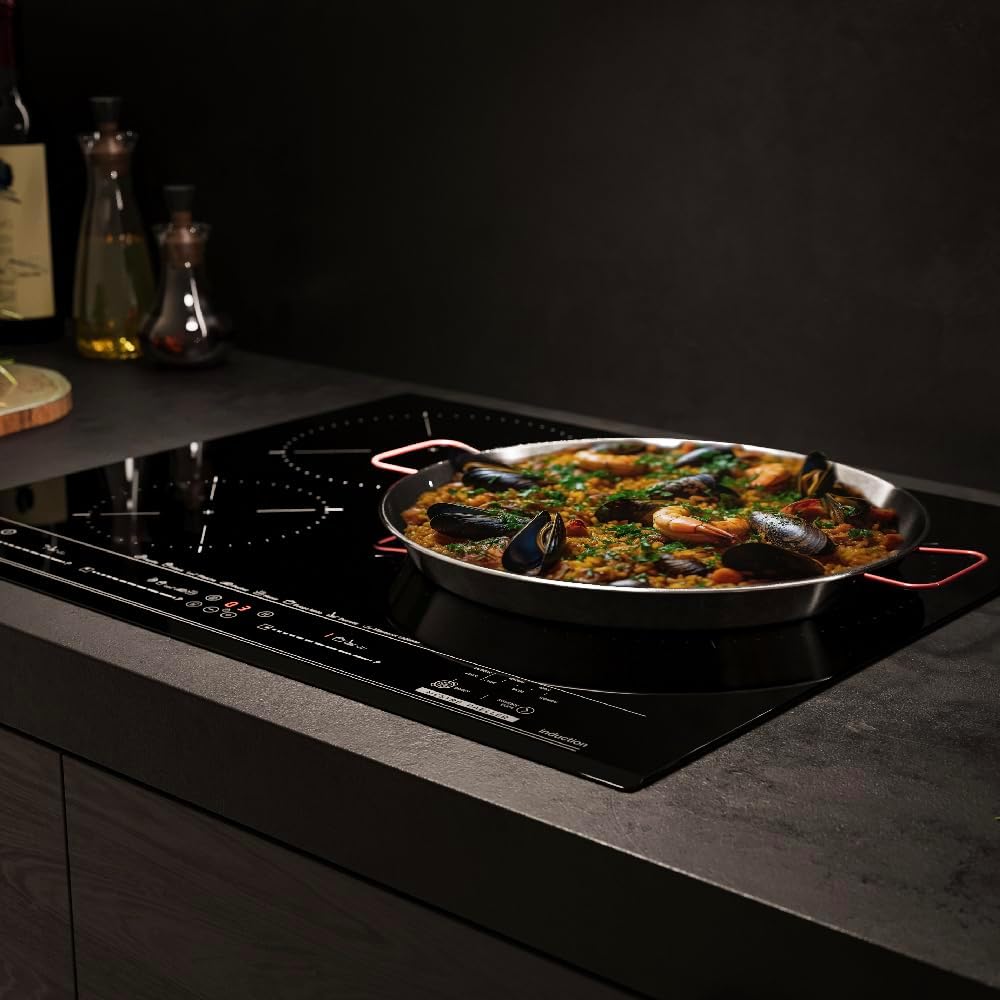

Bilde 6: En side view of the induction hob with a paella pan, showcasing the appliance in a kitchen setting.
To use MestrePaeller:
- Place your paella pan on the designated XL zone.
- Activate the MestrePaeller function via the touch controls.
- Follow the on-screen prompts or indicator lights that guide you through each stage of paella preparation, such as heating oil, adding ingredients, simmering, and achieving the 'socarrat'.
5. Vedlikehold og rengjøring
Regelmessig rengjøring og vedlikehold vil sikre induksjonstoppens levetid og optimal ytelse.
5.1 Rengjøring av glassoverflaten
- Sørg alltid for at koketoppen er avkjølt før rengjøring.
- Use a soft cloth or sponge with a mild detergent or a specialized ceramic/induction hob cleaner.
- For gjenstridige flekker, bruk en skrape til keramisk koketopp, og hold den i en grunn vinkel.
- Tørk av med en ren klut for å unngå vannmerker.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage the glass surface.
5.2 Generelt vedlikehold
- Check the ventilation openings periodically to ensure they are not blocked.
- Do not place heavy objects on the hob edges to avoid chipping.
- If any part of the hob is damaged, contact a qualified service technician.
6. Feilsøking
Før du kontakter kundeservice, vennligst se følgende feilsøkingsveiledning for vanlige problemer.
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Koketoppen slår seg ikke på | Ingen strømforsyning; barnesikring aktivert | Check circuit breaker; Deactivate child lock (refer to control panel instructions). |
| Kokesone varmes ikke opp | Non-induction compatible cookware; Pan not centered; Overheating protection activated | Use induction-compatible cookware; Reposition pan; Allow hob to cool down. |
| Kontroller reagerer ikke | Surface is wet; Finger is wet; Error code displayed | Dry the control panel and your finger; Refer to the manual for specific error codes. |
| Uvanlig støy under drift | Normal fan noise; Cookware quality | A slight humming or buzzing is normal for induction; Some cookware may produce more noise. |
7. Spesifikasjoner
- Modellnummer: 112500055
- Type: Induksjonstopp
- Antall varmeelementer: 3
- Kontrolltype: Digital Touch (MultiSlider Pro)
- Installasjonstype: Innebygd
- Overflatemateriale: Glass
- Farge: Svart
- Dimensjoner (D x B x H): 51 cm x 60 cm x 5.3 cm
- Vekt: 4 kg
- Voltage: 240 volt
- Makt: 7200 watt
- Spesielle funksjoner: Flex Induction Technology, Temperature Sensors, XL Zone, Paella Function (MestrePaeller), Child Safety Lock, Overheating Protection.
- Komponenter inkludert: Hob unit.
8. Garanti og støtte
8.1 Garantiinformasjon
This Teka induction hob comes with a three-year manufacturer's warranty. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects and malfunctions under normal use conditions.
8.2 Kundestøtte
For technical assistance, service requests, or further information, please contact Teka customer support. You can find contact details on the official Teka webnettstedet eller gjennom din lokale forhandler.
