1. Introduksjon
This manual provides essential information for the safe and efficient operation of your TUXING TXES062 PCP Air Compressor. Please read this manual thoroughly before using the compressor to ensure proper function and to prevent injury or damage. Keep this manual for future reference.
2. Sikkerhetsinformasjon
ADVARSEL: Unnlatelse av å følge disse sikkerhetsinstruksjonene kan føre til alvorlig personskade eller materielle skader.
- Bruk alltid kompressoren i et godt ventilert område.
- Do not operate the compressor near flammable liquids or gases.
- Ensure the power source matches the compressor's requirements (220V AC or 12V DC).
- Never exceed the maximum pressure rating of the compressor or the item being inflated.
- Keep children and unauthorized personnel away from the operating compressor.
- Allow the compressor to cool down as instructed (10-15 minutes after 25 minutes of operation) to prevent overheating.
- Bruk alltid passende øyevern når du bruker kompressoren.
- Before disconnecting the hose, always loosen the bleed valve to release residual pressure.
- This compressor is designed for inflating PCP air rifles, paintball tanks, and similar high-pressure air containers. Do not use for other purposes.
3. Produktet er overview og funksjoner
The TUXING TXES062 is a portable, oil-free, and water-free PCP air compressor designed for convenient high-pressure air inflation. Key features include:
- Set-Pressure & Auto-Shutoff: Program your desired pressure, and the compressor will automatically stop when reached.
- Doble strømalternativer: Operates on 220V AC household power or 12V DC car battery.
- Upgraded Cooling System: Integrated high-power cooling fans and multiple vents ensure efficient heat dissipation without external water or oil. One-button start automatically activates the fan.
- Rask inflasjonshastighet: Achieves motor speeds up to 2700r/min and an airflow of 11L/min.
- Bærbar design: Compact and easy to carry with a built-in handle and wire spool.
- Sikkerhetsfunksjoner: Equipped with an adjustable pressure gauge, safety valve, and rupture disc.
- Olje-vann-separator: Effectively filters oil and water from the air, producing clean, dry high-pressure air.
Image: TUXING TXES062 PCP Air Compressor highlighting its key features: One-Button Start, Wire Spool Design, Oil-Water Free, Set-Pressure, Automatic Stop, and Fast Inflation.
4. Pakkens innhold
Bekreft at alle varene er til stede i pakken:
- TUXING TXES062 PCP Air Compressor
- AC strømkabel (220V)
- DC Power Cable with Alligator Clips (for 12V car battery)
- 8MM Quick Connector Hose
- Oil-Water Separator Filter
- Spare O-rings and Gaskets
- Brukerhåndbok

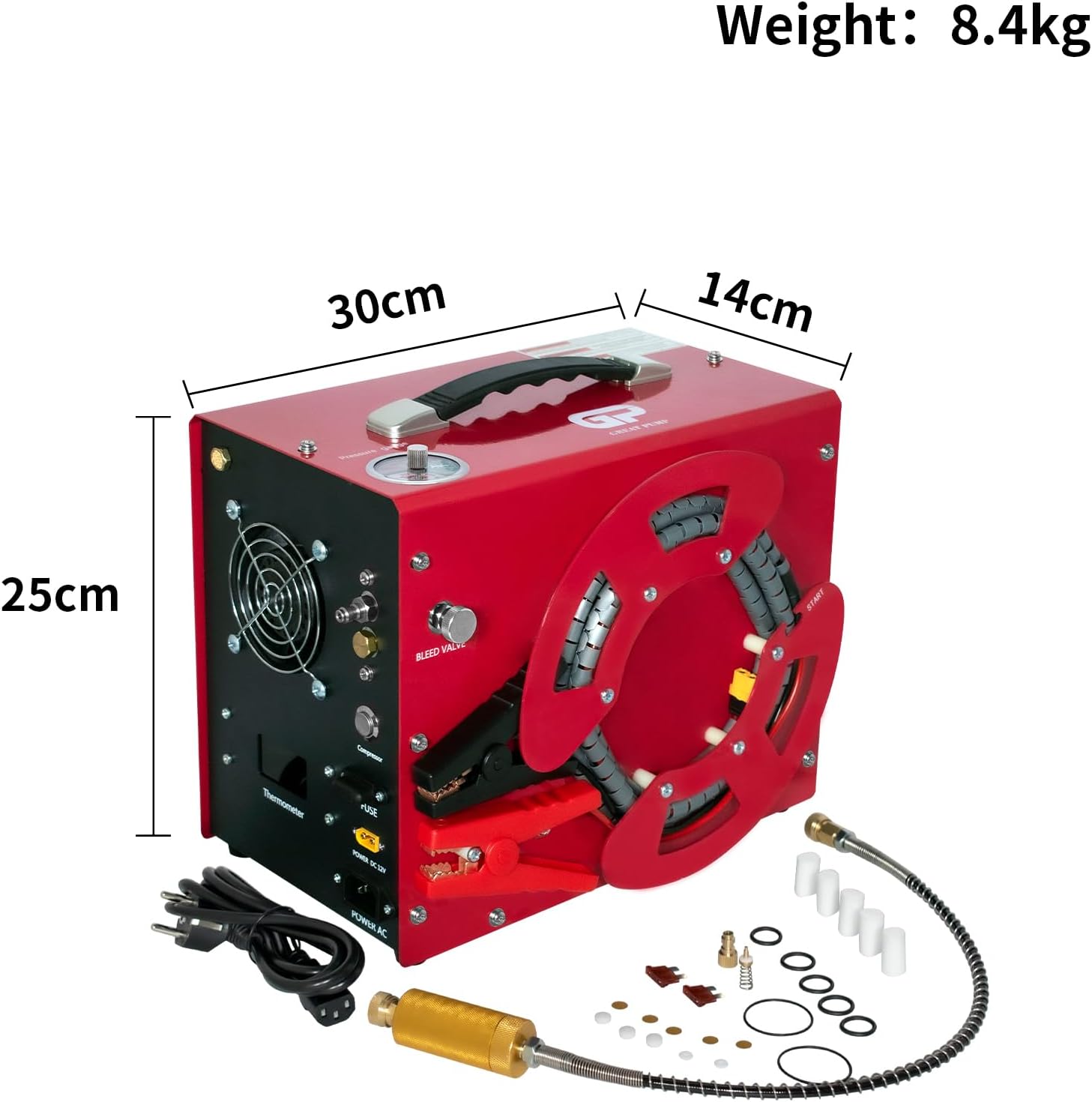

Image: The TUXING TXES062 compressor shown with its dimensions (30cm L x 14cm W x 25cm H) and various included accessories such as the power cable, hose, and spare parts.
5. Oppsett
5.1 Strømtilkobling
The compressor can be powered by either a 220V AC household outlet or a 12V DC car battery.
- For AC Power (220V): Connect the AC power cable to the compressor's AC input port and then to a standard 220V wall outlet.
- For DC Power (12V Car Battery): Connect the red alligator clip to the positive (+) terminal of the car battery and the black alligator clip to the negative (-) terminal. Ensure a secure connection.
Image: Demonstrates the two power options for the TUXING TXES062 compressor: connecting to a 12V car battery using alligator clips and connecting to a 220V AC wall outlet.
5.2 Slangetilkobling
- Attach the 8MM quick connector hose to the compressor's output port.
- Connect the other end of the hose to the fill port of your PCP air rifle, paintball tank, or scuba tank. Ensure all connections are tight to prevent air leaks.
6. Bruksanvisning
- Connect Power and Hose: Ensure the compressor is properly connected to a power source and the inflation hose is securely attached to both the compressor and the item to be inflated.
- Set Desired Air Pressure: Use the pressure adjustment knob to set the target pressure on the gauge. The auto-shutoff feature will activate once this pressure is reached.
- Start Cooling Fan: When the compressor is powered on, the cooling fan will start automatically. Verify it is running.
- Start kompressor: Press the 'Start' button to begin the inflation process. Monitor the pressure gauge during operation.
- Automatisk avstenging: The compressor will automatically stop once the preset pressure is achieved.
- Slipp trykk: After inflation, always loosen the bleed valve to release any residual pressure in the hose before disconnecting it from your device.
- Avkjølingsperiode: The compressor requires a cooling period. After approximately 25 minutes of continuous operation, allow the compressor to cool for 10-15 minutes before resuming use.

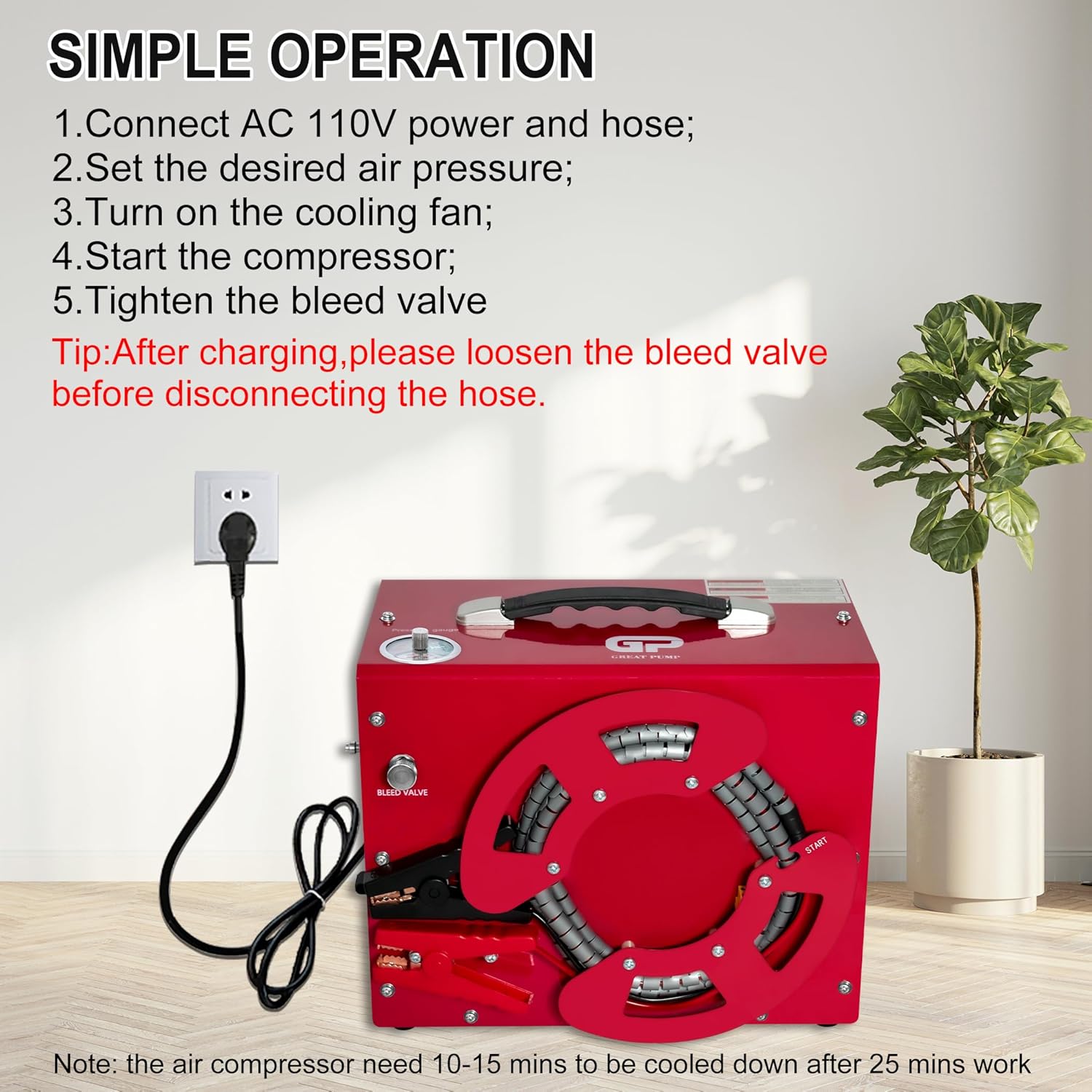

Image: Illustrates the simple operation of the TUXING TXES062 compressor, showing the AC power connection, hose, and the bleed valve. Steps include connecting power and hose, setting pressure, turning on the fan, starting the compressor, and tightening the bleed valve.
7. Vedlikehold
Regelmessig vedlikehold sikrer kompressorens levetid og optimale ytelse.
- Kjølesystem: The TXES062 features an integrated cooling system that does not require external circulating water or oil. Ensure the cooling vents are clear of obstructions.
- Olje-vann-separator: Periodically check and drain the oil-water separator filter to remove accumulated moisture. Replace the filter element as needed to maintain air quality.
- Generell rengjøring: Keep the exterior of the compressor clean and free of dust and debris. Use a dry cloth for cleaning.
- Lagring: Store the compressor in a dry, cool place away from direct sunlight and extreme temperatures.
8. Feilsøking
If you encounter issues with your TUXING TXES062 compressor, refer to the following common problems and solutions:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Kompressoren starter ikke | Ingen strøm, løs kontakt, sikring som er gått. | Check power cable and connections. Verify power outlet. Check and replace fuse if necessary. |
| Langsom oppblåsing eller lavt trykk | Air leak in hose/connections, clogged filter, worn seals. | Check all connections for leaks. Clean or replace oil-water separator filter. Inspect and replace O-rings/seals if damaged. |
| Kompressoren overopphetes | Insufficient cooling time, blocked vents. | Allow adequate cooling time (10-15 min after 25 min operation). Ensure cooling vents are clear. Operate in a well-ventilated area. |
| Water/oil in air output | Oil-water separator needs draining/replacement. | Drain the oil-water separator. Replace the filter element if necessary. |
If the problem persists after attempting these solutions, please contact TUXING customer support.
9. Spesifikasjoner
| Spesifikasjon | Verdi |
|---|---|
| Merke | TUXING |
| Modellnummer | TXES062 |
| Voltage | 220 volt vekselstrøm |
| Strømkilde | 12V Car Battery or 220V AC Outlet |
| Maksimal kraft | 300 watt |
| Ampslette | 40 A |
| Luftstrøm | 11 liter per minutt |
| Støynivå | 78 desibel |
| Kompatibel slangediameter | 8 millimeter |
| Varevekt | 8.5 kilo |
| Dimensjoner (L x B x H) | 30L x 14W x 25H Centimeter |
| Materialtype | Stryke |
| Spesielle funksjoner | AC and DC Adaptable, Auto-Stop, Oil-Free, Water-Free |
| Anbefalt bruk | Object inflation, pneumatic tool power supply |
10. Garanti og støtte
For warranty information or technical support, please refer to the documentation provided with your purchase or contact TUXING customer service directly. Keep your purchase receipt as proof of purchase.
For further assistance, you may visit the official TUXING store on Amazon: TUXING Store
