Yaheetech TV Stand Instruction Manual

Viktige sikkerhetsinstruksjoner

Vennligst les og forstå alle instruksjonene før montering og bruk. Ta vare på denne håndboken for senere referanse.

• Anti-Tipping Unit: Always use the provided anti-tipping unit to securely fix the TV stand to the wall. This prevents accidental tipping, which can cause serious injury.
• Vekt kapasitet: Do not exceed the maximum weight capacity of 198 lb (90 kg) for the tabletop. Ensure your TV and other items placed on the stand are within this limit.
• Riktig plassering: Place the TV stand on a flat, level, and stable surface to prevent wobbling or instability.
• Barn og kjæledyr: Hold barn og kjæledyr unna monteringsområdet. Små deler kan være en kvelningsfare.
• Kjemikalier: Avoid contact with skin and eyes if any chemical components are present (e.g., from wood treatment). If ingested, seek medical help immediately.

Image: Anti-tip fitting installation. This image illustrates how to attach the anti-tip kit to the wall, preventing the console table from tipping over and ensuring stability.

Pakkeinnhold

Before beginning assembly, verify that all parts and hardware are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Topppanel (1)
• Nederste hylle (1)
• Midterste hylle (1)
• Side Frames with X-shaped Reinforcement (2)
• Skuffekomponenter (foran, bak, sider, bunn)
• Drawer Slides (2 sets)
• Skuffeknotter (2)
• Anti-Tipping Kit (1)
• Assembly Hardware (Screws, bolts, dowels, Allen key, etc.)

Oppsett- og monteringsinstruksjoner

Assembly typically requires an Allen key (provided), a hammer, and a screwdriver (not provided). It is recommended to assemble the unit with two people.

Trinn 1: Klargjør komponenter

Unpack all components and lay them out on a clean, soft surface (e.g., a blanket or cardboard) to prevent scratches. Identify each part according to the included parts list.

Image: Product Dimensions. This diagram provides detailed measurements of the TV stand, including the tabletop (39.5" L x 12" W), shelves (37" L x 11" W), and drawer (33.5" L x 9" D x 3.5" H).

Trinn 2: Monter siderammer

Attach the X-shaped reinforcement bars to the metal side frames using the provided screws. Ensure all connections are secure but do not overtighten yet.

Image: X-shaped Side Reinforcement. This image highlights the X-shaped bars on the side frames, which provide structural stability to the console table.

Step 3: Attach Shelves to Side Frames

Connect the bottom and middle shelves to the assembled side frames. Use the designated screws and ensure the shelves are oriented correctly. Gradually tighten all screws once all shelves are in place.

Step 4: Assemble the Drawer

Follow the specific instructions for assembling the drawer. This typically involves attaching the front, back, and side panels, then sliding the bottom panel into place. Install the drawer slides onto the drawer and the main frame, ensuring they are correctly aligned for smooth operation. Attach the drawer knobs.

Image: Ball Bearing Slide. This image shows the ball-bearing drawer slides, designed for smooth and effortless opening and closing of the drawer.

Trinn 5: Fest topppanelet

Place the top panel onto the assembled frame and secure it with the remaining screws. Ensure all connections are tight and the stand is stable.

Step 6: Install Anti-Tipping Unit

As a crucial safety measure, install the anti-tipping unit. Attach one end to the back of the TV stand and the other end to a wall stud or appropriate wall anchor. This prevents the stand from tipping forward, especially with a TV placed on top.

Bruksanvisning

This TV stand is designed for indoor use to support televisions up to 45 inches and other media equipment.

• TV-plassering: Place your TV centrally on the top panel. Ensure the TV base fits within the tabletop dimensions (39.5 inches L x 12 inches W) and its weight does not exceed 198 lb.
• Bruk av skuff: The large drawer (33.5 inches L x 9 inches D x 3.5 inches H) is suitable for storing remote controls, small electronic accessories, or personal items.
• Hyllebruk: The two lower shelves (37 inches L x 11 inches W) can accommodate electronic equipment like record players, small sound boxes, books, magazines, or decorative items. Distribute weight evenly across the shelves.

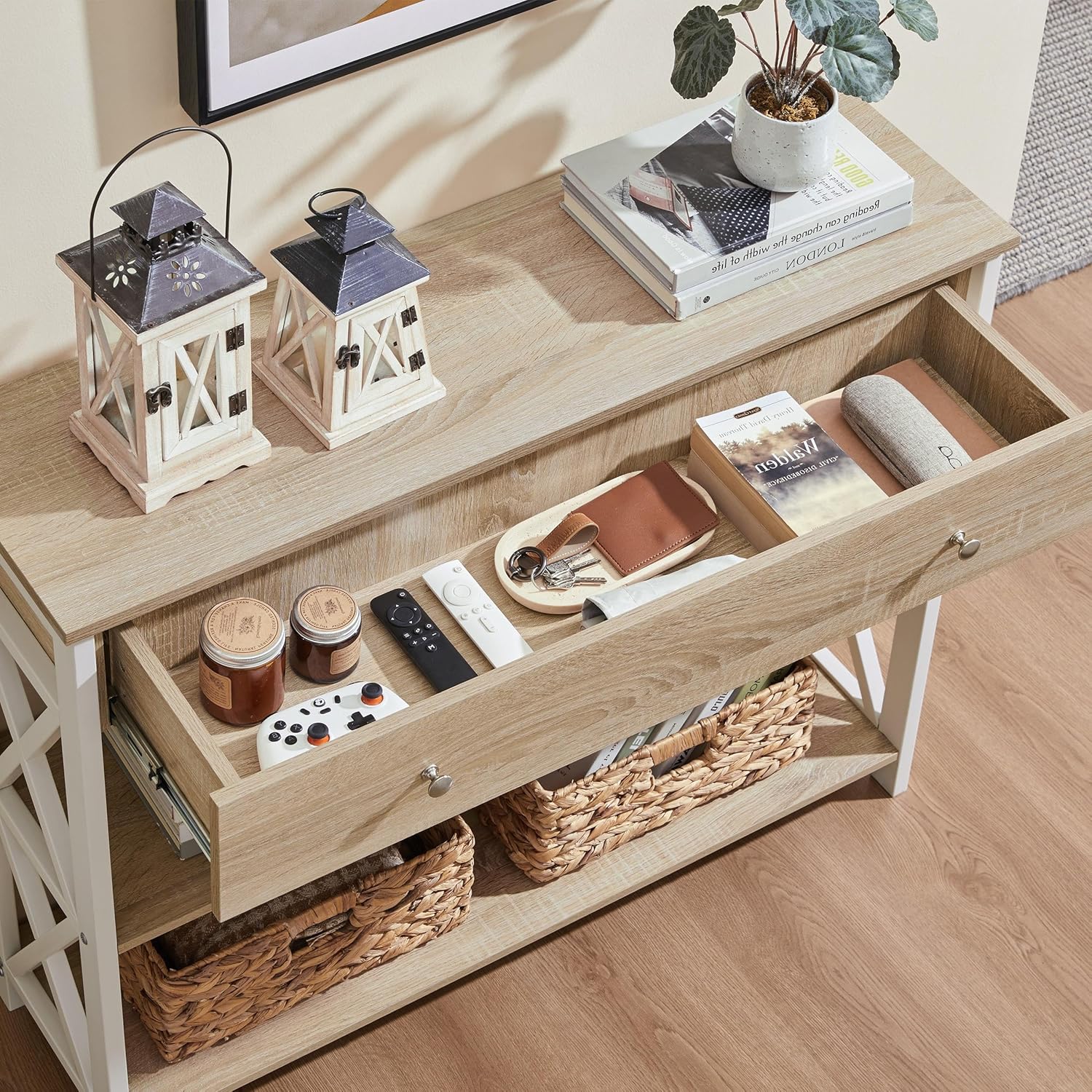

Image: Drawer Storage. This image displays the spacious drawer, organized with items such as remote controls, keys, and small accessories, demonstrating its storage capacity.

Vedlikehold

Regular maintenance will help preserve the appearance and longevity of your TV stand.

• Rengjøring: Tørk av overflatene med adamp cloth for general cleaning. For a dry finish, follow with a dry cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Søl: Tørk opp søl raskt for å unngå vannskader eller flekker, spesielt på konstruerte treflater.
• Maskinvaresjekk: Sjekk alle skruer og festemidler med jevne mellomrom for å sikre at de holder seg stramme. Stram til om nødvendig for å opprettholde strukturell integritet.
• Miljøforhold: Avoid placing the stand in direct sunlight or near heat sources, which can cause warping or fading. Maintain a stable room temperature and humidity.

Image: CARB P2-Certified Material. This diagram highlights the material's properties, including waterproof, scratch-resistant against slight damage, and moisture/mildew proof, indicating its durability and ease of maintenance.

Feilsøking

• Vaglende/ustabilitet:
  • Ensure the TV stand is placed on a flat, level surface.
  • Kontroller alle monteringsskruer og -bolter. Stram til eventuelle løse forbindelser.
  • Verify the anti-tipping unit is correctly installed and secured to the wall.
• Skuffen glir ikke jevnt:
  • Ensure the drawer slides are properly aligned and installed on both the drawer and the main frame.
  • Sjekk om det er noen hindringer i skuffeskinnene.
  • Kontroller at alle skruene som fester skuffeskinnene er stramme.
• Manglende deler eller skadede komponenter:
  • Refer to the "Package Contents" section. If parts are missing or damaged upon arrival, contact Yaheetech customer support immediately for assistance.

Spesifikasjoner

Garantiinformasjon

Yaheetech products are manufactured with quality and care. For specific warranty details regarding your TV stand, please refer to the warranty card included in your package or visit the official Yaheetech website. Typically, warranties cover manufacturing defects under normal use.

Kundestøtte

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Yaheetech customer support.

• Online støtte: Visit the official Yaheetech webnettsted for vanlige spørsmål, støtteressurser og kontaktskjemaer.
• E-post/Telefon: Refer to your product packaging or the Yaheetech website for specific email addresses or phone numbers for customer service.
