GOYOJO FA2204E Analytical Balance User Manual

1. Introduksjon

Thank you for choosing the GOYOJO FA2204E Analytical Balance. This precision instrument is designed for highly accurate weighing in laboratory, industrial, and educational settings. With a capacity of 220 grams and a readability of 0.1 mg (0.0001g), it is ideal for measuring small, delicate samples such as chemicals, jewelry, and gemstones. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your analytical balance.

2. Sikkerhetsinformasjon

• Always operate the balance on a stable, level surface free from vibrations and drafts.
• Unngå å utsette vekten for ekstreme temperaturer, fuktighet eller direkte sollys.
• Do not overload the balance beyond its maximum capacity of 220g.
• Bruk kun den medfølgende strømadapteren.
• Keep the balance clean and free from dust and chemical spills.
• Do not attempt to disassemble or repair the balance yourself. Contact qualified service personnel.
• Ensure proper ventilation when weighing volatile substances.

3. Pakkens innhold

Pakk esken forsiktig ut og sørg for at alle gjenstander er til stede og uskadet:

• GOYOJO FA2204E Analytical Balance unit
• Weighing pan (80mm diameter)
• Draft shield (glass enclosure)
• Strømadapter
• Calibration weight (if included)
• Brukerhåndbok (dette dokumentet)

4. Produktet er overview

The FA2204E analytical balance features a robust design with a glass draft shield to protect against air currents, ensuring stable and accurate readings. It includes an easy-to-read LCD and multiple connectivity options.

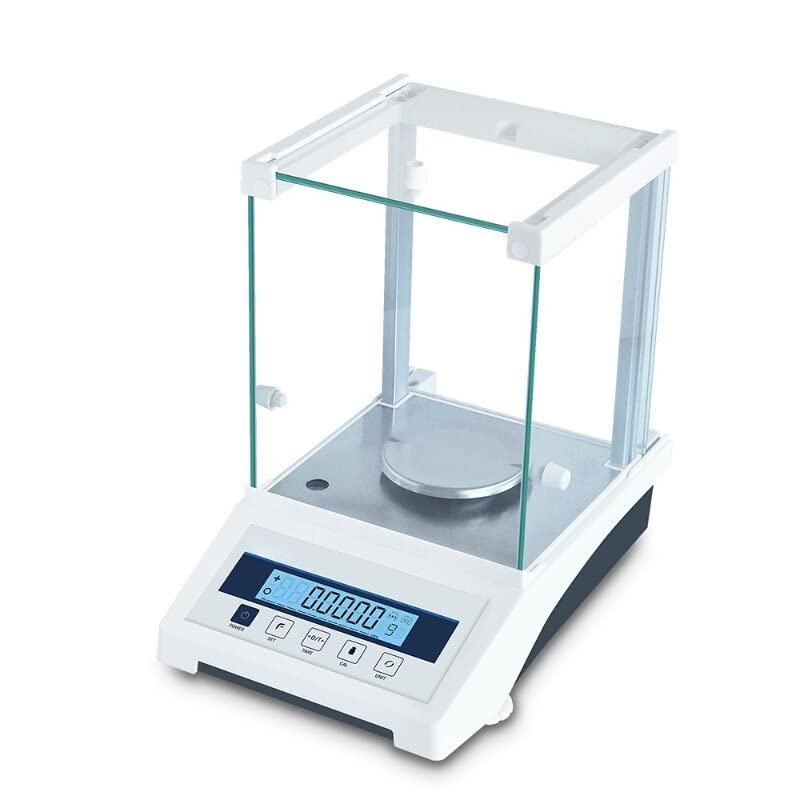

Figur 4.1: Foran view of the GOYOJO FA2204E Analytical Balance with a sample beaker.

Nøkkelkomponenter:

• Weighing Pan: Stainless steel platform for placing samples.
• Trekkskjold: Glass enclosure to minimize air current interference.
• LCD-skjerm: Shows weight readings, units, and operational status.
• Kontrollpanel: Buttons for power, tare, unit selection, and calibration.
• Nivåindikator: Bubble level for ensuring proper balance setup.
• Justerbare føtter: For leveling the balance.
• RS232/USB Ports: For data communication with external devices.

5. Oppsett

5.1 Utpakking og plassering

1. Carefully remove the balance from its packaging. Retain all packaging materials for future transport or storage.
2. Place the balance on a sturdy, level, and vibration-free workbench. Avoid locations near air conditioning vents, windows, or heavy machinery that could cause drafts or vibrations.
3. Ensure sufficient space around the balance for operation and maintenance.

5.2 Montering

1. Install the weighing pan onto the pan support. Ensure it sits securely and centrally.
2. Assemble the glass draft shield around the weighing pan. The shield panels should slide smoothly into their designated slots.

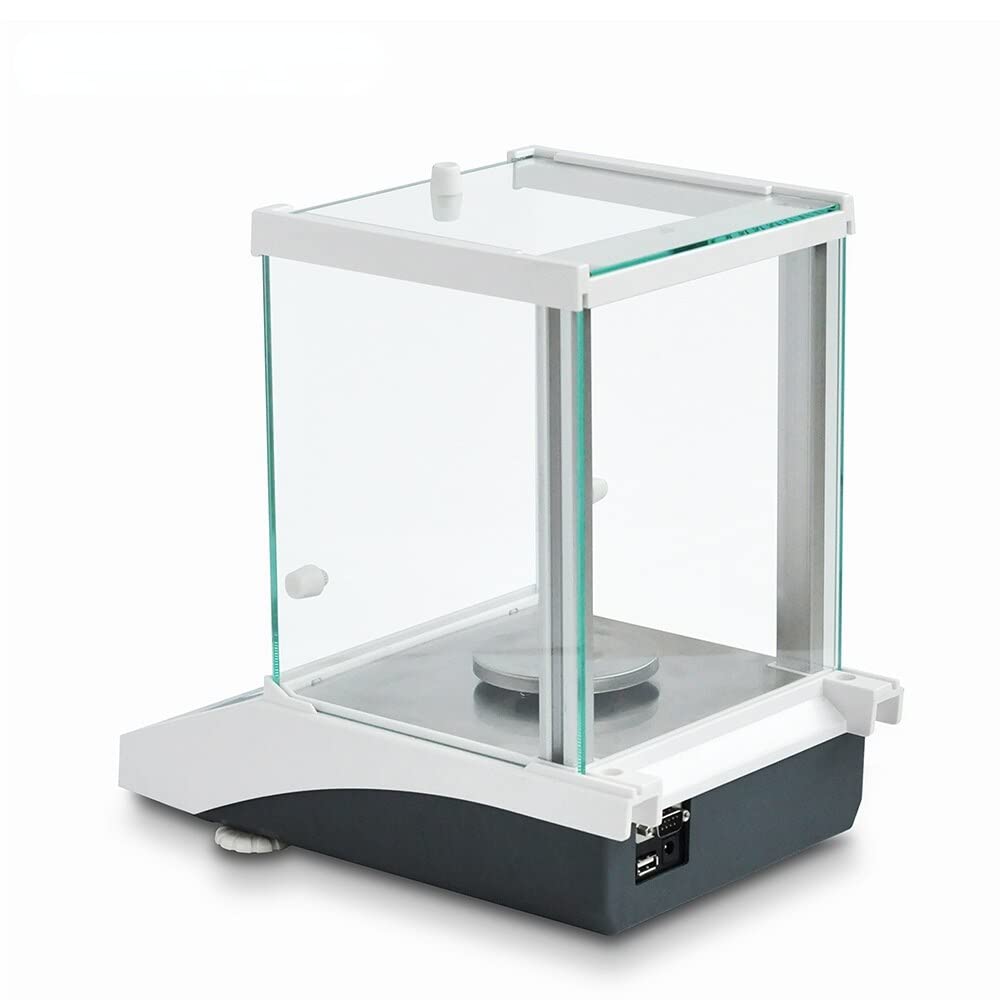

Figur 5.1: Side view illustrating the assembled draft shield and weighing pan.

5.3 Leveling the Balance

Accurate leveling is crucial for precise measurements.

1. Locate the bubble level indicator, usually at the front or side of the balance base.
2. Adjust the two front adjustable feet (or all four, depending on the model) by turning them clockwise or counter-clockwise until the air bubble is centered within the indicator circle.

5.4 Strømtilkobling

1. Connect the power adapter to the power input port on the rear of the balance.
2. Plug the power adapter into a suitable electrical outlet (110V-240V).

Figur 5.2: Bak view showing the power input, RS232, and USB ports.

6. Bruksanvisning

6.1 Slå på/av

• For å slå på: Trykk på [PÅ/AV] button. The display will show a self-test sequence and then settle at zero.
• Slik slår du av: Trykk og hold inne [PÅ/AV] knappen til skjermen slås av.

6.2 Innledende oppvarming

Allow the balance to warm up for at least 30 minutes after powering on for the first time or after a long period of inactivity. This ensures thermal stability and optimal measurement accuracy.

6.3 Kalibrering

Regular calibration is essential for maintaining accuracy. Refer to your specific model's calibration procedure, which typically involves using a known calibration weight.

1. Ensure the balance is level and warmed up.
2. Clear the weighing pan.
3. Access the calibration menu (often by pressing and holding a specific button like [CAL] or [MODUS]).
4. Follow the on-screen prompts to place the specified calibration weight on the pan.
5. Remove the weight when prompted. The balance will then display "PASS" or similar upon successful calibration.

6.4 Grunnleggende veieprosedyre

Figure 6.1: Close-up of the LCD display and control panel.

1. Zeroing the Balance: With nothing on the weighing pan, press the [NULL] -knappen for å stille inn skjermen til 0.0000 g.
2. Taring (for containers): Place an empty container on the weighing pan. Wait for the reading to stabilize, then press the [TARE] button. The display will return to 0.0000g, effectively subtracting the container's weight.
3. Plassering av Sampde: Carefully place the item or substance to be weighed onto the center of the weighing pan (or into the tared container). Close the draft shield doors.
4. Lese målingen: Wait for the reading on the LCD to stabilize. This is your accurate weight measurement.
5. Enhetsvalg: Trykk på [ENHET] or [MODUS] button to cycle through available weighing units (grams, carats, ounces, etc.).

6.5 Data Transfer (RS232/USB)

The FA2204E balance is equipped with RS232 and USB interfaces for connecting to a computer or printer for data logging and analysis.

• Connect the appropriate cable (RS232 or USB) from the balance to your computer or peripheral device.
• Install any necessary drivers or software provided by GOYOJO or available online for your operating system.
• Refer to the software's instructions for configuring communication settings (e.g., baud rate, data bits, parity) to match the balance's settings.
• Data can typically be sent manually via a print button or automatically at specified intervals, depending on the balance's settings and connected software.

7. Vedlikehold

7.1 Rengjøring

• Always disconnect the balance from the power supply before cleaning.
• Bruk en myk, damp cloth with a mild detergent to clean the exterior surfaces. Avoid abrasive cleaners or solvents.
• The stainless steel weighing pan can be removed and cleaned separately with soap and water. Ensure it is completely dry before re-installing.
• Use a soft brush or lint-free cloth to gently clean around the weighing pan and inside the draft shield.
• Do not allow liquids to enter the balance housing or ports.

7.2 Oppbevaring

• When not in use for extended periods, store the balance in a clean, dry, and temperature-controlled environment.
• Cover the balance with a dust cover to prevent dust accumulation.
• If transporting the balance, use the original packaging to protect it from shock and vibration.

8. Feilsøking

9. Spesifikasjoner

10. Garanti og støtte

For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official GOYOJO website. Please have your model number (FA2204E) and purchase date ready when contacting support.
