1. Introduksjon
The Volkano Dew Series Weather Station provides accurate and up-to-date weather information for your home or office. This wireless system includes an indoor display unit and an outdoor sensor unit, offering comprehensive data on indoor and outdoor temperature, humidity, and pressure. It also displays the weather forecast, time, and date, keeping you informed of local conditions.
Nøkkelfunksjoner:
- Wireless weather station with outdoor sensor unit.
- Large, easy-to-read display shows indoor and outdoor temperature, humidity, and pressure.
- Displays weather forecast, time, and date.
- Outdoor sensor unit can be placed up to 100 meters away from the indoor display unit.
2. Pakkens innhold
Vennligst sjekk innholdet i pakken for å sikre at alle varene er til stede:
- Volkano Dew Series Indoor Display Unit
- Volkano Dew Series Outdoor Sensor Unit
- Bruksanvisning

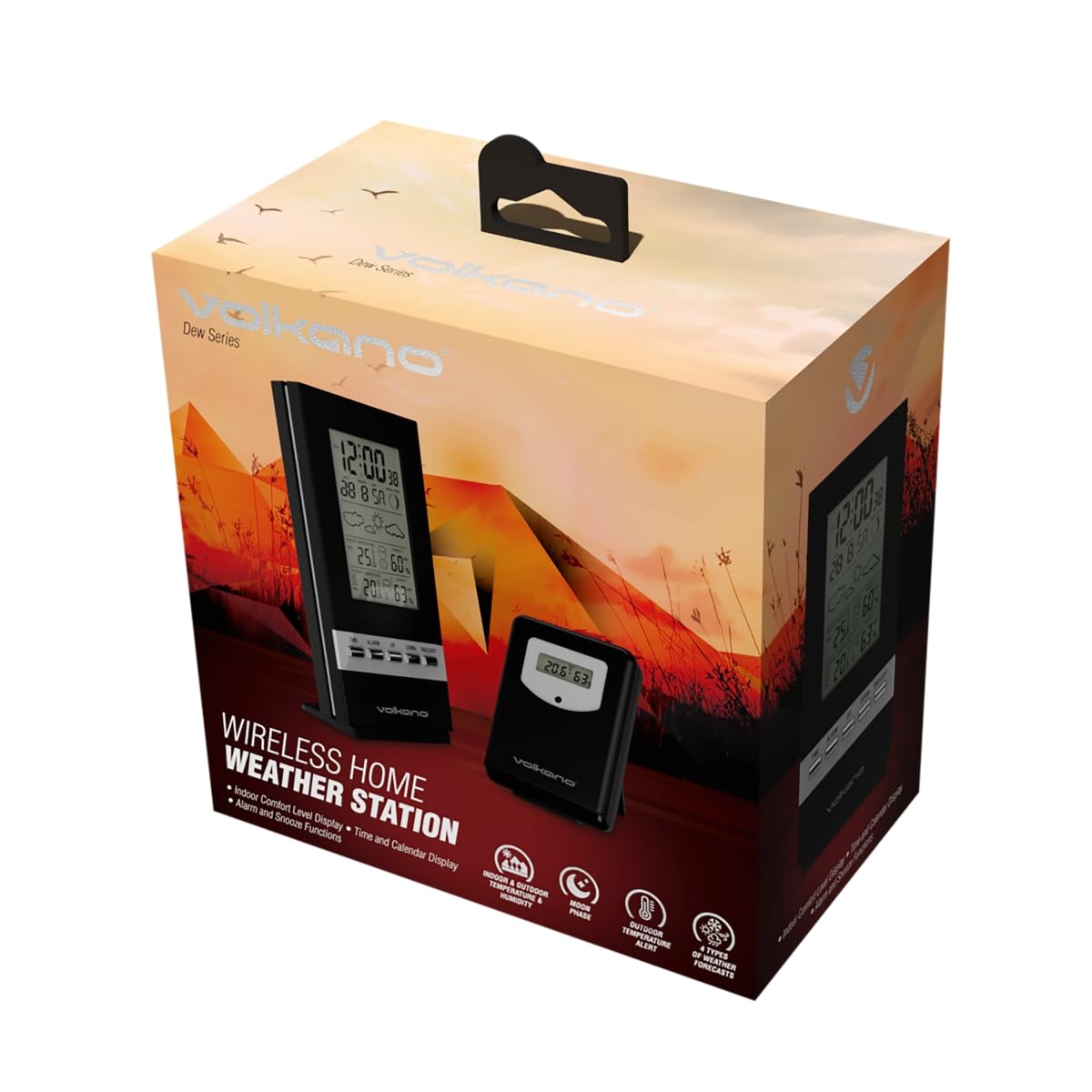

Image: The Volkano Dew Series Weather Station main display unit and its accompanying outdoor sensor unit, shown side-by-side.
3. Produktet er overview
3.1 Indoor Display Unit
The indoor display unit features a large LCD screen that presents all weather data and time information. It typically includes buttons for setting time, alarm, and display modes.
Image: The Volkano Dew Series Weather Station indoor display unit, showing its digital screen with temperature and humidity readings.
3.2 Outdoor Sensor Unit
The outdoor sensor unit is designed to measure external temperature and humidity. It wirelessly transmits this data to the indoor display unit. It is typically compact and weather-resistant.
4. Oppsett
Follow these steps to set up your Volkano Dew Series Weather Station:
4.1 Installasjon av batteri
- Open the battery compartment on the back of both the indoor display unit and the outdoor sensor unit.
- Sett inn de nødvendige batteriene (ikke inkludert) i henhold til polaritetsindikatorene (+/-).
- Lukk batterirommene godt.
4.2 Placing the Outdoor Sensor
- Choose a location for the outdoor sensor that is protected from direct sunlight and precipitation to ensure accurate readings.
- Ensure the sensor is within 100 meters of the indoor display unit for optimal wireless transmission. Avoid large metal objects or thick walls between the units.
- Mount the sensor securely using appropriate hardware (not included).
4.3 Innledende synkronisering og innstillinger
- Once batteries are installed in both units, the indoor display unit will automatically attempt to connect with the outdoor sensor. This may take a few minutes.
- If the outdoor reading does not appear, refer to the Troubleshooting section.
- Set the time and date using the buttons on the indoor display unit (refer to the specific button labels on your device, typically 'TIME', 'SET', 'UP', 'DOWN').
- Select your preferred temperature unit (Celsius or Fahrenheit) and pressure unit (if applicable) using the designated button (e.g., 'C/F' or 'UNIT').
5. Betjening av værstasjonen
5.1 Lese av displayet
Det store displayet gir følgende informasjon:
- Innendørs temperatur og fuktighet: Gjeldende avlesninger i hjemmet ditt.
- Utendørs temperatur og fuktighet: Current readings from the outdoor sensor.
- Trykk: Atmospheric pressure reading.
- Værmelding: Icons indicating predicted weather conditions (e.g., sunny, cloudy, rainy).
- Tid og dato: Gjeldende tid og kalenderdato.
5.2 Understanding Weather Forecast Icons
The weather station uses various icons to represent the forecast. These forecasts are based on changes in atmospheric pressure and are an estimation, not a guarantee of future weather conditions.
5.3 Alarm and Snooze Functions
If your unit includes an alarm function, use the 'ALARM' or 'MODE' button to set and activate it. The 'SNOOZE' button typically provides a temporary pause for the alarm.
6. Vedlikehold
- Rengjøring: Tørk av displayenheten og sensoren med en myk klutamp klut. Ikke bruk skurende rengjøringsmidler eller løsemidler.
- Batteribytte: Replace batteries in both units when the low battery indicator appears on the display. Always replace all batteries at the same time.
- Sensorplassering: Periodically check the outdoor sensor's location to ensure it remains protected and has a clear path for wireless transmission.
7. Feilsøking
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Ingen avlesning av utetemperatur/fuktighet | Outdoor sensor out of range, low batteries, interference, or not synchronized. | Check battery levels in both units. Move sensor closer to the main unit. Remove and reinsert batteries in both units to force re-synchronization. Avoid sources of interference. |
| Unøyaktige avlesninger | Sensor exposed to direct sunlight/rain, or placed near heat sources. | Relocate the outdoor sensor to a shaded, protected area. Ensure proper ventilation around both units. |
| Skjermen er svak eller tom | Low batteries in the indoor display unit. | Skift batterier i innendørs displayenhet. |
| Feil tid/dato | Not set correctly after battery change. | Manually set the time and date using the unit's buttons. |
8. Spesifikasjoner
| Trekk | Detalj |
|---|---|
| Merke | Volkano |
| Modellnummer | VK-6300-BK |
| Farge | Svart |
| Visningstype | Digital |
| Spesielle funksjoner | Humidity Display, Temperature Display |
| Produktdimensjoner | 24.2 B x 20.5 H centimeter |
| Varevekt | 440 g |
| Strømkilde | Batteridrevet |
| Batterier inkludert | Ingen |
| Utendørs sensorrekkevidde | Opp til 100 meter (siktlinje) |
9. Garanti og støtte
Volkano products are typically backed by a 1-year limited coverage. You may be able to extend this coverage by registering your product. Please refer to the official Volkano website or your purchase documentation for specific warranty terms and registration details.
For any questions, technical assistance, or support regarding your Volkano Dew Series Weather Station, please contact Volkano customer support. You can usually find contact information on the official Volkano webnettstedet eller gjennom forhandleren der du kjøpte produktet.
