Introduksjon
Thank you for choosing the UTRAI JS-5 Car Jump Starter with Air Compressor. This device is designed to provide reliable emergency vehicle starting, tire inflation, and portable power. Please read this manual thoroughly before use to ensure safe and optimal performance. Keep this manual for future reference.
The UTRAI JS-5 Car Jump Starter and Air Compressor, a versatile device for roadside emergencies.
Sikkerhetsinformasjon
Følg alltid følgende sikkerhetsregler for å forhindre skade eller materiell skade på enheten og kjøretøyet:
- Ikke la den røde og svarte clamps å ta på hverandre.
- Do not jump-start a vehicle if the battery voltage er under 12V.
- Ensure proper polarity connection: red clamp til positiv (+), svart fargeamp til negativ (-).
- Remove the jump starter from the vehicle battery within 30 seconds after starting.
- Ikke utsett enheten for ekstreme temperaturer eller fuktighet.
- Oppbevares utilgjengelig for barn.
- Ikke demonter enheten.
Pakkeinnhold
The UTRAI JS-5 package includes the following items:
- UTRAI JS-5 Portable Car Jump Starter with Air Compressor
- Smart batteri Clamps
- USB ladekabel
- Sigarettenneradapter
- 3 x Inflatable Pump Nozzles
- Convenient Carrying Bag
- Brukerhåndbok
All items included in the UTRAI JS-5 product package.
Produkt overview
The UTRAI JS-5 combines multiple essential functions into one compact device:
- Starthjelp: 6000A peak current for 12V vehicles (up to 8.0L Diesel or all Gasoline engines).
- Luftkompressor: 150PSI maximum pressure with 45 L/min airflow for tires, balls, and inflatables.
- LED lommelykt: 1600 lumens with Normal, Strobe, and SOS modes.
- Power Bank: 27000mAh capacity with USB (5V/2.4A), DC (12V-16V/10A), and Type-C (PD18W) outputs.
- LCD-skjerm: Clearly shows power level and tire pressure.
The UTRAI JS-5 offers 6-in-1 multifunctionality including jump starting, air compression, and LED lighting.
The large digital LED screen provides clear readings of pressure and battery level.
Oppsett
Innledende lading
Before first use, fully charge the UTRAI JS-5. Connect the USB charging cable to the Type-C input port on the device and to a suitable USB power adapter (not included). The LCD screen will indicate the charging status. A full charge ensures maximum performance and extends battery life.
Bruksanvisning
1. Hoppstart av et kjøretøy
Follow these steps to safely jump-start your vehicle:
- Trinn 1: Sett inn smartbatteriet clamp plug completely into the jump starter's port. The red and green lights on the clamp vil blinke vekselvis.
- Trinn 2: Koble til den røde clamp til den positive (+) polen på bilbatteriet og den svarte clamp to the negative (-) terminal. The green indicator on the clamp will turn solid green, and the clamp will emit a click sound, indicating a correct connection.
- Trinn 3: Start kjøretøyet innen 60 sekunder.
- Trinn 4: Once the vehicle is started, remove the battery clamps fra bilbatteriet og hoppestarteren innen 30 sekunder.

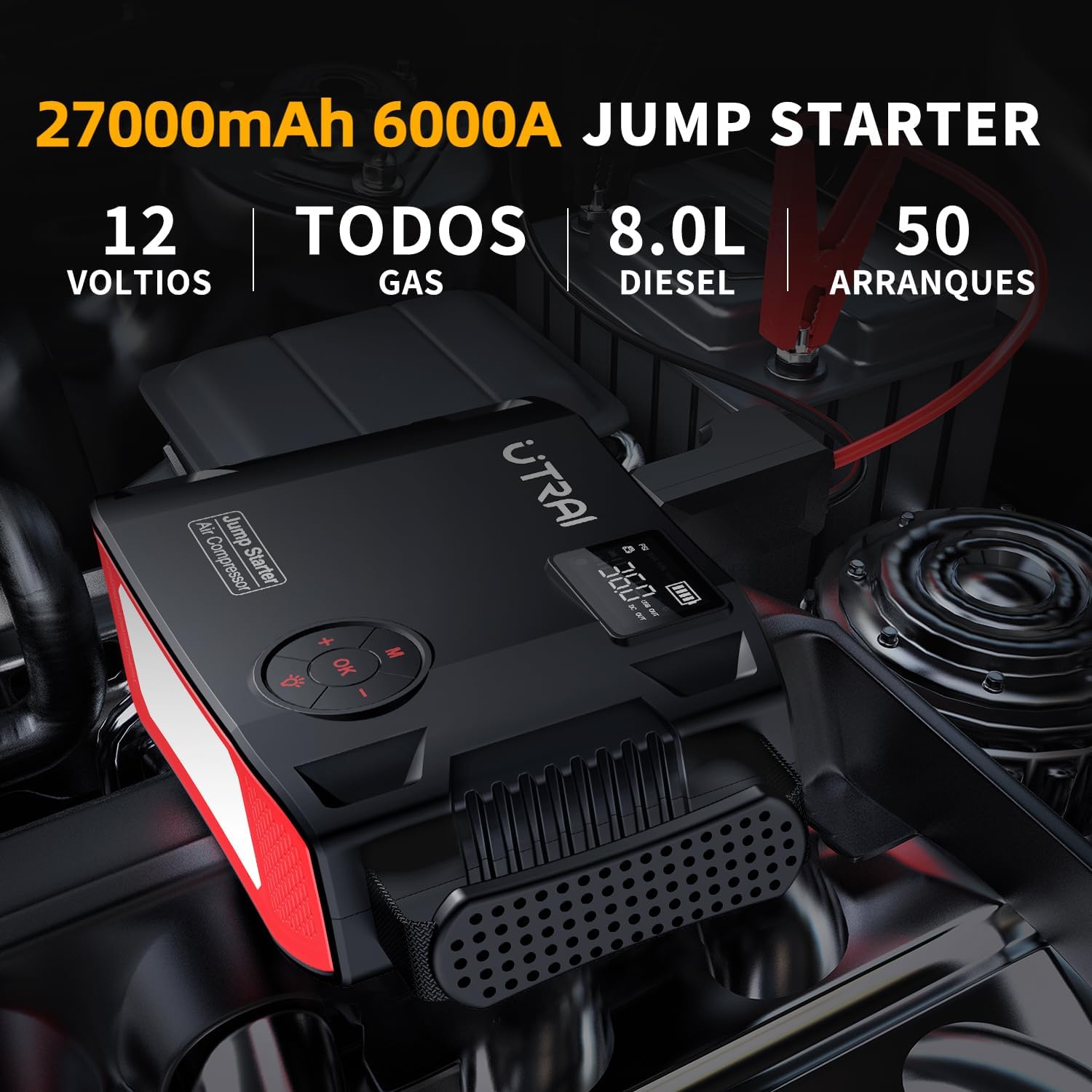

The UTRAI JS-5 connected to a car battery, ready for jump starting.
Video demonstrating the step-by-step process of using the UTRAI JS-5 to jump-start a vehicle and inflate a tire.
2. Bruk av luftkompressoren
The integrated air compressor can inflate tires and other items:
- Trinn 1: Koble luftslangen til dekkventilen.
- Trinn 2: Power on the device. Use the 'M' button to select the desired unit (PSI, BAR, KPA) and the '+' / '-' buttons to set the target pressure.
- Trinn 3: Press and hold the 'OK' button to start inflation. The compressor will automatically stop once the preset pressure is reached.
- Trinn 4: Koble fra luftslangen.
The UTRAI JS-5 features a cordless tire inflator with a preset pressure function for easy and accurate inflation.
3. Bruk av LED-lyset
The device includes a powerful LED flashlight with three modes:
- Normal modus: Gir jevn belysning.
- Strobemodus: Blinkende lys for signalisering.
- SOS-modus: International distress signal.
Trykk på lysknappen for å bla gjennom modusene.
The UTRAI JS-5 offers three LED light modes for various situations: Normal, Strobe, and SOS.
4. Bruk som powerbank
The 27000mAh battery can charge your electronic devices:
- Connect your device to the USB output port (5V/2.4A) for standard charging.
- Use the Type-C input/output port for PD18W fast charging compatible devices.
- The DC output (12V-16V/10A) can power 12V automotive accessories using the included cigarette lighter adapter.
The UTRAI JS-5 can quickly charge phones, tablets, and other electronic devices.
Vedlikehold
To ensure the longevity and optimal performance of your UTRAI JS-5:
- Recharge the device every 3 months, even if not in use, to maintain battery health.
- Store the device in a cool, dry place away from direct sunlight and corrosive materials.
- Rengjør utsiden med en myk, damp klut. Ikke bruk sterke kjemikalier.
- Inspiser clamps and cables for any damage before each use.
Feilsøking
If you encounter issues with your UTRAI JS-5, refer to the following common problems and solutions:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Kjøretøyet starter ikke | Feil clamp connection; Jump starter battery low; Vehicle battery severely discharged. | Sjekk klamp polarity; Recharge jump starter; Consult a mechanic for severely discharged batteries. |
| Luftkompressoren blåser seg ikke opp | Hose not securely connected; Target pressure not set; Device battery low. | Ensure hose is tightly screwed on; Set desired pressure using '+' / '-' buttons; Recharge jump starter. |
| LED-lys virker ikke | Device battery low; Light button not pressed correctly. | Recharge jump starter; Press the light button firmly to cycle modes. |
| Device not charging external devices | Device battery low; Incorrect cable/port used; External device not compatible. | Recharge jump starter; Ensure correct USB/Type-C cable and port are used; Check device compatibility. |
If the problem persists, please contact UTRAI customer support.
Spesifikasjoner
| Trekk | Spesifikasjon |
|---|---|
| Modellnummer | UTRAI JS-5 |
| Toppstrøm | 6000 Amperes |
| Batterikapasitet | 27000 mAh |
| Battericellesammensetning | Litium polymer |
| Voltage | 12 volt |
| Luftkompressortrykk | Maks 150 PSI |
| USB-utgang | 5V/2.4A |
| DC-utgang | 12V-16V / 10A |
| Type-C inngang/utgang | PD18W (5V/3A, 9V/2A) |
| LED lysutgang | 1600 Lumens (3 modes) |
| Driftstemperatur | -20°C til 60°C |
| Vanntett vurdering | IP67 |
| Produktvekt | 1 kg |
| Pakkedimensjoner | 27.6 x 22.9 x 16.7 cm |
Garanti og støtte
UTRAI is committed to providing high-quality products and excellent customer service.
- Produsentens garanti: Dette produktet leveres med 2 års produsentgaranti.
- Pengene-tilbake-garanti: Enjoy a 30-day money-back guarantee.
- Kundestøtte: Our friendly and reliable customer service team is available 24/7 to assist you with any inquiries or issues.
For support, please refer to the contact information provided with your purchase or visit the official UTRAI webnettstedet.
