ANNKE 8CH 3K Security Camera System User Manual

1. Introduksjon

This manual provides detailed instructions for the installation, operation, and maintenance of your ANNKE 8CH 3K Security Camera System. Please read this manual thoroughly before using the product to ensure proper setup and functionality. Keep this manual for future reference.

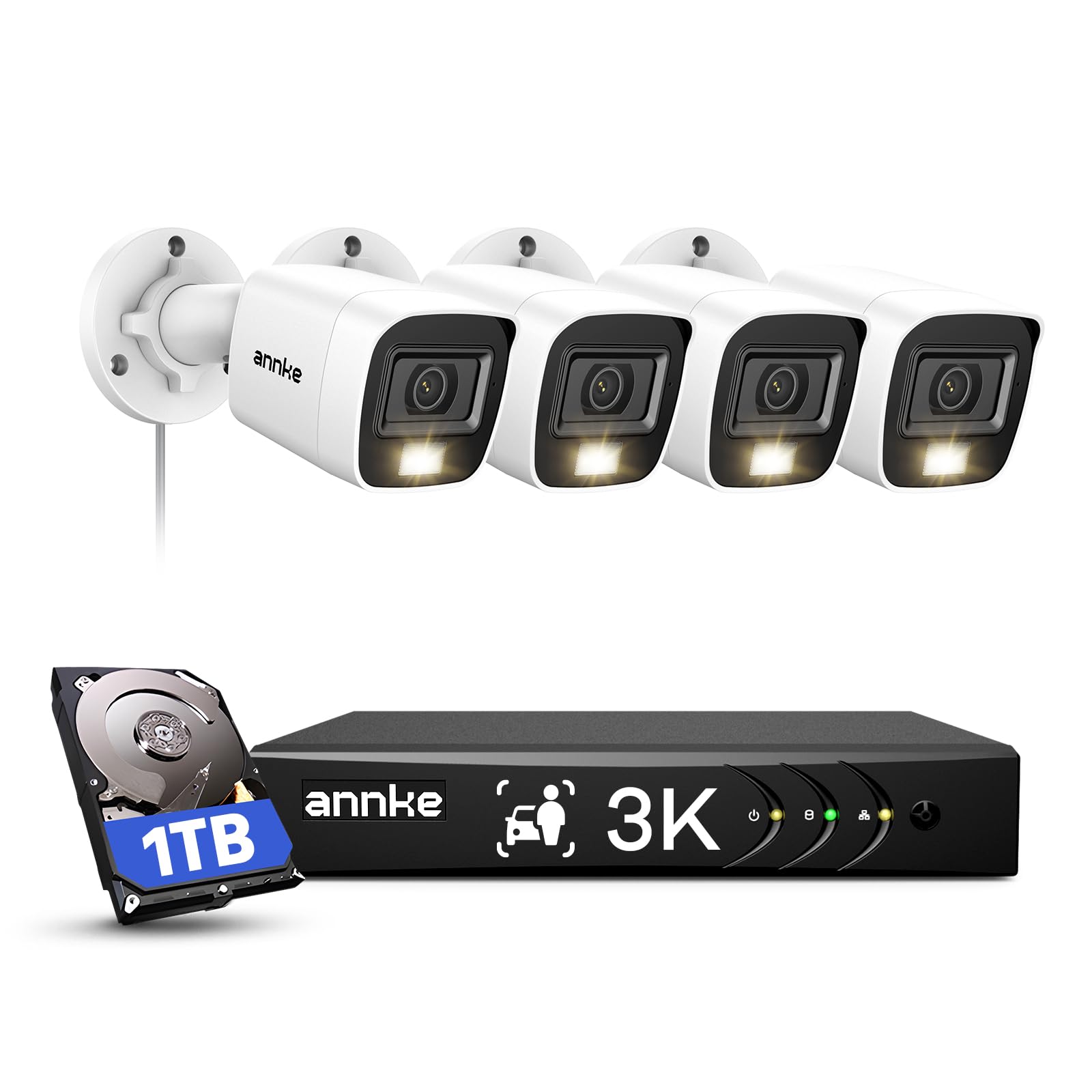

Figure 1: ANNKE 8CH 3K Security Camera System Overview

2. Hva er i esken

Kontroller at alle komponentene er tilstede i pakken din:

• 1x 8CH 3K Lite Surveillance DVR with 1TB Hard Drive
• 4x 3K CCTV Cams & 60ft BNC Cables & Screw Kits
• 2x Power Adapters & 1x1-to-4 Splitter cables
• 1x 5.9ft HDMI Cable & 3.2ft Ethernet Cable
• 1x USB Mouse & Wall Sticker & User Manual

Figur 2: Pakkeinnhold

3. Produktfunksjoner

• Smart Dual-light Camera: This wired security camera system offers three night vision modes: smart light, white light, and IR night vision. The smart light mode is the default, where black and white night vision automatically switches to color upon human or vehicle detection.
• 3K Camera & Built-in Mic: Equipped with a 3K CMOS image sensor, the security camera delivers 2960×1665 resolution at 20fps with a 16:9 aspect ratio for clear live streams. A built-in microphone enables audio recording, which can be disabled in the menu.
• AI-gjenkjenning av mennesker/kjøretøy: Advanced algorithms provide approximately 99% accuracy in detecting humans and vehicles, reducing false alerts. Customizable zone settings further enhance detection precision.
• Up to 10TB HDD & H.265+ Coding: The home security system supports up to a 10TB hard drive (1TB HDD included) for continuous surveillance monitoring. H.265+ video compression technology saves up to 80% more storage space compared to H.264.
• IP67 Værbestandig: ANNKE cameras are designed with an IP67 rating, ensuring durability and reliable operation in various weather conditions.

Figure 3: Smart Dual-Light Night Vision

Figure 4: Built-in Microphone for Audio

Figure 5: AI Human/Vehicle Detection

Figure 6: IP67 All-Weather Proof Design

Figure 7: Smart Playback Feature

4. Installasjonsinstruksjoner

Follow these steps to set up your ANNKE 8CH 3K Security Camera System:

1. Connect the DVR: Connect the DVR to a monitor using a VGA or HDMI cable. Connect the DVR to your router via an Ethernet cable. Plug in the 12V DC power adapter to the DVR. Connect the USB mouse to a USB input on the DVR.
2. Koble til kameraer: Connect the BNC video output of each camera to the corresponding video input on the DVR. Connect the DC power input of each camera to the power supply using the provided splitter cables.
3. Strøm på: Plug in all power adapters to a power outlet. The system will boot up automatically.

5. Bruksanvisning

Learn how to navigate and utilize the features of your ANNKE Security Camera System:

1. Accessing the DVR Menu: Høyreklikk på live view screen to access the main menu. Enter your gesture pattern or password to log in.
2. Switching Analog to IP Channels: Navigate to Menu > Configuration > Camera > Analog. Select the analog channel you wish to convert and choose the IP option. Click 'Apply' and confirm to reboot the DVR for changes to take effect.
3. Adjusting Window Division: Fra live view, right-click and select 'Window Division' to change the layout of your camera feeds (e.g., 1x1, 2x2, 1+5, 1+7, 3x3, 4x4).
4. Setting Privacy Mask: Go to Menu > Configuration > Camera > Privacy Mask. Enable the function, then use the left mouse button to draw the area you wish to mask on the screen. Click 'Apply' to save.

6. Vedlikehold

Regular maintenance ensures optimal performance and longevity of your security system:

• Clean Cameras: Rengjør kameralinsene regelmessig med en myk klutamp cloth to remove dust and dirt that may obstruct vision.
• Sjekk tilkoblinger: Sørg for at alle kabler (strøm, video, nettverk) er ordentlig tilkoblet for å forhindre signaltap eller strømbrudd.
• Programvareoppdateringer: Check the ANNKE official website for firmware updates for your DVR and cameras to ensure you have the latest features and security patches.
• Harddiskens tilstand: Monitor the health of your 1TB hard drive through the DVR's system settings. Back up important footage regelmessig.

7. Feilsøking

Se følgende vanlige problemer og løsninger:

• Ingen videoutgang:
  • Check HDMI/VGA cable connections to the monitor and DVR.
  • Ensure the DVR is powered on and its indicator lights are active.
  • Verify camera power and video connections.
• Ingen nettverkstilkobling:
  • Sørg for at Ethernet-kabelen er ordentlig koblet til både DVR-en og ruteren.
  • Sjekk ruterens internettforbindelse.
  • Verify network settings in the DVR menu (IP address, gateway, DNS).
• Kameraet viser ikke:
  • Check the camera's power supply and BNC cable connection.
  • If it's an IP camera, ensure it's properly added and configured in the DVR's IP channel settings.
  • If a camera shows only night vision during the day, try resetting its power supply.
• Falske bevegelsesvarsler:
  • Adjust the sensitivity of the motion detection in the DVR settings.
  • Utilize the AI Human/Vehicle Detection feature to filter out irrelevant movements.
  • Set up specific detection zones to monitor only critical areas.

8. Spesifikasjoner

Figur 8: Produktdimensjoner

9. Garanti og støtte

ANNKE products are designed for reliability and performance. For any technical assistance or warranty inquiries, please contact ANNKE customer support.

• Teknisk støtte: ANNKE offers lifetime technical support for its products.
• Garantiinformasjon: Refer to the official ANNKE webnettstedet eller garantikortet som følger med i pakken din for spesifikke garantivilkår.
• Nettressurser: Besøk ANNKE Store on Amazon or the official ANNKE website for FAQs, software downloads, and additional support.
