HOMCOM Bike Trailer User Manual

1. Introduksjon

This manual provides essential information for the safe and efficient use of your HOMCOM Bike Trailer. Please read all instructions carefully before assembly and operation. Proper assembly, use, and maintenance are crucial for your safety and the longevity of the product.

The HOMCOM Bike Trailer is designed for transporting cargo by bicycle. It features a robust steel frame, pneumatic tires, and a removable 65L storage box. Safety elements include a red flag, reflectors, and reflective strips on the wheels to enhance visibility.

2. Pakkens innhold

Before beginning assembly, ensure all components listed below are present in your package:

• 1 x Bike Cargo Trailer Frame
• 1 x Storage Box (65L)
• 1 x Red Flag with Pole
• 2 x Quick-Release Wheels
• 1 x Hitch Arm with Seat Post Clip
• 1 x bruksanvisning (dette dokumentet)

3. Oppsett og montering

Assembly of the HOMCOM Bike Trailer is designed to be quick and straightforward. Follow these steps to set up your trailer:

1. Fest hjul: Insert the quick-release wheels into the axle mounts on the trailer frame. Ensure they are securely fastened according to the quick-release mechanism instructions.
2. Install Hitch Arm: Connect the hitch arm to the front of the trailer frame. Secure it with the provided pins or bolts.
3. Attach Seat Post Clip: The seat post clip is designed to fit 19-35mm seat posts. Attach it to your bicycle's seat post. The clip offers two height options (76cm, 81cm) for optimal trailer leveling.
4. Connect Trailer to Bike: Slide the hitch arm into the seat post clip and secure it with the locking mechanism. Verify that the connection is firm and there is no excessive play.
5. Place Storage Box: Position the 65L storage box within the trailer frame. The box is removable and foldable for convenience.
6. Install Red Flag: Insert the red flag pole into its designated holder on the trailer frame. This enhances visibility.

Image 3.1: Fully assembled HOMCOM Bike Trailer attached to a bicycle.

Image 3.2: Detail of the seat post attachment and trailer construction.

4. Bruksanvisning

Follow these guidelines for safe and effective operation of your bike trailer:

4.1. Loading the Trailer

• The trailer has a maximum weight capacity of 40 kg (88 lbs)Ikke overskrid denne grensen.
• Distribute weight evenly within the storage box or on the platform to maintain balance.
• For oversized items, the rear sidewall of the trailer can be detached to create an open platform.
• Secure all cargo to prevent shifting during transit. Use straps if necessary.

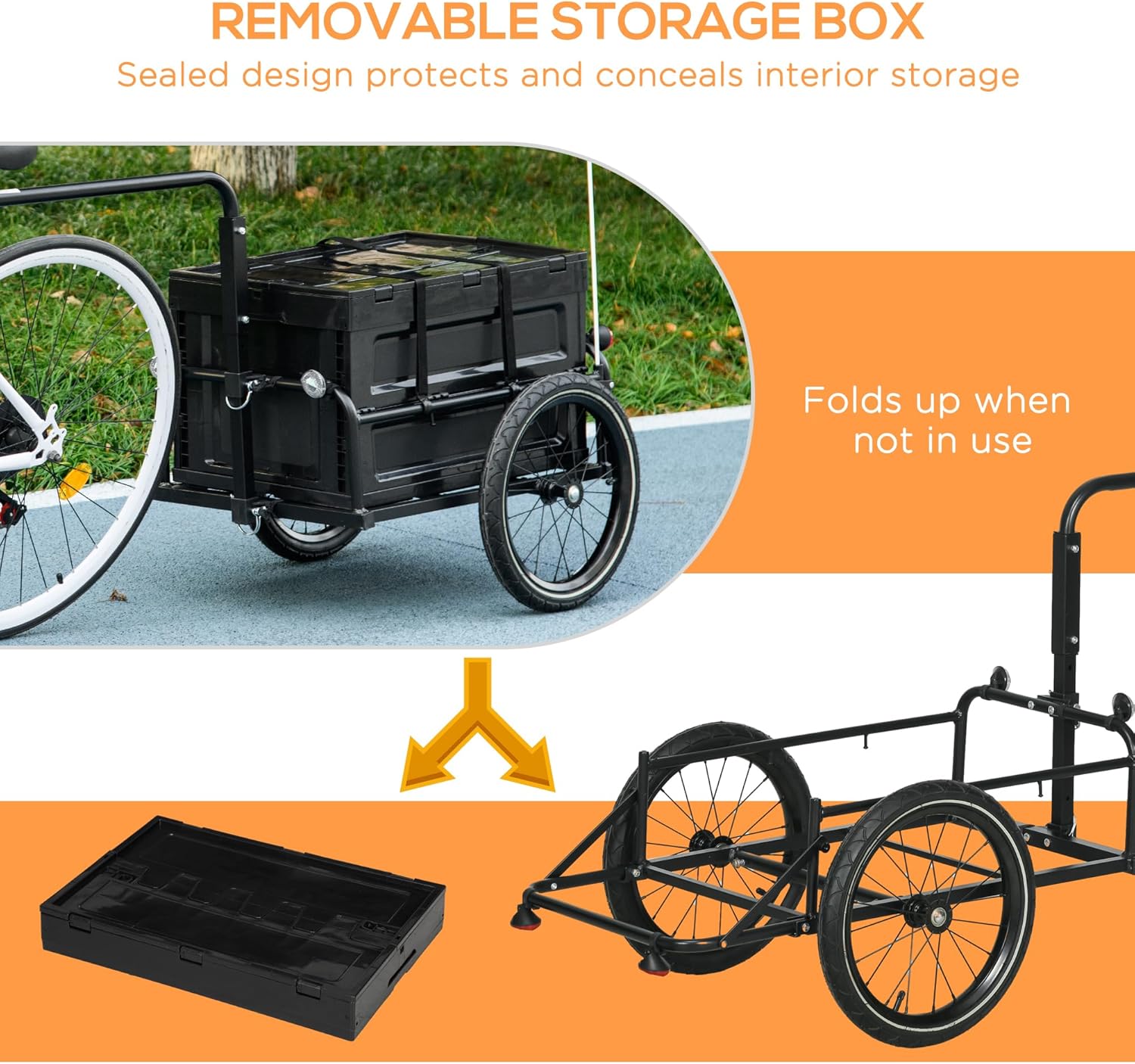

Image 4.1: Removable and foldable storage box.

Image 4.2: Open platform configuration for oversized items.

4.2. Feste og løsne

• Always ensure the hitch arm is securely connected to the seat post clip before riding.
• To detach, release the locking mechanism on the seat post clip and carefully pull the hitch arm away from the bicycle.
• The trailer disassembles easily with quick-release wheels for compact storage when not in use.

Image 4.3: Quick-release wheels for easy disassembly and storage.

5. Vedlikehold

Regular maintenance ensures the safety and longevity of your HOMCOM Bike Trailer:

• Rengjøring: Clean the trailer frame and storage box with mild soap and water. Rinse thoroughly and dry completely to prevent rust.
• Dekk: Regularly check tire pressure. Ensure tires are inflated to the recommended PSI (usually indicated on the tire sidewall) for optimal performance and safety. Inspect tires for wear, punctures, or damage.
• Festemidler: Periodically check all bolts, nuts, and quick-release mechanisms to ensure they are tight and secure. Tighten any loose fasteners.
• Reflectors and Flag: Ensure all reflectors are clean and intact. The red flag should be visible and securely attached. Replace if damaged.
• Lagring: When not in use, store the trailer in a dry place, away from direct sunlight and extreme temperatures. The trailer can be disassembled and folded for compact storage.

6. Sikkerhetsretningslinjer

Your safety is paramount. Adhere to these safety guidelines when using the bike trailer:

• Synlighet: Always use the red flag and ensure all reflectors and reflective strips on the wheels are clean and visible, especially in low-light conditions.
• Lastekapasitet: Never exceed the maximum load capacity of 40 kg (88 lbs). Overloading can compromise stability and braking.
• Fart: Reduce your speed when towing a trailer, especially when turning, braking, or on uneven terrain.
• Bremsing: Be aware that towing a trailer increases your overall stopping distance. Plan your braking accordingly.
• Svinger: Take wider turns to account for the trailer's length and prevent it from hitting obstacles.
• Sjekk før kjøring: Before each ride, check tire pressure, hitch connection, cargo security, and visibility aids.
• Veiforhold: Exercise extra caution on rough roads, inclines, and descents.

Image 6.1: Safety design features: red flag and reflectors.

Image 6.2: Detail of a rear reflector.

7. Feilsøking

Denne delen tar for seg vanlige problemer du kan støte på:

• Trailer Wobbles or Swings:
  Mulig årsak: Uneven weight distribution, loose hitch connection, or incorrect tire pressure.
  Løsning: Redistribute cargo evenly. Check and tighten the hitch connection. Ensure tires are inflated to the correct PSI.
• Vanskeligheter med å feste/løsne:
  Mulig årsak: Seat post clip not adjusted correctly or obstruction.
  Løsning: Ensure the seat post clip is at the correct height and free from debris. Lubricate moving parts if necessary.
• Tires Go Flat Quickly:
  Mulig årsak: Puncture or valve issue.
  Løsning: Inspect tires for punctures and repair or replace as needed. Check valve stem for leaks.
• Overdreven støy under drift:
  Mulig årsak: Loose components, dry bearings, or cargo shifting.
  Løsning: Check all fasteners and tighten. Lubricate wheel bearings if accessible. Secure cargo firmly.

8. Spesifikasjoner

Image 8.1: Detailed dimensions of the bike trailer.

9. Garanti og støtte

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact HOMCOM customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official HOMCOM webnettstedet eller kontakt kundesupportkanalene deres.
