Unitek DiskGuard Raiden 2.5" USB-C to SATA III Hard Disk Enclosure User Manual

1. Introduksjon

This manual provides instructions for the installation, operation, and maintenance of your Unitek DiskGuard Raiden 2.5" USB-C to SATA III Hard Disk Enclosure. This enclosure is designed to convert a 2.5-inch SATA I/II/III HDD or SSD into an external USB-C storage device, offering convenient data transfer and portability.

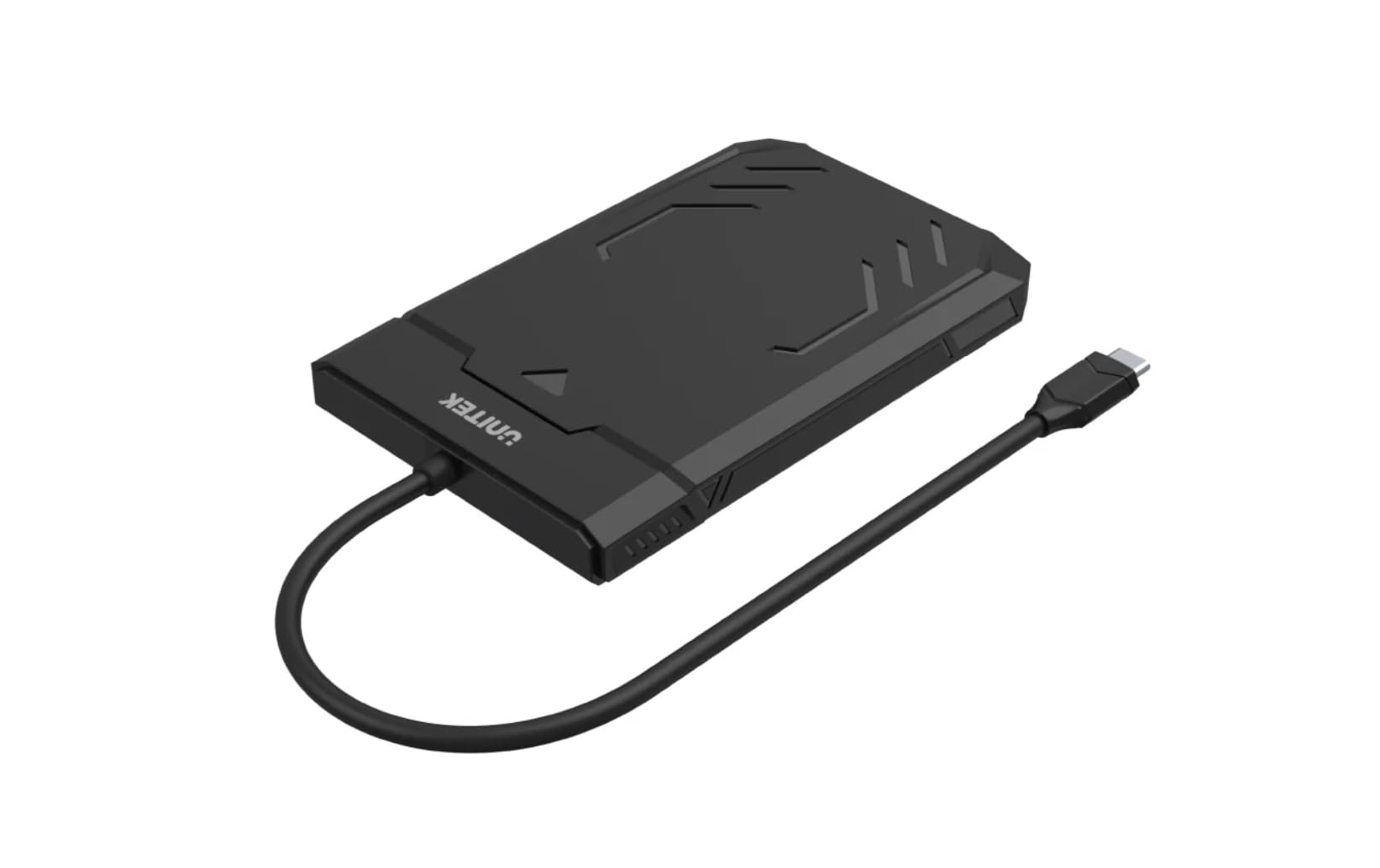

Figure 1: Unitek DiskGuard Raiden 2.5" USB-C to SATA III Hard Disk Enclosure. This image shows the compact, black enclosure with its integrated USB-C cable.

2. Pakkens innhold

Vennligst sjekk at alle varene er til stede i pakken:

• 1 x Unitek DiskGuard Raiden 2.5" USB-C to SATA III Hard Disk Enclosure
• 1 x brukerhåndbok

3. Produktfunksjoner

• Supports most 7mm/9.5mm 2.5-inch SATA I/II/III HDDs and SSDs.
• USB 3.0 specification for data transfer rates up to 5Gbps.
• Bakoverkompatibel med USB 2.0.
• Features a sleep mode function for energy saving during idle periods.
• Verktøyfri installasjon for rask og enkel oppsett.
• Supports hot-swap functionality.
• Plug and Play operation, requiring no driver installation.
• Durable ABS housing.

4. Installasjonsinstruksjoner

Follow these steps to install your 2.5-inch SATA HDD or SSD into the enclosure:

4.1 Åpne kabinettet

1. Gently slide the top cover of the enclosure to open it. The enclosure is designed for tool-free access.

Figure 2: The enclosure features a tool-free design, allowing the top cover to slide open for drive installation.

4.2 Installing the HDD/SSD

2. Align your 2.5-inch SATA HDD or SSD with the SATA connector inside the enclosure.
3. Gently push the drive into the connector until it is firmly seated. Ensure the drive is flush with the enclosure's internal tray.

4.3 Closing the Enclosure

4. Slide the top cover back into place until it clicks securely.

4.4 Koble til en datamaskin

5. Connect the integrated USB-C cable from the enclosure to an available USB-C port on your computer.
6. The enclosure is plug-and-play; your operating system should automatically detect the new storage device.
7. If this is a new HDD/SSD, it may need to be initialized and formatted before use. Refer to your operating system's documentation for instructions on disk management.

5. Bruksanvisning

5.1 Dataoverføring

Once connected, the enclosure will appear as an external drive on your computer. You can drag and drop files, copy, paste, and perform other standard file operations as you would with any other storage device. The USB 3.0 interface supports data transfer speeds up to 5Gbps.

Figure 3: The enclosure supports fast data transfer speeds up to 5Gbps, significantly faster than USB 2.0.

5.2 LED-indikatorer

The enclosure features two LED indicators:

• Grønt LED-lys: Indicates power status. It will turn on when the enclosure is connected to a power source (via USB-C).
• Blått LED-lys: Indicates read and write status. It will flash when data is being transferred to or from the drive.

Figure 4: The enclosure's LED lights provide visual feedback on power and data activity. The green light indicates power, and the blue light flashes during data transfer.

5.3 Hvilemodus

The enclosure is equipped with a sleep mode function. If the drive is idle for a period (typically 10-15 minutes, depending on the operating system and drive settings), it will enter sleep mode to conserve energy and extend the life of the drive. The drive will automatically wake up when accessed.

6. Vedlikehold

• Hold kabinettet rent og fritt for støv. Bruk en myk, tørr klut til rengjøring.
• Unngå å utsette kabinettet for ekstreme temperaturer, fuktighet eller direkte sollys.
• Ikke slipp eller utsett kabinettet for harde støt.
• Ensure proper ventilation around the enclosure during operation.
• Always safely eject the drive from your operating system before disconnecting the USB-C cable to prevent data corruption.

7. Feilsøking

7.1 Stasjonen ikke oppdaget

• Sjekk tilkoblinger: Ensure the USB-C cable is securely connected to both the enclosure and your computer.
• Prøv en annen USB-port: Connect the enclosure to a different USB-C port on your computer.
• Verify Drive Installation: Open the enclosure and ensure the HDD/SSD is correctly seated in the SATA connector.
• Check Drive Status: For nye disker, sørg for at de er initialisert og formatert i operativsystemets Diskbehandling (Windows) eller Diskverktøy (macOS).
• Test with Another Drive/Computer: If possible, test the enclosure with a different 2.5-inch SATA drive or connect it to another computer to isolate the issue.

7.2 Lave dataoverføringshastigheter

• USB 3.0-port: Ensure the enclosure is connected to a USB 3.0 (or higher) port on your computer. Connecting to a USB 2.0 port will limit speeds to USB 2.0 performance.
• Drivytelse: The actual transfer speed is also limited by the speed of the installed HDD/SSD.
• Kabelkvalitet: While the enclosure has an integrated cable, ensure no other factors are affecting USB performance.

7.3 Enclosure Gets Warm

It is normal for the enclosure to become warm during extended use, especially during heavy data transfer. This is due to heat generated by the internal HDD/SSD. Ensure adequate airflow around the enclosure.

8. Spesifikasjoner

Merk: Spesifikasjoner kan endres uten forvarsel.

9. Garanti og støtte

Unitek products are covered by a limited warranty. For detailed warranty information, technical support, or customer service, please refer to the official Unitek webnettstedet eller kontakt din lokale forhandler. Vennligst ta vare på kjøpsbeviset for garantikrav.

For ytterligere hjelp, vennligst besøk: Unitek Official Store on Amazon
