Akozon Motorcycle Digital Speedometer Tachometer Instruction Manual

Introduksjon

This manual provides detailed instructions for the installation, operation, and maintenance of your Akozon Universal Digital Motorcycle Speedometer and Tachometer. Designed for compatibility with 1, 2, and 4-cylinder motorcycle models, this digital dash offers precise speed, RPM, and gear position display, along with odometer and trip meter functions. Its robust ABS construction ensures durability in various environmental conditions.

Nøkkelfunksjoner

• Klar digital skjerm: Provides quick and accurate access to real-time motorcycle data in all lighting conditions.
• Slitesterk konstruksjon: Made of impact-resistant and wear-resistant ABS materials for optimal performance in harsh environments.
• Efficient Voltage Operating System: Operates on DC 8-12V power supply, preventing issues from voltage ustabilitet.
• Bred kompatibilitet: Suitable for 1, 2, and 4-cylinder motorcycle models.
• Enkel installasjon: Humanized design allows for straightforward installation without complex tools.
• Multifunksjonsskjerm: Includes speed (km/h, mph), gear position (1-6, N), odometer, trip meter, and RPM range (0-14000 r/min).

Spesifikasjoner

Oppsett

Proper installation is crucial for accurate readings and safe operation. Follow these steps carefully:

1. Fysisk installasjon

Mount the speedometer securely on your motorcycle's handlebars or dashboard using the provided bracket and hardware. Ensure it is positioned for clear visibility while riding.

Image: Dimensions of the Akozon Motorcycle Speedometer, showing its length, width, and height for proper fitment.

2. Kablingstilkoblinger

Connect the speedometer's wiring harness to your motorcycle's electrical system. Refer to the wiring diagram provided with your product for specific connections. Key connections typically include:

• Power (usually red wire to ignition switched 12V)
• Ground (usually black wire to chassis ground)
• Ignition/RPM signal (for tachometer function)
• Speed sensor input
• Neutral gear indicator
• Blinklys (venstre/høyre)
• Fjernlys indikator
• Fuel level sensor input

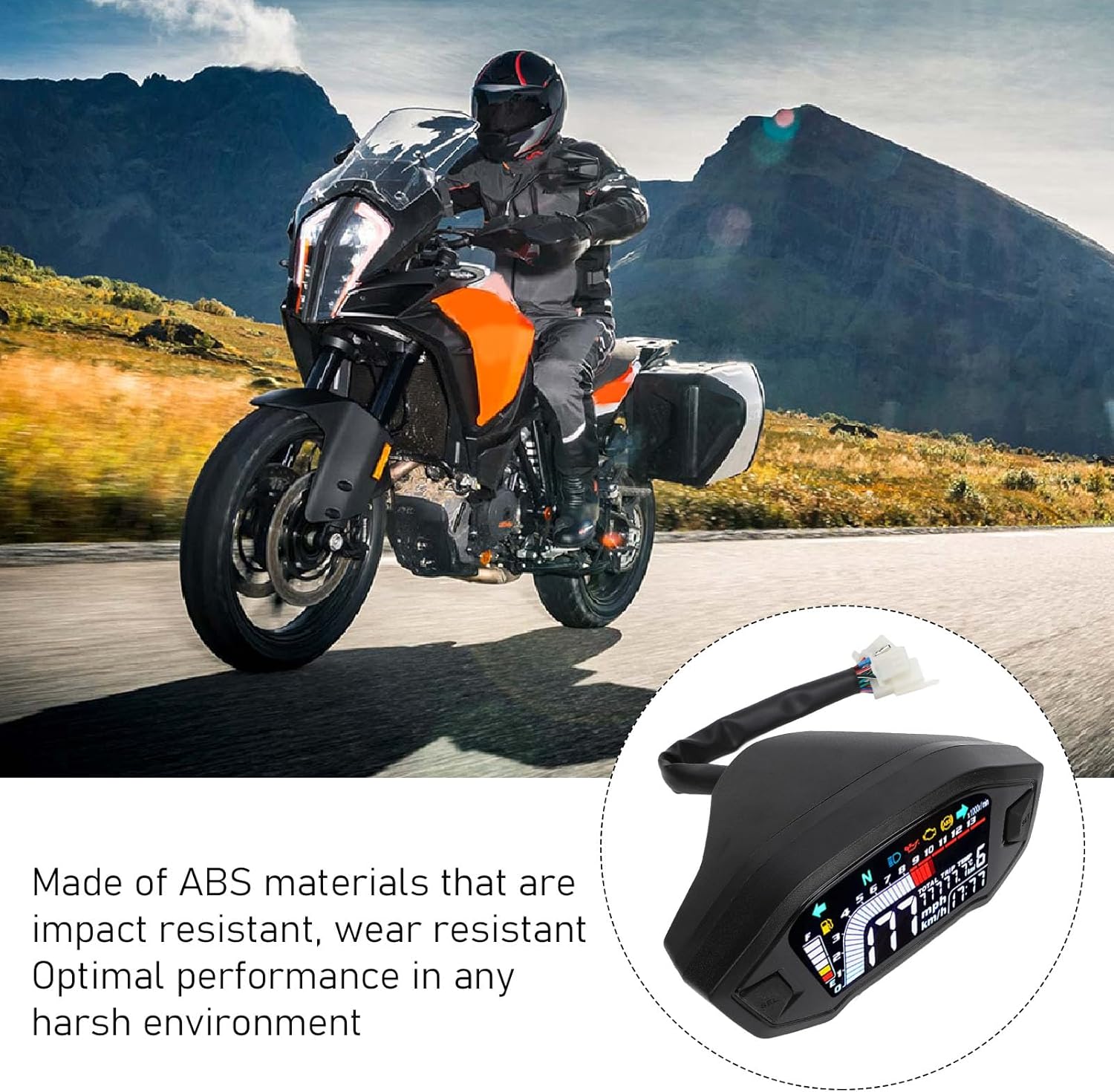

Image: Akozon digital speedometer installed on a motorcycle, demonstrating its integration into the bike's system.

3. Installasjon av hastighetssensor

Install the speed sensor near the wheel, ensuring it can detect the magnets. The sensor typically mounts to the brake caliper bracket or a similar fixed point. Attach the magnets to the wheel rotor bolts or spokes, maintaining a small, consistent gap between the sensor and magnets for accurate readings.

Bilde: Nærbilde view of the Akozon digital speedometer display on a motorcycle, showing speed, RPM, and gear indicators.

4. Konfigurasjon av første innstillinger

After wiring, turn on the ignition. The speedometer will perform a self-test. To enter the settings menu, typically press and hold the 'SET' button (or similar) while turning on the ignition, or as indicated in the specific product manual. Adjust the following parameters:

• Tire Circumference: Input the circumference of your front wheel for accurate speed readings.
• Number of Magnets: Set this according to the number of magnets installed for the speed sensor.
• Sylindertype: Select 1, 2, or 4 cylinders to ensure correct RPM readings.
• Fuel Sensor Type: Configure the fuel sensor resistance type if applicable.

Image: Diagram illustrating the settings for tire perimeter, number of signals (magnets), and engine cylinder type on the Akozon digital speedometer.

Installation and Settings Video Guide

For a visual guide on installation and initial settings, please watch the official video below:

Bruksanvisning

Once installed and configured, your Akozon speedometer is ready for use. The display provides real-time information for your ride.

1. Visningsmoduser

The main display shows speed, RPM, and current gear. Press the 'SEL' button (or similar) to cycle through different display modes, such as total odometer and trip meter. Hold the button to switch between kilometers per hour (km/h) and miles per hour (mph).

Image: The clear digital display of the Akozon speedometer, showing its readability in various lighting conditions.

2. Indikatorlamper

The speedometer features various indicator lights for essential motorcycle functions:

• Nøytral (N): Illuminates when the transmission is in neutral.
• Blinklys: Flashes to indicate left or right turn.
• Fjernlys: Illuminates when high beam headlights are active.
• Drivstoffnivå: Indicates the current fuel level.

Vedlikehold

To ensure the longevity and optimal performance of your Akozon speedometer, follow these maintenance guidelines:

• Regelmessig rengjøring: Tørk av skjermen og huset med en myk klutamp klut. Unngå slipende rengjøringsmidler eller løsemidler som kan skade plasten.
• Inspeksjon av ledninger: Periodically check all wiring connections for tightness and signs of wear or corrosion. Secure any loose connections.
• Sensorsjekk: Ensure the speed sensor and magnets are clean and properly aligned. Verify the gap between the sensor and magnets remains consistent.
• Miljøvern: While designed for harsh environments, prolonged exposure to extreme weather conditions (e.g., heavy rain, direct sunlight) should be minimized when possible.

Feilsøking

If you encounter issues with your speedometer, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, please contact Akozon customer support.

Garanti og støtte

Your Akozon Motorcycle Digital Speedometer Tachometer is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, troubleshooting guidance, or warranty claims, please contact Akozon customer support through the retailer where you purchased the product or visit the official Akozon webnettsted for kontaktinformasjon.

When contacting support, please have your product model number (Akozongob5q417tr-12) and purchase details readily available to expedite the service process.
