Dexter 5-inch 800W Angle Grinder

1. Introduksjon

Thank you for choosing the Dexter 800AG2-125.5AB1 Angle Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference.

This angle grinder is designed for cutting and grinding metal and various coatings. Its 800W motor delivers 11,500 RPM, accommodating 4.1/2" / 5" (115/125mm) discs. The tool features a 3-meter power cord for extended reach and an ergonomic grip for comfortable handling.

2. Sikkerhetsinstruksjoner

Følg alltid grunnleggende sikkerhetsregler for å redusere risikoen for brann, elektrisk støt og personskade når du bruker elektroverktøy.

• Bruk passende personlig verneutstyr (PPE): Always wear safety glasses, hearing protection, and gloves. A dust mask is recommended for dusty operations.
• Fest arbeidsstykket: Always clamp or secure the workpiece to prevent movement during operation.
• Maintain a clean work area: Cluttered areas invite accidents. Ensure your workspace is well-lit.
• Unngå farlige omgivelser: Do not use power tools in damp or wet locations, or expose them to rain. Keep the work area well-ventilated.
• Hold barn og tilskuere unna: All visitors should be kept a safe distance from the work area.
• Lagre inaktiv verktøy: When not in use, tools should be stored in a dry, high, or locked-up place, out of reach of children.
• Ikke tving verktøyet: It will do the job better and more safely at the rate for which it was designed.
• Bruk riktig verktøy: Do not force a small tool or attachment to do the job of a heavy-duty tool.
• Sjekk for skadde deler: Before using the tool, check for any damaged parts. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center.
• Koble fra strømmen: Always disconnect the tool from the power source before making any adjustments, changing accessories, or storing the tool.
• Bruk hjelpehåndtaket: Always operate the angle grinder with the auxiliary handle securely attached for maximum control.

3. Produktet er overview

Familiarize yourself with the components of your Dexter Angle Grinder.

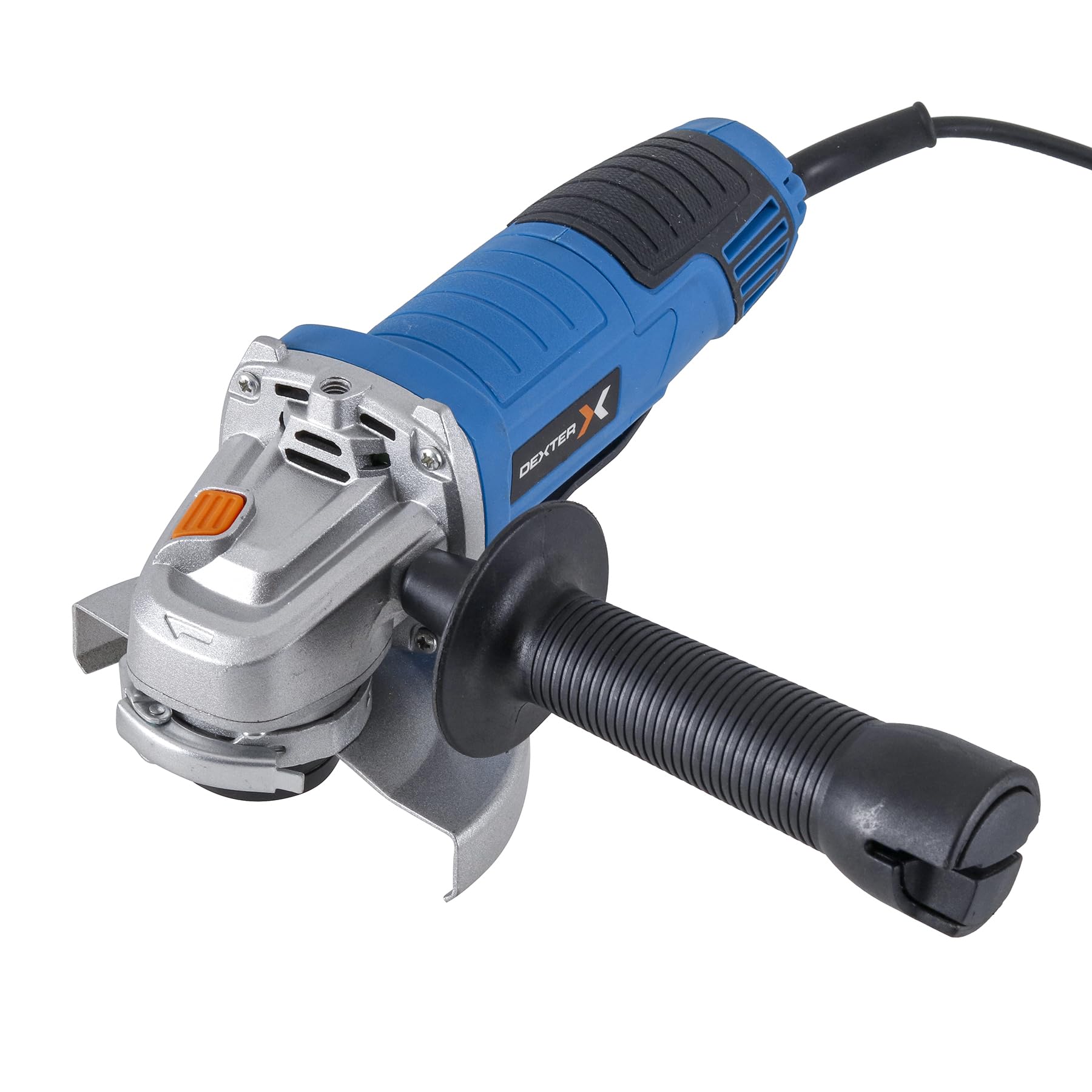

Figur 1: Totalt sett view of the Dexter Angle Grinder, highlighting its powerful motor suitable for heavy-duty tasks.

Figur 2: Detail of the power switch, indicating the tool's robust power for demanding work.

Figur 3: View of the disc mounting area, designed for simple and quick disc changes.

Figur 4: Close-up of the spindle lock button, essential for secure disc changes.

Figur 5: The ergonomic handle design, ensuring light and comfortable use.

Inkluderte komponenter:

• 1 x Dexter 5" Angle Grinder
• 1 x skiftenøkkel
• 1 x hjelpehåndtak
• 1 x Disc Guard 115mm
• 1 x Disc Guard 125mm

4. Oppsett

4.1 Attaching the Disc Guard

1. Sørg for at kvernen er koblet fra strømkilden.
2. Select the appropriate disc guard (115mm or 125mm) for your chosen disc size.
3. Position the disc guard over the spindle housing, ensuring it aligns with the mounting points.
4. Secure the guard firmly using the provided screws or clamping mechanism. Ensure it is oriented to provide maximum protection during operation.

4.2 Montering av hjelpehåndtaket

The auxiliary handle can be attached in three different positions (left, right, or top) to suit your working preference and ensure optimal control.

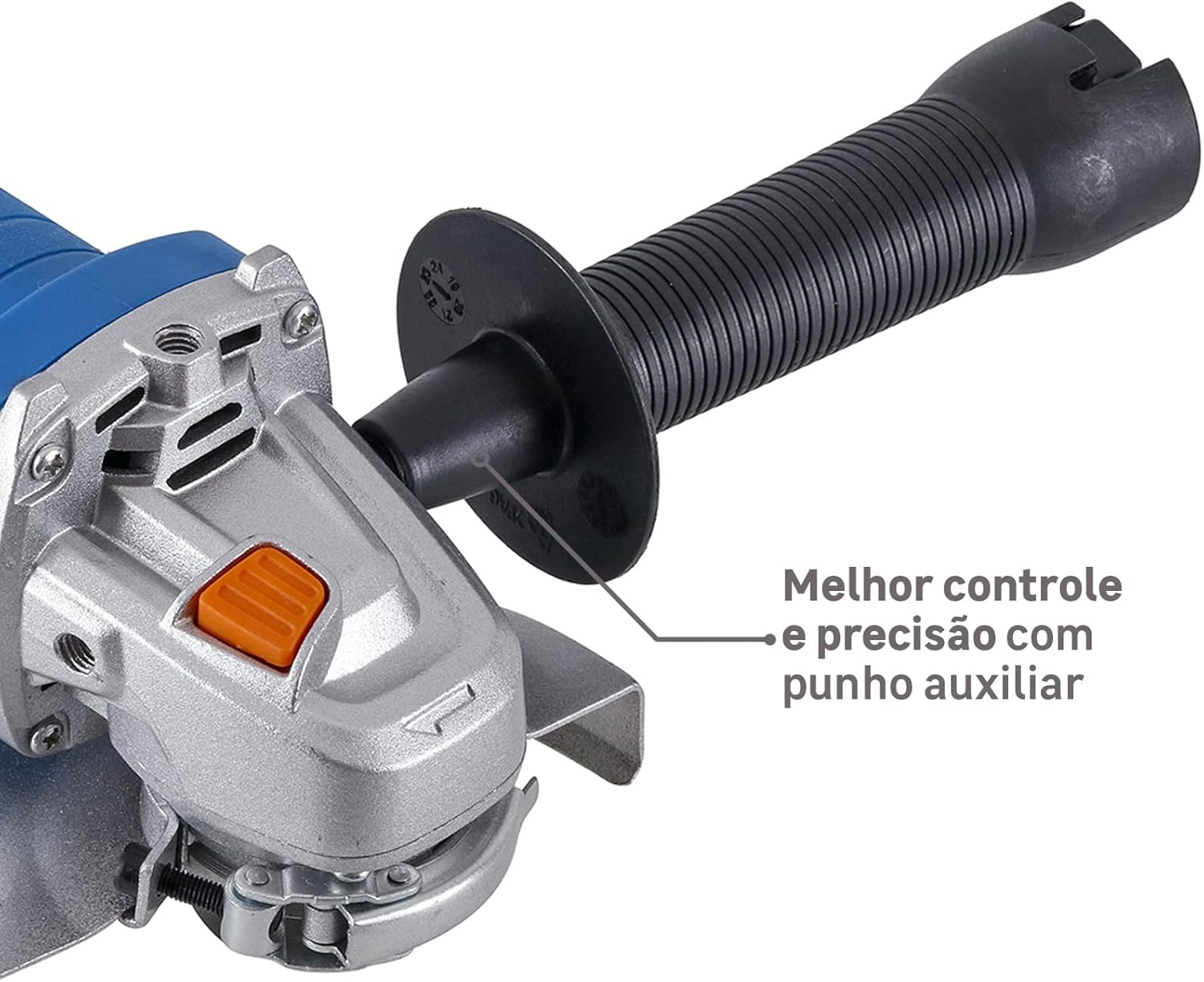

Figur 6: Angle grinder with auxiliary handle attached, providing enhanced control and precision.

1. Identifiser de gjengede hullene på slipemaskinens girhus.
2. Screw the auxiliary handle clockwise into the desired position until it is securely tightened.

4.3 Mounting a Grinding/Cutting Disc

1. Sørg for at kvernen er koblet fra stikkontakten.
2. Press and hold the spindle lock button (Figure 4) to prevent the spindle from rotating.
3. Plasser den indre flensen på spindelen.
4. Plasser slipe- eller skjæreskiven på den indre flensen, og sørg for at den ligger flatt.
5. Screw the outer flange onto the spindle, hand-tightening it.
6. Use the provided wrench to firmly tighten the outer flange, ensuring the disc is securely mounted. Release the spindle lock button.

5. Bruksanvisning

5.1 Slå på/av

1. To turn on the grinder, slide the power switch (Figure 2) forward.
2. To turn off the grinder, slide the power switch backward to the 'OFF' position.

5.2 Slipe- og skjæreteknikker

Always hold the grinder firmly with both hands, using the main handle and the auxiliary handle.

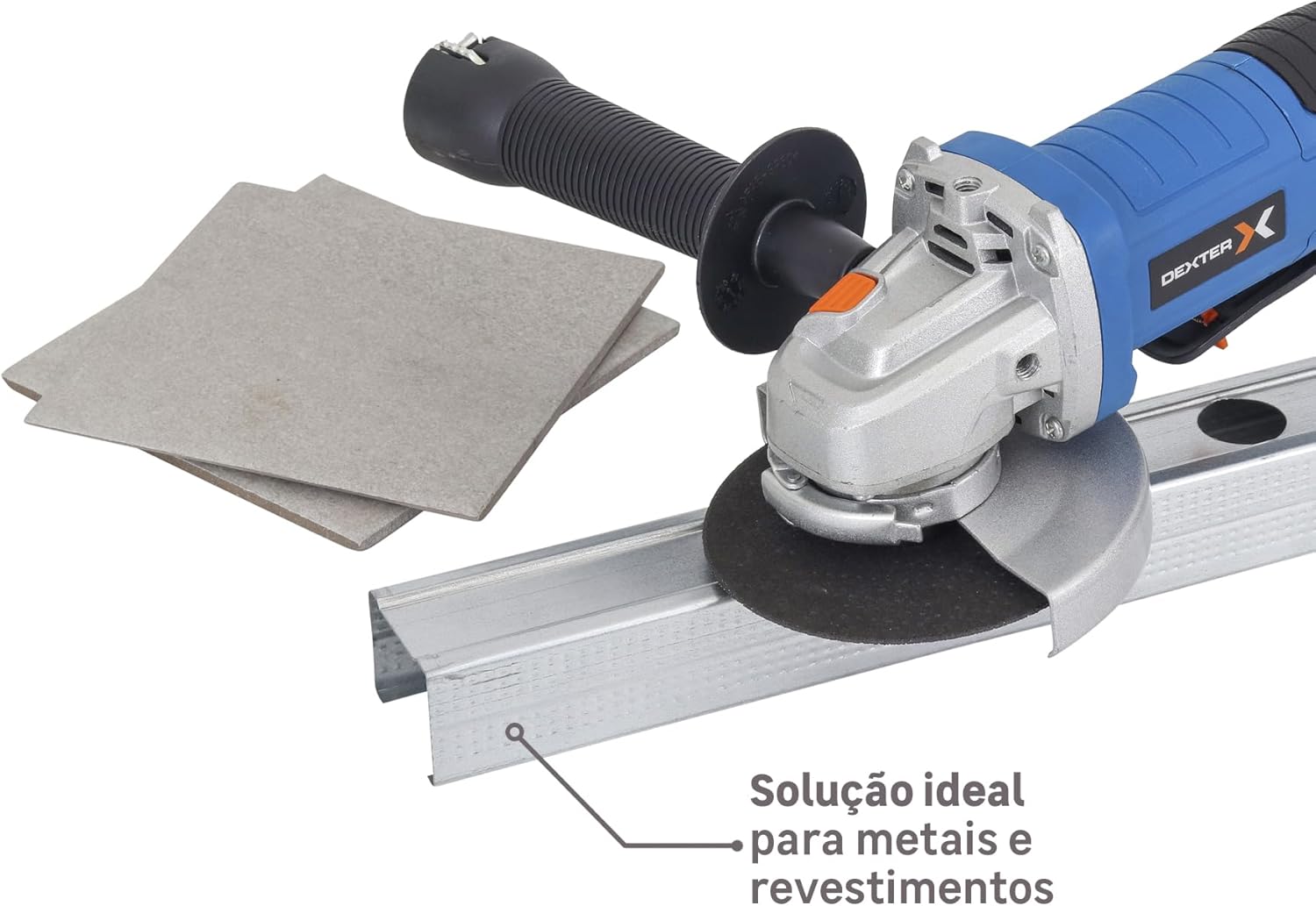

Figur 7: Angle grinder in use, demonstrating its effectiveness for cutting metal profiles and coatings.

Figur 8: Angle grinder being used for sanding a wooden surface, showcasindens allsidighet.

• For Grinding: Hold the grinder at an angle of approximately 15-30 degrees to the workpiece. Apply moderate pressure and move the tool evenly across the surface.
• For Cutting: Hold the grinder perpendicular to the workpiece. Allow the disc to cut through the material without forcing it. Ensure the workpiece is stable and supported.
• Unngå overbelastning: Do not apply excessive pressure, as this can reduce disc life and motor efficiency.
• Allow the tool to reach full speed: Before making contact with the workpiece, allow the disc to reach its full operating speed.

6. Vedlikehold

Regelmessig vedlikehold sikrer vinkelsliperens levetid og sikker drift.

• Rengjøring: Regularly clean the ventilation openings to prevent dust buildup, which can cause overheating. Use a soft brush or compressed air.
• Karbonbørster: This tool uses a brushed motor. Carbon brushes are wear parts and should be checked periodically. If they are worn down, they must be replaced by qualified personnel.
• Strømledning: Inspect the power cord for any damage before each use. Do not use the tool if the cord is damaged.
• Skiveutskifting: Replace worn or damaged discs immediately. Always use discs rated for the grinder's speed and application.
• Lagring: Oppbevar verktøyet på et tørt og trygt sted, utilgjengelig for barn.

7. Feilsøking

8. Spesifikasjoner

9. Garanti og støtte

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact your local Dexter authorized service center. Keep your purchase receipt as proof of purchase.
