HGLRC ELRS 915MHz Nano Receiver Instruction Manual

Model: ELRS 915MHz Receiver

1. Introduksjon

This manual provides detailed instructions for the HGLRC ELRS 915MHz Nano Receiver. This compact receiver is designed for FPV racing drones, offering long-range communication and stable signal performance. It operates on the 915MHz frequency band and utilizes the ExpressLRS (ELRS) communication protocol.

2. Produktfunksjoner

  • Stronger Diffraction Capability: Ensures good stability even in environments with dense obstacles.
  • Extended Flight Distance: Capable of remote control distances exceeding 10 kilometers in actual measurements.
  • Fleksible tilkoblingsalternativer: Supports both direct plug-in and welding connections to suit various application requirements.
  • Stable ELRS Firmware: Utilizes the stable 3.3.0 ELRS firmware, compatible with most remote controllers and high-frequency heads equipped with ELRS scripts.

3. Hva er i esken

  • HGLRC ELRS 915MHz receiver × 1
  • HGLRC 915 T-type antenna × 1
  • 4pin cable for receiver × 1

4. Spesifikasjoner

NavnHGLRC ELRS 915MHz receiver
ChipSX1276
Hyppighet915 MHz
KommunikasjonsprotokollCRSF
Arbeidsvoltage3.3V-5V
ELRS Firmware Version3.3.0
AntennegrensesnittIPEX1 generation
Størrelse21mm × 11mm
Vekt0.9g (uten antenne)
Produktdimensjoner0.01 x 0.01 x 0.01 tommer
Varevekt0.317 unser

5. Oppsett

5.1 Mottaker overview and Interface Definition

The HGLRC ELRS 915MHz Nano Receiver features a compact design with clearly marked interfaces for easy integration into your FPV system. The status indicator provides visual feedback on the receiver's operational state.

HGLRC ELRS 915MHz Nano Receiver Interface Definition

Bilde: Detaljert view of the receiver showing the status indicator, IPEX1 antenna connector, and pinout for RX, TX, 5V, and GND.

5.2 Tilkoblingsalternativer

The receiver offers versatility in connection methods, allowing for either direct plug-in using the provided 4-pin cable or soldering directly to your flight controller. Choose the method that best suits your build and skill level.

HGLRC ELRS 915MHz Nano Receiver Solderable or Direct Pluggable Options

Image: Illustration showing both direct plug-in and solder pad connection options for the receiver.

5.3 Koblingsskjema

Proper wiring is crucial for the correct operation of your receiver. Connect the receiver to your flight controller according to the diagram below. Ensure that GND connects to Ground, 5V to 5V, TX (Transmitter) from the receiver to RX (Receiver) on the flight controller, and RX (Receiver) from the receiver to TX (Transmitter) on the flight controller.

HGLRC ELRS 915MHz Nano Receiver Wiring Diagram

Image: A detailed wiring diagram illustrating how to connect the HGLRC ELRS 915MHz receiver to a flight controller, showing pin assignments for GND, 5V, TX, and RX.

5.4 Binding Procedure (ELRS 3.3.0 Firmware)

The HGLRC ELRS 915MHz receiver comes pre-installed with ELRS firmware version 3.3.0. To bind the receiver to your ELRS transmitter module, follow these general steps:

  1. Ensure your ELRS transmitter module is also running ELRS firmware version 3.3.0 or compatible.
  2. Power on your flight controller (with the receiver connected) three times, cycling power quickly. The receiver's LED should flash rapidly, indicating it is in bind mode.
  3. Alternatively, if your flight controller is connected to Betaflight, you can use the ELRS Lua script on your transmitter to initiate binding. Navigate to the ELRS script, select 'Bind', and then power cycle the receiver.
  4. Once the receiver is in bind mode, activate the bind function on your ELRS transmitter module.
  5. A successful bind is indicated by a solid LED on the receiver.

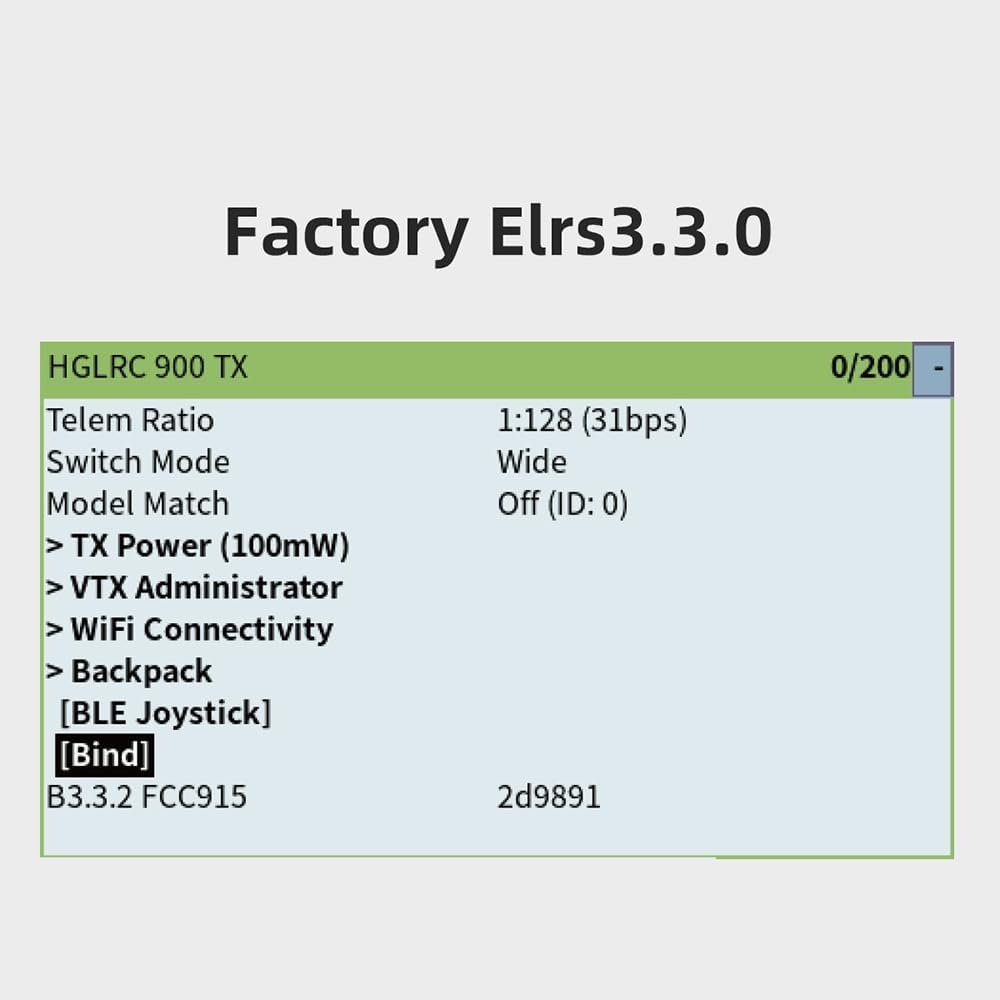

ELRS 3.3.0 Firmware Binding Screen Example

Bilde: En eksample screen from an ELRS transmitter module showing firmware version 3.3.0 and a 'Bind' option, indicating software-based binding capability.

5.5 Antenneinstallasjon

Connect the provided T-type antenna to the IPEX1 connector on the receiver. Ensure the connection is secure. Position the antenna away from carbon fiber frames and other electronic components for optimal signal reception.

HGLRC ELRS 915MHz Nano Receiver with T-Type Antenna

Image: The HGLRC ELRS 915MHz Nano Receiver with its T-type antenna connected, highlighting its long-range communication capability.

6. Drift

Once successfully bound and integrated into your FPV system, the HGLRC ELRS 915MHz Nano Receiver will provide reliable control and telemetry data. Always perform a range check before flying, especially after any changes to your setup. Monitor your signal quality (RSSI/LQ) during flight to ensure safe operation.

The compact size of the receiver (21mm x 11mm) allows for flexible placement within your drone, but ensure it is not obstructed by conductive materials.

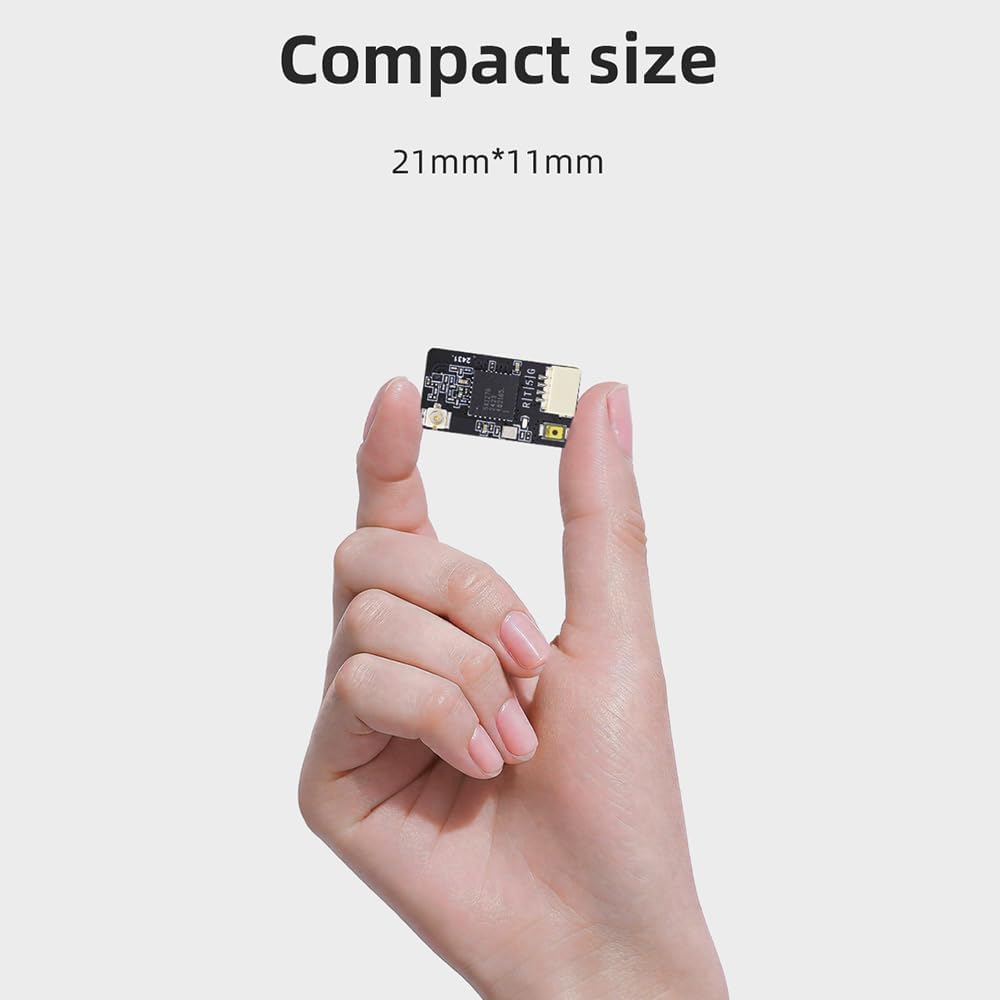

HGLRC ELRS 915MHz Nano Receiver Compact Size

Image: A hand holding the HGLRC ELRS 915MHz Nano Receiver, demonstrating its compact dimensions of 21mm by 11mm.

7. Vedlikehold

  • Fysisk inspeksjon: Regularly check the receiver and antenna for any signs of damage, such as bent pins, frayed wires, or cracks in the PCB.
  • Renslighet: Keep the receiver free from dust, dirt, and moisture. Use a soft, dry brush or compressed air for cleaning. Avoid using liquids.
  • Antennepleie: Ensure the antenna is securely attached and not kinked or damaged. A damaged antenna can significantly reduce range and signal quality.
  • Fastvareoppdateringer: Periodically check the official HGLRC or ExpressLRS website for firmware updates. Updating firmware can improve performance, add features, or fix bugs. Follow official instructions carefully when updating.

8. Feilsøking

  • Ingen strøm/LED av:
    • Check all power connections (GND, 5V) to ensure they are correctly wired and receiving power.
    • Bekreft arbeidsvolumettage is within the specified 3.3V-5V range.
  • Mottaker ikke bindende:
    • Ensure both the receiver and transmitter module are running compatible ELRS firmware versions (e.g., 3.3.0).
    • Confirm the power cycling method for bind mode (three quick power cycles) is performed correctly.
    • Check for correct wiring of TX/RX lines between the receiver and flight controller if using Betaflight passthrough for binding.
  • Poor Range/Signal Loss:
    • Inspect the antenna for damage or improper connection to the IPEX1 port.
    • Ensure the antenna is positioned optimally, away from carbon fiber, batteries, or other electronics that could shield the signal.
    • Verify the transmitter power output settings.
    • Check for local RF interference.
  • Telemetry Issues:
    • Confirm the TX/RX wiring is correct between the receiver and flight controller. Incorrect wiring can lead to telemetry data not being transmitted or received.
    • Ensure telemetry is enabled in your flight controller's configuration (e.g., Betaflight).
  • Incorrect Wire Harness:
    • Some users have reported that the included wire harness may have reversed pin assignments. Always verify the pinout (GND, 5V, TX, RX) against the receiver's markings and your flight controller's documentation before connecting. If necessary, re-pin the connector or solder directly.

9. Garanti og støtte

For warranty information and technical support, please refer to the official HGLRC webnettstedet eller kontakt forhandleren du kjøpte produktet fra. Ta vare på kjøpsbeviset for eventuelle garantikrav.
