Leaven K610 Tri-Mode Mechanical Wireless Gaming Keyboard User Manual

1. Introduksjon

Thank you for choosing the Leaven K610 Tri-Mode Mechanical Wireless Gaming Keyboard. This manual provides detailed instructions on how to set up, operate, and maintain your new keyboard. Designed for versatility and performance, the K610 offers seamless connectivity via Bluetooth 5.0, 2.4 GHz wireless, and wired Type-C connections, along with vibrant RGB lighting and a satisfying mechanical typing experience.

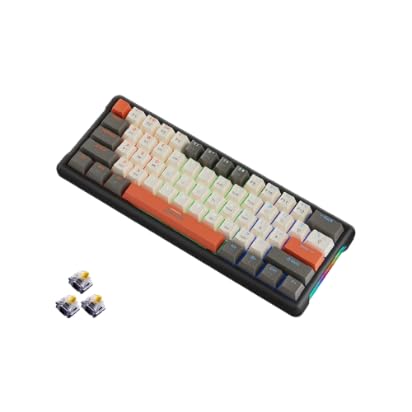

Image: Leaven K610 Tri-Mode Mechanical Wireless Gaming Keyboard, showcasing its compact design and included spare switches.

2. Produktfunksjoner

• Trippelmodus-tilkobling: Supports Bluetooth 5.0, 2.4 GHz wireless, and wired (Type-C) connections for maximum compatibility and flexibility.
• Mechanical Key Switches: Provides tactile feedback and a responsive typing experience, ensuring accuracy and durability.
• Hot-swap-design: Allows for easy replacement of key switches without soldering, enabling customization and maintenance.
• Livlig RGB-belysning: Features 16.8 million colors with customizable backlighting to personalize your setup and enhance the gaming atmosphere.
• Kompakt 61-tasters oppsett: A streamlined arrangement that saves desk space while retaining essential functions.
• Ergonomisk design: Crafted for comfortable typing posture, reducing strain during extended use.
• Slitesterk konstruksjon: Built with high-quality ABS material for long-lasting performance.
• Langvarig batteri: Ensures extended periods of uninterrupted wireless performance.

Bilde: Eksplodert view diagram of the Leaven K610 keyboard, illustrating its internal components including ABS three-color keycaps, cover, RGB water cooling tube, pluggable mechanical switches, positioning plate, PCB board, and lower lid.

3. Pakkens innhold

Vennligst sjekk pakken for følgende varer:

• Leaven K610 Tri-Mode Mechanical Wireless Gaming Keyboard
• USB Type-C-kabel
• 2.4 GHz USB Receiver (usually stored in the keyboard's battery compartment or a dedicated slot)
• Brukerhåndbok (dette dokumentet)
• Keycap Puller (may be included for hot-swappable switches)
• Switch Puller (may be included for hot-swappable switches)
• Spare Mechanical Switches (typically 2-3 pieces)

4. Oppsettveiledning

4.1. Lade tastaturet

Before first use, it is recommended to fully charge the keyboard. Connect the supplied USB Type-C cable to the keyboard's Type-C port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show the charging status and turn off when fully charged.

4.2. Connecting via 2.4 GHz Wireless Mode

1. Locate the 2.4 GHz USB receiver. It is usually stored in a slot on the keyboard itself.
2. Plug the 2.4 GHz USB receiver into an available USB port on your computer.
3. Switch the keyboard's mode switch (usually on the back or side) to the "2.4G" or wireless icon position.
4. The keyboard should automatically connect. If not, press the designated pairing key combination (refer to keyboard markings, often Fn + R or a specific key with a 2.4G icon) to initiate pairing.

4.3. Tilkobling via Bluetooth-modus

1. Switch the keyboard's mode switch to the "BT" or Bluetooth icon position.
2. The keyboard typically has multiple Bluetooth channels (e.g., BT1, BT2, BT3). Press and hold the Fn key along with the corresponding Bluetooth channel key (e.g., Fn + Q for BT1, Fn + W for BT2, Fn + E for BT3) for 3-5 seconds until the indicator light flashes rapidly, indicating pairing mode.
3. On your device (PC, smartphone, tablet), open Bluetooth settings and search for new devices.
4. Select "Leaven K610" or a similar name from the list of available devices.
5. Follow any on-screen prompts to complete the pairing process. The indicator light on the keyboard will stop flashing and remain solid when connected.
6. To switch between paired Bluetooth devices, simply press Fn + Q/W/E (for BT1/BT2/BT3) once.

4.4. Connecting via Wired Mode

1. Connect the supplied USB Type-C cable to the keyboard's Type-C port.
2. Connect the other end of the USB Type-C cable to an available USB port on your computer.
3. Switch the keyboard's mode switch to the "Wired" or cable icon position.
4. The keyboard will be recognized as a standard USB keyboard and is ready for use.

5. Bruksanvisning

5.1. RGB-lyskontroll

The Leaven K610 features dynamic RGB lighting. Use the following key combinations to control the lighting effects:

• Fn + \ |: Cycle through different lighting effects/modes.
• Fn + [{: Reduser lysstyrken.
• Fn + ]}: Øk lysstyrken.
• Fn + ;:: Reduser belysningshastigheten.
• Fn + '": Øk belysningshastigheten.
• Fn + Høyre Shift: Change lighting color (for static modes).

Bilde: Nærbilde fra siden view of the Leaven K610 keyboard, highlighting the "Side Wing Water Cooling Pipe" which illuminates with RGB lighting, adding to the aesthetic appeal.

5.2. Function Key Combinations (Fn Key)

Due to its compact 61-key layout, many functions are accessed via the Fn (Function) key in combination with other keys. Refer to the keycap legends for specific functions. Common combinations include:

• Fn + A/S/D: Switch between Bluetooth channels (BT1/BT2/BT3).
• Fn + R: Activate 2.4G pairing mode.
• Fn + T: Bytt til kablet modus.
• Fn + Tilbaketast: Delete (on some layouts).
• Fn + P: Print Screen.
• Fn + L: Lock Windows key.
• Fn + U/I/O/P/J/K/L: Mediekontroller (Spill av/pause, Stopp, Forrige, Neste, Demp, Volum ned, Volum opp).
• Fn + M/<, Fn + >./ Fn + ?/: Navigation keys (Home, End, Page Up, Page Down).

Note: Specific key combinations may vary slightly. Always refer to the legends printed on your keycaps.

Image: Diagram illustrating the 61-key compact arrangement of the Leaven K610 keyboard, emphasizing its minimalist design while retaining essential functionality.

6. Vedlikehold og stell

• Rengjøring: Use a soft, dry cloth to wipe the keyboard surface. For deeper cleaning, use a can of compressed air to remove dust and debris from between keycaps. For stubborn stains, a slightly damp En klut med mild såpe kan brukes, slik at det ikke kommer væske inn i tastaturet.
• Utskifting av tasthette og bryter: If your keyboard comes with a keycap puller and switch puller, you can carefully remove keycaps and switches for cleaning or replacement. Always pull keycaps straight up to avoid damaging the switch stem. When replacing switches, align the pins correctly before gently pushing them into the hot-swap socket.
• Lagring: Oppbevar tastaturet på et kjølig og tørt sted, unna direkte sollys og ekstreme temperaturer.
• Unngå væsker: Do not expose the keyboard to water or other liquids. Liquid damage is not covered under warranty.

Bilde: Et nærbilde view of a mechanical switch on the Leaven K610 keyboard, demonstrating the hot-swappable nature of the switches, allowing for easy replacement or customization.

7. Feilsøking

• Tastaturet svarer ikke:
  • Sørg for at tastaturet er ladet.
  • Check the mode switch (Wired/2.4G/BT) is in the correct position.
  • For 2.4G, sørg for at USB-mottakeren er ordentlig koblet til. Prøv en annen USB-port.
  • For Bluetooth, ensure Bluetooth is enabled on your device and the keyboard is paired to the correct channel. Try re-pairing.
  • For wired mode, ensure the Type-C cable is securely connected to both the keyboard and the computer. Try a different cable or USB port.
  • Start datamaskinen/enheten på nytt.
• Nøkler registreres ikke eller dobbeltskrives:
  • Clean under the keycap using compressed air.
  • If hot-swappable, try removing and re-inserting the switch. If the issue persists, replace the switch with a spare one.
• RGB-belysningen fungerer ikke:
  • Sørg for at tastaturet er slått på.
  • Try cycling through lighting modes and adjusting brightness using Fn key combinations.
  • Ensure the keyboard firmware is up to date (if applicable, check manufacturer's webnettstedet).
• Bluetooth-tilkobling ustabil:
  • Ensure there are no strong interferences (e.g., other wireless devices, thick walls).
  • Keep the keyboard within the recommended Bluetooth range.
  • Try forgetting the device on your computer/smartphone and re-pairing.

8. Spesifikasjoner

9. Garanti og støtte

This Leaven K610 keyboard comes with a 6 måneders garanti from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or liquid damage.

For warranty claims or technical support, please contact your retailer or the manufacturer's authorized service center. Please retain your proof of purchase for warranty validation.
