1. Overview

The VIZIO SV210D-0806 All-in-One Soundbar is designed to deliver immersive audio with Dolby Atmos 3D audio and DTS:X. This compact soundbar features two built-in subwoofers for enhanced bass. It offers versatile connectivity options including HDMI, Bluetooth, and USB, and can be controlled via the VIZIO mobile app.

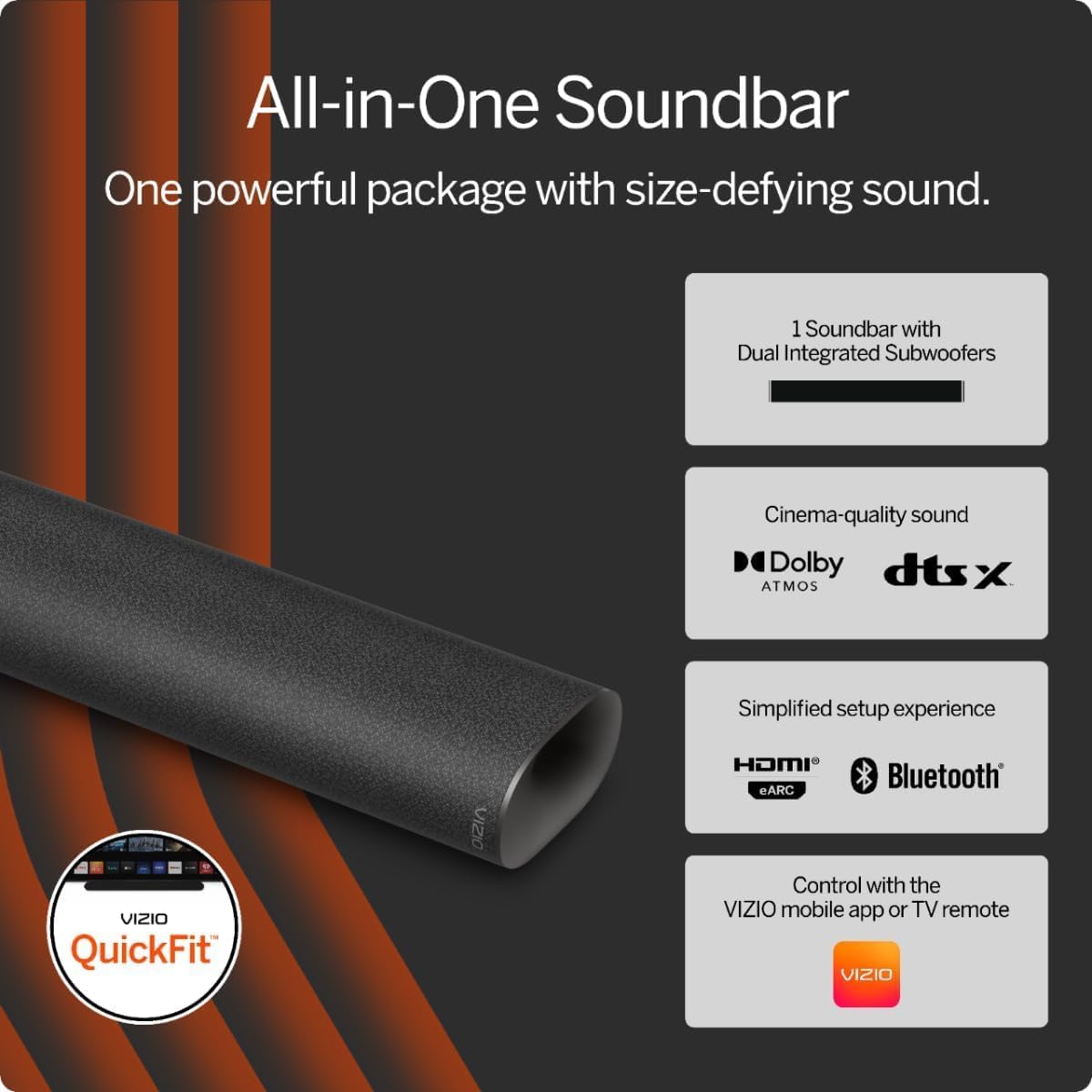

Figure 1: VIZIO All-in-One Soundbar with key features including dual integrated subwoofers, Dolby Atmos, DTS:X, HDMI eARC, Bluetooth, and VIZIO app control.

Figure 2: Experience cinema-quality sound with the VIZIO soundbar, supporting Dolby Atmos and DTS:X for immersive entertainment.

2. Oppsett

2.1. Utpakking og pakkeinnhold

Carefully remove all items from the packaging. The box should contain the following:

• VIZIO All-in-One Soundbar (Model: SV210D-0806)
• Strømkabel
• HDMI (ARC/eARC) Cable
• Hurtigstartguide
• Mounting Screws (for compatible VIZIO TVs)
• Veggmonteringsmal

Figure 3: The VIZIO All-in-One 2.1 System includes the soundbar with 4 speakers and 2 integrated subwoofers, an HDMI eARC cable, and QuickFit mounting screws for compatible VIZIO TVs.

2.2. Plasseringsalternativer

The soundbar can be placed on a flat surface below your TV or wall-mounted. For optimal audio performance, ensure the soundbar is centrally aligned with your TV.

Figure 4: The soundbar is designed for flexible placement, fitting neatly under your TV for a space-saving audio solution.

Veggmontering (valgfritt)

If wall-mounting, use the provided wall mounting template to ensure correct positioning and leveling. The soundbar is compatible with VIZIO QuickFit mounting solutions for select VIZIO TVs.

Figure 5: QuickFit mounting allows for seamless attachment of the soundbar directly to the bottom of compatible VIZIO TVs, providing a clean and integrated look.

2.3. Koble til Soundbar

1. Strømtilkobling: Koble strømkabelen til strøminngangen på lydplanken og deretter til en stikkontakt.
2. HDMI-tilkobling (ARC/eARC): Connect one end of the included HDMI cable to the HDMI ARC/eARC port on your soundbar and the other end to the HDMI ARC/eARC port on your TV. Ensure your TV's CEC (Consumer Electronics Control) feature is enabled for seamless control. Refer to your TV's manual for specific instructions.
3. USB-tilkobling: A USB port is available on the back of the soundbar for firmware updates or connecting compatible devices.

2.4. VIZIO Mobile App Setup

For enhanced control and sound settings, download the VIZIO Mobile app. Scan the QR code provided in the Quick Setup Guide or on the product packaging to download the app from the App Store (iOS) or Google Play Store (Android). Create a VIZIO account to access full functionality, settings, and system updates.

Figure 6: The VIZIO app provides comprehensive audio controls, allowing you to personalize settings like EQ modes, treble, ClearDialog, bass, subwoofer, and height levels directly from your smartphone.

2.5. Unboxing and Setup Video Guide

3. Betjening av lydplanken

3.1. Kontroller på enheten

The soundbar features accessible control buttons on its top surface:

• Strømknapp: Slår lydplanken på eller av.
• Volumknapper (+/-): Justerer hovedvolumnivået.
• Bluetooth-knapp: Initiates Bluetooth pairing mode for connecting mobile devices.

3.2. LED-indikatorer

An LED light on the lower left-hand corner of the soundbar indicates its status:

• Helt rødt: Standby-modus.
• Blinker rødt: Error or specific mode indication (refer to app for details).
• Light Green/Blue: On or Bluetooth pairing mode.

The LED indicator can be turned off via the VIZIO mobile app if desired.

3.3. Lydtilpasning

The soundbar supports advanced audio formats like Dolby Atmos and DTS:X for a cinematic experience. You can customize sound settings using the VIZIO mobile app or your TV's audio control menu (if using a compatible VIZIO TV).

• Equalizer (EQ)-moduser: Select from various preset EQ modes or personalize settings for bass, treble, and subwoofer levels.
• ClearDialog: Enhance vocal clarity for dialogue, making conversations easier to understand.

Figure 7: The TV's audio control menu (for compatible VIZIO TVs) allows adjustment of various sound settings, including ClearDialog for improved voice clarity.

3.4. Bluetooth-streaming

To stream audio from a mobile device:

1. Press the Bluetooth button on the soundbar or select Bluetooth input via the VIZIO app. The LED indicator will change to indicate pairing mode.
2. On your mobile device, go to Bluetooth settings and select the VIZIO soundbar from the list of available devices.
3. Once connected, you can stream audio from your device to the soundbar.

3.5. Audio Demonstration Video

4. Vedlikehold

4.1. Rengjøring

Slik opprettholder du lydplankens utseende og ytelse:

• Tørk av de utvendige overflatene med en myk, tørr og lofri klut.
• Do not use liquid cleaners, aerosol sprays, or harsh chemicals, as these may damage the finish or internal components.

4.2. Oppbevaring

Hvis du oppbevarer lydplanken over lengre tid, må du koble den fra strømmen og oppbevare den på et kjølig og tørt sted, unna direkte sollys og ekstreme temperaturer.

5. Feilsøking

If you encounter issues with your VIZIO soundbar, refer to the following common troubleshooting steps:

6. Spesifikasjoner

7. Garanti og støtte

7.1. Produktgaranti

This VIZIO soundbar comes with a 90-day limited warranty. Please refer to the warranty card included in your package for full terms and conditions.

7.2. Kundestøtte

For further assistance, technical support, or to register your product, please visit the official VIZIO website or use the VIZIO Mobile app. The app provides access to support resources, FAQs, and direct contact options.
