1. Introduksjon
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your HUIYEETEX AM45-50/12-XP Waterproof Tubular Motor for Awnings. This motor is designed for various motorized awnings, offering reliable performance in outdoor conditions due to its IP65 waterproof rating and UL approval. Please read this manual thoroughly before installation and use.
2. Sikkerhetsinformasjon
Viktige sikkerhetsinstruksjoner:
- Koble alltid fra strømmen før du utfører installasjons-, vedlikeholds- eller reparasjonsarbeid.
- Installation must be performed by a qualified electrician or technician in accordance with local electrical codes and regulations.
- Ensure the power supply matches the motor's specifications (230V).
- Keep hands, clothing, and other objects clear of moving parts during operation.
- Do not allow children to operate the awning motor or play with controls.
- Regularly inspect the motor and awning for signs of wear, damage, or loose connections.
- This motor is designed for outdoor use with an IP65 rating, but avoid submerging it in water.
- Do not modify the motor or its components. Use only original replacement parts.
3. Pakkens innhold
Bekreft at alle varene er til stede i pakken:
- 1 x Awning Replacement Motor (AM45-50/12-XP)
- 1 x Boundary Setting Tool
- 1 x 63mm Crown
- 1 x adapter
- 1 x brukerhåndbok (dette dokumentet)
4. Produktet er overview
The HUIYEETEX AM45-50/12-XP is a robust tubular motor designed for various retractable awnings. Its waterproof construction ensures durability in outdoor environments.
Figure 4.1: Motor Components. Dette bildet viser en detaljert view of the AM45-50/12-XP tubular motor. Key components labeled include the 63 Aluminium Roller Tube, Aluminum alloy body, White limit switch setting hole, and Yellow limit switch setting hole. The motor features a durable yellow and black casing with electrical wiring visible at one end.
Figure 4.2: Awning System Components. This diagram illustrates the main components of a retractable awning system. Labeled parts include the Driving tube, Fabric, Drive adapter, Front bar, Crown, Tubular motor, Main bar, and Idler. This provides a visual guide to how the motor integrates into the awning structure.
5. Oppsett og installasjon
Installation of the AM45-50/12-XP motor into your awning system requires careful attention to detail. It is recommended that installation be performed by a professional.
- Klargjør markisen: Ensure the awning is in a safe, stable position for installation. Disconnect any existing power.
- Measure Tube Size: Verify that your awning's roller tube diameter is compatible with the 45mm motor and the provided 63mm crown and adapter.

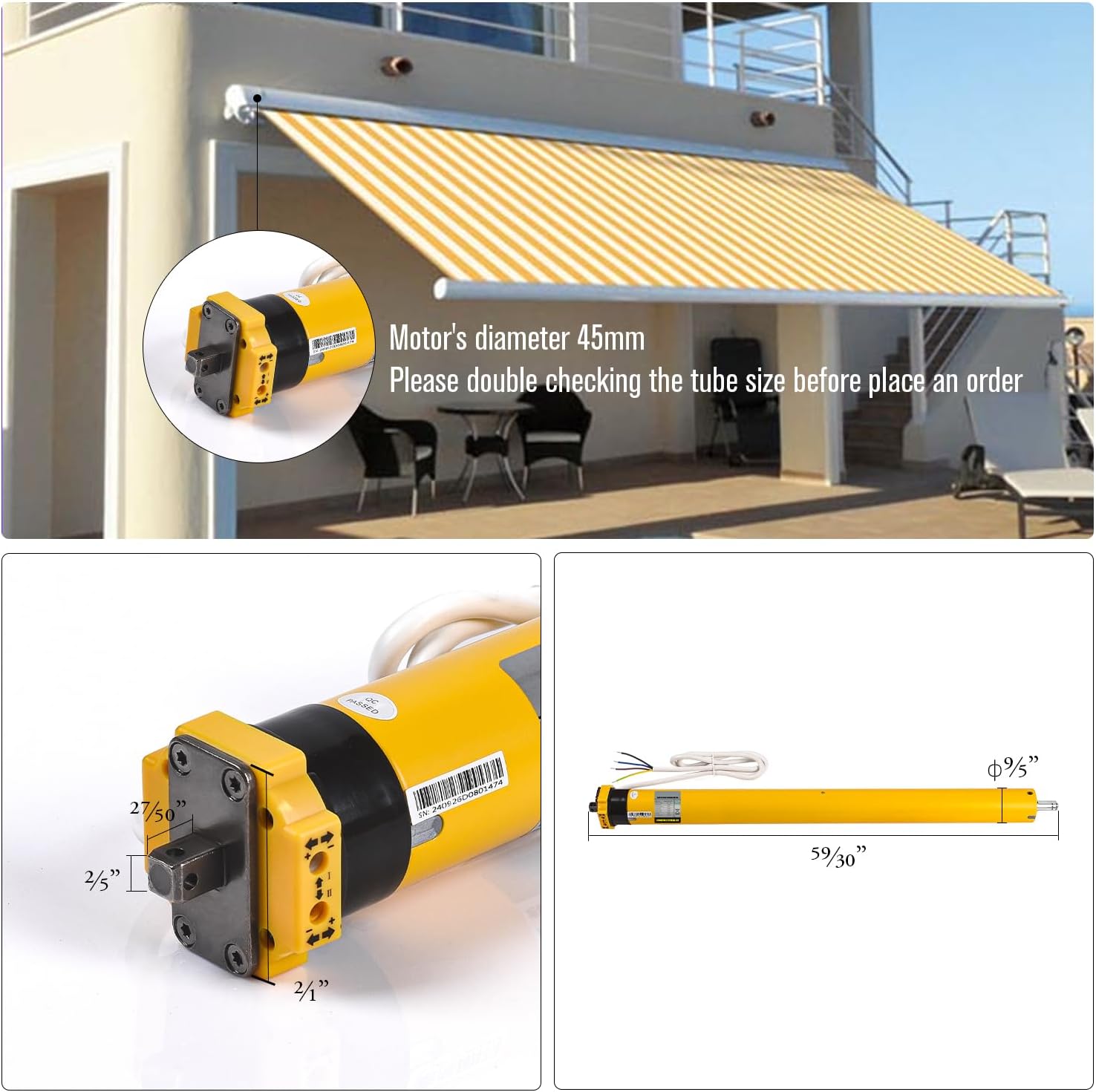

Figure 5.1: Motor Diameter and Awning Application. This image shows the motor's diameter (45mm) and emphasizes the importance of checking the tube size. It also displays an example of the motor installed in a retractable awning on a patio, demonstrating its typical application.
- Sett inn motor: Slide the tubular motor, with the crown and adapter attached, into the awning's roller tube.
- Mount Motor: Securely mount the motor assembly within the awning frame according to the awning manufacturer's instructions.
- Elektrisk tilkobling: Connect the motor to a 230V power supply. Ensure all wiring is correctly insulated and secured. Refer to local electrical codes.
- Set Limit Switches: Use the boundary setting tool to adjust the upper and lower travel limits of the awning. This prevents the awning from over-extending or over-retracting. Refer to Figure 4.1 for the location of the white and yellow limit switch setting holes.
- Testoperasjon: Carefully test the awning's movement to ensure it operates smoothly and stops correctly at the set limits.
6. Drift
The AM45-50/12-XP motor allows for convenient operation of your awning, especially when paired with compatible remote controls and sensors.
- Fjernkontroll: Use a compatible one-touch remote control to extend or retract the awning. Press the "Up" button to retract and the "Down" button to extend. A "Stop" button is typically available to halt movement at any desired position.
- Automatic Operation (with sensors): When integrated with sun and wind sensors (sold separately), the awning can automatically adjust based on weather conditions. For example, it may retract during high winds to prevent damage or extend during sunny periods for shade.
Figure 6.1: Benefits of Motorized Awnings. This image illustrates a motorized retractable awning extended during rainfall, highlighting its protective capabilities. It also conveys the benefit of reducing indoor heat by preventing direct sunlight, thereby lessening reliance on air conditioning.
7. Vedlikehold
Proper maintenance ensures the longevity and optimal performance of your motor.
- Regelmessig inspeksjon: Periodically check the motor, wiring, and awning fabric for any signs of wear, damage, or corrosion.
- Rengjøring: Clean the exterior of the motor with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no water enters the motor housing.
- Smøring: The motor is factory-lubricated and generally does not require additional lubrication.
- Kontroll av grensebryter: Occasionally verify that the upper and lower limit switches are functioning correctly and the awning stops at the desired positions.
- Profesjonell tjeneste: For any complex issues or internal repairs, contact a qualified service technician.
8. Feilsøking
Se tabellen nedenfor for vanlige problemer og mulige løsninger.
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Motoren reagerer ikke på fjernkontrollen. | No power; Remote battery low; Remote not paired; Motor overload protection activated. | Check power supply; Replace remote battery; Re-pair remote with motor (refer to remote manual); Allow motor to cool down. |
| Awning stops prematurely or does not extend/retract fully. | Limit switches incorrectly set; Obstruction in awning path. | Re-adjust limit switches using the boundary setting tool; Remove any obstructions. |
| Motoren lager uvanlige lyder. | Internt mekanisk problem; Løs montering. | Discontinue use and contact a qualified technician; Check mounting bolts for tightness. |
| Awning fabric is uneven. | Fabric tension issue; Roller tube misalignment. | Consult awning manufacturer's guide or a professional for fabric adjustment. |
9. Spesifikasjoner
Technical details for the AM45-50/12-XP motor:
- Modellnummer: AM45-50/12-XP
- Merke: HUIYEETEX
- Materiale: Metall, plast
- Produktmål (D x B x H): 46D x 13W x 50H millimetres
- Strømforsyning: 230V (as implied by product title)
- Vanntetthetsvurdering: IP65 (fra funksjonspunkter)
- Lastbærende: 50N (from image 71gYOlj8rzL._AC_SL1500_.jpg)
- Montering nødvendig: No (for the motor itself)
Figure 9.1: Motor Load Capacity. This image highlights the strong load-bearing capacity of the motor, indicating it can pull at least heavy awning fabrics, with a specific rating of 50N shown on the graphic. A label on the motor also displays model number AM45-50/12-XP and IP65 rating.
10. Garanti og støtte
Garantiinformasjon:
Please refer to the warranty card included with your purchase or contact the retailer for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.
Kundestøtte:
For technical assistance, troubleshooting not covered in this manual, or to inquire about replacement parts, please contact HUIYEETEX customer support through the retailer's platform or the official brand webnettstedet.
