1. Introduksjon
This manual provides instructions for the safe and effective use of your Amazon Basics Hot Glue Gun Kit. This kit is designed for various applications, including DIY crafts, school projects, arts, and quick home repairs.
Nøkkelfunksjoner
- Rask oppvarming: Warms up quickly in 1-2 minutes for immediate use.
- Konsekvent varme: Maintains a stable temperature during operation.
- Drip-Free Nozzle: Designed for precise glue application without excess dripping.
- Strong Bond: Fast-drying glue creates a durable bond.
- Allsidig bruk: Suitable for materials such as plastic, paper, artificial flowers, wood, and metal.
- Kompakt design: Product dimensions are 6.3" L × 5.7" W × 7.3" H.

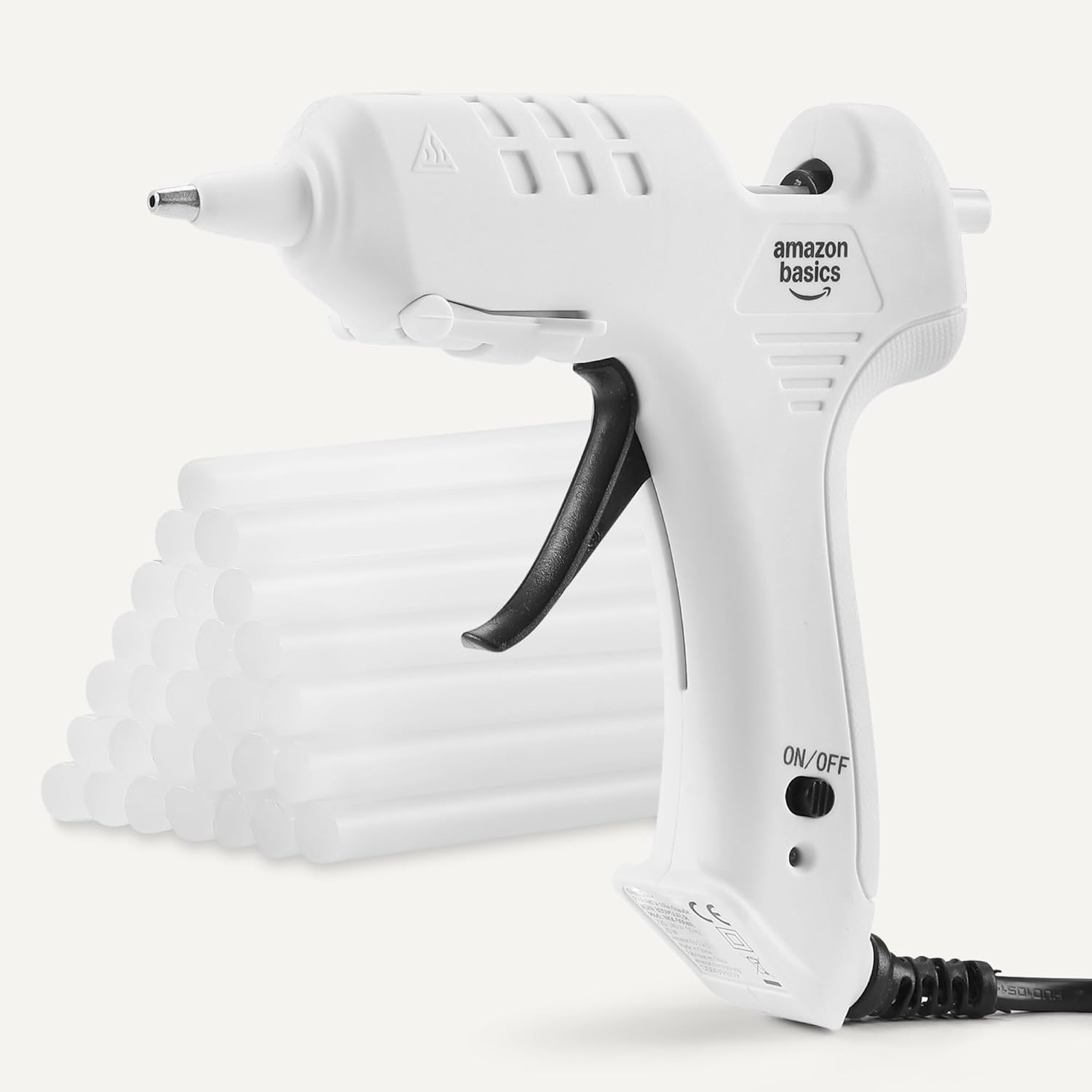

Image 1.1: The Amazon Basics Hot Glue Gun highlighting its key features.
The hot glue gun is designed for ease of use, featuring a quick heat-up time and a drip-free nozzle for clean and precise work. It is compatible with a wide range of materials, making it a versatile tool for various crafting and repair needs.
2. Oppsett
- Pakk ut settet: Carefully remove the hot glue gun and glue sticks from the packaging. Ensure all components are present: one hot glue gun and 30 hot glue sticks.
- Forbered arbeidsområdet: Choose a clean, flat, and heat-resistant surface for your project. Place a protective mat or paper underneath to catch any potential drips.
- Insert a Glue Stick: Insert one of the provided mini glue sticks into the circular opening at the back of the glue gun. Push it gently until it stops. Do not force it.
- Koble til strøm: Plug the glue gun's power cord into a standard electrical outlet.
- Strøm på: Locate the ON/OFF switch, typically found on the handle or base of the glue gun. Flip the switch to the "ON" position. An indicator light (if present) will illuminate.
- Forvarm: Allow the glue gun to preheat for 1-2 minutes. The nozzle will become hot during this time.
Image 2.1: The hot glue gun kit, including the glue gun and a supply of glue sticks.
Ensure the glue stick is properly seated before plugging in the device. The glue gun is designed to heat up quickly, allowing you to begin your projects without significant delay.
3. Bruksanvisning
- Test limstrømmen: After preheating, gently press the trigger to check if the glue is flowing smoothly from the nozzle. A small amount of melted glue should emerge.
- Påfør lim: Position the nozzle close to the surface where you want to apply glue. Press the trigger to dispense the desired amount. The drip-free nozzle helps ensure precise application.
- Sammenføy overflater: Immediately press the two surfaces together after applying glue. Hold them firmly for a few seconds to allow the glue to set and form a strong bond.
- Refill Glue Sticks: As the current glue stick shortens, insert a new one into the back of the gun. The new stick will push the old one forward, ensuring continuous glue flow.
- Slå av: When finished, turn the ON/OFF switch to the "OFF" position and unplug the glue gun from the power outlet.
- Kjøl ned: Allow the glue gun to cool completely before storing it. Do not touch the nozzle until it has cooled.
Viktige bruksmerknader:
- Always use the correct size glue sticks (mini size, 4" x 0.27") for this glue gun to ensure proper function and prevent damage.
- Avoid touching the hot nozzle or melted glue to prevent burns.
- Do not leave the glue gun unattended while it is plugged in or hot.
Video 3.1: Demonstration of inserting a mini glue stick and using the hot glue gun for crafting.
This video illustrates the process of loading a glue stick into the gun and applying glue to a cardboard craft project. It shows the clear, strong bond formed by the glue.
Video 3.2: A close-up view of different glue stick sizes, emphasizing the importance of using the correct size for your glue gun.
This video provides a visual comparison of glue stick sizes, reinforcing the need to use mini-sized sticks with this particular hot glue gun model.
4. Vedlikehold
- Rengjøring av dysen: After the glue gun has cooled completely, gently wipe any excess dried glue from the nozzle with a soft cloth. Do not use abrasive materials or sharp objects, as this can damage the nozzle.
- Lagring: Store the glue gun in a dry, cool place, away from direct sunlight and out of reach of children. Ensure the power cord is not kinked or damaged during storage.
- Regelmessig inspeksjon: Periodically inspect the power cord and the body of the glue gun for any signs of damage, such as cuts, fraying, or cracks. If damage is found, discontinue use and contact customer support.
5. Feilsøking
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Limpistolen varmes ikke opp. | Ikke tilkoblet, strømbryteren er av eller det er et problem med strømuttaket. | Ensure the glue gun is securely plugged into a working outlet and the ON/OFF switch is in the "ON" position. Check the power outlet with another device. |
| Glue does not flow from the nozzle. | Insufficient preheating time, glue stick not fully inserted, or incorrect glue stick size. | Allow the gun to preheat for the recommended 1-2 minutes. Push the glue stick further into the gun. Verify you are using mini glue sticks (4" x 0.27"). |
| Excessive dripping from the nozzle. | Overheating or incorrect angle. | Ensure the glue gun is not left on for extended periods without use. Try holding the gun at a slightly different angle during application. |
| Glue does not bond properly. | Surfaces not clean, glue cooled too quickly, or incompatible material. | Clean surfaces thoroughly before application. Apply glue and join surfaces immediately. Ensure materials are compatible with hot glue. |
6. Spesifikasjoner
- Merke: Grunnleggende om Amazon
- Modellnummer: NKK-006WN
- Farge: Hvit
- Strømkilde: Elektrisk med ledning
- Wattage: 20 watt
- Varevekt: 12.2 unser
- Produktdimensjoner (L x B x H): 6.3 cm x 5.7 cm x 7.3 cm
- Kompatibelt materiale: Plastic, paper, artificial flowers, wood, metal, and more.
- Inkluderte komponenter: 1 hot glue gun, 30 hot glue sticks
- UPC: 840324423372

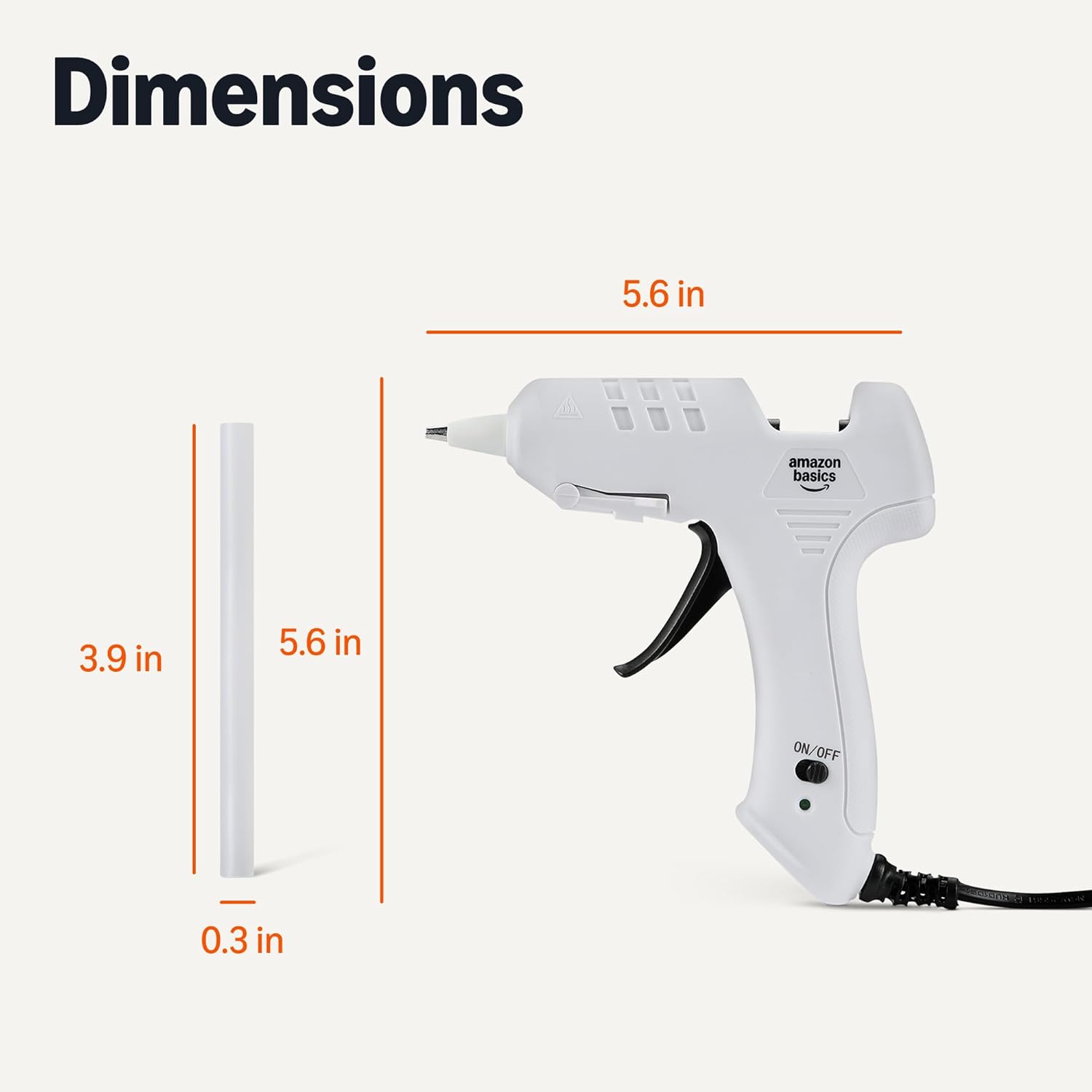

Image 6.1: Visual representation of the hot glue gun and glue stick dimensions.
The diagram provides precise measurements for both the hot glue gun and the compatible mini glue sticks, ensuring users can easily identify the correct accessories.
7. Garanti og støtte
For garantiinformasjon og kundestøtte, se dokumentasjonen som fulgte med kjøpet ditt eller besøk den offisielle Amazon Basics-siden. webnettstedet. Ta vare på kjøpsbeviset for eventuelle garantikrav.
