Jocoevol Twin Over Twin Bunk Bed Instruction Manual

1. Introduksjon

Thank you for choosing the Jocoevol Twin Over Twin Bunk Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

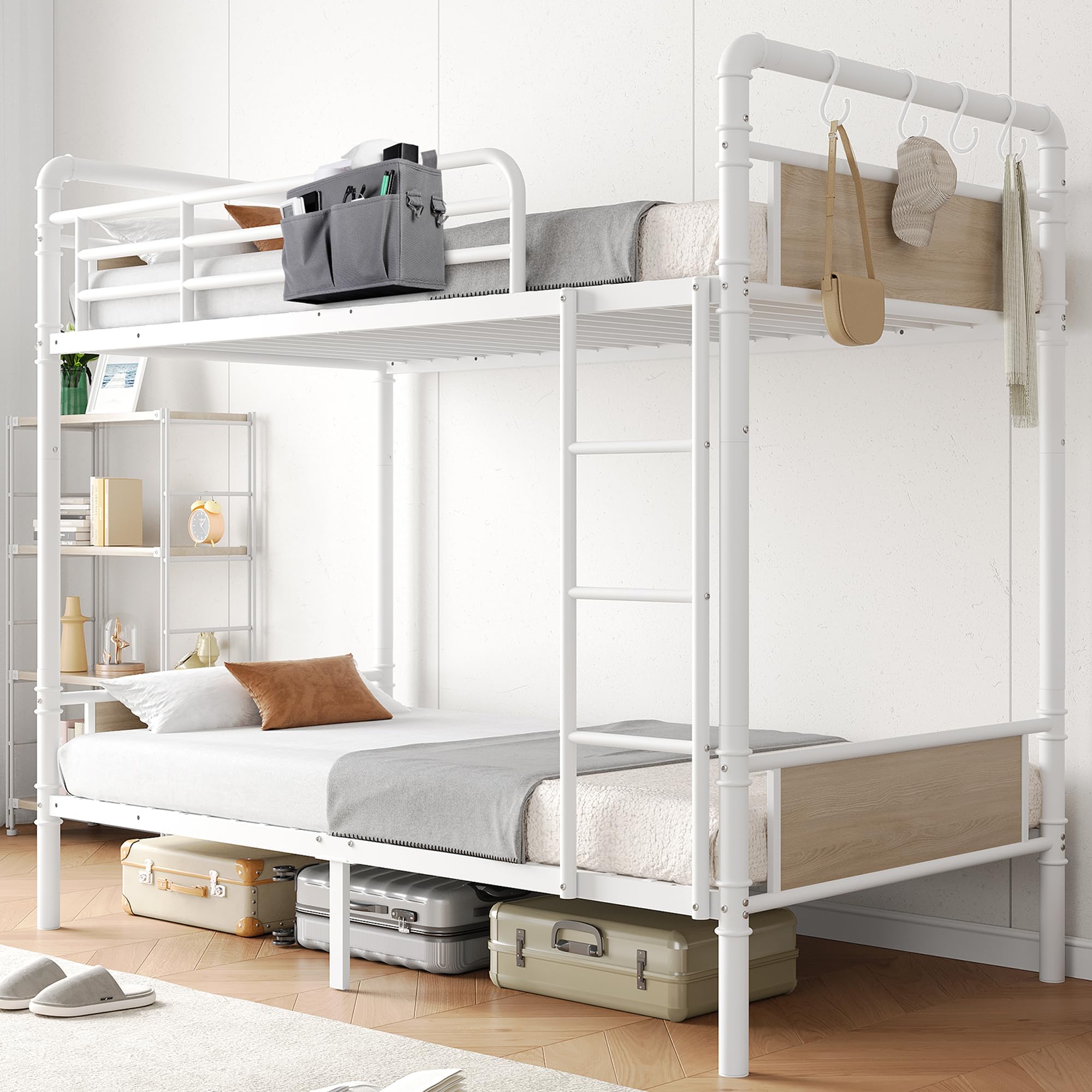

Image: The Jocoevol Twin Over Twin Bunk Bed, showcasing its white metal frame and wooden panel accents in a bedroom environment.

2. Sikkerhetsinformasjon

Din sikkerhet er avgjørende. Følg alle advarsler og instruksjoner for å unngå skade eller materielle skader.

• Maksimal vektkapasitet: The top bunk has a maximum weight capacity of 330 lbs (149.69 kg). The bottom bunk has a maximum weight capacity of 440 lbs (199.58 kg). Do not exceed these limits.
• Skarpe kanter: This bunk bed may have sharp edges during assembly. Exercise caution to avoid injury.
• Rekkverk: The top bunk features 16.5-inch high full-length guardrails. Ensure they are properly installed and secured to prevent accidental falls.
• Anti-velt-sett: An anti-tip kit is included to ensure stability. Install it according to the assembly instructions to prevent the bed from tipping.
• Stigesikkerhet: Always use the ladder when accessing the top bunk. Ensure the ladder is securely attached before use.
• Madrassstørrelse: Use only twin-sized mattresses that fit snugly within the bed frame to prevent entrapment.
• Barn: Children under 6 years of age should not use the top bunk.

Bilde: Detaljert view of the bunk bed's safety features, highlighting the high guardrails and rounded corners designed to prevent injury.

3. Pakkens innhold

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Paneler for hodegavl
• Footboard panels
• Guardrails (full-length for top bunk)
• Ladder (reversible)
• Bed frames and support slats
• All necessary hardware (screws, bolts, washers, etc.)
• Monteringsverktøy (f.eks. unbrakonøkkel)
• Bedside storage bag
• 4 Movable hooks
• Tippesett

4. Oppsett og montering

Assembly is designed to be straightforward. Follow the included clear instructions, which feature labeled parts and all necessary tools.

1. Pakk ut komponenter: Ta forsiktig alle delene ut av emballasjen. Legg dem på en ren, myk overflate for å unngå riper.
2. Identifiser deler: Refer to the parts list in your separate assembly guide to identify each component.
3. Montering av grunnrammer: Begin by assembling the headboard and footboard sections for both the upper and lower beds. Ensure all connections are secure.
4. Fest sideskinner: Connect the side rails to the headboard and footboard sections.
5. Installer støttelameller: Place and secure the mattress support slats onto the bed frames.
6. Stack Beds (for bunk configuration): Carefully lift and place the upper bed frame onto the lower bed frame, aligning the connection points. Secure with the provided hardware.
7. Installer rekkverk: Attach the full-length guardrails to the top bunk.
8. Fest stige: Install the reversible ladder. You can adjust its placement to either the left or right side of the bed to suit your room layout. Ensure it is firmly secured.
9. Installer tippesikringssett: Follow the specific instructions for the anti-tip kit to secure the bunk bed to a wall, enhancing stability.
10. Sluttsjekk: Double-check all bolts and screws to ensure they are tightened. Do not overtighten.

Precision-drilled holes facilitate a fast and effortless assembly process.

5. Bruksanvisning

5.1. 2-i-1 konvertibel design

This bunk bed offers flexibility by converting into two separate twin beds. To convert:

1. Remove the ladder and guardrails from the top bunk.
2. Carefully detach the upper bed frame from the lower bed frame by unscrewing the connecting hardware.
3. Position the two individual twin beds as desired.

Image: Illustration of the bunk bed's 2-in-1 convertible feature, showing it as a stacked bunk bed and as two individual twin beds.

5.2. Reversible Ladder

The ladder can be attached to either the left or right side of the bunk bed. To change the ladder's position, simply detach it from its current mounting points and reattach it to the desired side, ensuring all connections are secure.

Image: Diagram illustrating the removable ladder and its ability to be attached to either side of the bunk bed.

5.3. Multi-functional Storage

• Bedside Storage Bag: Utilize the included bedside storage bag for convenient access to items such as phones, books, glasses, chargers, and remotes. Attach it to the top bunk's guardrail.
• Bevegelige kroker: Four movable hooks are provided for hanging bags, scarves, hats, and keys. Place them on the bed frame according to your needs.
• Oppbevaring under sengen: The bunk bed provides 11.2 inches of under-bed clearance, offering ample space for storing suitcases, storage bins, or other large items.

Bilde: En detaljert view of the bunk bed's headboard and footboard, emphasizing the 11.2-inch under-bed storage space with suitcases stored underneath.

6. Vedlikehold

Regular maintenance helps prolong the life and safety of your bunk bed.

• Rengjøring: Wipe down the metal frame and wooden panels with a soft, damp klut. Unngå sterke kjemikalier eller slipende rengjøringsmidler som kan skade overflaten.
• Maskinvaresjekk: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Retighten any loose hardware to maintain structural integrity and prevent wobbling.
• Guardrail Inspection: Regularly check that the guardrails are securely attached and free from damage.
• Ladder Condition: Ensure the ladder steps and hooks are intact and secure.

7. Feilsøking

If you encounter issues with your bunk bed, refer to the following common solutions:

• Vakling eller ustabilitet:
  Løsning: Check all assembly hardware. Ensure all bolts and screws are fully tightened. Verify that the anti-tip kit is correctly installed and secured to the wall.
• Knirkende lyder:
  Løsning: Squeaking often indicates loose connections. Retighten all bolts and screws. Applying a small amount of lubricant to metal-on-metal contact points may also help.
• Deler som ikke stemmer overens under montering:
  Løsning: Ensure you are using the correct parts for each step as indicated in the assembly guide. Sometimes, parts may be slightly misaligned; try gently adjusting them before fully tightening. Do not force parts together.
• Ladder Feels Unstable:
  Løsning: Confirm the ladder hooks are fully engaged and the ladder is securely fastened to the bed frame.

8. Spesifikasjoner

Image: Technical diagram illustrating the overall dimensions (length, width, height) and the individual weight capacities for the top and bottom bunks.

9. Garanti

For information regarding the warranty coverage for your Jocoevol Twin Over Twin Bunk Bed, please refer to your purchase documentation or contact the retailer where the product was purchased.

10. Støtte

If you have any questions or require assistance with your Jocoevol bunk bed, please do not hesitate to contact our dedicated support team. We are available to assist you and will respond within 24 hours.

Kontaktinformasjon: Please refer to your purchase invoice or the retailer's webnettstedet for spesifikk kontaktinformasjon.
