Winegard Air 360 LP TV Antenna (Model A3-LPB1) Instruction Manual

1. Introduksjon og overview

This manual provides detailed instructions for the installation, operation, and maintenance of your Winegard Air 360 LP TV Antenna, Model A3-LPB1. This ultra-low profile, omni-directional antenna is designed to reduce signal search time and hassle, featuring an embedded low noise amplifier for improved picture quality. It is capable of receiving signals up to 45 miles away.

Nøkkelfunksjoner inkluderer:

• Ultra-lav profffile design: 4.34 inches tall x 11.75 inches wide.
• Omni-directional reception: No aiming required.
• Integrated low noise amplifier for enhanced signal reception.
• Up to 45-mile range for over-the-air (OTA) television signals.

2. Pakkens innhold

Vennligst sjekk at alle elementene er til stede før du starter installasjonen:

• Winegard Air 360 LP TV Antenna (Model A3-LPB1)
• Mounting Hardware (screws, washers, gaskets)
• Power Injector/Amplivligere
• Coaxial Cable (for connecting antenna to power injector)
• Bruksanvisning (dette dokumentet)

3. Sikkerhetsinformasjon

Read all instructions carefully before installation and operation. Failure to follow these safety guidelines may result in injury or damage to the product.

• Elektrisk sikkerhet: Ensure all power is disconnected before making any electrical connections. Do not expose the power injector to moisture.
• Monteringssikkerhet: When mounting the antenna, ensure you are on a stable surface. Use appropriate safety gear, such as gloves and eye protection. Avoid contact with power lines.
• Kabeladministrasjon: Route coaxial cables securely to prevent tripping hazards and damage.
• Miljøforhold: This antenna is designed for outdoor use. However, avoid installation during severe weather conditions like lightning storms or high winds.

4. Oppsett og installasjon

Follow these steps for proper installation of your Winegard Air 360 LP TV Antenna.

4.1. Velg et monteringssted

Select a location on your RV or vehicle roof that is as high as possible and clear of obstructions such as air conditioners, satellite dishes, or other equipment that could block signal reception. The omni-directional design means no specific aiming is required, but a clear line of sight to broadcast towers is always beneficial.

4.2. Antennemontering

1. Position the antenna base at the chosen location.
2. Merk av borepunktene for monteringsskruene.
3. Drill pilot holes as recommended by the mounting hardware instructions.
4. Apply a suitable sealant around the drilled holes to prevent water intrusion.
5. Secure the antenna base using the provided mounting hardware. Ensure a watertight seal.

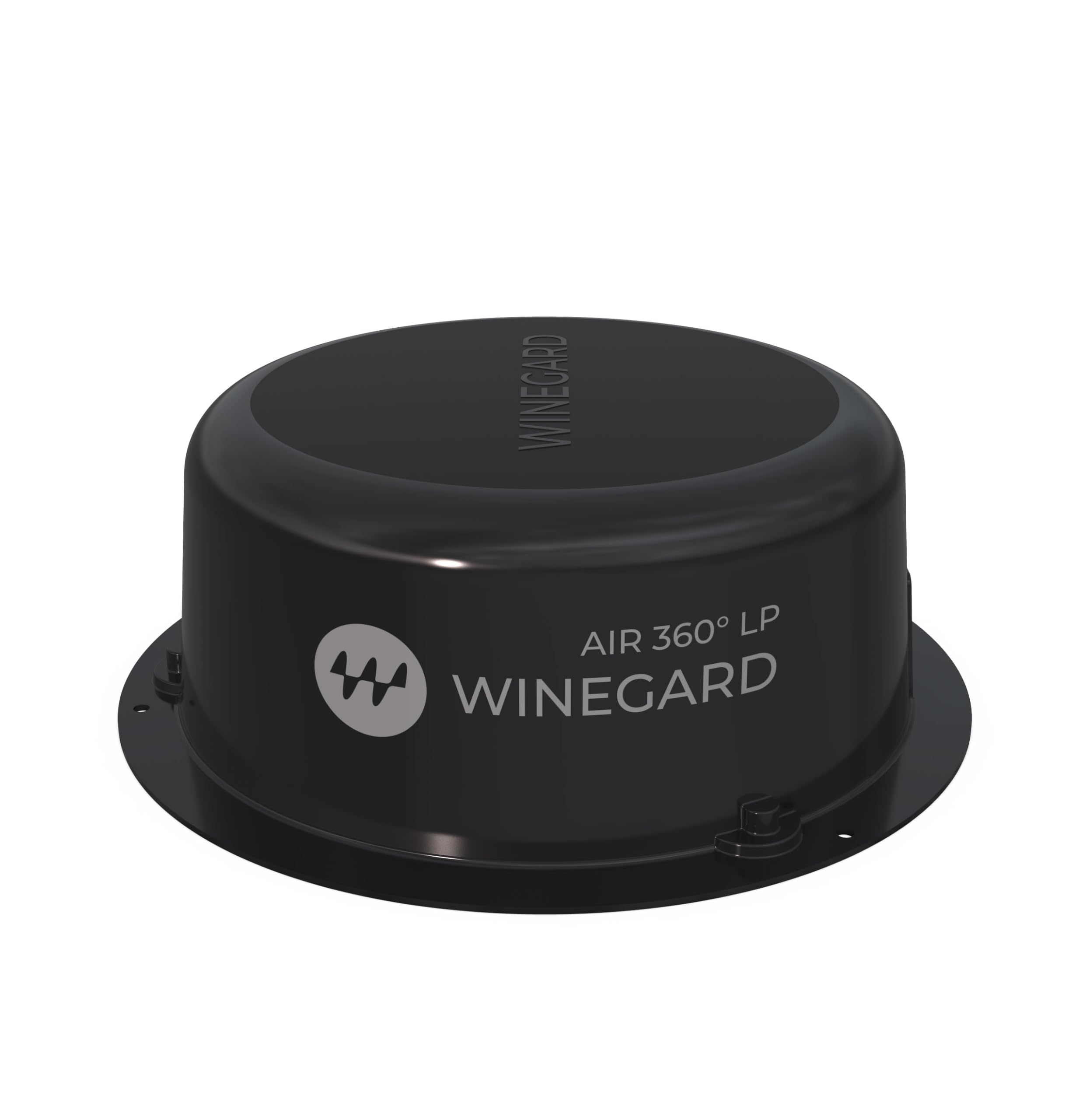

Image 1: The Winegard Air 360 LP TV Antenna (Model A3-LPB1) shown mounted on a vehicle roof. This image illustrates the compact, low-profile design of the antenna.

4.3. Kablingstilkoblinger

1. Connect one end of the coaxial cable to the antenna's output port.
2. Route the coaxial cable from the antenna into the interior of your vehicle, ensuring it is protected from weather and damage.
3. Connect the other end of this coaxial cable to the 'Antenna In' port on the power injector/amplivligere.
4. Connect a second coaxial cable from the 'TV Out' port on the power injector to the antenna input on your television.
5. Plug the power injector into a standard 12V DC or 120V AC power source (depending on model and vehicle setup). Ensure the power indicator light on the injector illuminates.

5. Bruksanvisning

Once the antenna is installed and connected, follow these steps to receive television channels.

5.1. Power On and Channel Scan

1. Ensure your television is powered on and set to the correct input (e.g., 'Antenna' or 'TV').
2. Access your television's menu and navigate to the 'Channel Setup' or 'Auto Program' section.
3. Select 'Antenna' or 'Air' as the signal source.
4. Initiate an 'Auto Scan' or 'Channel Scan'. The television will search for available over-the-air channels. This process may take several minutes.
5. Once the scan is complete, your television should display the received channels.

5.2. Optimalisering av mottaket

While the Air 360 LP is omni-directional, signal strength can vary. If you experience poor reception on certain channels:

• Utfør en ny kanalsøking.
• Check all coaxial cable connections to ensure they are secure.
• Ensure the power injector is receiving power and its indicator light is on.
• Consider moving your vehicle to a location with fewer obstructions (e.g., trees, buildings) if possible.

6. Vedlikehold

The Winegard Air 360 LP TV Antenna requires minimal maintenance to ensure long-lasting performance.

• Rengjøring: Rengjør antennens utside med jevne mellomrom med en myk klut.amp klut. Unngå slipende rengjøringsmidler eller løsemidler.
• Inspeksjoner: Annually inspect all mounting hardware and cable connections for signs of wear, corrosion, or looseness. Ensure all seals remain watertight.
• Kabeltilstand: Check coaxial cables for cracks, fraying, or damage, especially where they enter the vehicle or are exposed to the elements. Replace damaged cables promptly.

7. Feilsøking

If you encounter issues with your antenna, refer to the following troubleshooting guide:

8. Spesifikasjoner

• Modellnummer: A3-LPB1
• Merke: Winegard
• Antennetype: Television (Omni-directional)
• Farge: Svart
• Maksimal rekkevidde: 45 mil
• Dimensjoner: 4.34 inches (Height) x 11.75 inches (Width)
• Antall kanaler: 1 (refers to single antenna input)
• UPC: 615798407650
• Produsent: Winegard

9. Garanti og støtte

9.1. Garantiinformasjon

The Winegard Air 360 LP TV Antenna (Model A3-LPB1) is covered by a 2 års garanti fra kjøpsdatoen. Denne garantien dekker material- og produksjonsfeil ved normal bruk. Vennligst ta vare på kjøpsbeviset for garantikrav.

For specific warranty terms and conditions, please refer to the official Winegard warranty documentation or contact customer support.

9.2. Kundestøtte

If you require further assistance, have questions not covered in this manual, or need to make a warranty claim, please contact Winegard Customer Support. Contact information can typically be found on the official Winegard webnettstedet eller på produktemballasjen.
