MEIKEE 20W Outdoor PIR Sensor Floodlight (Model FLB020) Instruction Manual

1. Introduksjon

Takk for kjøpetasing the MEIKEE 20W Outdoor PIR Sensor Floodlight. This manual provides essential information for the safe and efficient use of your new lighting fixture. Please read these instructions carefully before installation and operation, and retain them for future reference.

This floodlight is designed for outdoor use, featuring a motion sensor for enhanced security and convenience. Its robust construction ensures reliable performance in various weather conditions.

Image: MEIKEE 20W Outdoor PIR Sensor Floodlight providing illumination for two houses at night.

2. Sikkerhetsinformasjon

• Elektrisk sikkerhet: Always disconnect power before installation, maintenance, or repair. Installation should be performed by a qualified electrician in accordance with local electrical codes.
• Jording: Sørg for at armaturen er skikkelig jordet for å forhindre elektrisk støt.
• Voltage: Kontroller at forsyningen voltage matches the fixture's requirements (90-120VAC).
• Montering: Mount the fixture securely on a stable surface. Do not install on unstable or vibrating structures.
• Varme: The LED light source generates heat. Do not cover the fixture or install it in enclosed spaces without adequate ventilation.
• Øyebeskyttelse: Do not stare directly into the light source when it is illuminated, as it may cause eye strain or damage.
• Vanneksponering: While the fixture is IP66 waterproof, ensure all connections are sealed and protected from direct water spray or submersion.
• Barn og kjæledyr: Hold produktet utilgjengelig for barn og kjæledyr.

3. Produktet er overview

The MEIKEE 20W Outdoor PIR Sensor Floodlight is a high-performance, energy-efficient lighting solution designed for various outdoor applications. It features a sensitive PIR motion sensor, adjustable settings, and a durable, waterproof design.

Nøkkelfunksjoner:

• Høy lysstyrke: 20W LED providing 2000-2200 Lumens of daylight white (6500K) illumination.
• PIR Motion Sensor: Detects human and animal movement up to 12 meters with a 180° sensing angle.
• Justerbare innstillinger: Customizable lighting duration (10s/45s/120s/600s) and day/night operation modes.
• Holdbar og vanntett: IP66 rated for protection against dust and powerful water jets, suitable for harsh weather.
• Energieffektiv: Designed for 80% energy savings compared to traditional lighting.
• Miljøvennlig: Contains no mercury or lead, and emits no UV or infrared radiation.
• Fleksibel installasjon: Sensor head can be rotated 360° horizontally and 180° vertically for optimal coverage.

Produktkomponenter:

Bilde: Foran view of the MEIKEE 20W Outdoor PIR Sensor Floodlight.

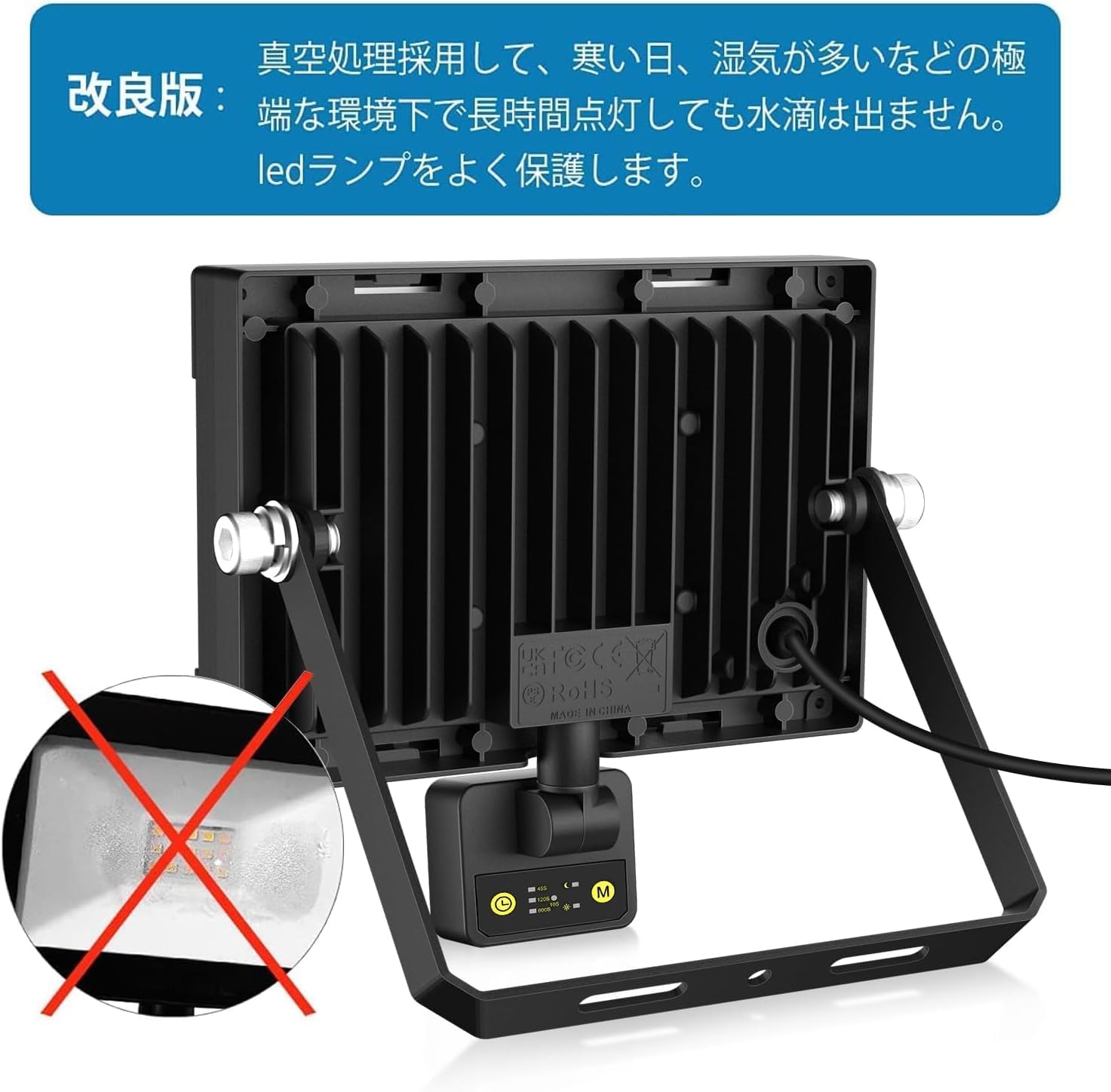

Bilde: Bak view of the MEIKEE 20W Outdoor PIR Sensor Floodlight, highlighting the heat dissipation design.

The floodlight features a robust housing, an integrated LED panel, and a PIR motion sensor. The sensor unit is adjustable to optimize detection coverage. The power cord is 1.5 meters long for flexible connection.

Image: MEIKEE 2021 improved version, featuring a 2-pin plug and enhanced waterproofing for durability.

4. Spesifikasjoner

5. Oppsett og installasjon

Before beginning installation, ensure the power supply is turned off at the circuit breaker to prevent electric shock. It is recommended to have installation performed by a qualified electrician.

5.1 Choosing a Location:

• Select a sturdy wall or surface capable of supporting the fixture's weight.
• Ensure the location allows for optimal sensor detection and light coverage. Avoid placing near heat sources or objects that might cause false triggers (e.g., swaying trees, air conditioners).
• The fixture is IP66 rated, making it suitable for outdoor areas exposed to rain, such as gardens, entrances, parking lots, and corridors.

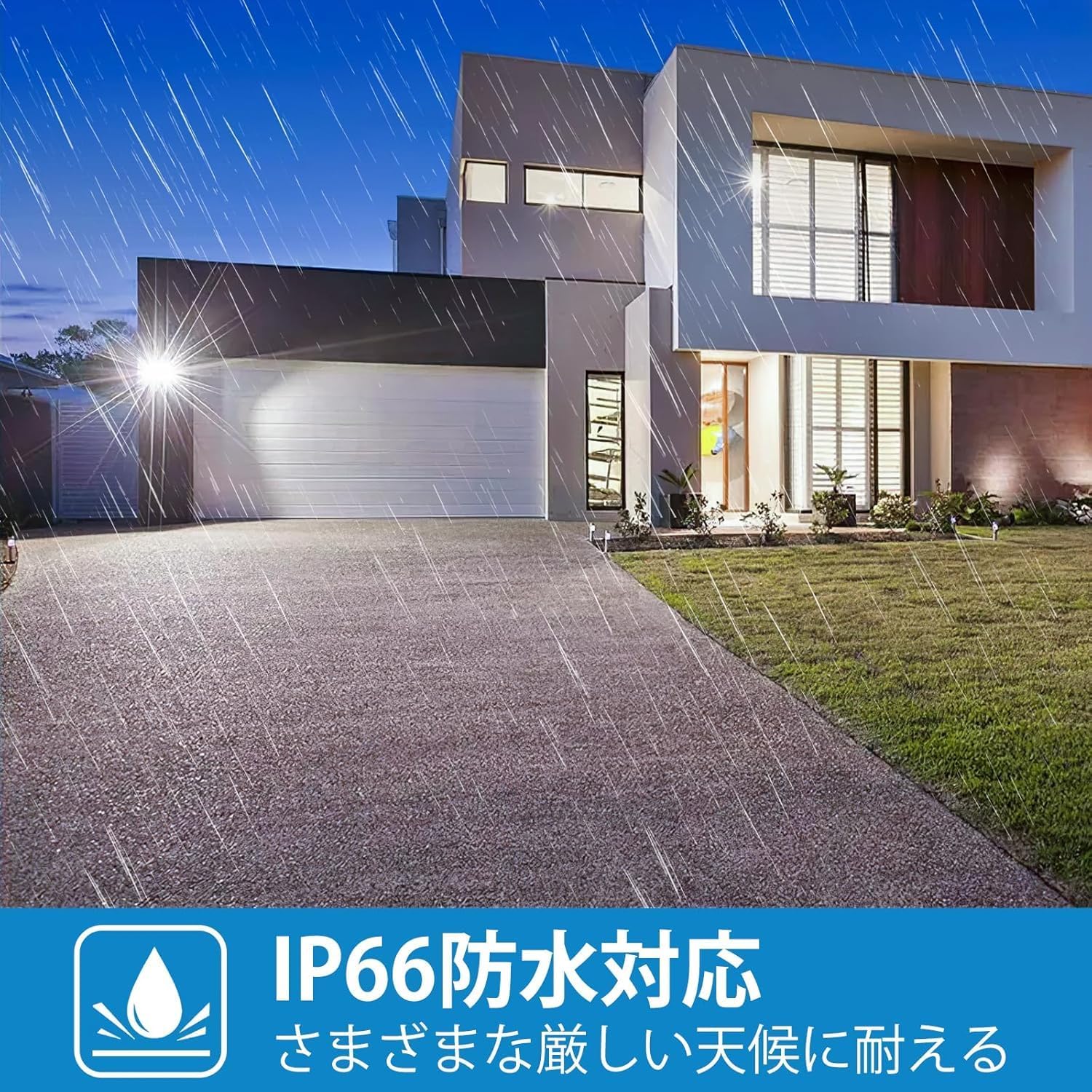

Image: The floodlight operating effectively during rain, showcasing its IP66 waterproof design.

5.2 Mounting the Fixture:

1. Mark the desired mounting points on the wall using the fixture's bracket as a template.
2. Bor pilothull på de merkede stedene.
3. Secure the mounting bracket to the wall using the provided screws or appropriate hardware for your surface type.
4. Attach the floodlight fixture to the mounted bracket.

5.3 Elektrisk tilkobling:

• Connect the power cord to your electrical supply. Ensure proper wiring (Live, Neutral, Ground) according to local regulations.
• The power cord is 1.5 meters long. If an extension is needed, use an outdoor-rated, waterproof extension cord and ensure all connections are sealed.

6. Bruksanvisning

The MEIKEE sensor floodlight features adjustable settings for lighting duration and operating mode (day/night). These settings are controlled via switches on the sensor unit.

6.1 Adjusting Lighting Duration:

The lighting duration can be set to one of four options: 10 seconds, 45 seconds, 120 seconds, or 600 seconds. Use the switch labeled with time intervals on the sensor unit to select your desired duration.

6.2 Selecting Day/Night Mode:

The floodlight offers two operating modes:

• Sun Mode (24-hour operation): The light will activate whenever motion is detected, regardless of ambient light conditions (day or night).
• Moon Mode (Night-only operation): The light will only activate when motion is detected during nighttime or in low-light conditions.

Use the switch labeled with sun/moon icons on the sensor unit to select the desired mode.

Image: Sensor adjustment controls for lighting duration and day/night operation modes.

6.3 Adjusting Sensor Angle:

The PIR sensor head can be manually adjusted to optimize its detection area. It can be rotated 360° horizontally and 180° vertically. Point the sensor towards the area where motion detection is desired.

Image: High-sensitivity sensor with 180-degree detection angle and up to 12-meter range.

7. Søknader

The MEIKEE 20W Outdoor PIR Sensor Floodlight is versatile and suitable for a wide range of outdoor lighting needs, including:

• Sikkerhetsbelysning: Deter intruders with automatic illumination in areas like yards, driveways, and building perimeters.
• Parking Lots: Provide bright, motion-activated lighting for safety and convenience in residential or small commercial parking areas.
• Entrances & Pathways: Illuminate doorways, gates, and walkways for safe navigation at night.
• Warehouses & Storage Areas: Offer temporary lighting in outdoor storage spaces or loading docks.
• Gardens & Home Gardens: Enhance visibility and security in garden spaces.
• Corridors & Alleys: Light up dark passages for improved safety.

Image: Various application scenarios for the MEIKEE floodlight, including security, parking, and entrance lighting.

8. Vedlikehold

Regular maintenance ensures optimal performance and longevity of your MEIKEE floodlight.

• Rengjøring: Periodically clean the light fixture and sensor lens with a soft, damp klut. Ikke bruk skurende rengjøringsmidler eller løsemidler.
• Undersøkelse: Regularly inspect the power cord and connections for any signs of damage or wear. Ensure the mounting is secure.
• Sensorområde: Keep the area around the sensor clear of obstructions (e.g., overgrown plants, debris) that might interfere with detection or cause false triggers.
• Ingen deler som kan repareres av brukeren: The LED light source is integrated and not user-replaceable. Do not attempt to open or repair the fixture yourself.

9. Feilsøking

10. Garanti og støtte

10.1 Garantiinformasjon:

MEIKEE provides a 2 års garanti for this product from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized repairs.

10.2 Kundestøtte:

If you encounter any issues or have questions regarding your MEIKEE 20W Outdoor PIR Sensor Floodlight, please contact our customer support team. To expedite your request, please provide your order number and a detailed description of the issue.

You can typically reach us through your purchase platform:

• Gå til "Account Service"
• Velge "Order History"
• Find your order from "Seller: MEIKEE-JP"
• Klikk på "Ask a Question"

Vi er opptatt av å tilby utmerket service og støtte for produktene våre.
