Yaheetech 9FT Patio Umbrella with 22lb Base

1. Produktet er overview

This Yaheetech 9FT Patio Umbrella is designed to provide approximately 64 square feet of shade, comfortably accommodating four to six people. It is ideal for small dining or lounge areas in outdoor settings such as patios, backyards, gardens, lawns, and poolside. The umbrella features an easy crank handle operation, a push-button tilt mechanism for adjustable canopy angle, and a sturdy 22lb resin base for enhanced stability. Constructed with a reinforced polyester canopy and iron frame, it offers a weather-resistant finish and reliable performance for long-lasting outdoor use.

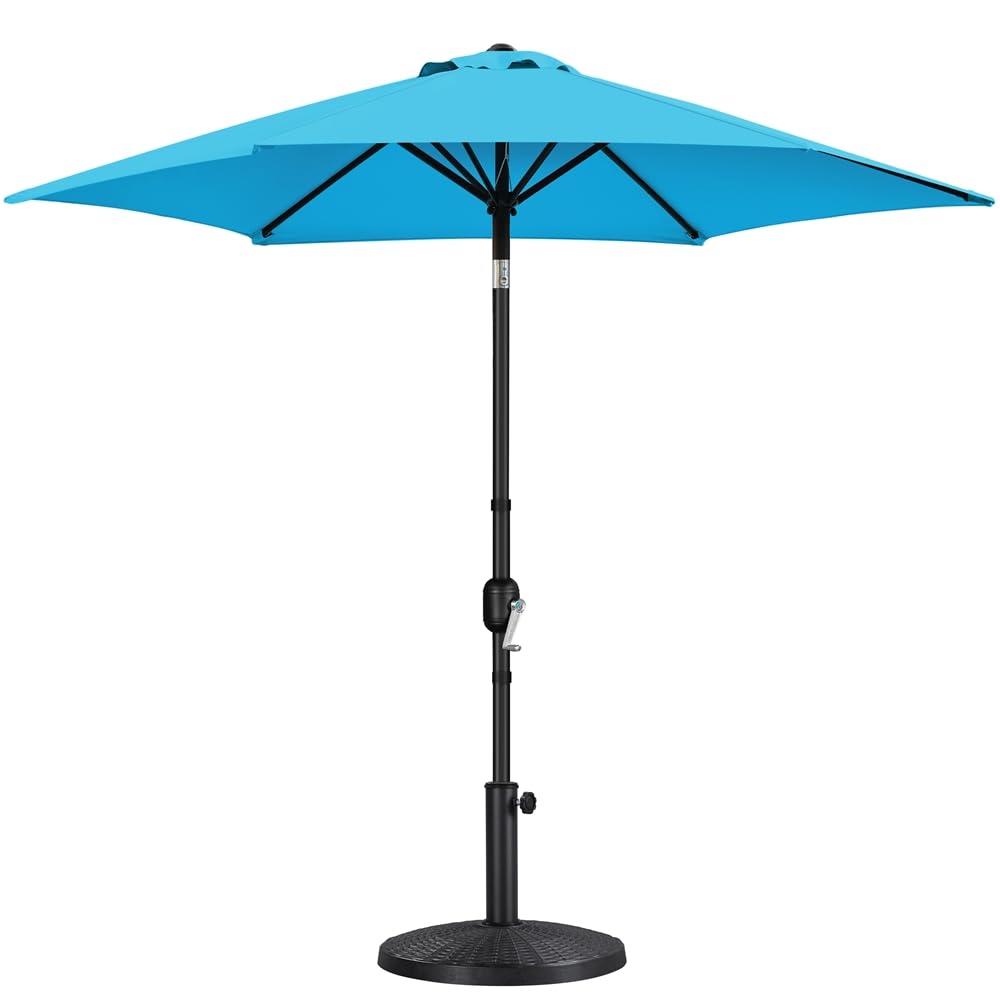

Image 1: Yaheetech 9FT Patio Umbrella with 22lb Base in Sky Blue.

2. Sikkerhetsinformasjon

• Always close the umbrella when not in use or during windy conditions to prevent damage or injury.
• Ensure the umbrella base is properly secured and stable on a flat surface before opening the canopy.
• Do not use the umbrella in extreme weather conditions, including heavy rain, strong winds, or thunderstorms.
• Hold barn og kjæledyr unna paraplyen under bruk for å unngå ulykker.
• Periodically check all connections and fasteners to ensure they are tight and secure.

3. Pakkens innhold

The Yaheetech 9FT Patio Umbrella is shipped in two separate boxes. Please ensure all components are present before beginning assembly.

• Umbrella Canopy with Pole (Upper and Middle Sections)
• Umbrella Base (22lb Resin Base)
• Base Pole Insert
• Tightening Knob for Base
• Crank Handle (integrated)
• Push-Button Tilt Mechanism (integrated)
• Umbrella Strap (sewn-in)

Image 2: Components of the umbrella base and pole for assembly.

4. Oppsett (montering)

1. Sett sammen basen: Place the 22lb resin base (A) on a flat, stable surface. Insert the base pole (B) into the center opening of the base.
2. Secure the Base Pole: Screw the tightening knob (D) into the side of the base pole to firmly secure it to the base.
3. Insert Pole Adapters: Depending on the diameter of your umbrella pole, select the appropriate insert(s) (C, E) and place them into the top of the base pole to ensure a snug fit.
4. Attach Umbrella Pole: Carefully insert the bottom section of the umbrella pole into the assembled base. Ensure it is fully seated and stable.
5. Connect Umbrella Sections: Connect the upper and middle sections of the umbrella pole by aligning the locking mechanisms and securing them firmly.

Image 3: The non-slip design on the bottom of the base for stability and floor protection.

5. Bruksanvisning

5.1 Åpne paraplyen

1. Ensure the umbrella is securely placed in its base.
2. Locate the crank handle on the central pole.
3. Turn the crank handle clockwise to extend the canopy until it is fully open. Do not force the crank once the canopy is fully extended.

Image 4: The crank handle for easy opening and closing of the canopy.

5.2 Justering av tilt

1. Once the canopy is open, locate the push button on the central pole, just above the crank mechanism.
2. Trykk og hold inne trykknappen.
3. Gently tilt the canopy to your desired angle to block sunlight. Release the button to lock the tilt in place.

Image 5: The push-button tilt adjustment for optimal sun protection.

5.3 Closing and Securing the Umbrella

1. If the umbrella is tilted, press the push button and return the canopy to its upright position.
2. Turn the crank handle counter-clockwise to retract the canopy until it is fully closed.
3. Wrap the sewn-in umbrella strap around the closed canopy and tie it securely to prevent it from unfurling in the wind.

Image 6: The sewn-in umbrella strap used to secure the canopy when closed.

6. Vedlikehold

• Rengjøring: Clean the canopy fabric with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
• Rammepleie: Wipe the iron frame and pole with a damp cloth to remove dirt and debris. The frame features a protective powder coating for durability.
• Lagring: For prolonged periods of non-use or during severe weather, it is recommended to disassemble the umbrella and store it in a dry, protected area.
• Undersøkelse: Regularly inspect the ribs, pole, and base for any signs of wear, damage, or loose connections. Tighten any loose screws or bolts as needed.

Image 7: Detail of the heavy-duty ribs with protective powder coating, designed for stability.

Image 8: The resinous material of the base, indicating waterproof, sunproof, and aging-resistant properties.

7. Feilsøking

• Umbrella not opening/closing smoothly: Check the crank mechanism for any obstructions or debris. Ensure the canopy fabric is not tangled. Apply a silicone-based lubricant to moving parts if necessary.
• Umbrella is unstable: Verify that the base is placed on a completely flat and level surface. Ensure the tightening knob on the base pole is fully secured. If using with a table, ensure the table provides adequate support.
• Umbrella damaged by wind: Always close and secure the umbrella when not in use or during windy conditions. Wind damage is typically not covered under warranty.

8. Spesifikasjoner

9. Garanti og støtte

For warranty information, product support, or to inquire about replacement parts, please contact Yaheetech customer service directly. Details regarding specific warranty periods and terms are typically provided with your purchase documentation or can be found on the official Yaheetech webnettstedet.
