1. Introduksjon
Thank you for choosing the AIYAPLAY 6V 3-Wheel Electric Motorcycle for Kids. This manual provides important information for the safe assembly, operation, and maintenance of your product. Please read it thoroughly before use and retain it for future reference.
Figure 1: Child enjoying the electric motorcycle with bubbles.
2. Sikkerhetsinformasjon
- Tilsyn av voksne kreves: This product must be used under direct adult supervision at all times.
- Aldersgruppe: Suitable for children aged 2 to 5 years.
- Maksimal vektkapasitet: Do not exceed a maximum load of 30 kg.
- Fart: The motorcycle operates at a controlled speed of 2.5-3 km/h.
- Verneutstyr: Sørg alltid for at barnet bruker passende sikkerhetsutstyr, inkludert hjelm, knebeskyttere og albuebeskyttere.
- Driftsmiljø: Use on flat, dry surfaces away from traffic, swimming pools, or other hazards.
- Batterisikkerhet: Follow all instructions regarding battery charging and handling to prevent electric shock or fire.
Figure 2: The motorcycle features a functional headlight and a stable three-wheel design for safety.
3. Pakkens innhold
Vennligst sjekk pakken nøye for å sikre at alle komponenter er til stede og uskadet:
- Hjul
- Batteri
- Sete
- Motor
- Main Motorcycle Body
- Charger (not explicitly listed but implied for an electric vehicle)
- Assembly Hardware (screws, nuts, etc. - not explicitly listed but implied)
Figure 3: The product is delivered in a single package.
4. Monteringsinstruksjoner
Assembly is required before first use. Please follow these general steps. Refer to the detailed diagrams in your physical manual for specific part placement.
- Pakk ut komponenter: Ta forsiktig alle delene ut av emballasjen og legg dem ned.
- Fest hjul: Securely attach the front and rear wheels to the motorcycle body using the provided hardware. Ensure they rotate freely.
- Installer styret: Attach the handlebars to the steering column.
- Koble til batteri: Locate the battery compartment, typically under the seat. Connect the battery terminals according to the polarity markings (+ to +, - to -).
- Installer sete: Place the seat onto the motorcycle body and secure it.
- Sluttsjekker: Before first use, ensure all screws are tightened, connections are secure, and the motorcycle is stable.
Figure 4: Components and controls for assembly and operation.
5. Bruksanvisning
Familiarize yourself with the controls before allowing a child to operate the motorcycle.
- Slå på/av: Locate the main power switch, usually near the dashboard or seat. Turn it to the "ON" position to activate the motorcycle.
- Forover/bakover: Use the designated switch (as shown in Figure 4) to select either forward or reverse motion.
- Akselerasjon: Press the foot pedal (as shown in Figure 4) to engage the motor and move the motorcycle. Release the pedal to stop.
- Styring: Use the handlebars to steer the motorcycle left or right.
- Frontlys: The motorcycle is equipped with a functional headlight that activates when the power is on.
- Musikk og lyder: The motorcycle features integrated music and sound effects. Controls for these are typically located on the dashboard.
- Boblefunksjon:
- Locate the bubble solution reservoir, usually at the rear of the motorcycle.
- Pour appropriate bubble solution (not included) into the reservoir.
- Activate the bubble function using the dedicated switch (refer to Figure 4). Bubbles will be produced while the motorcycle is in motion or music is playing.
Figure 5: The motorcycle offers interactive features including a bubble machine and music playback.
6. Vedlikehold
Regular maintenance ensures the longevity and safe operation of your electric motorcycle.
- Rengjøring: Wipe the motorcycle with a damp klut. Ikke bruk skurende rengjøringsmidler eller dypp i vann.
- Batterilading:
- Charge the battery fully before first use (typically 8-12 hours).
- Ikke overlad batteriet.
- Recharge the battery after each use, or at least once a month if not in use, to prolong its lifespan.
- Bruk kun laderen levert av produsenten.
- Bubble System: After each use of the bubble function, empty any remaining solution and rinse the reservoir with clean water to prevent clogging.
- Lagring: Store the motorcycle in a dry, cool place away from direct sunlight and moisture.
- Inspeksjoner: Periodically check all screws, connections, and moving parts for wear or damage. Tighten loose screws as needed.
7. Feilsøking
Hvis du støter på problemer, kan du se følgende vanlige problemer og løsninger:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Motorcycle does not move. | Battery is low or not connected. Power switch is off. Foot pedal not pressed. | Charge the battery. Ensure battery is connected. Turn power switch ON. Press foot pedal firmly. |
| Lys eller lyder fungerer ikke. | Battery is low. Wiring issue. | Charge the battery. Check all wiring connections. |
| Bubble function not working. | No bubble solution. Reservoir clogged. Bubble switch off. | Fill reservoir with solution. Clean reservoir and nozzle. Turn bubble switch ON. |
| Motorcycle moves slowly. | Low battery. Overloaded. | Charge the battery. Ensure weight does not exceed 30 kg. |
8. Produktspesifikasjoner
| Trekk | Detalj |
|---|---|
| Merke | AIYAPLAY |
| Modellnummer | 370-339V90CW |
| Materiale | Metall, plast |
| Produktdimensjoner (L x B x H) | 80L x 36B x 43.5H cm |
| Varevekt | 4.7 kg |
| Anbefalt alder | 2-5 years (24-60 months) |
| Maksimal lastekapasitet | 30 kg |
| Fart | 2.5-3 km/t |
| Batteri voltage | 6V |
| Montering påkrevd | Ja |
| Opprinnelsesland | Kina |

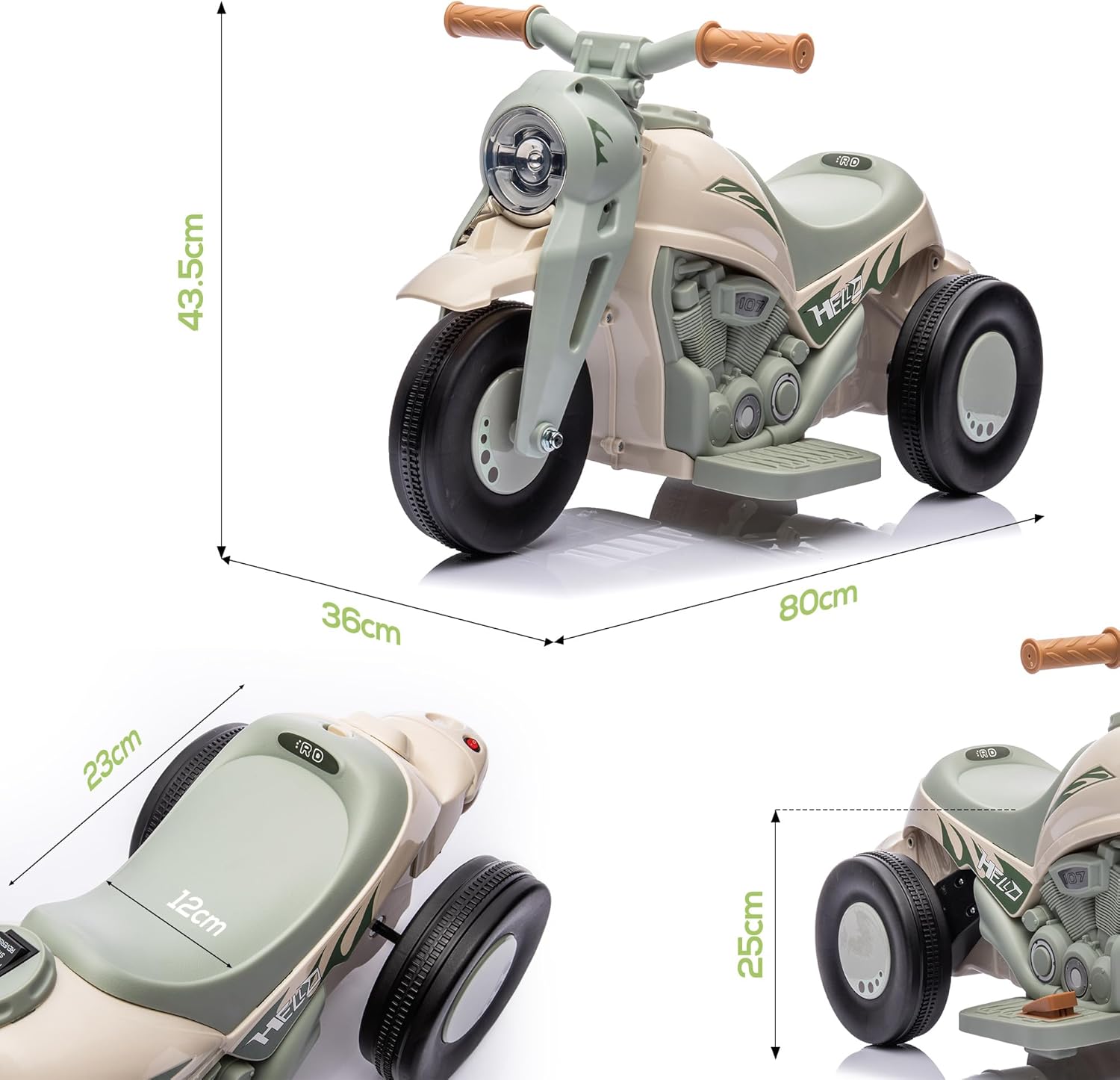

Figur 6: Detaljerte produktdimensjoner.
9. Garanti og støtte
Your AIYAPLAY Electric Motorcycle comes with a 2 års produsentgaranti. Denne garantien dekker defekter i materialer og utførelse ved normal bruk.
For warranty claims, technical support, or replacement parts, please contact the seller, Aosom FR, directly through your purchase platform. Please have your model number (370-339V90CW) and proof of purchase ready.
