Lian Li SP1000P Platinum 1000W SFX Power Supply User Manual

1. Introduksjon

This manual provides detailed instructions for the installation, operation, and maintenance of your Lian Li SP1000P Platinum 1000W SFX Power Supply. Please read this manual thoroughly before using the product to ensure proper functionality and safety.

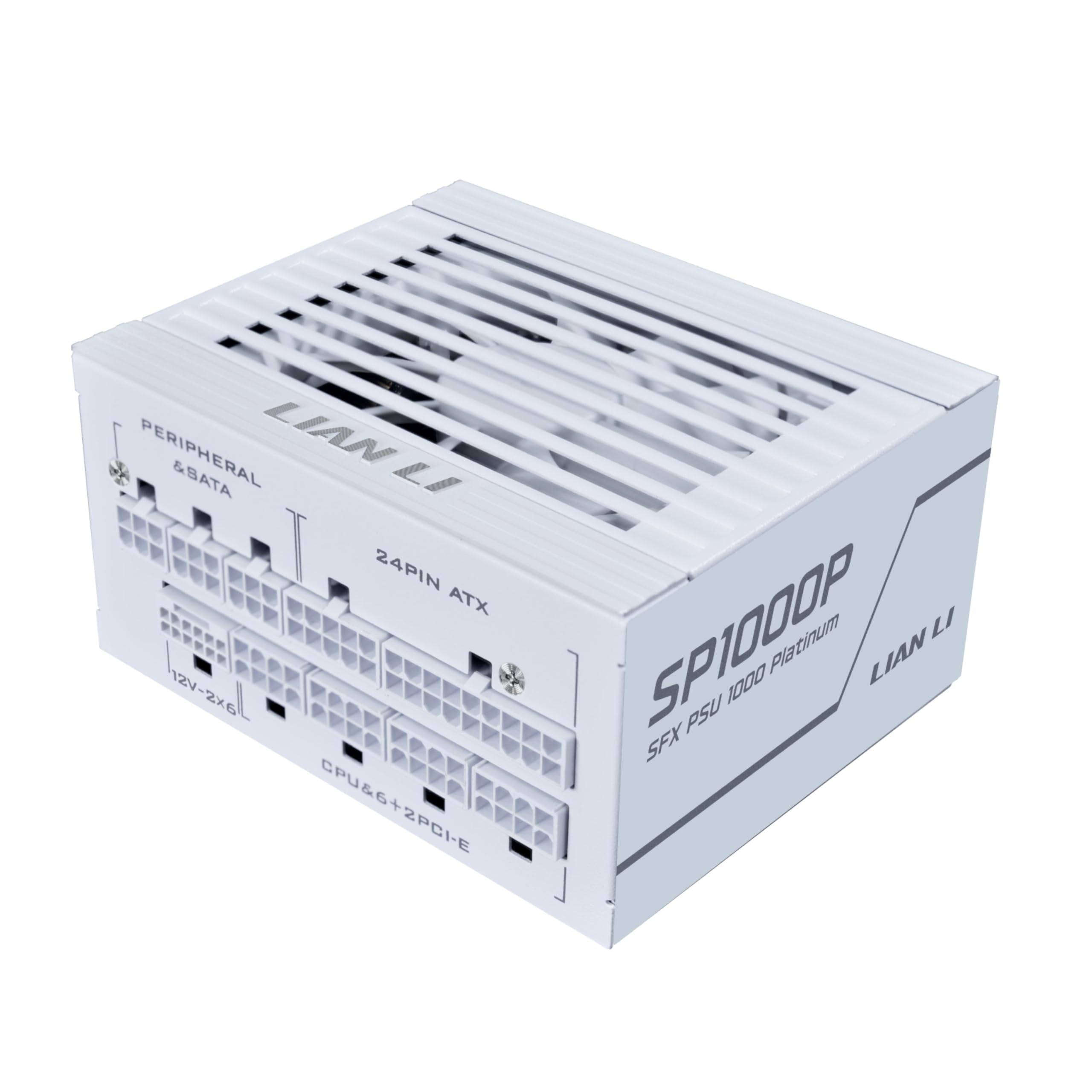

Image 1.1: The Lian Li SP1000P Platinum 1000W SFX Power Supply.

2. Sikkerhetsinformasjon

Følg alltid følgende sikkerhetsregler:

• Ensure the power supply is disconnected from the main power outlet before installation or maintenance.
• Do not open the power supply unit. There are no user-serviceable parts inside. Opening the unit will void the warranty.
• Installer strømforsyningen i et godt ventilert område for å forhindre overoppheting.
• Use only the modular cables provided with the power supply. Using incompatible cables may cause damage to the PSU or connected components.
• Ensure all cable connections are secure before powering on the system.

3. Pakkens innhold

Bekreft at alle varene er til stede i pakken din:

• Lian Li SP1000P Platinum 1000W SFX Power Supply
• Modular Cable Set (including 12V-2x6, 24-pin ATX, CPU/ATX 12V, PCI-E, SATA, SATA-PATA connectors)
• SFX-to-ATX Mounting Bracket
• AC Power Cord with In-line Switch
• Kabelbånd
• Brukerhåndbok

4. Oppsett og installasjon

4.1. Fysisk installasjon

The Lian Li SP1000P features a compact SFX form factor, making it suitable for small-form-factor cases. An included SFX-to-ATX bracket allows for installation in standard mid-tower and full-tower ATX cases.

Image 4.1: Dimensions of the SFX Power Supply (125mm W x 63.5mm H x 100mm D).

Image 4.2: The included SFX-to-ATX bracket for versatile case compatibility.

4.2. Kabeltilkoblinger

Connect the necessary modular cables to your components. The SP1000P comes with flexible, braided cables for easier routing and a clean build.

• 12V-2x6 Connector: For next-generation GPUs, ensure the blue-marked 12V-2x6 connector is fully inserted until the colored part disappears into the socket. This provides visual confirmation of a secure connection.
• 24-pinners ATX: Connect to your motherboard.
• CPU/ATX 12V: Connect to your CPU power input on the motherboard. Two full sets are provided for high-end motherboards.
• PCI-E: Connect to your graphics card(s).
• SATA/SATA-PATA: Connect to storage drives and other peripherals.

Image 4.3: Proper insertion of the 12V-2x6 connector for secure power delivery to GPUs.

Image 4.4: The flexible braided modular cables designed for easy cable management.

4.3. Internal Power Switch Cable

The included AC power cord with an integrated on/off switch is useful for systems where the PSU's main switch is difficult to access. Ensure the switch on this cable is in the ON position when connecting or disconnecting the main power cable to the PSU.

Image 4.5: The convenient internal power switch cable for easy power control.

5. Bruksanvisning

5.1. Smart Cooling Feature

The SP1000P features a smart cooling system with a zero-RPM mode. The fan remains off for silent operation when the power load is at or below 40%. As the system load increases above 40%, the fan will gradually ramp up to maintain optimal temperatures and ensure long-term reliability.

Image 5.1: Illustration of the Smart Cooling feature with fan speed and noise level graphs relative to power output.

5.2. Slå på/av

After all connections are made and secured, ensure the main power switch on the PSU (or the in-line switch if used) is in the 'ON' position. Then, power on your computer system as usual.

6. Vedlikehold

For å sikre strømforsyningens levetid og optimale ytelse, følg disse vedlikeholdsretningslinjene:

• Støvfjerning: Periodically clean the exterior of the power supply and the fan grille to prevent dust buildup, which can impede airflow and lead to overheating. Use compressed air or a soft brush.
• Kabelinspeksjon: Regularly check all modular cable connections to ensure they remain secure and free from damage.
• Miljø: Bruk strømforsyningen i et rent, tørt og godt ventilert miljø. Unngå ekstreme temperaturer og fuktighet.

7. Feilsøking

If you encounter issues with your power supply, refer to the following common troubleshooting steps:

• Ingen strøm:
  • Ensure the main power cable is securely connected to both the PSU and the wall outlet.
  • Verify that the power switch on the PSU (and the in-line switch if used) is in the 'ON' position.
  • Check all modular cable connections, especially the 24-pin ATX and CPU power cables, to ensure they are fully seated.
• Systemustabilitet/krasj:
  • Ensure the 12V-2x6 connector for your GPU is fully inserted, as indicated by the disappearance of the blue colored part.
  • Confirm that your system's power requirements do not exceed the PSU's 1000W capacity.
• Unusual Noise (e.g., Coil Whine):
  • While some electronic components can exhibit minor coil whine under certain loads, persistent or loud noise may indicate an issue. Ensure the PSU is properly mounted and not vibrating against the case.
  • If the noise is excessive or concerning, contact Lian Li support.

If problems persist after following these steps, please contact Lian Li customer support for further assistance.

8. Spesifikasjoner

The following table details the technical specifications of the Lian Li SP1000P Platinum 1000W SFX Power Supply:

Image 8.1: Detailed specifications for the SP1000P and SP850P models.

9. Garanti

The Lian Li SP1000P Platinum 1000W SFX Power Supply comes with a 10 års garanti from the date of purchase. This warranty covers defects in materials and workmanship under normal use. For warranty claims or further details, please refer to the official Lian Li webnettstedet eller kontakt deres kundestøtte.

10. Støtte

For technical support, product inquiries, or assistance with troubleshooting, please visit the official Lian Li webnettstedet eller kontakt kundeserviceavdelingen deres. Ha kjøpskvitteringen og produktets serienummer lett tilgjengelig når du søker støtte.
