Introduksjon
Thank you for choosing the Garvee FS-201 Slush Machine. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before first use and keep it for future reference.
Sikkerhetsinstruksjoner
- Always ensure the sugar content of your mixture is at least 4% to prevent damage to the machine and ensure proper freezing.
- Ikke senk hovedenheten i vann eller andre væsker.
- Keep hands and utensils out of the mixing chamber during operation.
- Sørg for at maskinen er plassert på en stabil, jevn overflate.
- Koble fra apparatet før rengjøring eller når det ikke er i bruk.
- Dette apparatet er kun til husholdningsbruk.
- Oppbevares utilgjengelig for barn.
Produkt overview og komponenter
Familiarize yourself with the parts of your Garvee FS-201 Slush Machine.
Figur 1: eksploderte view of the Garvee FS-201 Slush Machine, showing the main components such as the filling port with lid, mixing paddle, container, ergonomic handle, removable splash-proof spout, condensation collector, drip tray cover, drip tray holder, motor body, and control panel.
- Filling Port with Lid: For adding ingredients.
- Blandepadle: Ensures consistent slush texture.
- Container: Holds the liquid mixture. Capacity up to 1.9L.
- Ergonomisk håndtak: For easy pouring.
- Removable Splash-Proof Spout: Directs the slush into your glass.
- Kondensoppsamler: Gathers excess moisture.
- Drip Tray Cover & Holder: Collects spills and keeps the area clean.
- Motorkropp: Houses the main operational components.
- Kontrollpanel: For selecting programs and settings.
Oppsett
- Pakke ut: Fjern forsiktig all emballasje og sørg for at alle komponenter er til stede.
- Rengjøre: Before first use, wash all removable parts (container, mixing paddle, spout, drip tray) with warm soapy water. Rinse thoroughly and dry.
- Samle: Reassemble the clean, dry components onto the motor body. Ensure the container is securely locked in place.
- Plassering: Place the machine on a stable, flat, and dry surface, away from heat sources and direct sunlight. Ensure adequate ventilation around the unit.
- Strømtilkobling: Koble strømledningen til en jordet stikkontakt.
Bruksanvisning
The Garvee FS-201 offers a simple three-step process for delicious frozen beverages.
Figur 2: Visual guide to the three simple steps for preparing frozen drinks.
- Forbered blandingen din: Pour your desired liquid mixture into the container. Ensure the sugar content is at least 4%. The machine does not require ice cubes.
Figur 3: Adding liquid mixture to the machine. Note: Allulose can be used as an alternative sweetener.
- Velg program: Use the control panel to select one of the five preset programs. You can also adjust the intensity/temperature (10 adjustable levels).

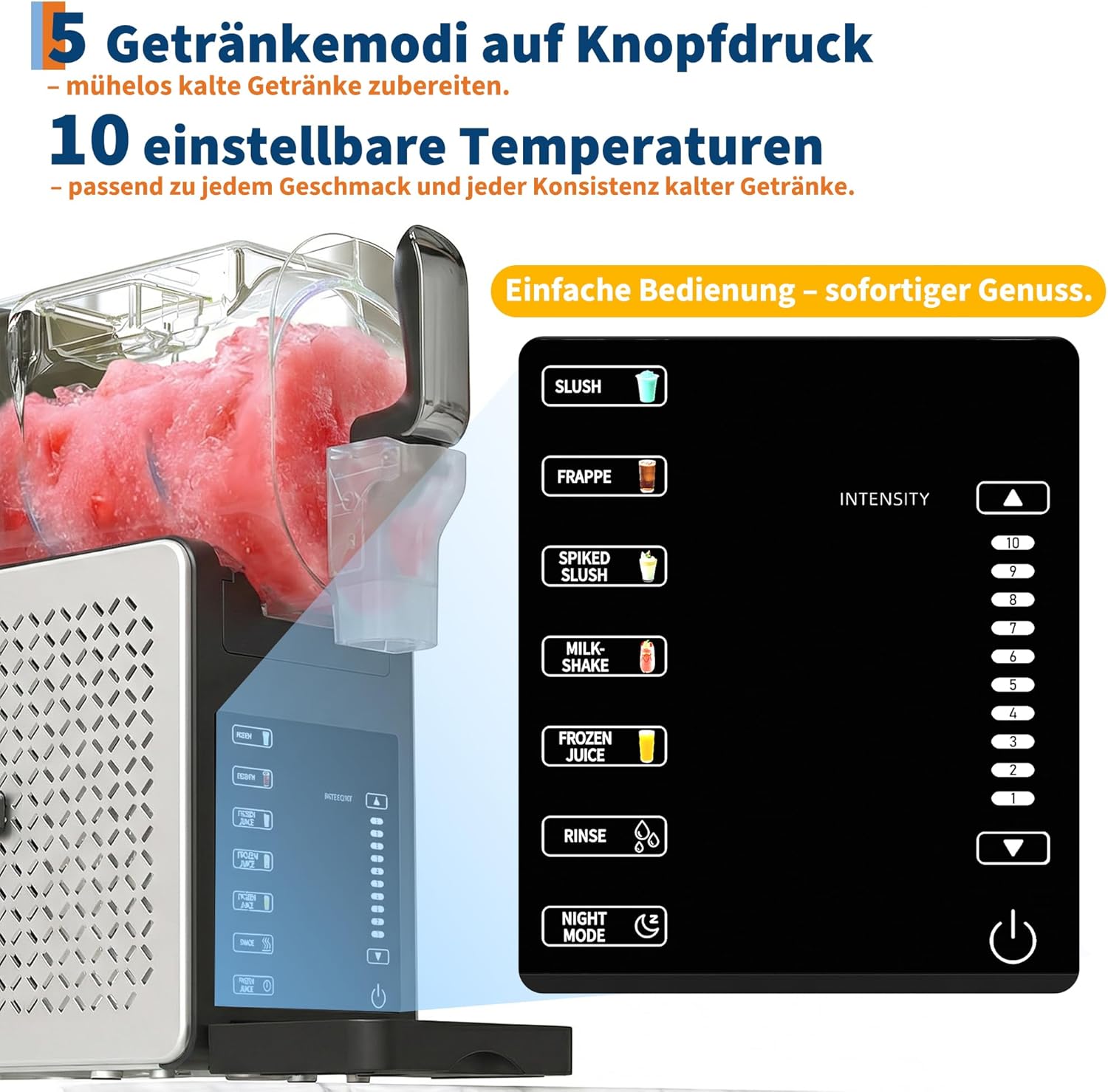

Figur 4: The control panel with options for Slush, Frappe, Spiked Slush, Milkshake, Frozen Juice, Rinse, and Night Mode, along with intensity levels 1-10.
Tilgjengelige programmer:
- Slush: For classic slushies.
- Frappe: For thicker, blended drinks.
- Spiked Slush: For alcoholic frozen beverages (ensure alcohol content is between 2.8% and 16%).
- Milkshake: For kremete milkshakes.
- Frozen Juice: For frozen fruit juices.
The machine operates quietly, below 45dB. Preparation time typically ranges from 15 to 60 minutes, depending on the selected program and desired consistency.
Figur 5: Slush being dispensed, highlighting the preparation time and quiet operation. The sugar content must be above 4%.
- Dispense and Enjoy: Once the program is complete, dispense your frozen drink using the ergonomic handle and spout.
Nattmodus
The Night Mode feature allows you to keep your prepared slush fresh overnight, ready for enjoyment the next morning. Select this mode after your drink is prepared if you wish to store it in the machine.
Figur 6: The Garvee FS-201 is suitable for use from morning (smoothies) to night (desserts/cocktails), with a night mode for freshness.
Vedlikehold og rengjøring
Regular cleaning ensures optimal performance and longevity of your Garvee FS-201 Slush Machine. The machine features multiple cleaning modes for convenience.
Figur 7: Cleaning features of the Garvee FS-201, including self-cleaning, removable and washable components, dishwasher-safe parts, and BPA-free materials.
- Selvrensende funksjon:
- Fill the container with clean water.
- Select the "Rinse" program on the control panel.
- Allow the machine to run the cleaning cycle.
- Tøm vannet.
Figur 8: The cleaning process, starting with automatic cleaning via the "Rinse" function.
- Disassembly and Manual Cleaning:
- Koble fra maskinen.
- Disassemble the container, mixing paddle, and spout.
- Wash these parts with warm soapy water. They are BPA-free and dishwasher safe.
- Wipe the main motor body with a damp klut. Ikke senk den i vann.
- Sørg for at alle deler er helt tørre før montering og lagring.
Feilsøking
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Maskinen slås ikke på. | Ikke koblet til; slå av strømmentage; defekt stikkontakt. | Sjekk strømledningens tilkobling; kontroller strømforsyningen; prøv en annen stikkontakt. |
| Mixture is not freezing properly. | Insufficient sugar content; ambient temperature too high; machine overloaded. | Ensure sugar content is at least 4%; operate in a cooler environment; do not exceed max fill line. |
| Machine is making unusual noise. | Parts not assembled correctly; foreign object in container. | Disassemble and reassemble parts; check for obstructions. |
| Leaking from the spout. | Spout not properly attached; seal damaged. | Ensure spout is securely attached; inspect seals for damage and replace if necessary. |
Spesifikasjoner
| Merke | Garvee |
| Modell | FS-201 |
| Materiale | ABS |
| Kapasitet | Max 1.9 L, Min 0.45 L |
| Dimensjoner (L x B x H) | 45.2 x 18 x 42.8 cm (16.7 x 7 x 16.9 tommer) |
| Varevekt | 13 kg |
| Støynivå | Under 45dB |
| Forberedelsestid | 15-60 minutter |
| Required Sugar Content | ≥4 % |
| Alcohol Content (Spiked Slush) | 2.8 % til 16 % |
Figur 9: Dimensions and capacity details of the Garvee FS-201 Slush Machine.
Garanti og støtte
The Garvee FS-201 Slush Machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.
For technical support, troubleshooting assistance, or warranty claims, please contact Garvee customer service through the retailer where the product was purchased or visit the official Garvee webnettstedet.
Merk: Kjøpsbevis kan være nødvendig for garantiservice.
