Volkano VKX-3000-BK VolkaoX Adder Series Portable Bluetooth Speaker User Manual

Introduksjon

Takk for kjøpetasing the Volkano VKX-3000-BK VolkaoX Adder Series Portable Bluetooth Speaker. This manual provides important information regarding the setup, operation, and maintenance of your device. Please read it thoroughly to ensure optimal performance and longevity of your speaker.

The Volkano VKX-3000-BK is a versatile Bluetooth speaker designed to deliver clear audio with powerful bass. It features wireless connectivity, a durable design, long-lasting battery, and an integrated microphone for hands-free calls. Its compact and lightweight design makes it suitable for various environments.

Pakkeinnhold

• Volkano VKX-3000-BK VolkaoX Adder Series Portable Bluetooth Speaker
• Ladekabel
• Brukerhåndbok (dette dokumentet)

Produkt overview

Familiarize yourself with the various components and controls of your Volkano VKX-3000-BK speaker.

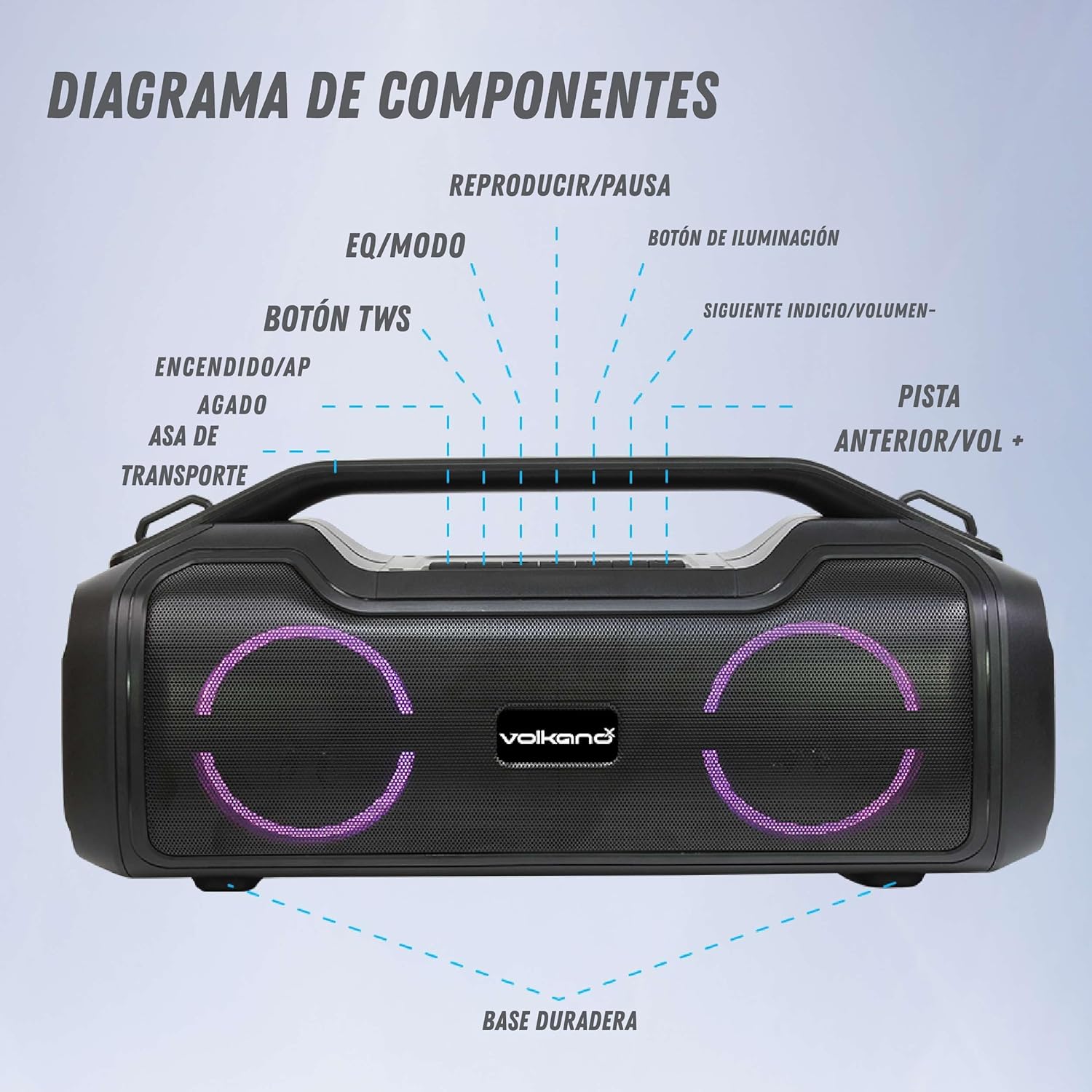

Bilde: Component Diagram of the Volkano VKX-3000-BK speaker. This image labels the various buttons and features on the top and front of the speaker, including the power button, TWS button, EQ/Mode button, Play/Pause, Illumination button, Next Track/Volume+, Previous Track/Volume-, and the durable base.

• Slå på/av: Knapp for å slå høyttaleren på eller av.
• Transporthåndtak: Integrert håndtak for enkel portabilitet.
• TWS-knapp: For True Wireless Stereo pairing with another compatible speaker.
• EQ/Mode Button: To switch between equalizer presets or input modes (Bluetooth, AUX, USB, etc.).
• Spill av/pause-knapp: For å kontrollere lydavspilling.
• Illumination Button: To control the speaker's LED lighting effects.
• Next Track/Volume +: Kort trykk for neste spor, langt trykk for å øke volumet.
• Previous Track/Volume -: Kort trykk for forrige spor, langt trykk for å redusere volumet.
• Durable Base: Provides stability for the speaker.

Oppsett

1. Lading av høyttaleren

Before first use, fully charge the speaker. Connect the charging cable to the speaker's charging port and to a suitable USB power adapter (not included). The charging indicator will show the charging status. A full charge typically takes 4-8 hours.

Bilde: The Volkano VKX-3000-BK speaker positioned next to a pool, illustrating its portability. The image also highlights key battery specifications: 4400 mAh battery capacity, 5V/1A power bank output, and 4-8 hours charging time, providing approximately 7 hours of playback.

2. Slå på/av

Press and hold the Power On/Off button for a few seconds to turn the speaker on or off. A sound indicator will confirm the action.

Bruksanvisning

1. Bluetooth-paring

1. Ensure the speaker is powered on and in Bluetooth mode. The speaker will typically enter pairing mode automatically upon startup, indicated by a flashing LED light.
2. Gå til Bluetooth-innstillingene på smarttelefonen, nettbrettet eller en annen Bluetooth-aktivert enhet.
3. Søk etter available devices and select "Volkano VKX-3000-BK" from the list.
4. Når den er paret, vil høyttaleren avgi en bekreftelseslyd, og LED-lampen vil slutte å blinke.
5. Du kan nå spille av lyd fra enheten din via høyttaleren.

Bilde: Front view of the Volkano VKX-3000-BK speaker, showcasing its dual speaker grilles with active blue LED illumination. The VolkanoX logo is visible between the speakers, and a sturdy handle is at the top.

2. Funksjon for ekte trådløs stereo (TWS)

To pair two Volkano VKX-3000-BK speakers for a stereo sound experience:

1. Sørg for at begge høyttalerne er slått på og ikke koblet til noen annen Bluetooth-enhet.
2. Trykk på TWS-knappen på en av høyttalerne. Den vil gå inn i TWS-paringsmodus.
3. The speakers will automatically connect to each other. A confirmation sound will indicate successful pairing.
4. Now, connect your Bluetooth device to one of the paired speakers as described in the "Bluetooth Pairing" section. Both speakers will play audio in stereo.

3. Controlling Playback and Volume

• Spill av/pause: Trykk på Play/Pause-knappen.
• Neste spor: Short press the "Next Track/Volume +" button.
• Forrige spor: Short press the "Previous Track/Volume -" button.
• Øk volumet: Long press the "Next Track/Volume +" button.
• Senk volum: Long press the "Previous Track/Volume -" button.

4. Changing Modes (EQ/Mode)

Press the EQ/Mode button to cycle through available input modes (e.g., Bluetooth, AUX, USB, FM Radio if supported). Long press the EQ/Mode button to cycle through equalizer presets (e.g., Pop, Rock, Classic, Jazz, Flat).

5. LED-belysning

Press the Illumination button to change or turn off the LED lighting effects on the speaker.

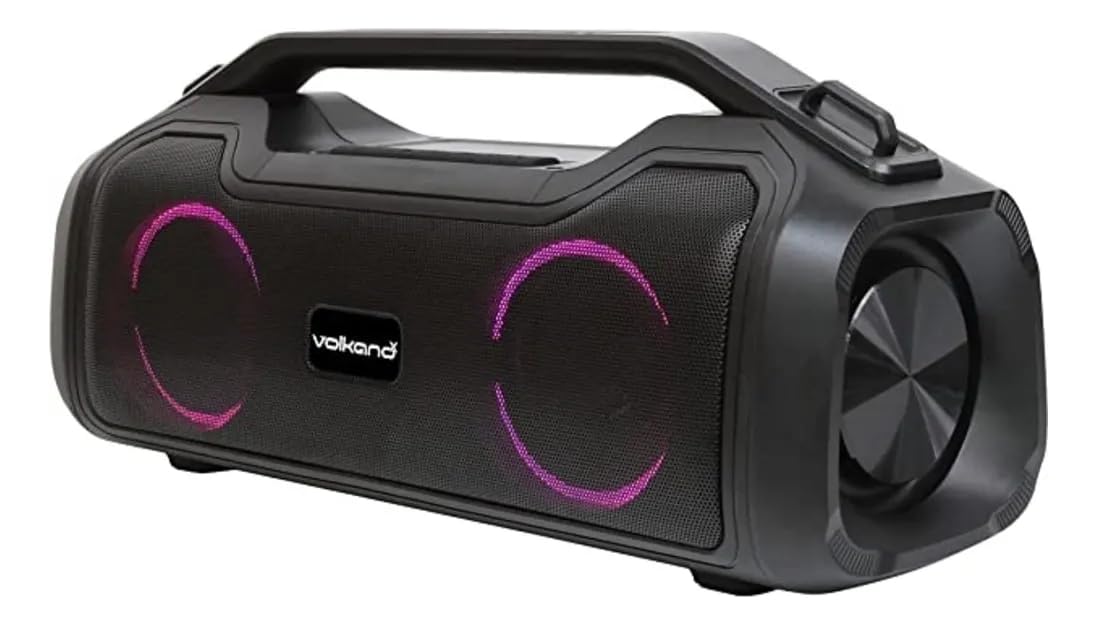

Bilde: Side view of the Volkano VKX-3000-BK speaker, showing the robust design and the circular speaker grille with purple LED lighting. The top panel with control buttons and the integrated handle are also visible.

6. Håndfri samtale

When connected to a smartphone via Bluetooth, the speaker's integrated microphone allows for hands-free calls. Press the Play/Pause button to answer or end a call.

Vedlikehold

• Rengjøring: Bruk en myk, tørr klut til å rengjøre høyttalerens utside. Ikke bruk slipende rengjøringsmidler eller løsemidler.
• Lagring: Oppbevar høyttaleren på et kjølig og tørt sted, unna direkte sollys og ekstreme temperaturer.
• Batteripleie: For å forlenge batterilevetiden, unngå å utlade høyttaleren helt ofte. Lad den regelmessig, selv om den ikke er i bruk over lengre tid.
• Vannmotstand: While designed for outdoor use, avoid submerging the speaker in water or exposing it to heavy rain.

Feilsøking

Spesifikasjoner

Garanti og støtte

Garantiinformasjon

This product comes with a 30-day seller warranty. Please retain your proof of purchase for any warranty claims. The warranty covers manufacturing defects but does not cover damage caused by misuse, accidents, or unauthorized modifications.

Kundestøtte

For technical assistance or warranty inquiries, please contact your retailer or visit the official Volkano website for support resources. Ensure you have your product model number (VKX-3000-BK) and proof of purchase ready when contacting support.

Sikkerhetsinformasjon

• Ikke utsett høyttaleren for ekstreme temperaturer, direkte sollys eller høy luftfuktighet.
• Ikke demonter eller forsøk å reparere høyttaleren selv. Dette vil ugyldiggjøre garantien.
• Hold høyttaleren unna barn og kjæledyr.
• Bruk kun den spesifiserte ladekabelen og strømadapteren.
• Unngå å lytte på for høyt volum over lengre tid for å unngå hørselsskader.
