1. Introduksjon
The TUXING LY700 Scuba Diving System is an innovative tankless underwater breathing device designed for extended underwater exploration. This system provides a continuous air supply from the surface, eliminating the need for bulky oxygen tanks. It supports up to two divers simultaneously, offering a reliable and portable solution for various underwater activities.
Nøkkelfunksjoner:
- Dual-Diver Support: Accommodates two divers with a high-capacity compressor.
- Forlenget batterilevetid: Provides 7-10 hours of continuous operation.
- Auto-Drain Function: Automatically removes condensation for simplified maintenance.
- Sikkerhetsbeskyttelse: Includes low battery alerts, overheat, and overload protection.
- Portabilitet: Lightweight (11kg) and compact design for easy transport.
2. Sikkerhetsinformasjon
Read all safety warnings and instructions before using this product. Failure to follow these instructions may result in serious injury or death.
- Opplæring: This device is intended for use by individuals trained and certified in scuba diving or snorkeling techniques. Do not use without proper training.
- Depth Limits: Maximum diving depth is 18 meters (60 feet) for a single diver and 5 meters (16 feet) for two divers. Exceeding these limits can lead to decompression sickness or other serious health risks.
- Sjekker før dykket: Always perform a thorough pre-dive inspection of all components, including hoses, regulators, and the main unit, to ensure they are in good working order.
- Batteriovervåking: Pay attention to low battery alerts. Always return to the surface with sufficient battery life remaining.
- Overopphetingsbeskyttelse: The system is equipped with overheat protection. If the unit shuts down due to overheating, allow it to cool down completely before attempting to restart.
- Miljøforhold: Do not use in strong currents, heavy seas, or adverse weather conditions.
- Nødprosedyrer: Familiarize yourself with emergency ascent procedures and always dive with a buddy.
The TUXING LY700 unit features waterproof, roll-proof, and shake-resistant design, along with a low battery reminder and a double filter element for clean air supply.
3. Oppsett
Follow these steps to set up your TUXING LY700 Scuba Diving System before each use.
- Lad opp batteriet: Ensure the unit's battery is fully charged before use. Connect the charger to the charging port and a power source. The charging indicator will show the battery status.
- Attach the Buoy and Flag: Securely attach the red buoy and dive flag to the top of the main unit. This ensures visibility on the surface.
- Koble til luftslanger: Connect the air hoses to the designated ports on the main unit. Ensure a secure, airtight connection.
- Connect Regulators: Attach the breathing regulators to the other end of the air hoses. Verify that the connections are tight and free from leaks.
- Inspiser komponenter: Visually inspect all hoses, regulators, and the main unit for any signs of damage, wear, or obstructions.
- Place Unit in Water: Carefully place the main unit on the surface of the water. Ensure it floats stably and the air intake is clear of obstructions.

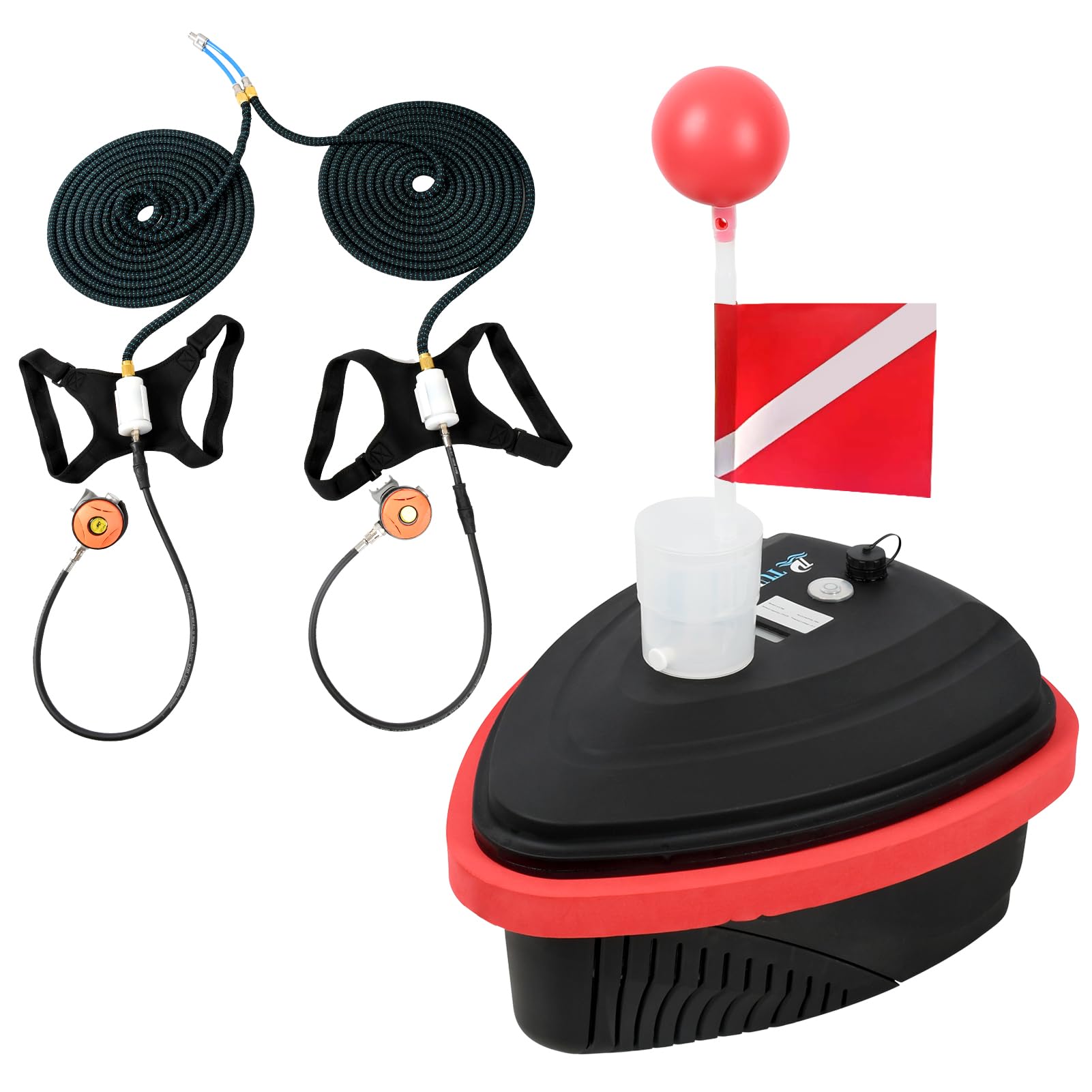

The complete TUXING LY700 system showing the main unit, two air hoses, and two regulators ready for assembly.
Detaljert view of the air hoses and regulators, highlighting their connection points.
4. Bruksanvisning
Operating the TUXING LY700 is straightforward, but adherence to proper procedures is essential for safety and performance.
- Strøm på: Locate the power button on the main unit and press it to turn on the system. The display will illuminate, showing battery status and other relevant information.
- Enter Water: Once the unit is powered on and floating, carefully enter the water with your regulator in your mouth.
- Puste: Breathe normally through the regulator. The system will continuously supply air from the surface.
- Monitor Depth and Time: Always be aware of your depth and the remaining battery life. The system provides low battery alerts.
- Ascend Safely: Plan your ascent to allow for safety stops if necessary, especially after deeper dives.
- Slå av: After exiting the water, turn off the main unit by pressing the power button.
The control panel and digital display on the TUXING LY700 unit, indicating battery level and operational status.
The TUXING LY700 system in its operational environment, highlighting its key performance metrics.
5. Vedlikehold
Regular maintenance ensures the longevity and safe operation of your TUXING LY700 system.
- Skyll etter bruk: After each use, thoroughly rinse the main unit, hoses, and regulators with fresh water to remove salt, sand, and other debris.
- Auto-Drain Function: The system features an auto-drain function to remove condensation. Ensure this function operates correctly after each use.
- Filterelement: The system uses a double filter element for clean air. Regularly inspect and replace the filter elements as needed to maintain air quality.
- Batteripleie: Store the unit with a partially charged battery (around 50-70%) if not using for an extended period. Avoid fully discharging the battery. Recharge fully before next use.
- Lagring: Store the unit and accessories in a cool, dry place, away from direct sunlight and extreme temperatures.
- Slangeinspeksjon: Periodically check hoses for cracks, kinks, or signs of wear. Replace damaged hoses immediately.
6. Feilsøking
This section addresses common issues you might encounter with your TUXING LY700 system.
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Enheten slås ikke på | Lavt eller utladet batteri; Av/på-knappen er ikke trykket riktig inn; Intern feil. | Charge the battery fully. Ensure the power button is pressed firmly. If issue persists, contact support. |
| No air supply or weak air flow | Hose kinked or disconnected; Clogged filter; Low battery; Compressor issue. | Check hoses for kinks or disconnections. Inspect and replace filter elements. Charge battery. If issue persists, contact support. |
| Enheten slår seg av uventet | Overheat protection activated; Low battery; Overload protection activated. | Allow unit to cool down completely. Check battery level and recharge. Reduce load if possible. |
| Water in air hose/regulator | Condensation buildup; Unit submerged incorrectly; Leak in hose/connection. | Ensure auto-drain function is working. Check unit's position on water. Inspect hoses and connections for leaks. |
7. Spesifikasjoner
Detailed technical specifications for the TUXING LY700 Scuba Diving System.
| Trekk | Spesifikasjon |
|---|---|
| Modell | LY700 |
| Lufttilførsel | 65 liter/minutt |
| Max. Diving Depth (Single Diver) | 18 meter (60 fot) |
| Max. Diving Depth (Two Divers) | 5 meter (16 fot) |
| Batterilevetid | 7-10 timer |
| Batterikapasitet | 132000 mAh |
| Batteristrøm | 1465 watt-time |
| Voltage | 11.1 V |
| Maskinvekt | 11 kg (24.25 lbs) |
| Materiale | Aluminium |
| Inkluderte komponenter | 1* 7-10 Hours diving ventilator |
Visual representation of the TUXING LY700's basic parameters and key features.
8. Garanti
The main parts of the TUXING LY700 Scuba Diving System are covered by a 1 års garanti from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper maintenance.
Ta vare på kjøpsbeviset for garantikrav.
9. Støtte
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact TUXING customer support. Refer to the contact information provided with your product packaging or visit the official TUXING webnettstedet for den mest oppdaterte støtteinformasjonen.
When contacting support, please have your product model (LY700) and purchase information readily available.
