Fender Mustang LTX50 Guitar Combo Amplivligere brukerhåndbok

Introduksjon

The Fender Mustang LTX50 is a versatile 50-watt modeling combo amplifier designed for guitarists seeking a wide range of authentic Fender tones and modern features. Equipped with a 12-inch Celestion G12P-80 speaker, it delivers dynamic sound suitable for practice, rehearsal, and performance. This amplifier offers 25 amp models and 25 effects, covering various musical styles from clean to high-gain. Its intuitive color display, onboard tuner, and 100 user preset slots provide easy customization and quick access to your preferred sounds. The Mustang LTX50 also features Bluetooth audio streaming for playing along with tracks and USB-C connectivity for direct recording and monitoring.

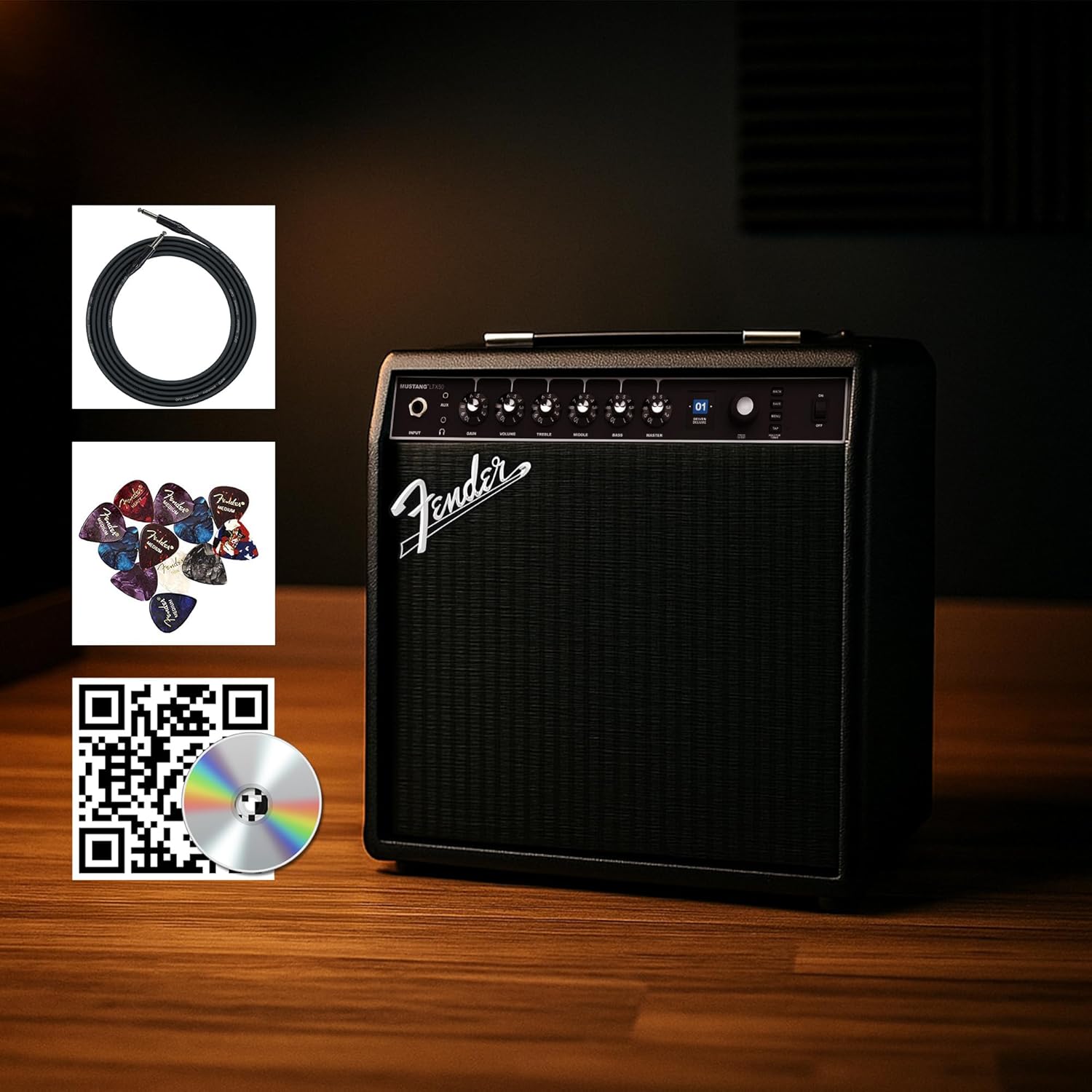

Figure 1: Fender Mustang LTX50 Guitar Combo AmpLifer med inkludert tilbehør.

Oppsett

1. Unboxing og innledende inspeksjon

• Fjern forsiktig ampFjerneren og alt tilbehør fra emballasjen.
• Inspiser amplifier for any signs of damage that may have occurred during shipping.
• Confirm all included items are present: Mustang LTX50 amplifier, power cord, instrument cable, 12-pack guitar picks, and instructional DVD.

2. Koble til strøm

• Sørg for at ampstrømbryteren på apparatet er i AV-posisjon.
• Connect the included power cord to the AC input on the rear panel of the amplivligere.
• Koble den andre enden av strømledningen til en jordet stikkontakt.

3. Connecting Your Guitar

• Use the included instrument cable to connect your guitar to the INNGANG jack on the front panel of the amplivligere.

4. Grunnleggende kontroller overview

Familiarize yourself with the front panel controls before powering on the amplivligere.

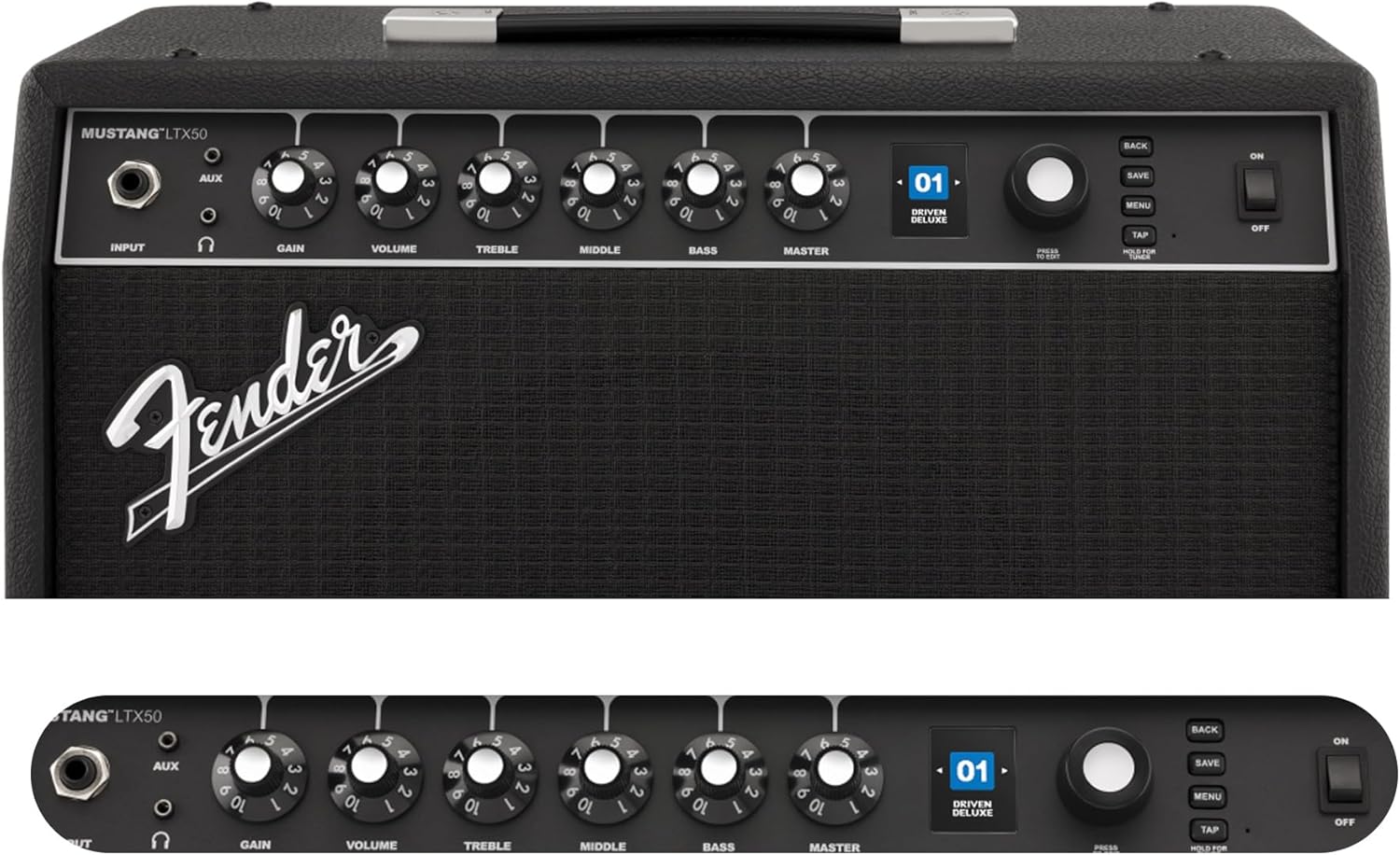

Figure 2: Front Panel Controls of the Mustang LTX50.

Bruksanvisning

1. Slå på/av

• To power on, ensure all volume controls are set to minimum, then flip the MAKT bytt til PÅ-posisjon.
• For å slå av strømmen, vri på MAKT bytte til AV-posisjon.

2. Navigating Presets

• Bruk KODER knob (large rotary knob) to scroll through the 100 available presets (70 factory, 30 user).
• Trykk på KODER knob to select a preset.
• The color LCD displays the current preset number and name.

3. Justering Amp Modeller og effekter

• Trykk på MENY for å få tilgang til amplifiers innstillinger.
• Navigate through options like AMP, STOMP, MOD, DELAY, REVERB using the KODER.
• Select an option and use the KODER to choose different amp modeller eller effekter.
• Adjust parameters for each effect using the smaller control knobs (GAIN, VOLUME, TREBLE, MIDDLE, BASS, MASTER) or by selecting parameters on the display.
• Pressen SPARE to store your customized preset.

4. Using the Built-in Tuner

• Trykk og hold inne TAP button to activate the chromatic tuner.
• Play a single note on your guitar; the display will show the note and indicate if it is sharp, flat, or in tune.
• Press any button or play for a few seconds to exit tuner mode.

5. Fender Tone 3.0 App Control

• Download the Fender Tone 3.0 app from your device's app store (iOS/Android).
• Aktiver Bluetooth på mobilenheten din.
• På amplifier, press the MENY button, navigate to "Bluetooth," and select "Pair."
• Select "Mustang LTX50" from your device's Bluetooth settings to connect.
• Use the app to wirelessly create, edit, save, and share presets, and to manage your ampinnstillinger for kjøler.

6. Playing Along with Audio (Bluetooth)

• Once paired via Bluetooth, you can stream audio from your mobile device directly to the amplivligere.
• Adjust the volume of the streamed audio from your mobile device.
• Alternatively, connect an external audio source to the AUX IN jack on the front panel using a 3.5mm stereo cable.

7. Recording via USB-C

• Connect a USB-C cable from the amplifier's USB-C port to your computer (Mac or PC).
• De amplifier functions as a bidirectional audio interface, allowing direct recording and monitoring.
• Refer to your Digital Audio Workstation (DAW) software's manual for specific setup instructions.

Vedlikehold

1. Rengjøring

• Koble fra amplifier from power before cleaning.
• Bruk en myk, tørr klut til å tørke av de utvendige overflatene.
• For gjenstridig smuss, en litt damp en klut med mild såpe kan brukes, etterfulgt av en tørr klut.
• Unngå bruk av slipende rengjøringsmidler, løsemidler eller voks, da disse kan skade overflaten.

2. Oppbevaring

• Lagre ampOppbevar væsken på et kjølig og tørt sted, unna direkte sollys og ekstreme temperaturer.
• Avoid storing in areas with high humidity.
• If storing for extended periods, cover the ampbeskyttelsesfilm for å beskytte den mot støv.

3. Safety Warnings (Proposition 65)

Dette produktet kan inneholde kjemikalier som staten California vet kan forårsake kreft, fødselsskader eller andre reproduksjonsskader. For mer informasjon, besøk www.P65Warnings.ca.gov.

Feilsøking

Ingen lyd

• Sørg for at ampApparatet er slått på og strømledningen er ordentlig tilkoblet.
• Check that your guitar is properly connected to the INNGANG jack.
• Bekreft at HERRE volume and individual preset volume controls are not set to zero.
• Test with a different instrument cable and guitar to rule out faulty equipment.
• If using headphones, ensure they are fully plugged into the headphone jack and that the main speaker is not muted.

Forvrengt eller uønsket støy

• Sjekk volum- og tonekontrollene på gitaren din.
• Reduser GEVINST innstillingen på amplivligere.
• Ensure your instrument cable is not damaged or poorly shielded.
• Prøv en annen stikkontakt for å utelukke elektrisk forstyrrelse.
• If using high-gain amp models, some distortion is inherent. Adjust settings accordingly.

Problemer med Bluetooth-tilkobling

• Ensure Bluetooth is enabled on both your mobile device and the amplivligere.
• Sørg for at amplifier is in pairing mode (refer to "Fender Tone 3.0 App Control" section).
• Flytt mobilenheten din nærmere amplivligere.
• Prøv å oppheve paringen og pare enhetene på nytt.
• Start begge på nytt amplifier og mobilenheten din.

Amplifier Not Responding

• Strømssyklus amplifier by turning it off, waiting 10 seconds, and turning it back on.
• If the issue persists, a factory reset may be necessary. Consult the Fender support website for instructions on performing a factory reset for the Mustang LTX50.

Spesifikasjoner

Figure 3: Rear Panel Connections of the Mustang LTX50.

Garantiinformasjon

The Fender Mustang LTX50 Guitar Combo AmpLifier er dekket av en 2 års begrenset garanti. This warranty covers defects in materials and workmanship under normal use. For full terms and conditions, please refer to the warranty documentation included with your product or visit the official Fender webnettstedet.

Støtte

For further assistance, technical support, or service inquiries regarding your Fender Mustang LTX50 amplifier, please visit the official Fender support webnettsted:

https://support.fender.com

You may also find additional resources, FAQs, and software updates on the Fender webnettstedet.
