GOYOJO NV980 4K Head-Mounted Night Vision Goggles User Manual

1. Introduksjon

Thank you for choosing the GOYOJO NV980 4K Head-Mounted Night Vision Goggles. This device is designed to provide clear vision in low-light and complete darkness, offering advanced features for various outdoor activities such as hunting, camping, wildlife observation, and security. With 4K video recording, 8X digital zoom, and a powerful 4500mAh rechargeable battery, these goggles enhance your nocturnal experience. Please read this manual thoroughly to ensure proper use and maintenance of your device.

2. Hva er i esken

• GOYOJO NV980 Night Vision Binoculars
• 32 GB MicroSD-kort
• Head Mount Strap
• USB-C ladekabel
• Bæreveske
• Brukerhåndbøker

Image: All items included in the GOYOJO NV980 package.

3. Produktet er overview

The GOYOJO NV980 features a robust design with intuitive controls for ease of use in challenging conditions. It integrates dual eyepieces with diopter adjustment, a powerful infrared illuminator, and a built-in flashlight.

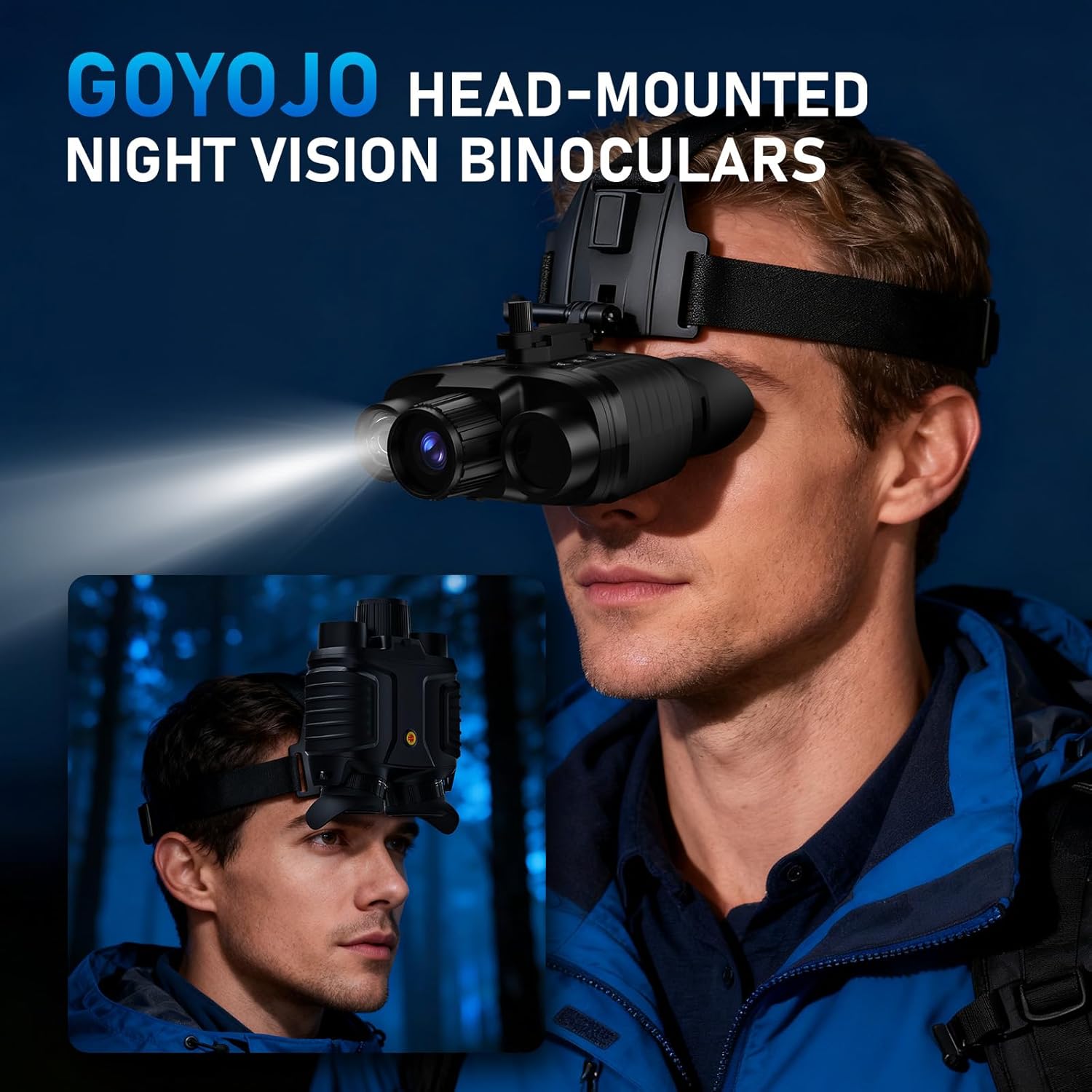

Bilde: Foran view of the GOYOJO NV980 Night Vision Goggles.

Bilde: Topp view of the GOYOJO NV980, displaying control buttons and focus wheel.

4. Oppsett

4.1 Lading av batteriet

The device is equipped with a 4500mAh rechargeable battery. Before first use, fully charge the device using the provided USB-C cable connected to a compatible power source. The charging indicator will show the charging status.

Image: The NV980 with its built-in 4500mAh rechargeable battery.

4.2 Sette inn minnekortet

Insert the included 32GB MicroSD card into the designated slot. Ensure it is inserted correctly until it clicks into place. This card is essential for recording photos and videos.

4.3 Bruk av enheten

The NV980 offers versatile wearing options:

• Håndholdt: Use as traditional binoculars for quick observation.
• Head-Mounted: Attach the device to the included head strap for hands-free operation. Adjust the straps for a secure and comfortable fit.
• Helmet-Compatible: The device can be mounted onto a tactical helmet (helmet not included) for specialized hands-free use.

Image: Various wearing modes for the NV980, including handheld, head-mounted, and helmet-mounted.

4.4 Adjusting Eyepieces

Each eyepiece features a diopter adjustment ring. Rotate these rings to achieve a clear focus for your individual vision, accommodating users with up to -8.0 diopters of nearsightedness without glasses.

5. Bruksanvisning

5.1 Strøm på/av

Press and hold the power button (usually marked with a power symbol) to turn the device on or off. The backlit buttons facilitate easy operation in the dark.

5.2 Adjusting IR Illumination

The NV980 features 7 levels of infrared (IR) illumination. Use the dedicated IR adjustment buttons to increase or decrease the IR intensity, allowing clear vision up to 984ft/300m in total darkness.

Image: Visual representation of the 7-level IR infrared adjustment.

5.3 Digital zoom

Utilize the 8X digital zoom function to magnify your view of distant objects. Use the zoom in/out buttons to adjust the magnification level.

Image: Demonstration of the 8X digital zoom feature.

5.4 Opptak av bilder og videoer

Press the dedicated record button to capture 4K videos or high-resolution photos directly onto the 32GB memory card. The device allows you to record and review your observations.

Image: 4K HD video recording capability.

5.5 Built-in White Flashlight

For emergencies or when white light is preferred, activate the built-in white flashlight. This feature provides additional utility in the field.

Image: Using the built-in white flashlight for emergencies.

5.6 Immersive Viewing erfaring

Both eyepieces share the same large internal screen, providing an immersive and comfortable viewopplevelse.

Image: Immersive viewing experience through the goggles.

5.7 Videodemonstrasjoner

6. Vedlikehold

• Rengjøring: Bruk en myk, lofri klut til å rengjøre linsene og utsiden av enheten. Unngå slipende materialer eller sterke kjemikalier.
• Lagring: Store the goggles in their protective carrying case in a cool, dry place when not in use.
• Batteripleie: For å forlenge batterilevetiden, unngå å utlade batteriet helt ofte. Lad det regelmessig, selv om det ikke er i aktiv bruk.
• Vannmotstand: The device is water repellent. Avoid submerging it in water.

7. Feilsøking

• Ingen strøm: Ensure the battery is fully charged. Check the USB-C cable connection during charging.
• Uskarpt bilde: Adjust the diopter rings on both eyepieces and the main focus wheel (Far/Near adjustment) until the image is clear.
• Poor Night Vision Performance: Increase the IR illumination level. Ensure there are no obstructions blocking the IR illuminator.
• Opptaksproblemer: Check if the 32GB MicroSD card is correctly inserted and has sufficient free space. Format the card if necessary (refer to device menu for formatting option).

8. Spesifikasjoner

9. Garanti og støtte

9.1 Garantiinformasjon

The GOYOJO NV980 Night Vision Goggles come with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its specified performance standards. Please retain your proof of purchase for warranty claims.

9.2 Kundestøtte

For any questions, technical assistance, or warranty claims, please contact GOYOJO customer support through the retailer where you purchased the product or visit the official GOYOJO website for contact information. Our team is dedicated to providing exceptional service and ensuring your satisfaction.
