Introduksjon
This manual provides essential information for the installation, maintenance, and troubleshooting of the replacement belt set for the Mastercraft 12-inch Floor Drill Press, Model 55-5919-6, Serial No. WO25351. This belt set is designed to ensure optimal performance and power transmission for your drill press. Proper installation and care will extend the life of your equipment and ensure safe operation.
Pakkeinnhold
- 2 x Replacement Belts
Please inspect the package contents upon receipt to ensure all items are present and undamaged. If any components are missing or damaged, contact your supplier immediately.
Kompatibilitet
This replacement belt set is specifically engineered for the following model:
- Drill Press Model: Mastercraft 12-inch Floor Drill Press, Model 55-5919-6, Serial No. WO25351
Using these belts with incompatible models may result in poor performance, damage to the drill press, or personal injury.
Sikkerhetsinformasjon
Always prioritize safety when working with power tools. Failure to follow safety guidelines can result in serious injury.
- Koble fra strømmen: Always unplug the drill press from the power source before performing any maintenance, adjustments, or belt replacement.
- Bruk verneutstyr: Use appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on the drill press.
- Read Drill Press Manual: Refer to your Mastercraft 12-inch Floor Drill Press owner's manual for specific safety instructions and procedures.
- Sikre komponenter: Ensure all covers and guards are properly reinstalled and secured before operating the drill press.
- Inspiser belter: Regularly inspect belts for wear, cracks, or damage. Replace worn belts promptly to prevent unexpected failure during operation.
Installation (Belt Replacement)
Follow these steps to replace the drive belts on your Mastercraft 12-inch Floor Drill Press:
- Koble fra strømmen: Ensure the drill press is unplugged from the electrical outlet.
- Open Belt Cover: Locate and open the belt cover on the top of the drill press. This usually involves unlatching or unscrewing the cover.
- Loosen Motor: Identify the motor mounting bolts or tensioning mechanism. Loosen these to allow the motor to move, reducing tension on the existing belts.
- Fjern gamle belter: Carefully roll the old belts off the pulleys. If the belts are severely worn or broken, they may come off easily.
- Rengjør trinser: Inspect the pulleys for any debris, grease, or wear. Clean them thoroughly to ensure optimal grip for the new belts.
- Installer nye belter: Place the new belts onto the pulleys. Start by seating them on the smaller pulley, then gently roll them onto the larger pulley while rotating it by hand if possible. Ensure the belts are seated correctly in the grooves.
- Juster remstrammingen: Adjust the motor position to achieve proper belt tension. The belts should be taut enough to prevent slipping but not so tight as to strain the motor or bearings. A good test is to press down on the center of the belt; it should deflect slightly (approximately 1/2 inch).
- Tighten Motor: Securely tighten the motor mounting bolts or tensioning mechanism.
- Close Belt Cover: Reinstall and secure the belt cover.
- Testoperasjon: Plug in the drill press and briefly run it at a low speed to ensure the belts are running smoothly and quietly. Listen for any unusual noises or vibrations.

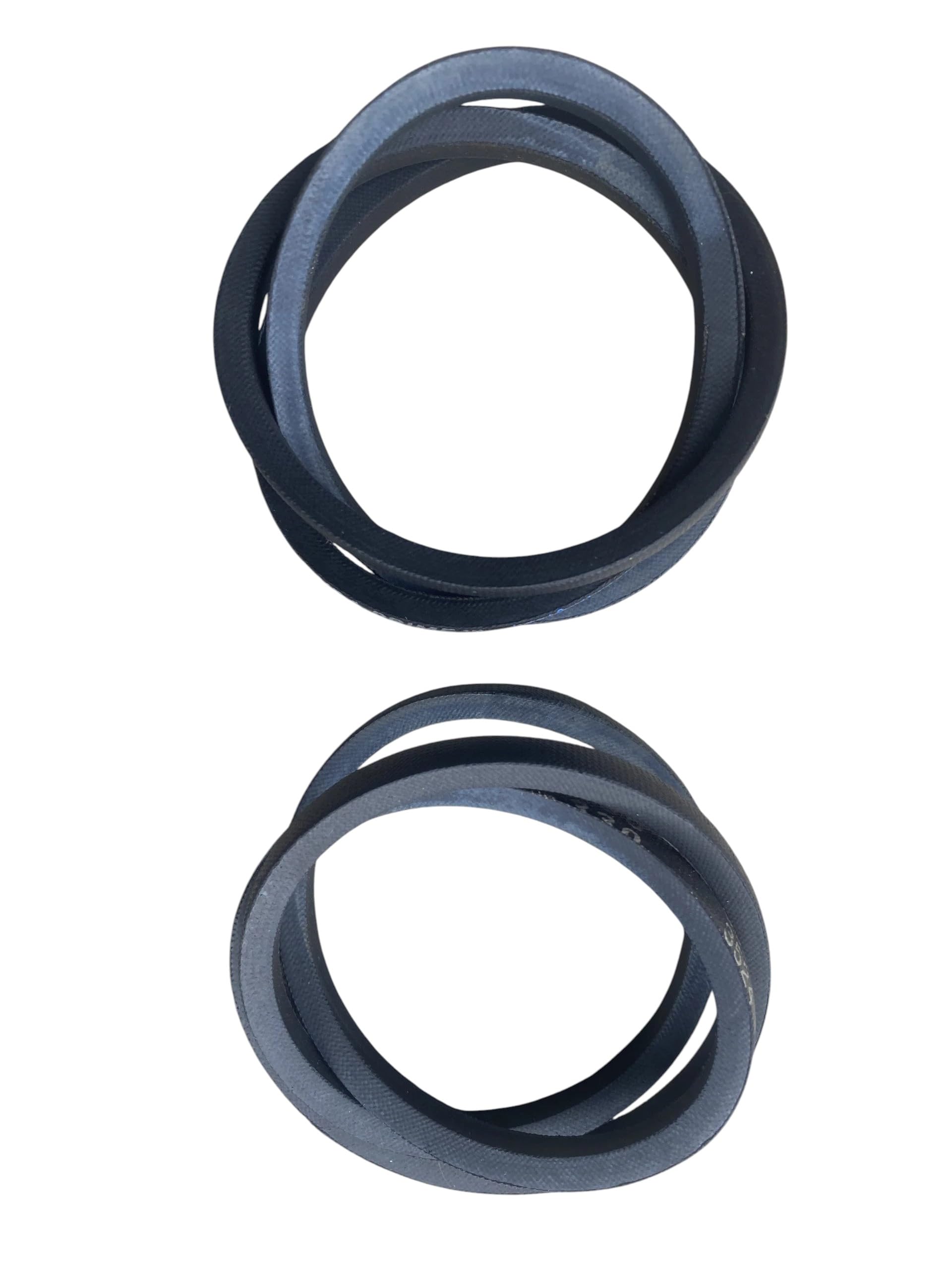

Image: Two replacement V-belts, similar to those used in the Mastercraft 12-inch Floor Drill Press.
Vedlikehold
Regular maintenance of your drill press belts will ensure longevity and consistent performance:
- Regelmessig inspeksjon: Periodically open the belt cover and inspect the belts for signs of wear, cracking, fraying, or glazing.
- Renslighet: Keep the belts and pulleys free from dust, wood chips, and grease. A clean belt will have better grip and a longer lifespan.
- Riktig spenning: Ensure belts maintain proper tension. Over-tensioning can cause premature wear on belts and motor bearings, while under-tensioning can lead to slipping and loss of power.
- Lagring: Store spare belts in a cool, dry place away from direct sunlight and chemicals to prevent degradation.
Feilsøking
Here are some common issues related to drill press belts and their potential solutions:
| Problem | Mulig årsak | Løsning |
|---|---|---|
| Belter glir | Insufficient tension, worn belts, oily pulleys | Adjust belt tension, replace worn belts, clean pulleys |
| Excessive noise (squealing) | Loose belts, misaligned pulleys, worn belts | Adjust belt tension, check pulley alignment, replace worn belts |
| Belts breaking prematurely | Over-tensioning, incorrect belt size, pulley damage, foreign objects | Check tension, ensure correct belt size, inspect pulleys for damage, remove obstructions |
| Loss of power during drilling | Belts slipping, worn belts | Adjust belt tension, replace worn belts |
Spesifikasjoner
- Merke: Generisk
- Materiale: Gummi
- Produktdimensjoner: 6 cm L x 0.25 cm B
- Beltestil: Rundt belte
- Kompatible enheter: Mastercraft 12-inch Floor Drill Press, Model 55-5919-6, Serial No. WO25351
- Inkluderte komponenter: 2 Replacement Belts
- Varevekt: 2 unser
- Farge: Svart
Garanti og støtte
For warranty information and customer support regarding this replacement belt set, please refer to the documentation provided by your seller or contact the manufacturer, BeltMaster, directly. Keep your purchase receipt as proof of purchase.
